Suitable for VW 1.9L TDI PD90 PD100 PD115 50.6mm Connecting Rods Bielas
Suitable for VW 1.9L TDI PD90 PD100 PD115 50.6mm Connecting Rods Bielas
- * Concurrerende prijs
- * Sneller verzenden
- * Staat: 100% nieuw!
- * Garantie: 1 jaar garantie op eventuele fabricagefouten
- * Accessoires: je ontvangt precies zoals op de afbeelding hierboven!
Product description

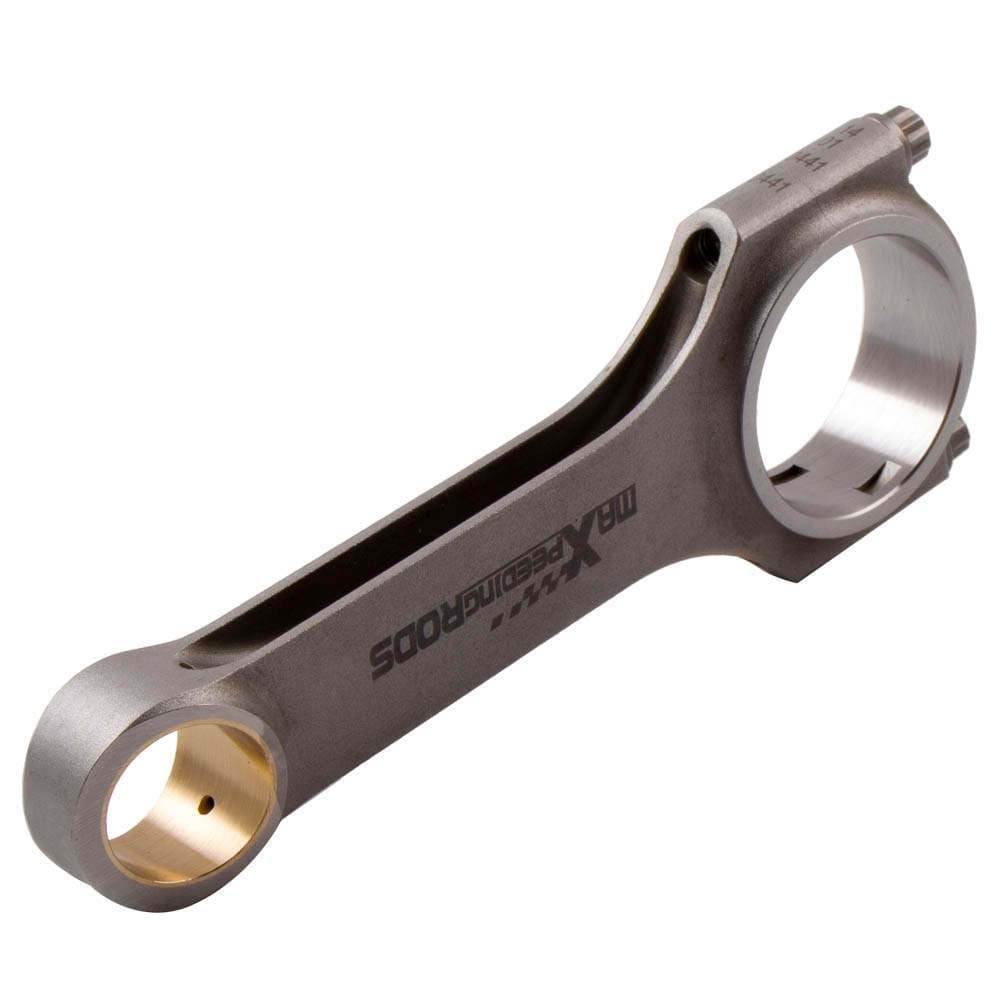

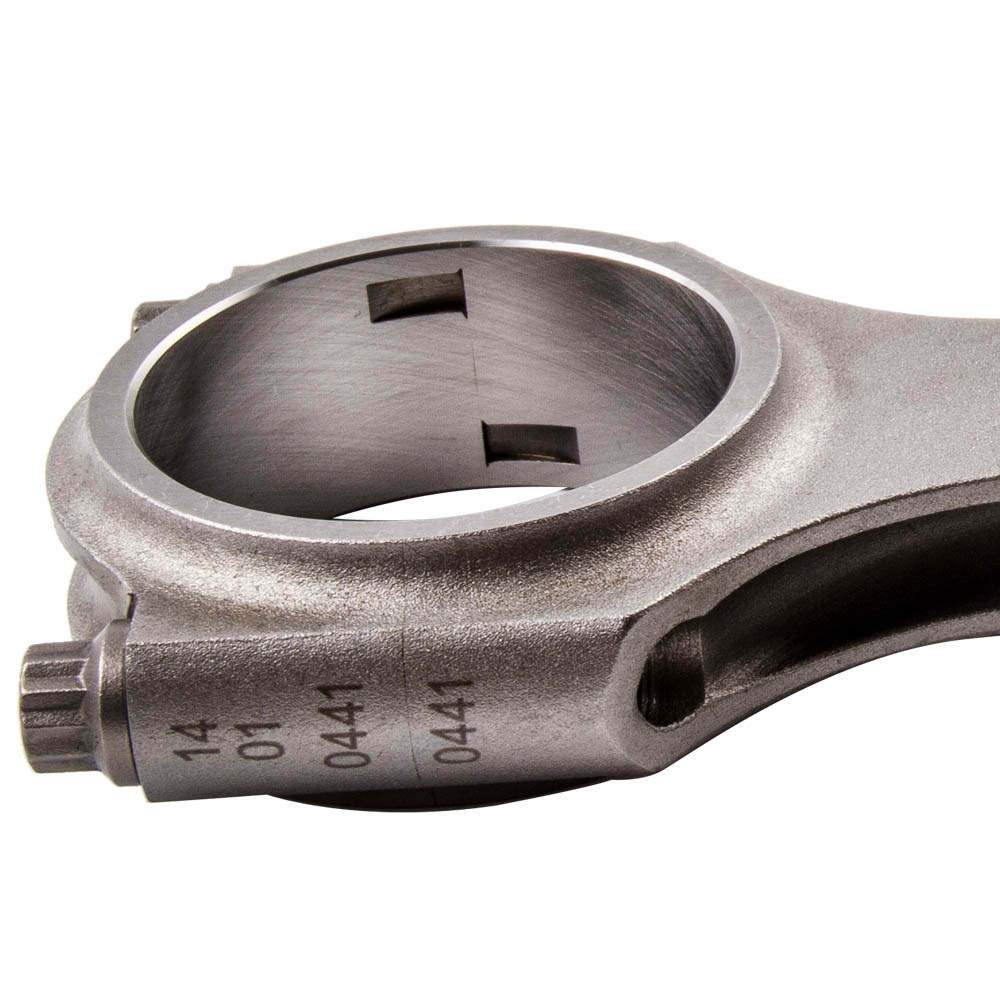

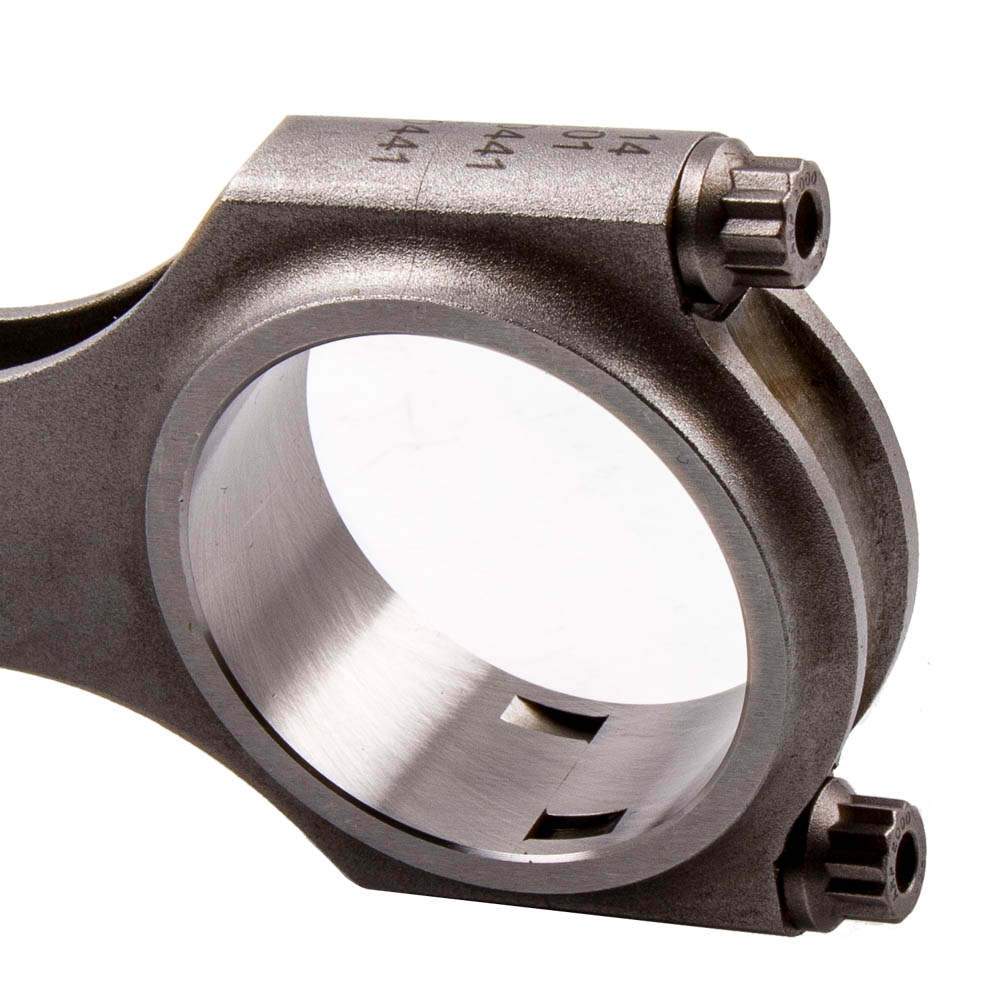

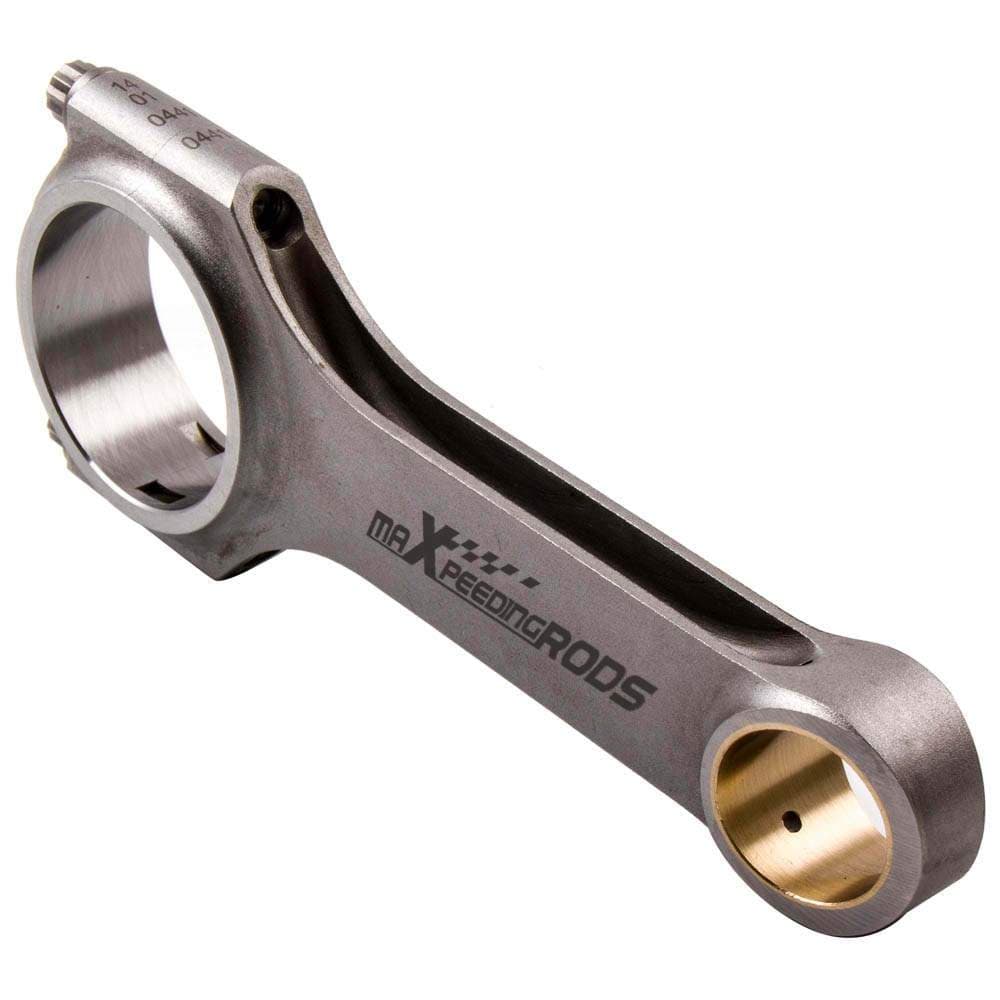

This set of 4 H-beam steel connecting rods (including ARP 2000 bolts) is intended for VW/Audi/Seat/Skoda 1.9L TDI PD90/PD100/PD115 engines.
Suitable for:
- VW / Audi / Seat / Skoda TDI 1.9L PD90 PD100 PD115
Specifications
- Connecting rod length: 144 mm / 5.6693 in.
- Crankshaft connecting rod eye: 50.6 mm / 1.9921 in.
- Piston pin: 26 mm / 1.0236 in. (tapered)
- Bottom width: 24.9 mm / 0.9803 in.
- Top width: 24.9 mm / 0.9803 in.
- Bolt type: ARP 2000 3/8" bolts

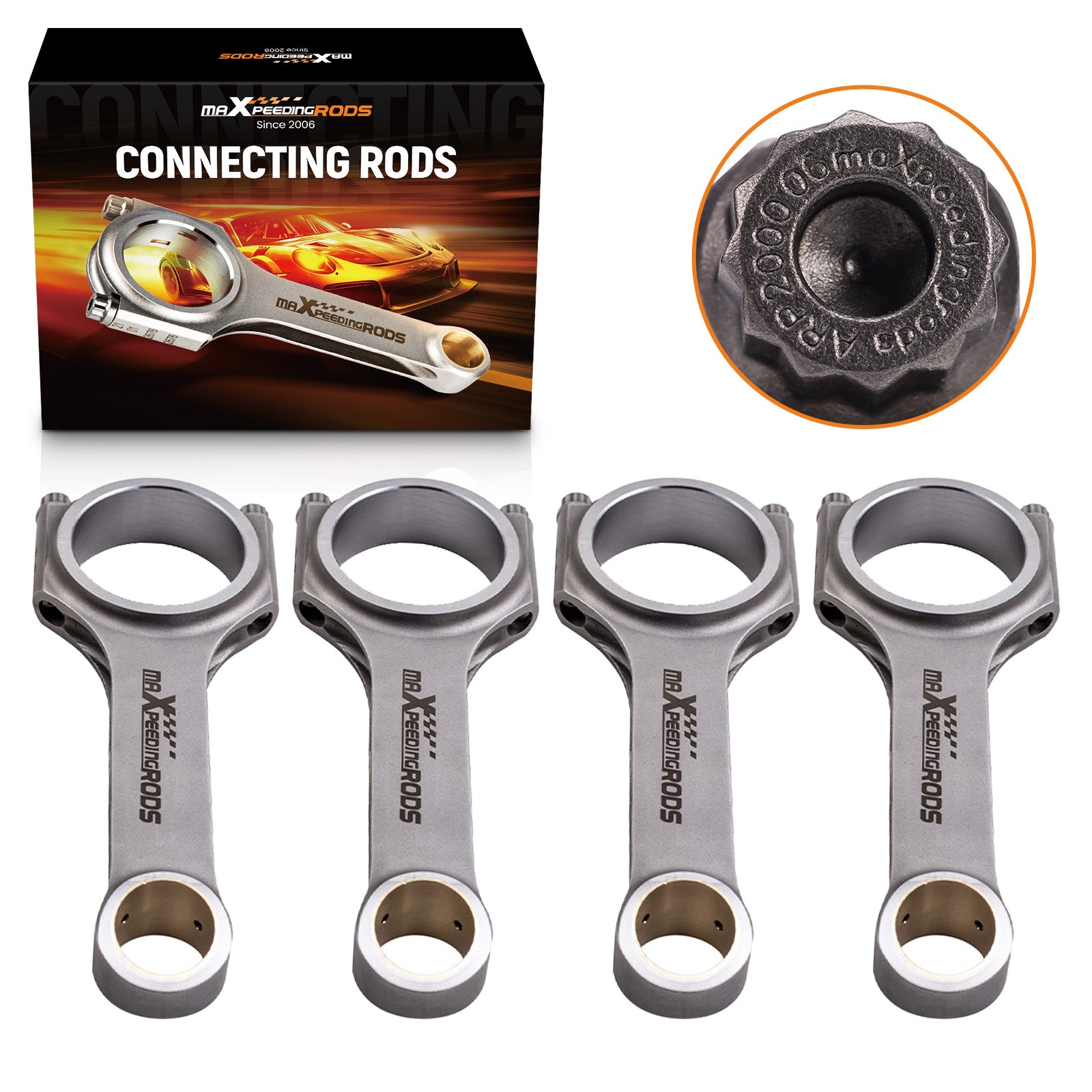

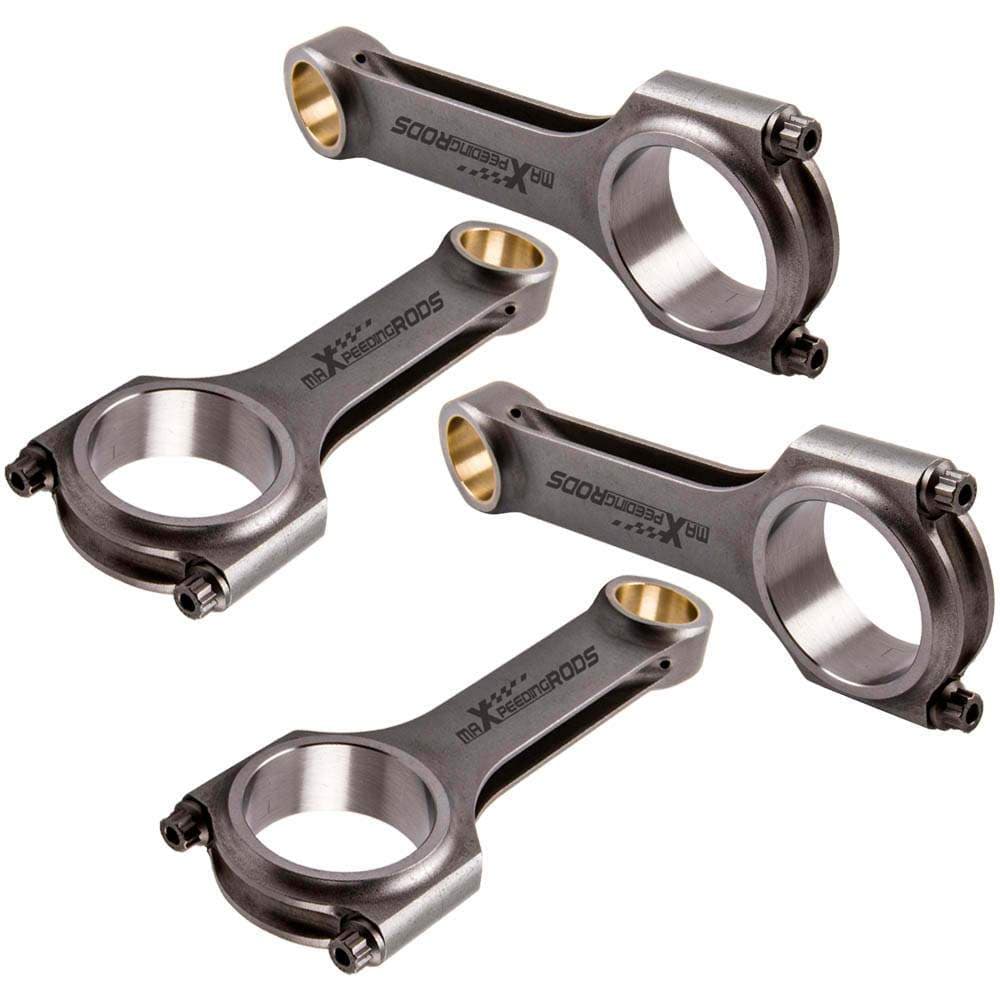

- Quantity: 4x H-beam steel connecting rods, 1x set of ARP 2000 3/8" bolts
- Material: Forged 4340 EN24 (40CrNiMo) chrome-molybdenum steel
- Weight tolerance: ± 1 gram
- Piston pin bore: ± 4/1000 mm
- Power: 600hp-800hp per set
- Fastener strength: 220,000 / 230,000 psi
- Torque: 48ft ≈ 65 Nm
- Maximum RPM: 9000 rpm
Features
- New, 100% tested and balanced
- TUV certified
- Multiple heat treatments
- With bronze bushings for the floating piston pins
- 100% inspected with X-rays, ultrasonic waves and Magnaflux
- Designed and manufactured using state-of-the-art CNC machines
- All large and small connecting rod eyes are machined on a SUNNEN honing machine
- Shot peened for a long service life, even under load
- Precise alignment of the base bore for the connecting rod bearing to prevent shifting
Please note
Upgrade to ARP L19 bolts possible, suitable up to 220,000/230,000 or 260,000/270,000 psi (from 800hp, additional cost 10 EUR/piece for the upgrade to ARP L19 bolts). Professional installation is highly recommended, no manual included.
Check fitment
Always check the original OEM part number, year of manufacture, engine code and the version of your vehicle before ordering, as there may be differences per version. Are you unsure whether this part fits your vehicle? Please feel free to contact us before purchase.
