Suitable for Peugeot 207 RC 2006-2010 1.6T Titanizing 4340 EN24 H Beam Connecting Rods
Suitable for Peugeot 207 RC 2006-2010 1.6T Titanizing 4340 EN24 H Beam Connecting Rods
- * Concurrerende prijs
- * Sneller verzenden
- * Staat: 100% nieuw!
- * Garantie: 1 jaar garantie op eventuele fabricagefouten
- * Accessoires: je ontvangt precies zoals op de afbeelding hierboven!
Product Description
Set of 4 H-beam connecting rods with ARP bolts for the Peugeot 207 RC/308 and MINI Cooper S 1.6T (EP6DTS/EP6CDTS engines).
Suitable for:
- Peugeot 207 RC, engine THP175 (EP6DTS, later EP6CDTS), 2006-2010
- MINI Cooper S, engine THP175 (EP6DTS, later EP6CDTS), 2007-2010
- MINI JCW (154 kW version of the engine, only used by BMW), 2007-2011
- Peugeot 308, from 2008
- Citroën DS3 Racing (EP6CDTS, 202 hp), from 2010
Specifications
- Piston pin bore tolerance: +/- 4/1000 mm
- Fastener strength: 220,000 / 230,000 PSI
- End: Tapered pin end, also fits OEM pistons
- Maximum torque: 247 N·m (182 lb·ft) at 1600 rpm, flat to 5000 rpm
- Output power: 175 HP (129 kW; 173 hp) at 5500 rpm

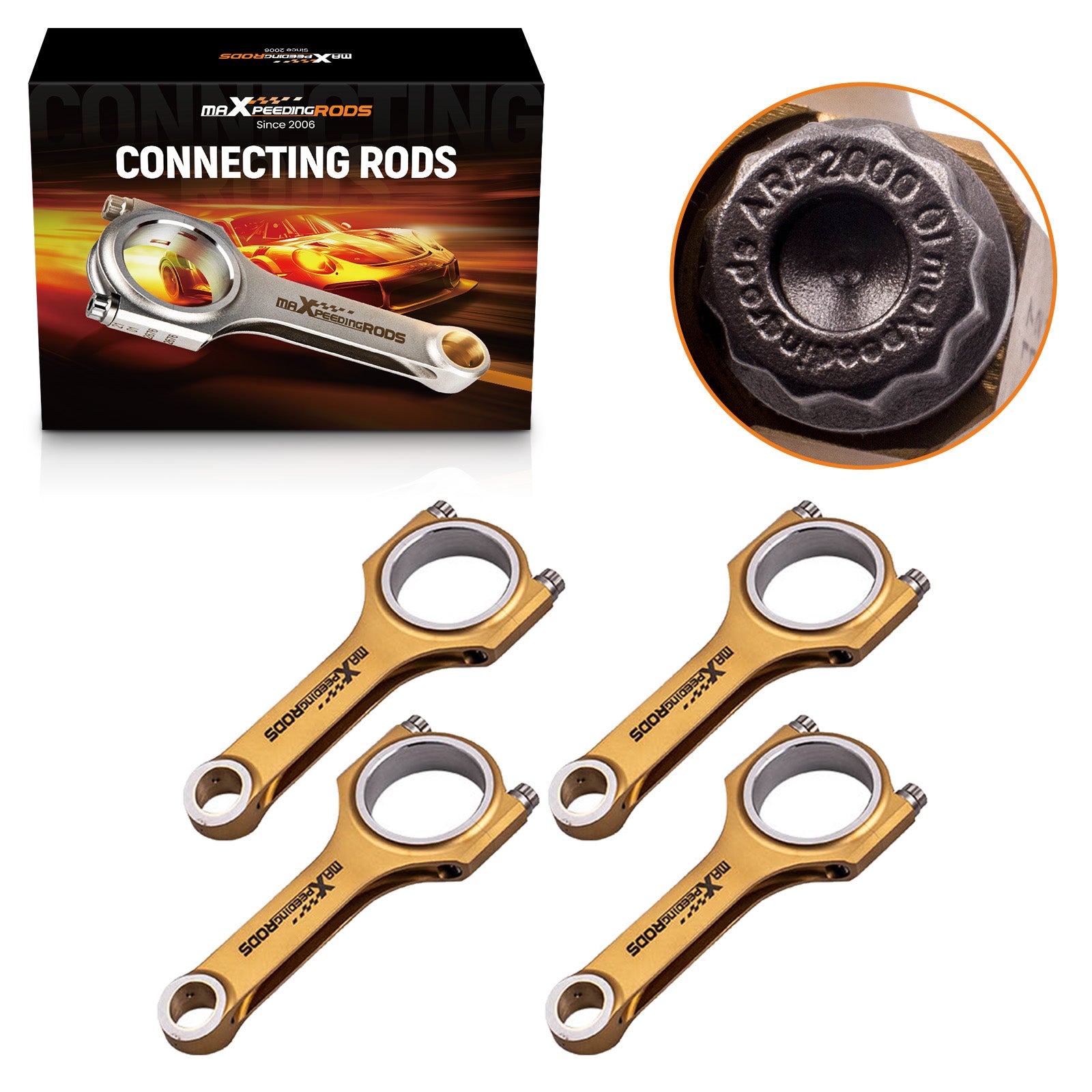

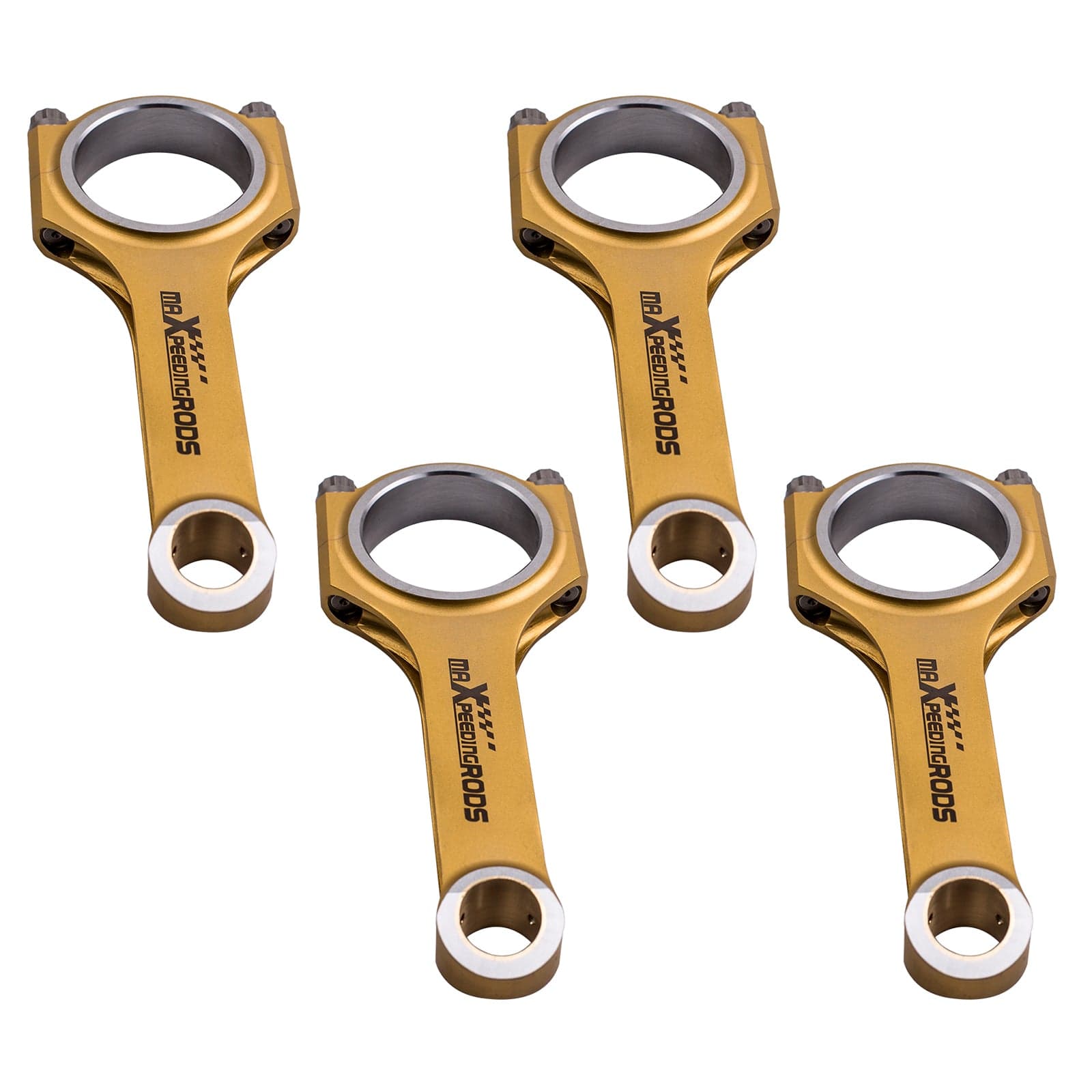

- Quantity: 4 pieces, one set as shown in the image

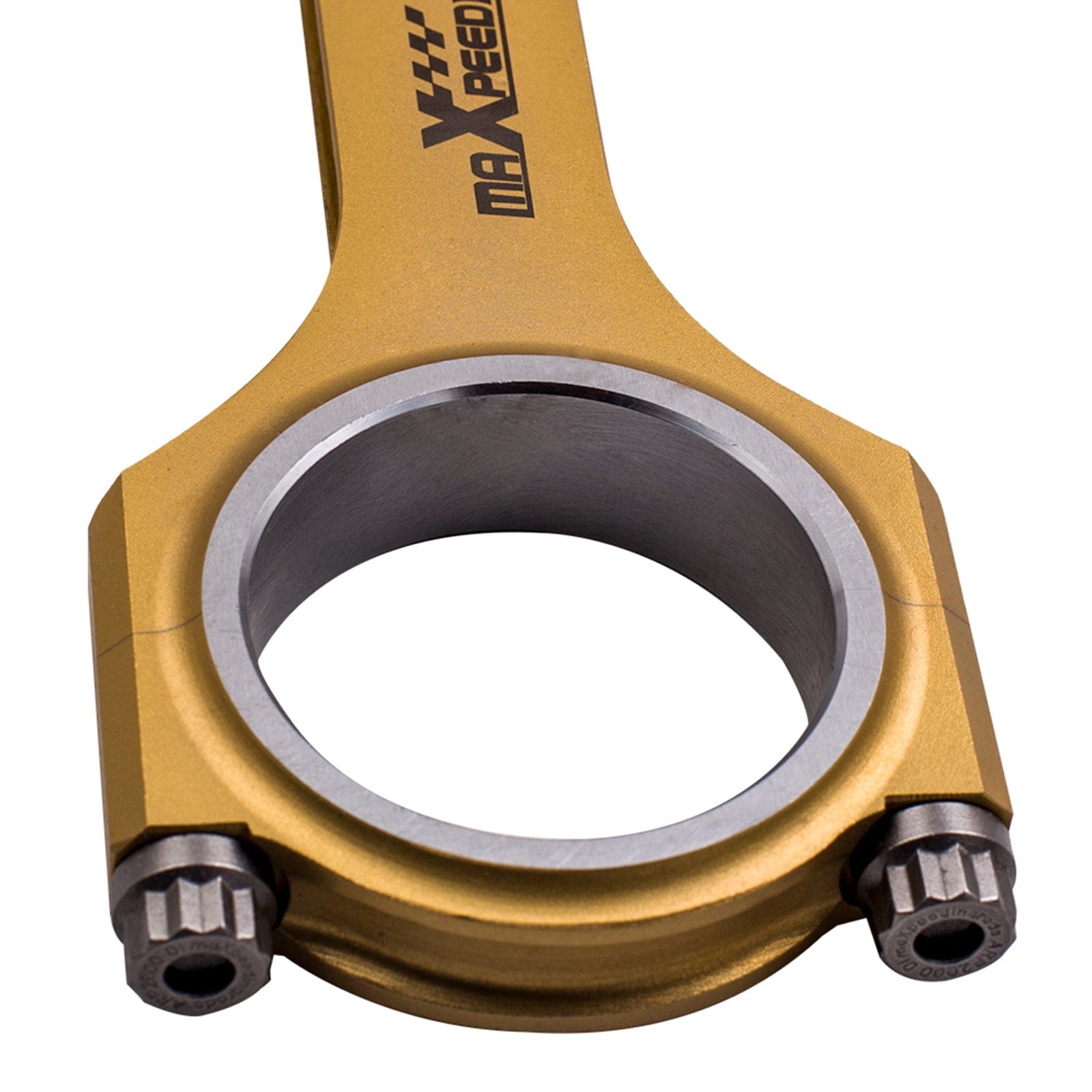

- Bolts: Includes original ARP 2000 3/8" bolts (upgrade to ARP L19 bolts at an additional cost)
- Material: Titanized 4340 EN24 aerospace-grade chrome-molybdenum steel for racing use
- Weight tolerance: Balanced to +/- 1 gram within the set
- Center-to-center length: 138.5 mm
- Big end diameter: 48 mm
- Small end diameter: 20 mm (tapered)
- Big end width: 20.8 mm
- Small end width: 20.8 mm
- Warranty: 1 year on manufacturing defects
Features
- 100% tested and balanced
- Multiple heat treatments

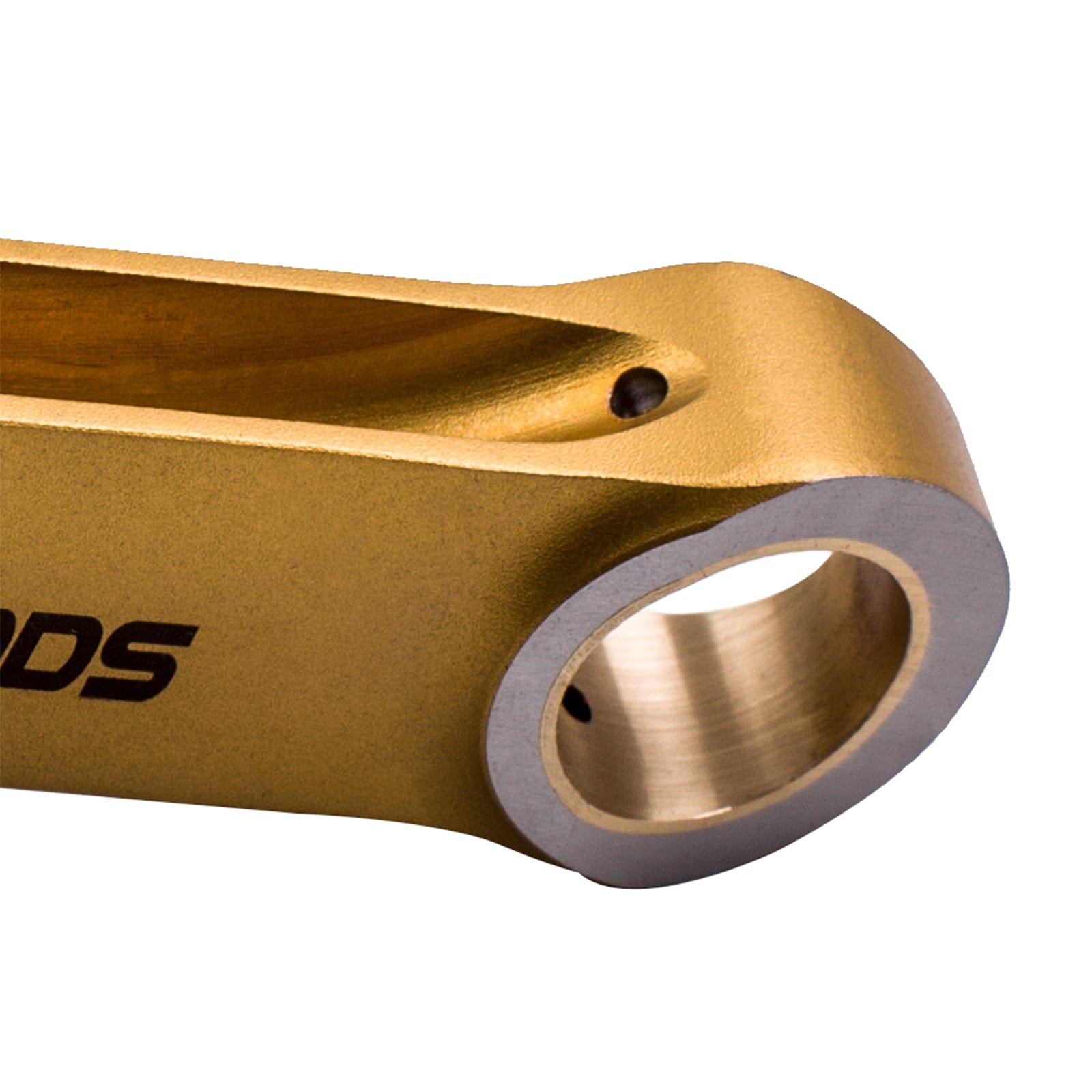

- With bronze bushings for floating pistons
- 100% inspected with X-ray, ultrasound, and Magnaflux
- Designed and manufactured with CNC machines
- Big and small ends machined on a SUNNEN honing machine
- Shot-peened for a long lifespan, even under heavy load
- Precise alignment of the pin bore to prevent displacement
Check fitment
Always check the original OEM part number, year of manufacture, engine code, and the version of your vehicle before ordering, as differences may exist per version. If you are unsure whether this part fits your vehicle, please feel free to contact us before purchasing.
