Product Description

The maXpeedingrods T6 coilovers, with adjustable rebound damping, separate height adjustment without changing spring preload, optimized damper oil, upgraded racing springs, adjustable camber plate (on certain vehicles), and careful finishing, offer more options to optimize your suspension's performance and give your vehicle a more impressive look. Furthermore, all our coilovers are assembled in a dust-free factory, guaranteeing quality and long service life.

Suitable for:

• Mazda RX-8, 2003.04-2008.02, JPN SE3P Base Model, Type E, Type S
• Mazda RX-8, 2004-2011, SE3P

Specifications

• Height adjustable: Yes, lowering from 25 to 75 mm depending on the vehicle model
• Damping adjustable: 24 positions rebound damping
• Spring stiffness front: 10 kg/mm (560 lb/in)
• Spring stiffness rear: 6 kg/mm (336 lb/in)
• Inner spring diameter front: 70.5 mm
• Inner spring diameter rear: 70.5 mm
• Spring length front: 180 mm
• Spring length rear: 160 mm

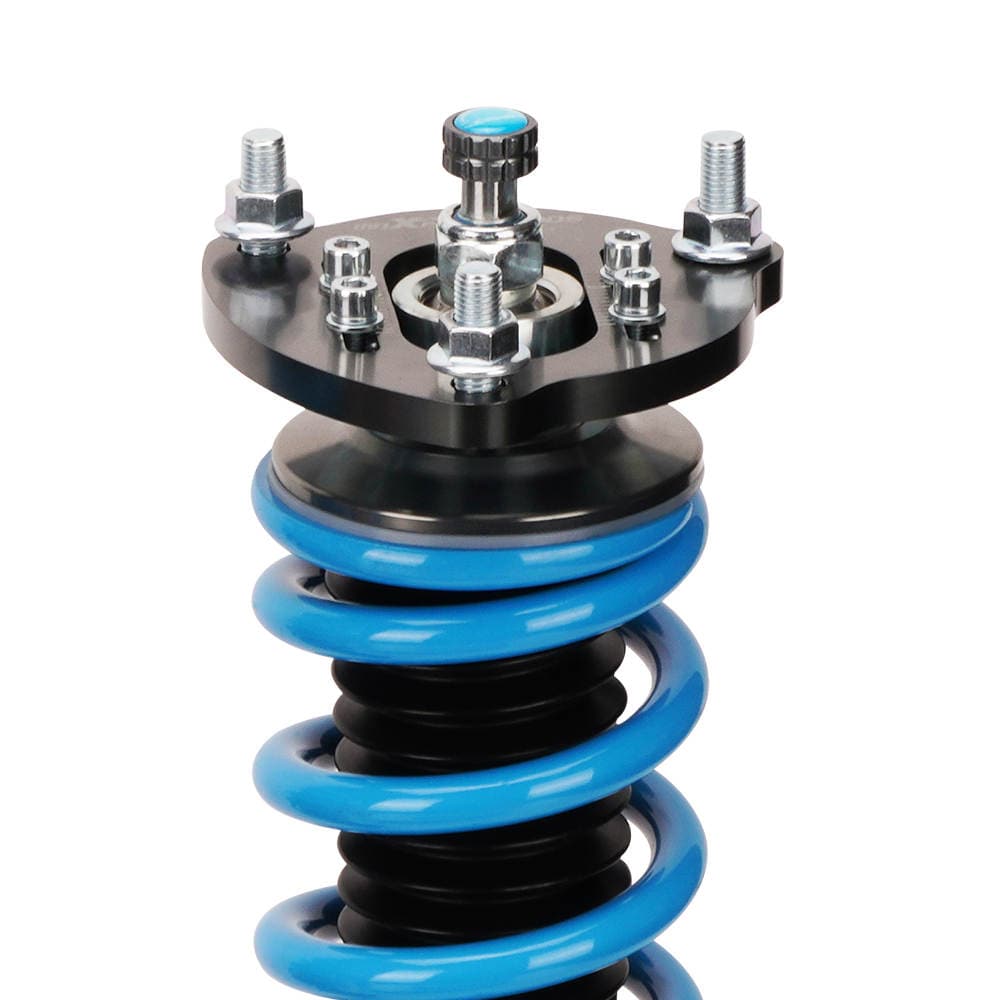

• Top mount front: Ball bearing
• Top mount rear: Standard rubber
• Camber adjustable: Not available
• Recommended preload: 7 to 10 mm
• Shock absorber type: Twin-tube

Scope of delivery

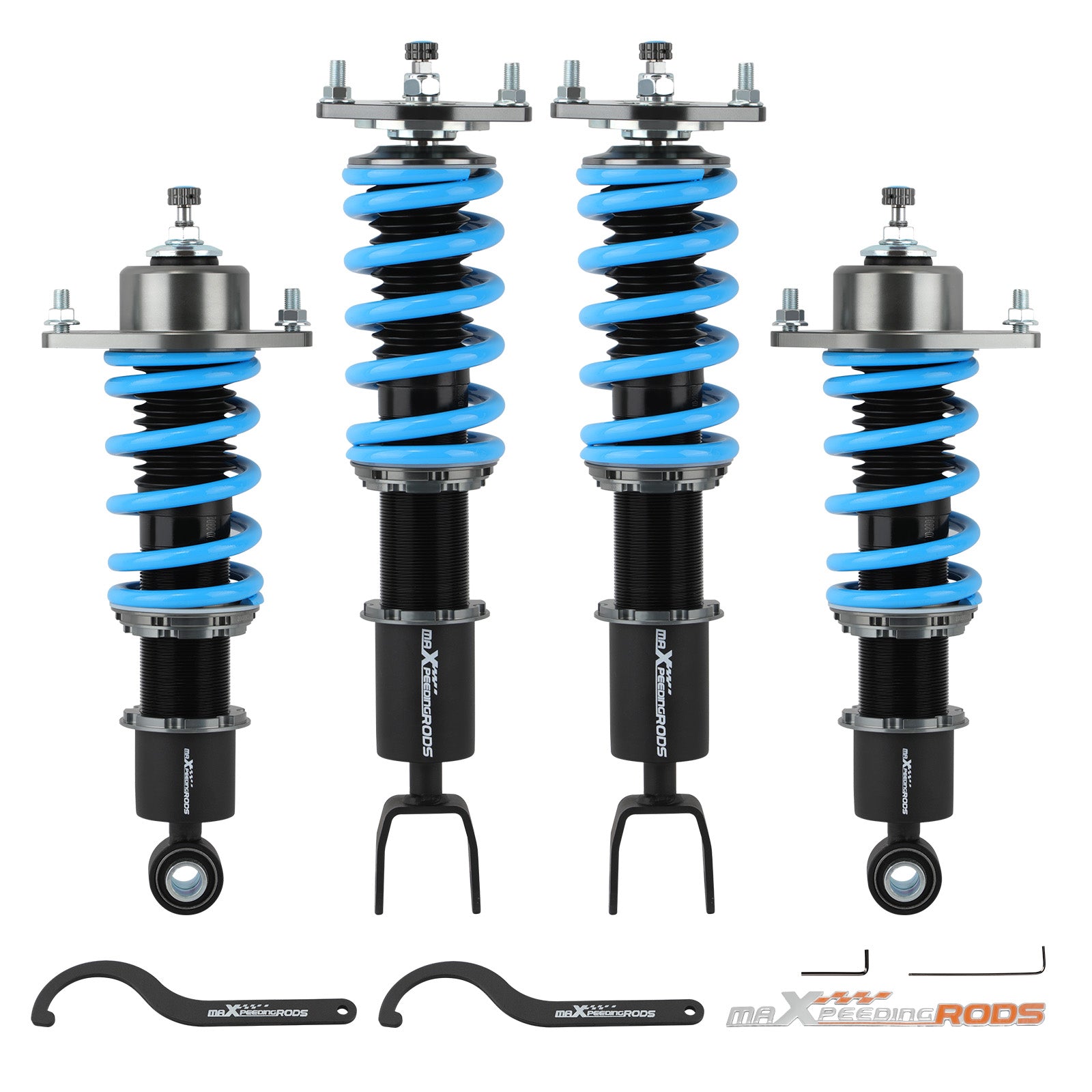

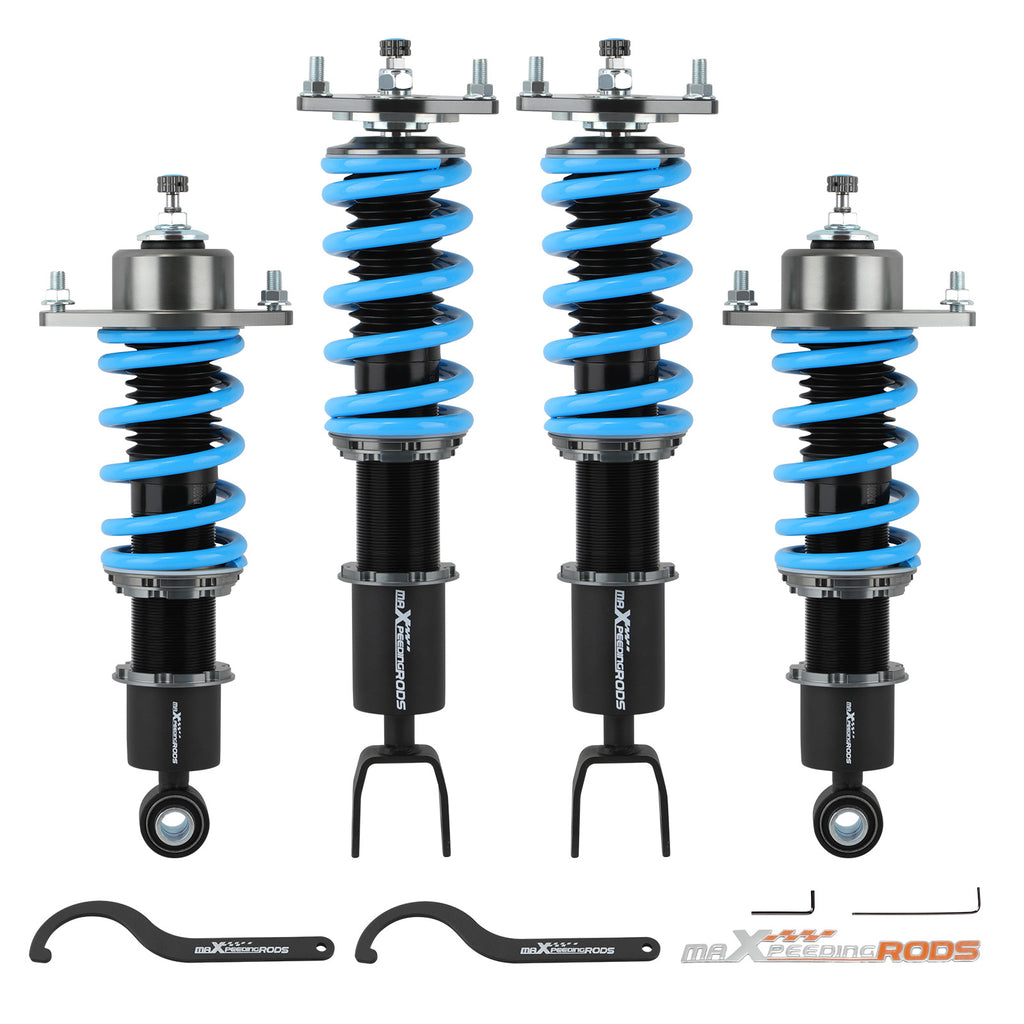

2x front coilovers, 2x rear coilovers, 2x Allen keys, 2x C-wrenches, 1x sticker.

Features

• Lowering from 25 to 75 mm for a lower center of gravity and a more aggressive appearance
• Adjustable spring preload to reduce vibrations
• 24-way adjustable damper: soft for comfort, 16 clicks for a more dynamic driving style, stiff for occasional track driving
• CNC machined aluminum top mounts and brackets: excellent resistance and weight saving
• Bottom brackets made of robust steel: very durable and reliable
• Upgraded spring: over 600,000 continuous tests guarantee high tensile strength
• All inserts supplied with long rubber boots for better protection and durability of the damper
• Twin-tube structure: excellent handling and control in most driving conditions
• Anti-corrosion finish: anodized aluminum and powder-coated carbon steel
• Each part tested on professional machines before assembly and tested by professional drivers on the road
• Cleanroom assembly for a high level of precision and reliability
• Improved damper oil for greater stability and damping smoothness over a wide temperature range

Check fitment

All adjustments must be carried out by authorized mechanics and in accordance with local regulations. Ensure all parts are tightened to the correct torque (refer to your vehicle's service manual) before and after installation. Loose nuts, bolts, or fasteners can cause noise; check and re-tighten them before larger problems occur. The use of an impact wrench during installation is not permitted, as this may damage or loosen the product. Check the clearance between the tires and the suspension (minimum 4 mm, otherwise wheel spacers are required). Before ordering, always check the original OEM part number, year of manufacture, engine code, and version of your vehicle, as there may be differences depending on the version. If you are unsure whether this part fits your vehicle, please feel free to contact us before purchase.
