Product description

Adjustable coilover kit (damping and height adjustable) for the Toyota Celica, based on the MXR-B2 coilovers with an additional 24-position adjustable rebound damping for street use.

Suitable for:

• Toyota Celica GT/GTS FWD 1989.10-1993.11 (ST18#)
• Toyota Celica FWD 1993.11-1999.08 (ST20#)

Specifications

• Top mount front: pillow ball with camber plate
• Top mount rear: pillow ball
• Damping adjustable: yes, 24 positions rebound damping
• Camber adjustable: yes, front only
• Height adjustable: yes, lowering 25-75 mm depending on model
• Spring rate front: 10 kg/mm (556 lbs/in)
• Spring rate rear: 6 kg/mm (336 lbs/in)
• Inner diameter spring front/rear: 70.5 mm
• Spring length front: 180 mm
• Spring length rear: 230 mm
• Recommended preload: 7-10 mm
• Color: gold-colored housing with black springs

Scope of delivery

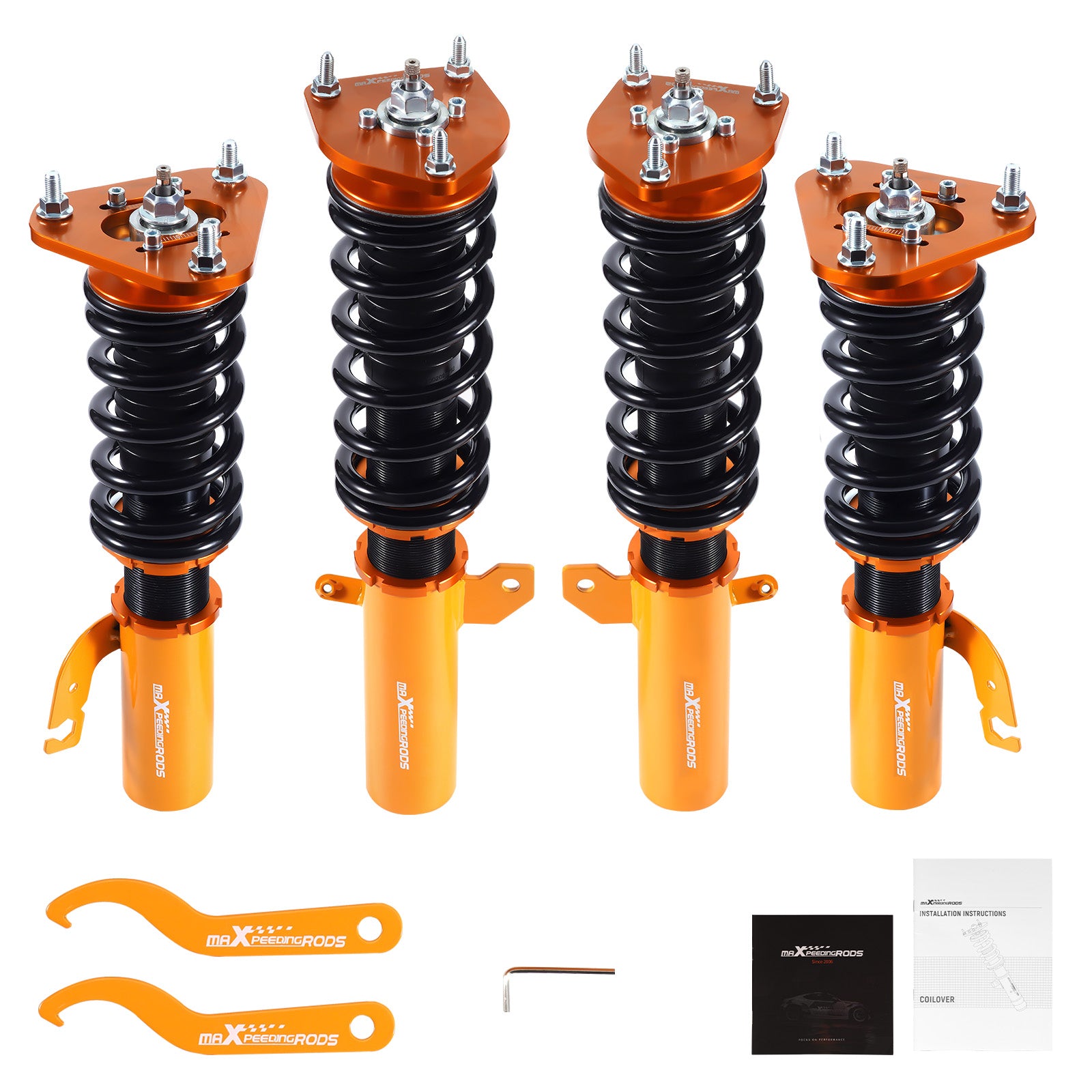

2x front coilovers, 2x rear coilovers, 2x C-wrenches, 2x hex keys

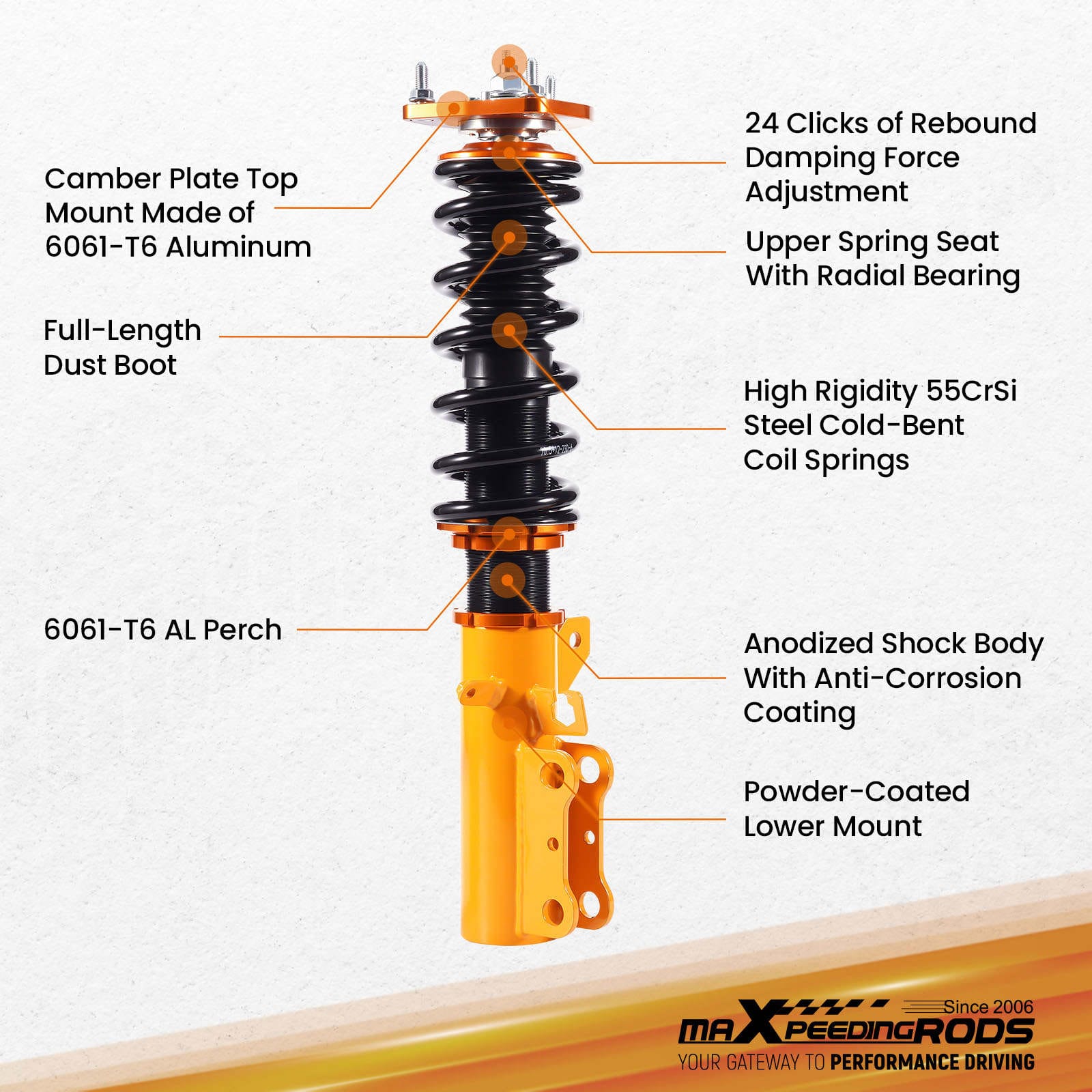

Features

• Lowering of 25-75 mm (depending on model) for a lower center of gravity and more aggressive stance
• 24-position adjustable damping for comfortable or sporty driving behavior
• Adjustable spring preload
• Adjustable camber plate and pillow-ball top mount (on some models) for sharper steering response

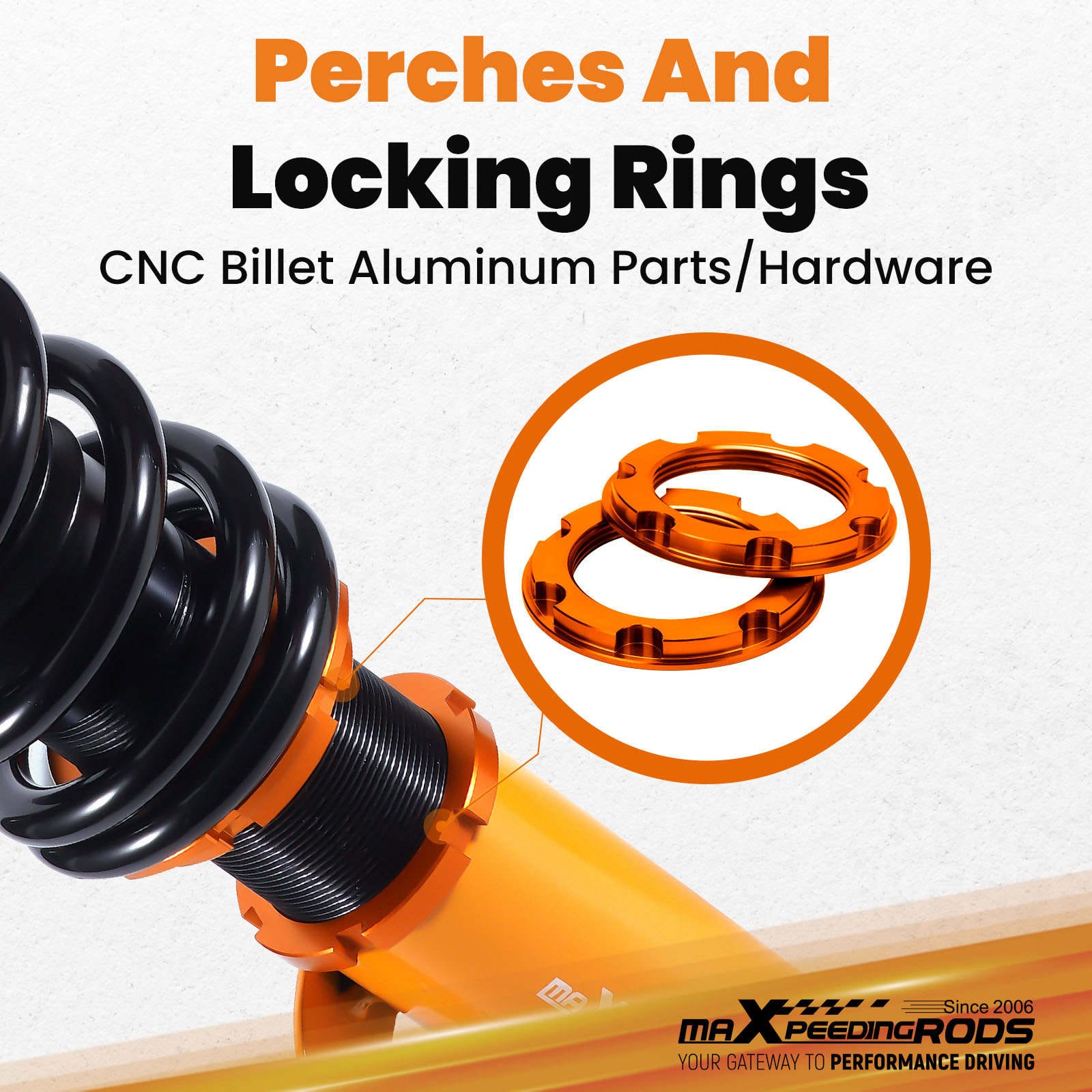

• CNC-machined aluminum top mounts and locking nuts

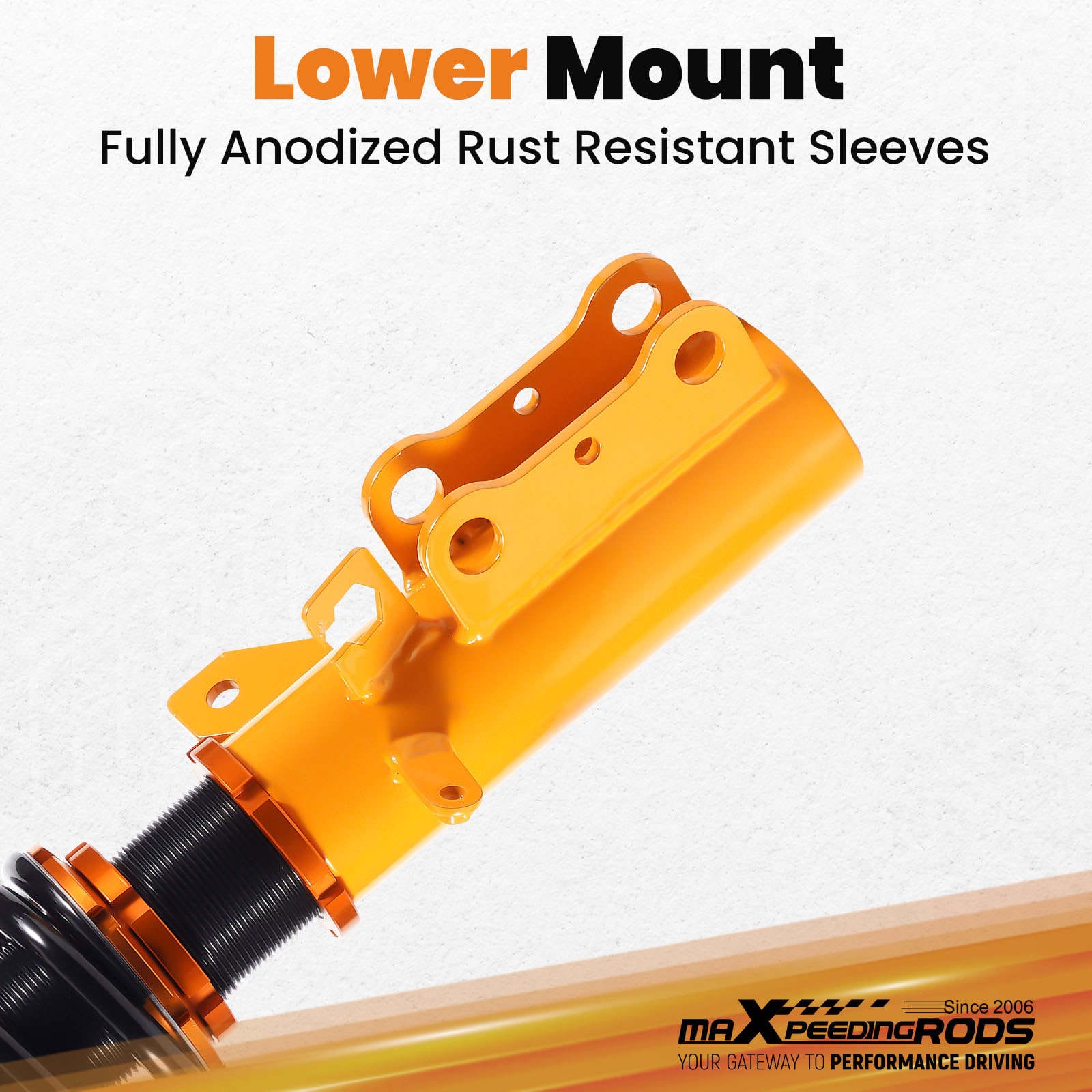

• Heavy-duty steel lower mounts
• High-quality spring, tested for 600,000 load cycles
• Long rubber boots to protect the damper
• Twin-tube construction for good control in most driving conditions
• Corrosion-resistant finish: anodized aluminum and powder-coated steel

Please note: this coilover kit lowers the car compared to the original ride height. Installation must be done by a qualified mechanic, with correct tightening torques.

Check fitment

Before ordering, always check the original OEM part number, year of manufacture, engine code and the version of your vehicle, as there may be differences per version. Are you unsure if this part fits your vehicle? Please feel free to contact us before purchasing.
