Carb Carburetor 37 Pict-3 Carburetor for VW 1600cc Beetle Thing Karmann Ghia
Carb Carburetor 37 Pict-3 Carburetor for VW 1600cc Beetle Thing Karmann Ghia
- * Concurrerende prijs
- * Sneller verzenden
- * Staat: 100% nieuw!
- * Garantie: 1 jaar garantie op eventuele fabricagefouten
- * Accessoires: je ontvangt precies zoals op de afbeelding hierboven!
Product Description

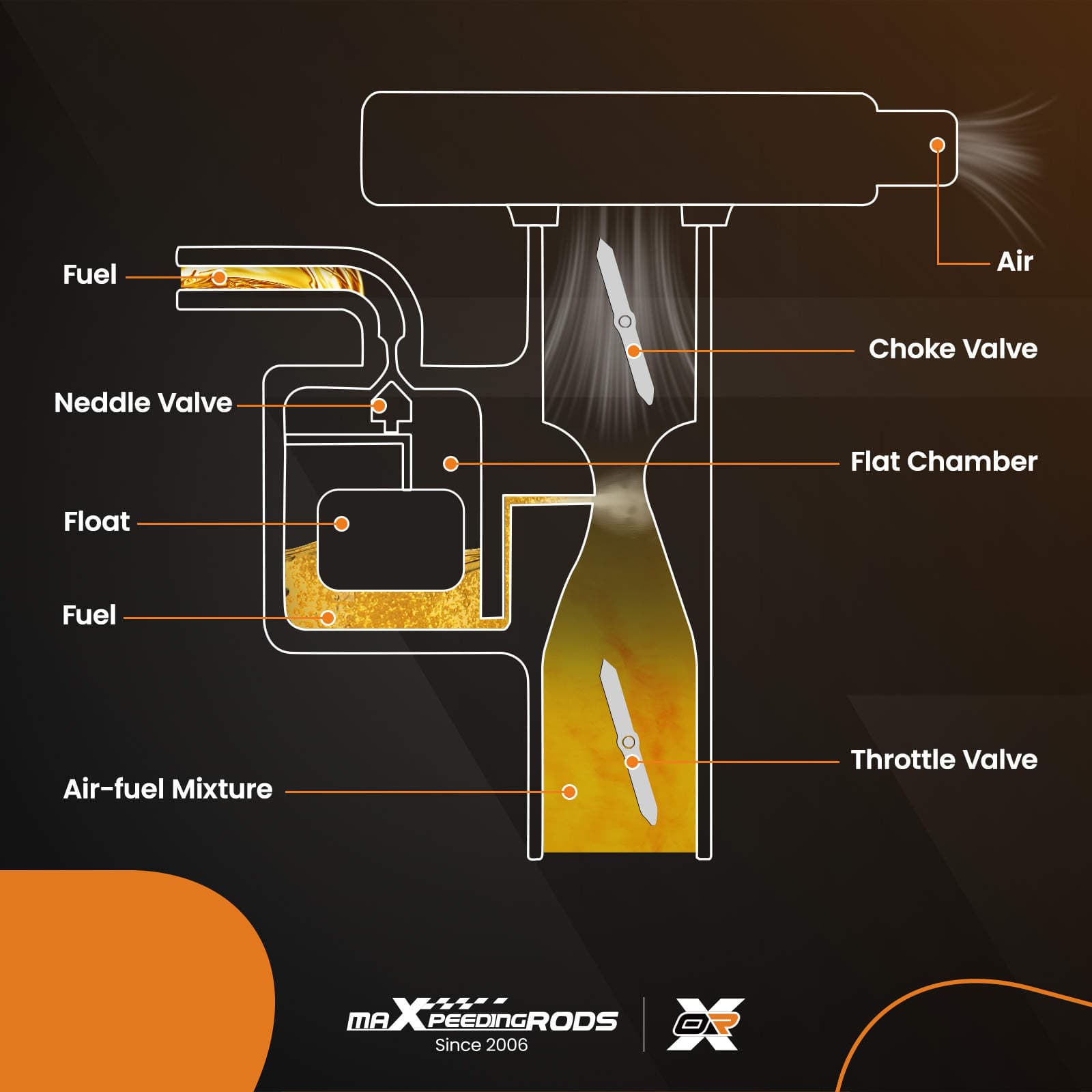

Carburetor 37 PICT-3 for mixing air and fuel in the correct ratio, suitable for air-cooled VW Type 1 engines of 1600 cc.
Suitable for:
- VW air-cooled Type 1 engines of 1600 cc
- Volkswagen Beetle 1971-1979
- Volkswagen Super Beetle 1971-1979
- Volkswagen Thing 1973-1974
- Volkswagen Karmann Ghia 1971-1974
- Volkswagen Squareback 1967-1973
- Volkswagen Transporter 1969-1972
Specifications
- OEM / part number: 98-1289-B, 113129031K, 37 Pict-3
- Mounting bolt spacing: 68 mm (center-to-center)
- Inlet mounting: 37 mm
- Choke air horn inner diameter: 47.3 mm
- Choke air horn outer diameter: 51.7 mm
- Venturi diameter: 28 mm
- Type: automatic choke
- Input voltage: 12 V
- Material: zinc alloy
- Packaging dimensions: 20 × 18 × 16 cm

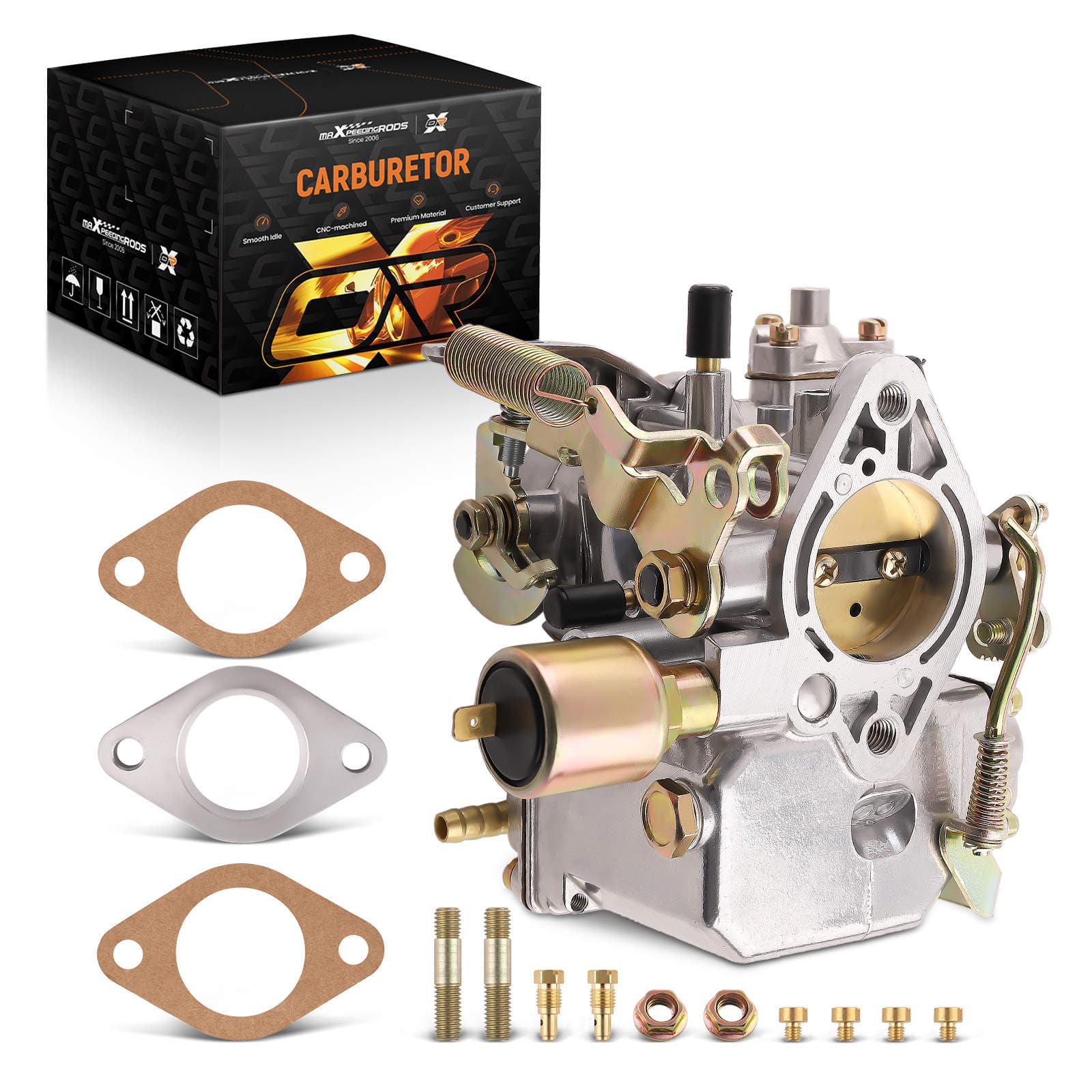

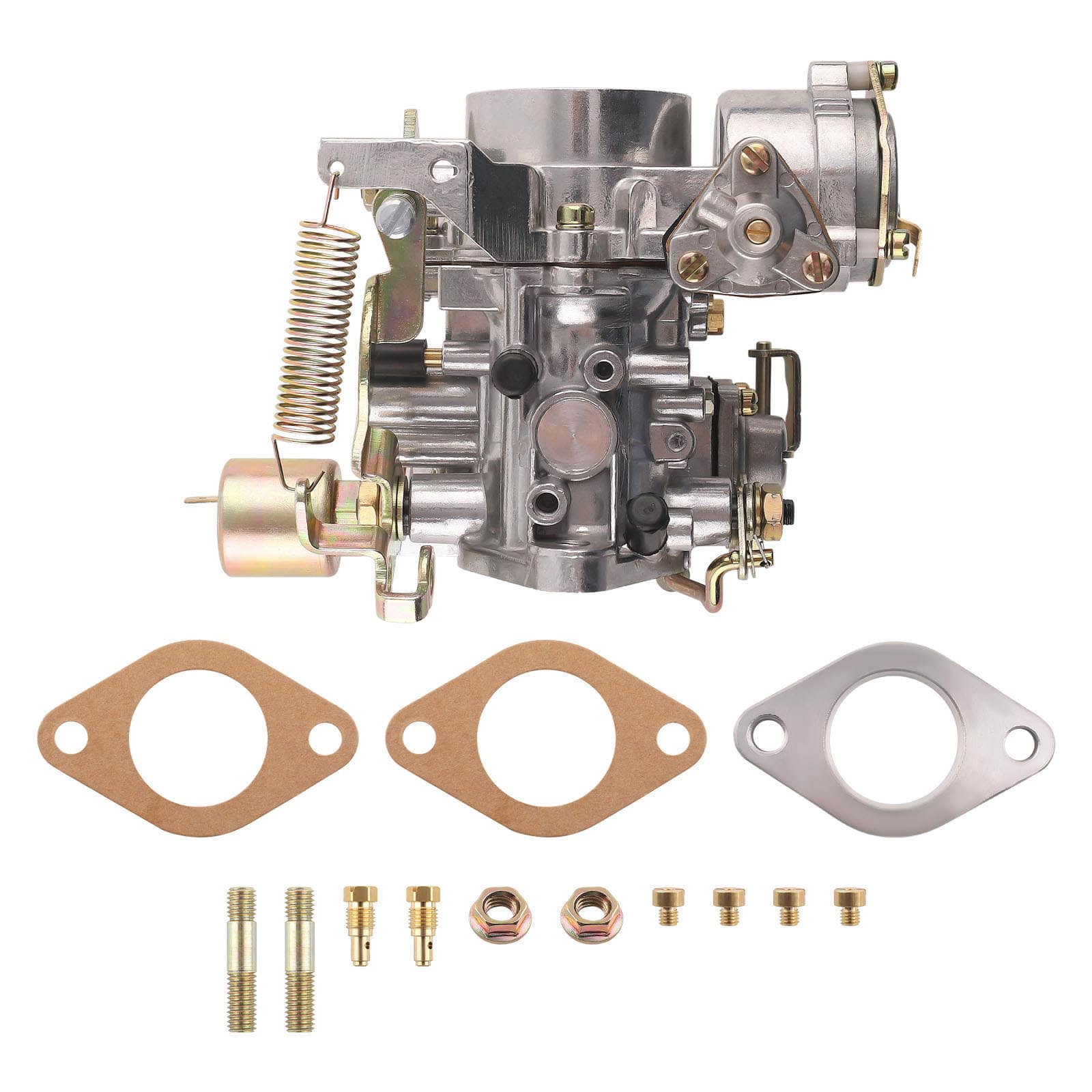

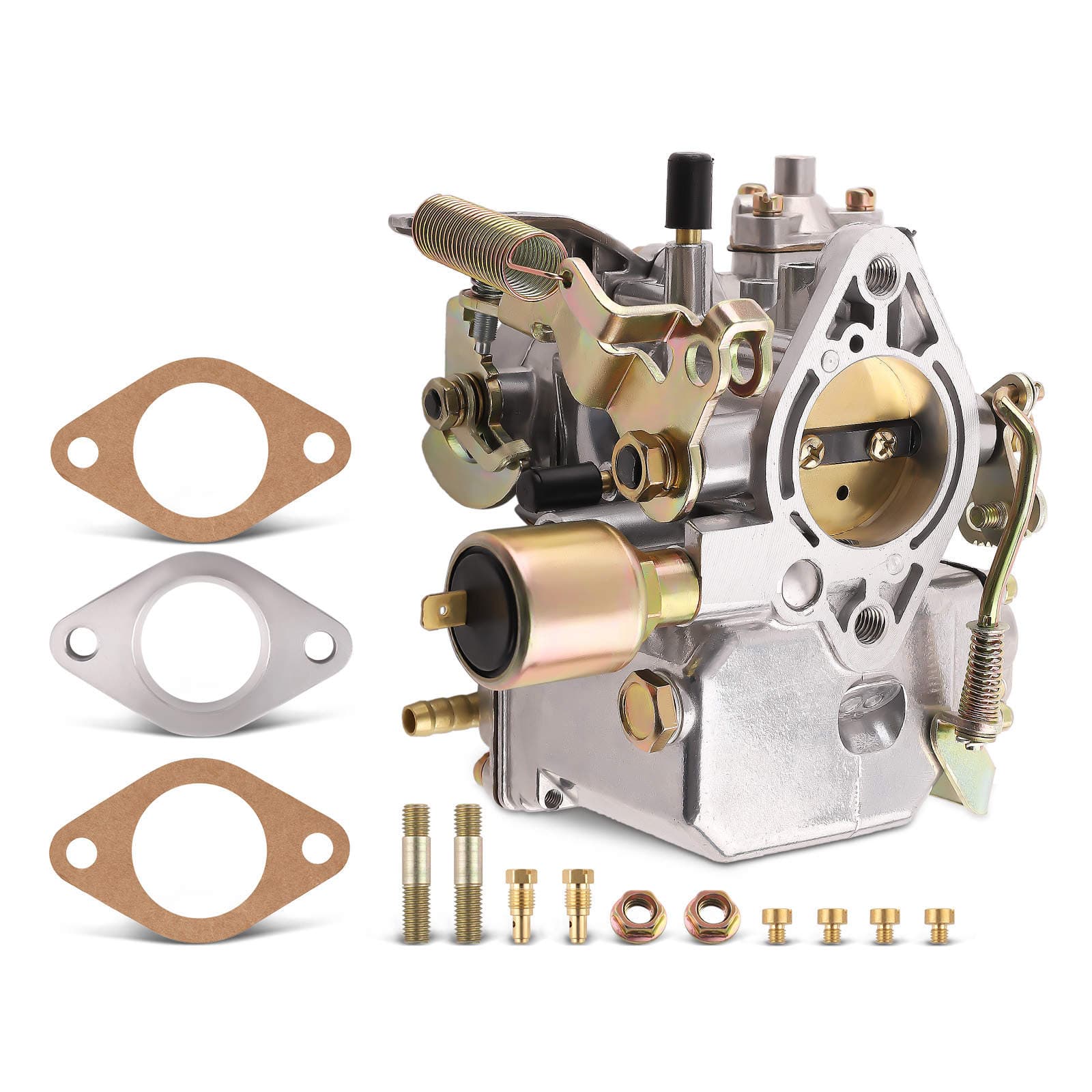

Scope of delivery
- 1x carburetor 37 PICT-3
- 1x gasket
- 2x jet screws
- 2x mounting bolts
- 2x screws
Features
- Manufactured from high-quality zinc alloy, more power at almost standard consumption
- Solves problems such as power loss, backfire, overheating, and difficult starting
- Low fuel consumption, quick start, and stable idle speed
- 100% tested for reliability and performance
Note
Please allow 1-2 mm measurement deviation due to manual measurement. Check the dimensions and confirm your old part number and engine to order the correct part. Before installation, clean the oil channels and air filters and use clean fuel. Professional installation is recommended (no manual included).
Check fitment
Always check the original OEM part number, year of manufacture, engine code, and vehicle version before ordering, as differences may exist per version. Unsure if this part fits your vehicle? Feel free to contact us before purchasing.
