Power Steering Rack suitable for Fiat Doblo 119 223 1.2L 1.4L 1.6L 1.9L 2001-2010
Power Steering Rack suitable for Fiat Doblo 119 223 1.2L 1.4L 1.6L 1.9L 2001-2010
- * Concurrerende prijs
- * Sneller verzenden
- * Staat: 100% nieuw!
- * Garantie: 1 jaar garantie op eventuele fabricagefouten
- * Accessoires: je ontvangt precies zoals op de afbeelding hierboven!
Product Description

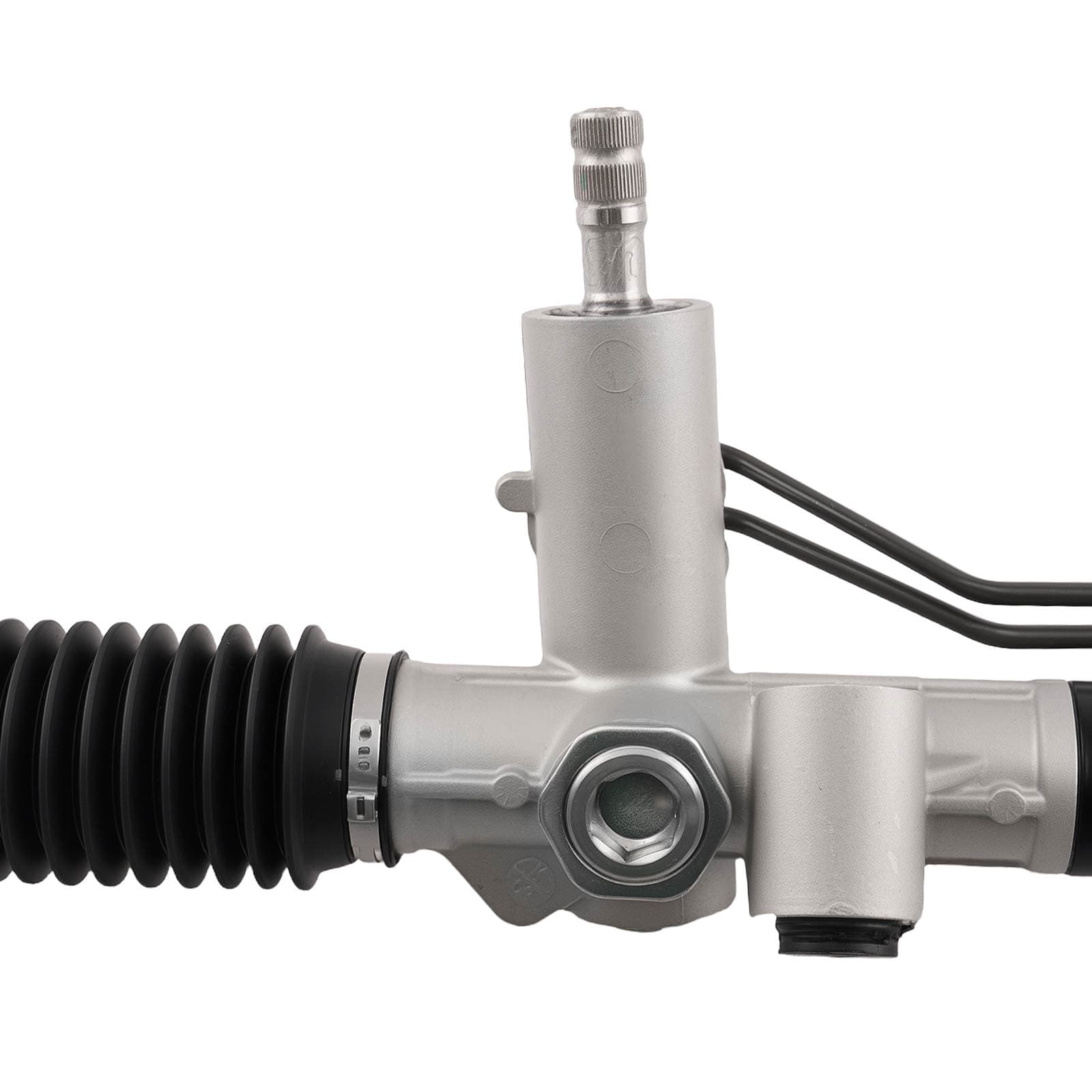

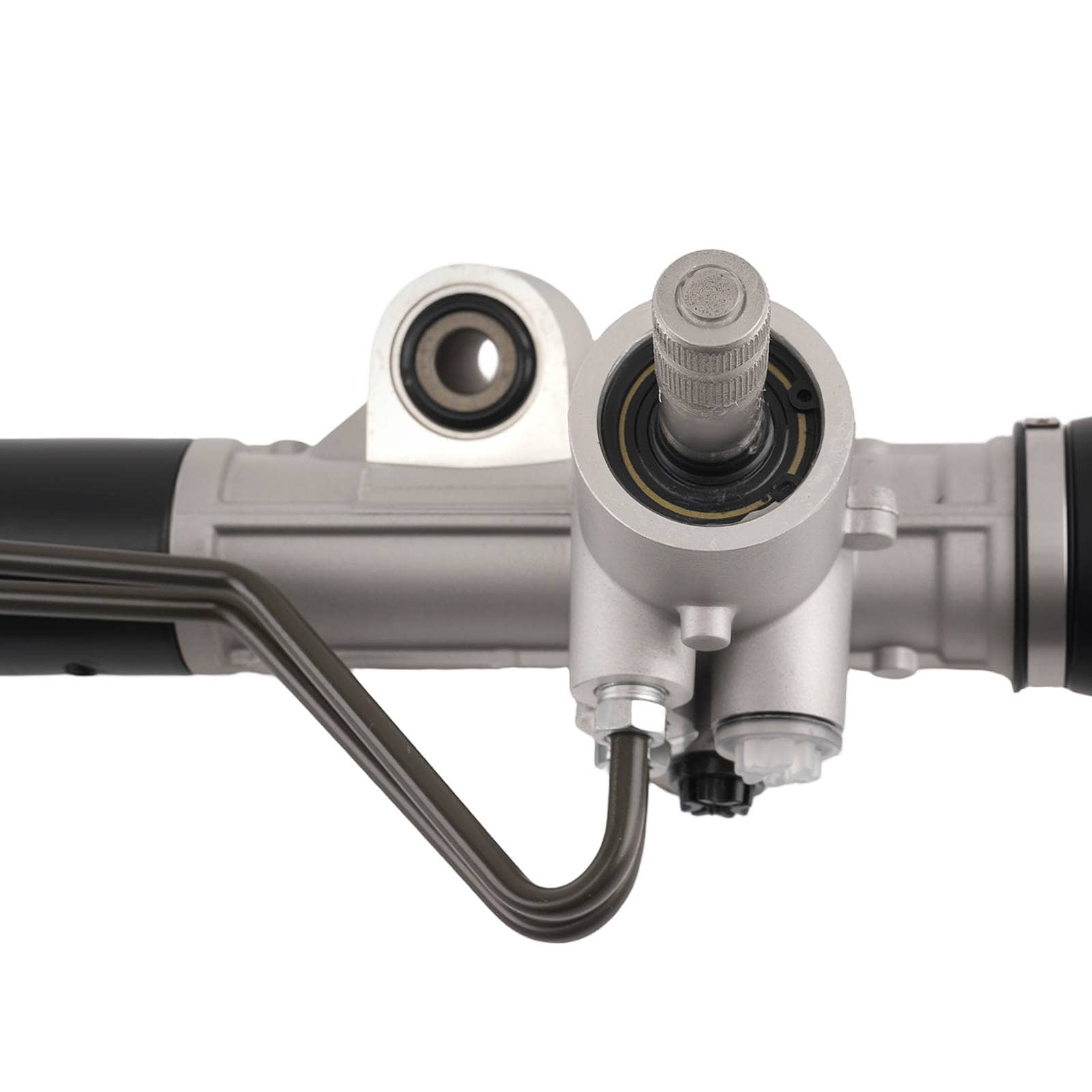

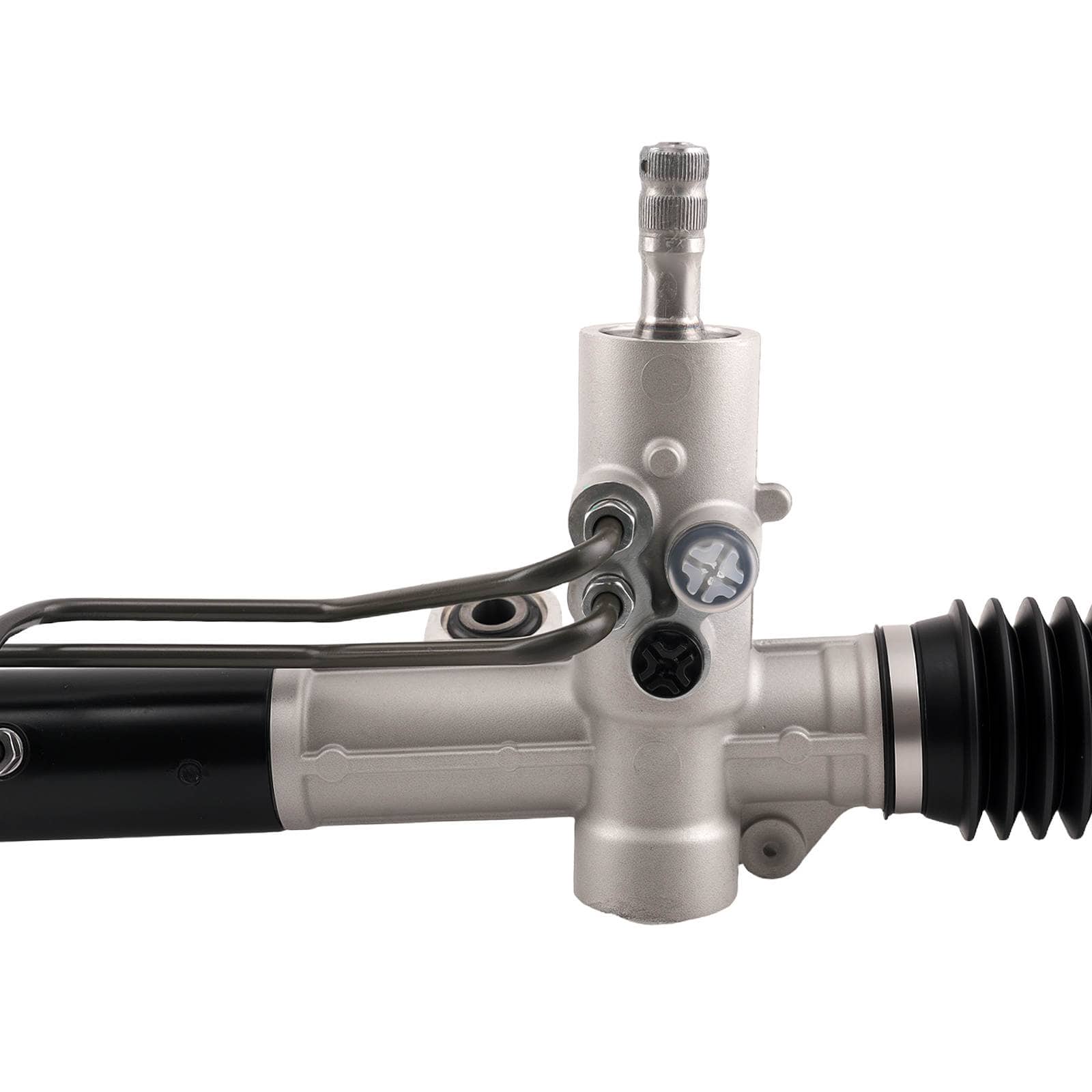

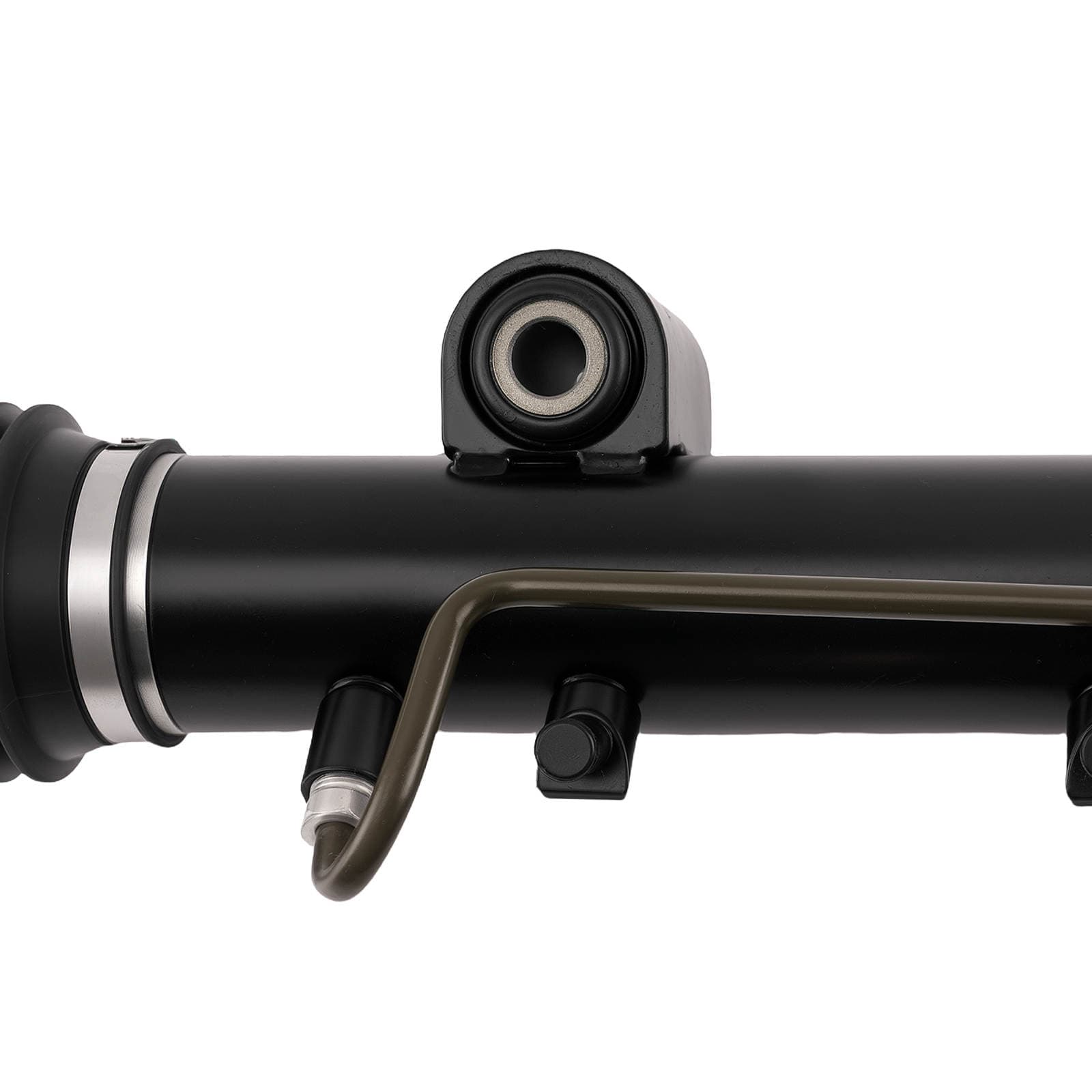

This steering rack (power steering rack and pinion) is intended as a replacement for the original steering system on the Fiat Doblo.
Suitable for:
- Fiat Doblo Familiar 119, 223 1.2L, left-hand drive (2001/03-2010/12)
- Fiat Doblo Familiar 119, 223 1.4L, left-hand drive (2005/10-2010/12)
- Fiat Doblo Familiar 119, 223 1.6L, left-hand drive (2001/10-2005/12)
- Fiat Doblo Familiar 119, 223 1.9L, left-hand drive (2001/03-2010/12)
- Fiat Doblo Van/Familiar 223 1.2L, left-hand drive (2001/03-2010/12)
- Fiat Doblo Van/Familiar 223 1.4L, left-hand drive (2005/10-2010/12)
- Fiat Doblo Van/Familiar 223 1.6L, left-hand drive (2001/10-2005/12)
- Fiat Doblo Van/Familiar 223 1.9L, left-hand drive (2001/03-2010/12)
Specifications
- OEM / Part Number: 01.26.1905, 51757647, 51780081, 51820529, 71788868, 71789378, 71793257, QSRP1394
- Steering Position: Left (LHD)
- Inner Tie Rods Included: Yes
- Outer Tie Rods Included: No
- Mounting Hole Distance: 9.69 inch
- Input Shaft Diameter: 0.69 inch
- Input Shaft Length: 1.79 inch
- Number of Mounting Holes: 2
- Rack Length: 44.76 inch
- Thread Length: 2.36 inch
- Return Port Thread Size: M12 x 1.5
- Pressure Port Thread Size: M14 x 1.5
- Total Turns Lock to Lock: 2.77
Scope of Delivery

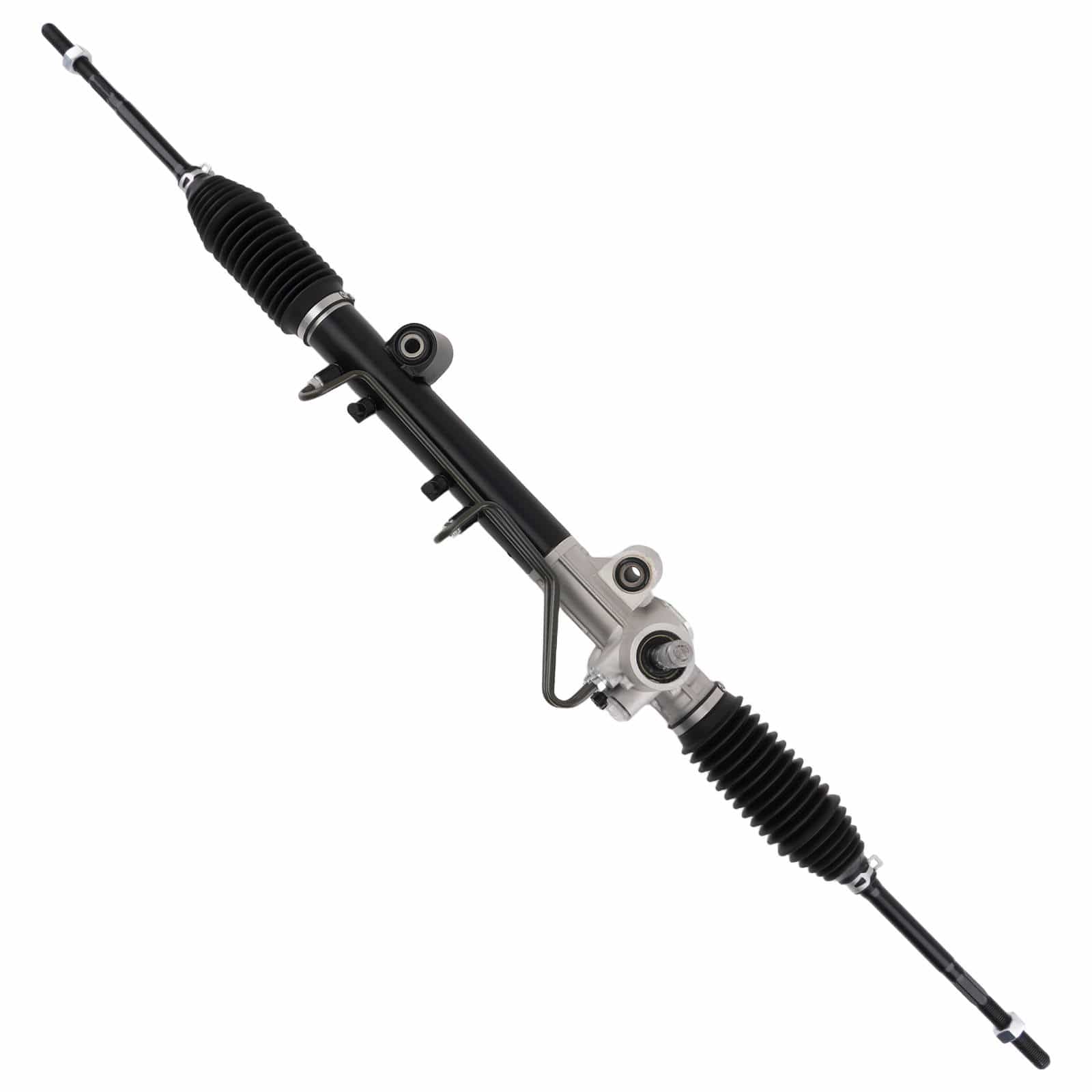

1x Steering Rack for left-hand drive vehicles (as pictured)
Check Fitment
Before ordering, always check the original OEM part number, year of manufacture, engine code, and the version of your vehicle, as there may be differences per version. If you are unsure whether this part fits your vehicle, please feel free to contact us before purchasing.
