Rear air suspension with Two-Circuit System Kit suitable for Ford Transit TWIN 350 RWD 2001-
Rear air suspension with Two-Circuit System Kit suitable for Ford Transit TWIN 350 RWD 2001-
- * Concurrerende prijs
- * Sneller verzenden
- * Staat: 100% nieuw!
- * Garantie: 1 jaar garantie op eventuele fabricagefouten
- * Accessoires: je ontvangt precies zoals op de afbeelding hierboven!
Product Description
Rear air suspension kit with dual-circuit system, for additional load capacity and restoration of the original ride height.
Suitable for:
- Ford Transit TWIN 350 RWD (twin rear wheels) from 2001 onwards
- Body types: panel van, tipper, camper van, box van, horsebox, minibus, Luton, Crew Van, recovery, dropside, flatbed (RWD twin rear wheels only)
Specifications
- Material: galvanized high-grade steel S355, rubber
- Maximum load: 4000 kg (8818 lbs)
- Drive: Rear-wheel drive with twin rear wheels
- System: Dual-circuit system
- Air spring stroke: 140 mm
- Max. extended: 230 mm
- Min. compressed: 90 mm
- Min. height set: 369 mm / max. height set: 509 mm
- Working pressure: ≤ 2.0 MPa
- Temperature range: ≥ -40° / ≤ +70°
- Air pump: 150 W, 12V, max. current 10A, max. working pressure 10 bar (1 MPa)

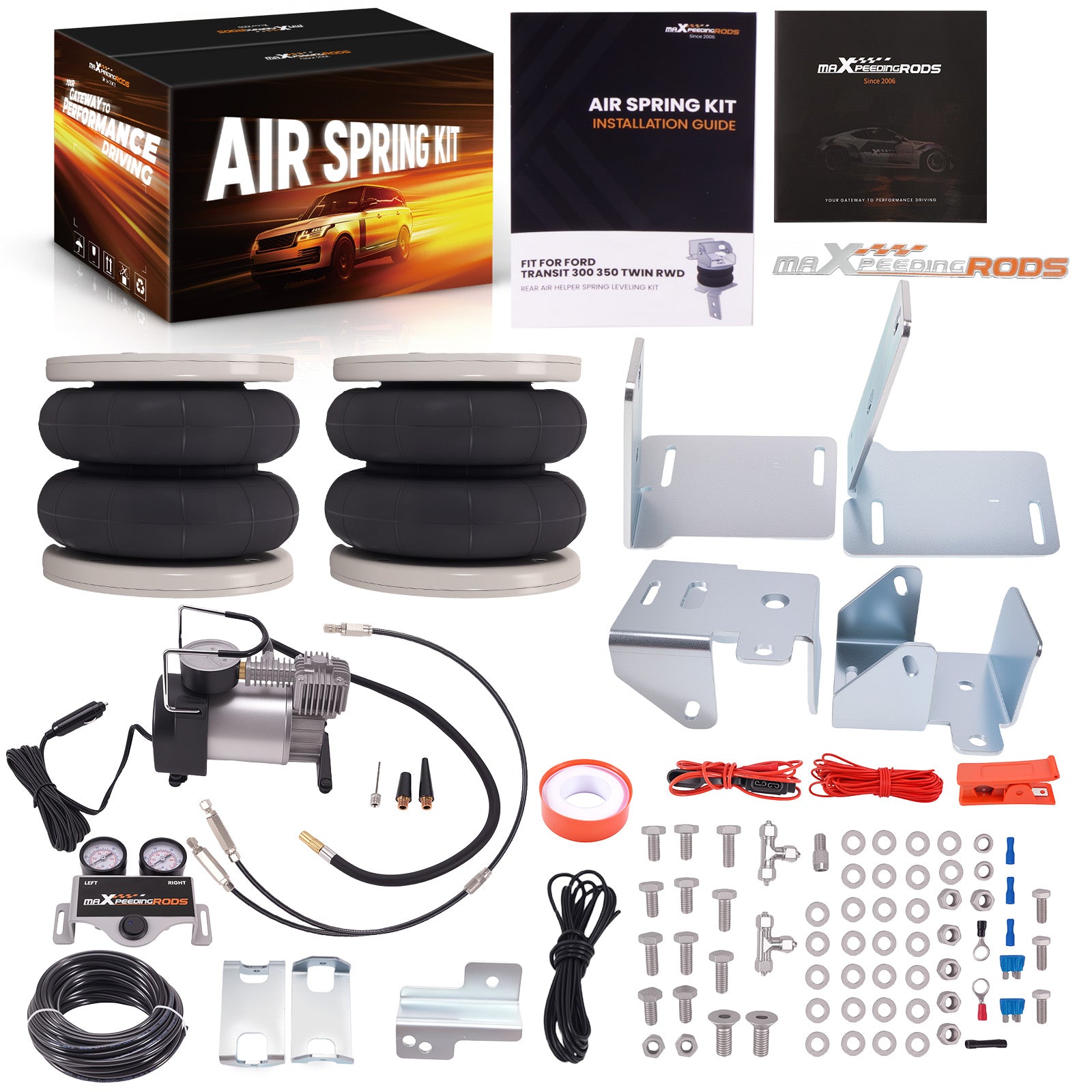

Scope of delivery
- 2x air spring bellows
- 1x air suspension compressor
- 1x dual pressure gauge
- 4x mounting bracket
- 1x air line 12.5 m
- 1x fuse wiring harness
- 1x Y-air line connector
- mounting bolts and air connections
Features
- More than 5,000,000 load cycle tests, durable and safe
- Burst pressure ≥ 2.0 MPa, high pressure resistance and low noise
- 4-layer reinforced construction from premium natural rubber
- Dacromet surface treatment for excellent corrosion resistance
Please note
This air suspension kit is an aftermarket part that replaces the original. Professional installation is recommended; a manual is available.
Check fitment
Before ordering, always check the original OEM part number, year of manufacture, engine code, and the specific version of your vehicle, as there may be differences between versions. If you are unsure whether this part fits your vehicle, please feel free to contact us before purchasing.
