Rear Air Suspension + Compressor Controller Kit suitable for Ford Transit TWIN RWD 2001-
Rear Air Suspension + Compressor Controller Kit suitable for Ford Transit TWIN RWD 2001-
- * Concurrerende prijs
- * Sneller verzenden
- * Staat: 100% nieuw!
- * Garantie: 1 jaar garantie op eventuele fabricagefouten
- * Accessoires: je ontvangt precies zoals op de afbeelding hierboven!
Product Description
Rear axle air suspension with compressor and control kit, suitable for the Ford Transit Twin RWD (rear-wheel drive) from model year 2001 onwards.
Suitable for:
- Ford Transit Twin RWD350 RWD, rear-wheel drive, model year 2001- (body types: van, tipper, camper, minibus, luton, crew van, recovery truck, dropside, pick-up with flatbed)
Specifications
- Condition: Brand new
- Air spring material: Galvanized high-grade steel S355, rubber
- Installation position: Rear, left and right
- Maximum load: 4000 kg / 8818 lbs
- Stroke: 140 mm
- Max. extended: 230 mm
- Min. compressed: 90 mm
- Operating pressure: ≤ 2.0 MPa
- Temperature range: ≤ +70°C, ≥ -40°C
- Maximum air pressure compressor: 100 psi
- Recommended operating pressure: 5-70 psi
- Drilling required: Yes
- Installation manual: Included
Scope of delivery

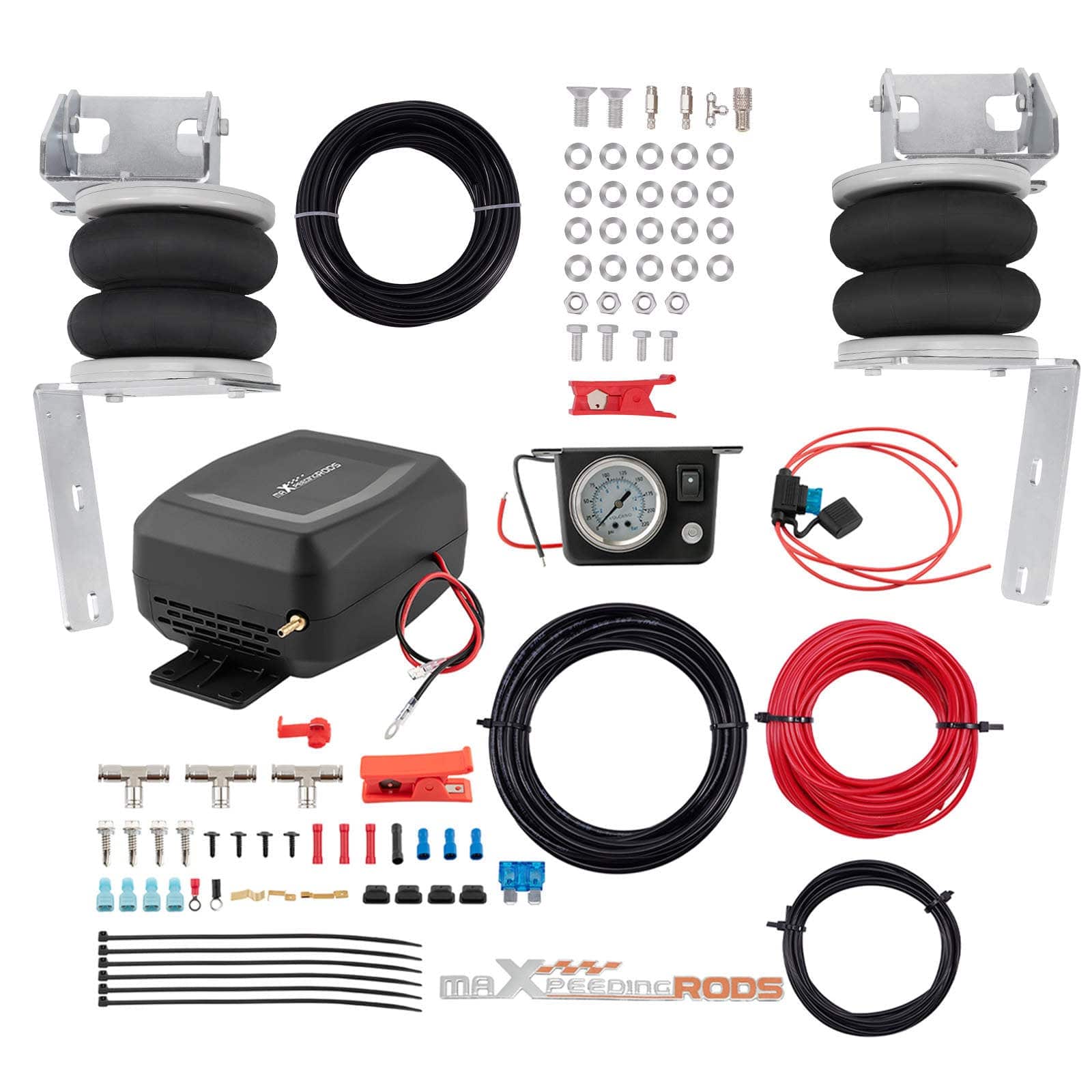

Air spring kit: 2x air spring bag, 7x mounting brackets, 1x air line, mounting screws and air fittings.

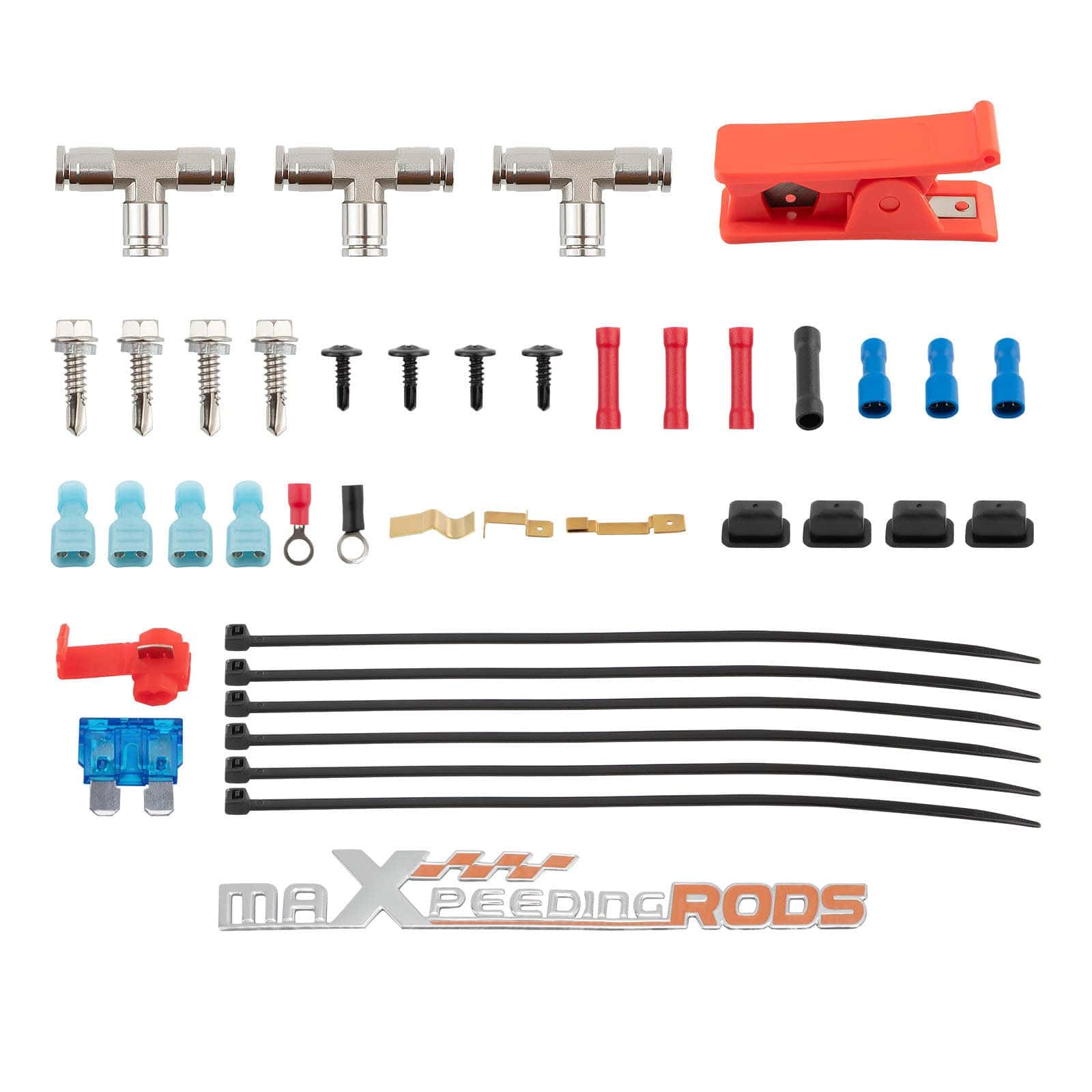

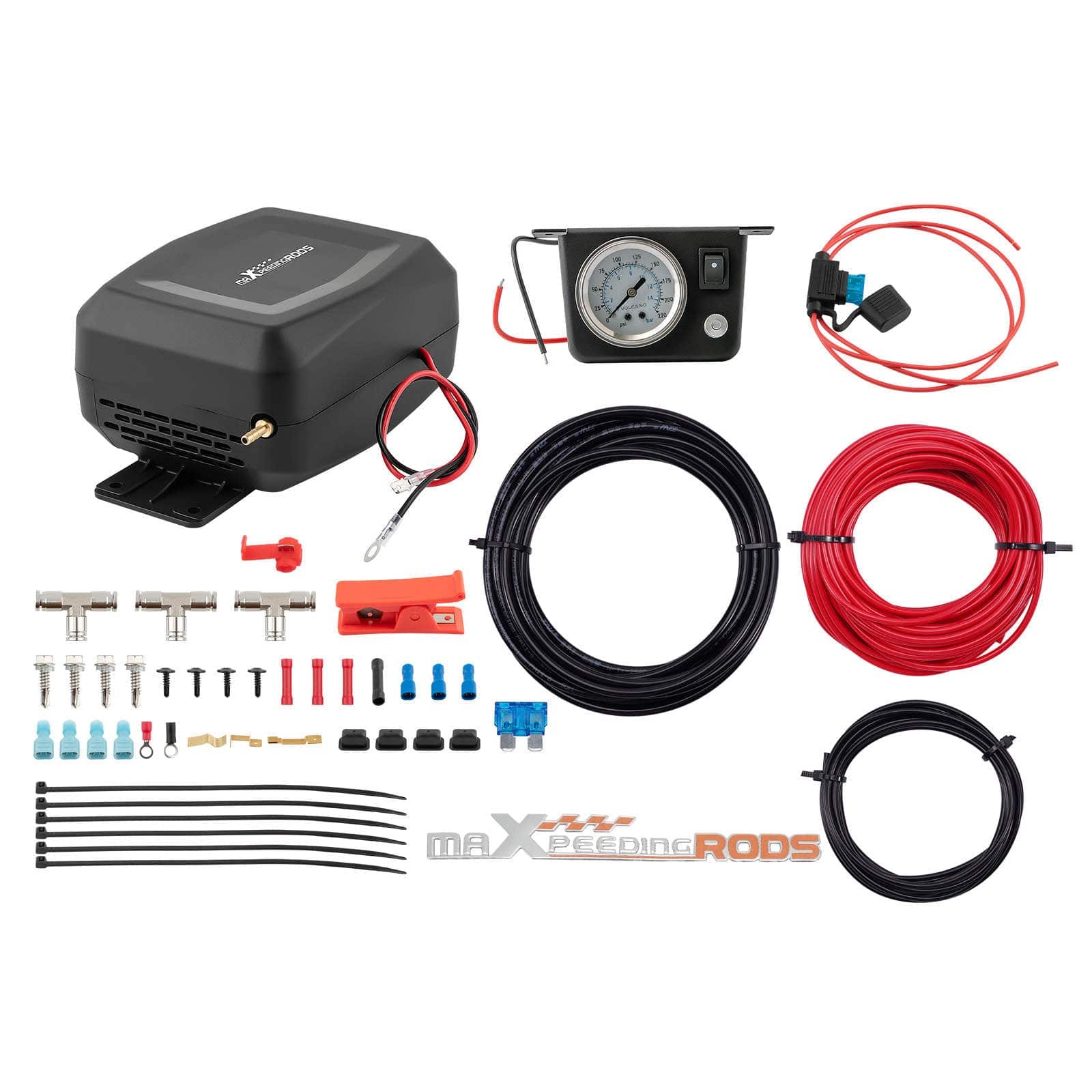

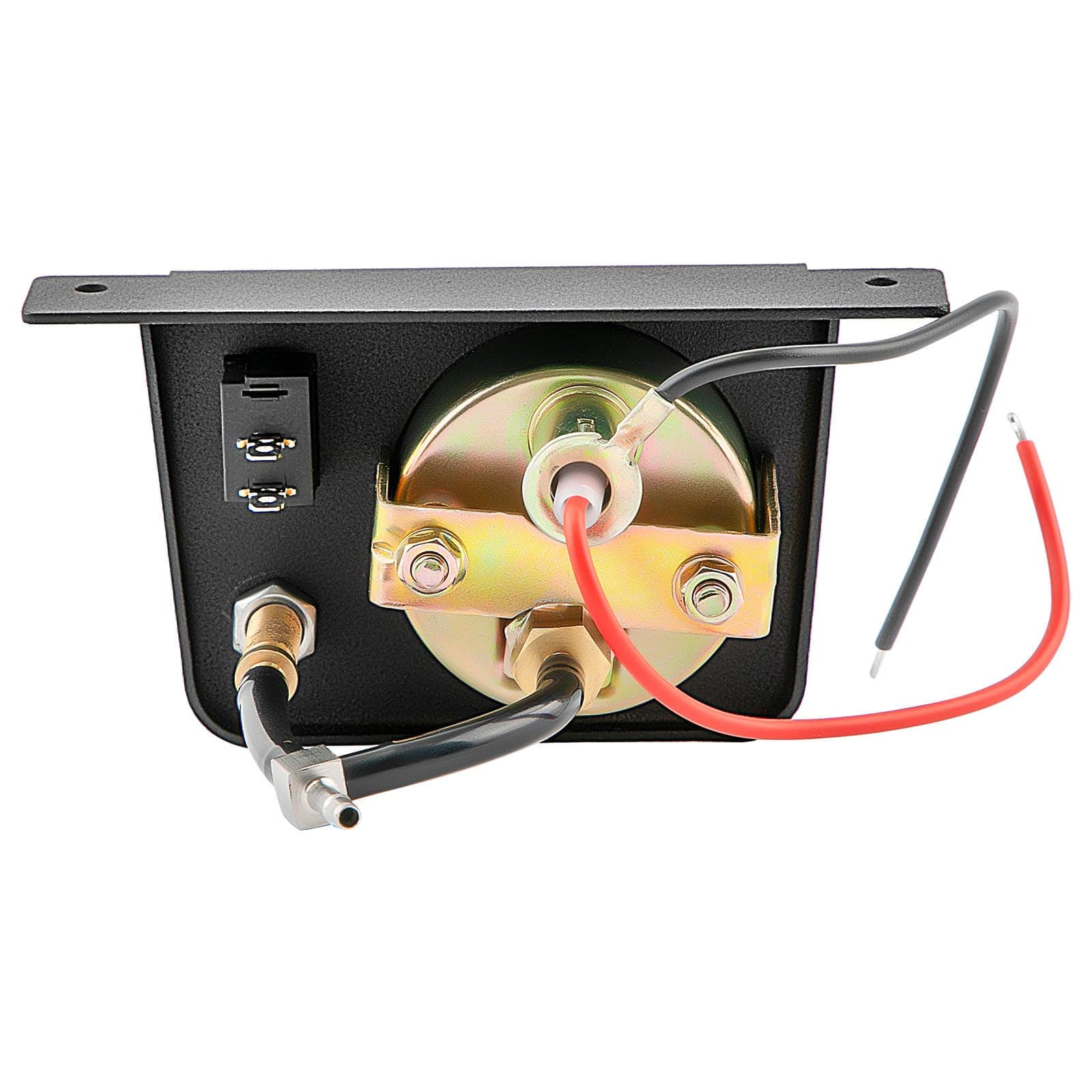

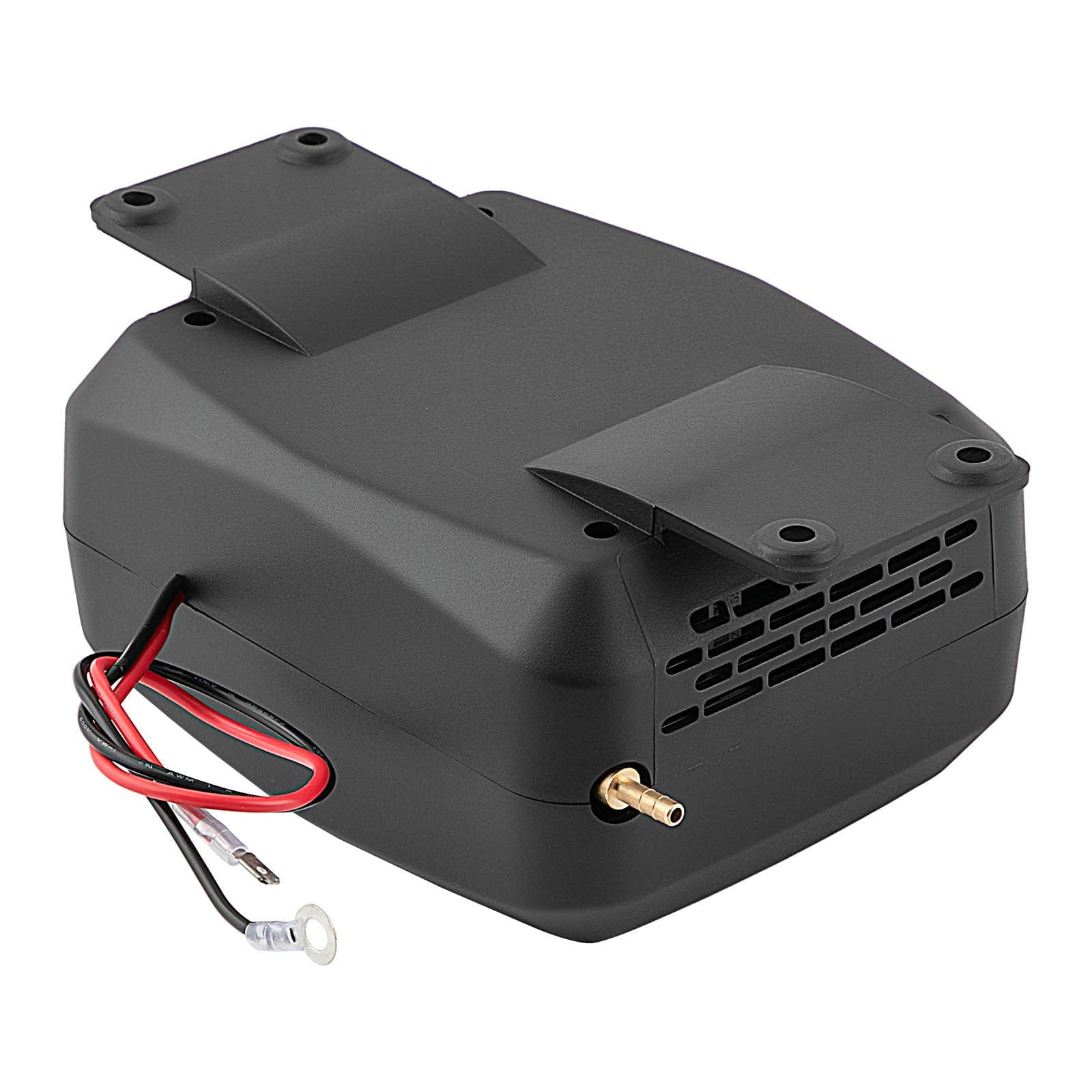

Compressor and control kit: 1x 12V MaXpeedingrods air compressor (black), 1x pressure gauge panel (push buttons for up/down), 1x air line φ6x1 (6 m), 1x wiring harness (2.5 m) black, 1x wiring harness (8.5 m) red, 1x relay harness (1 m), 3x T-connectors and some other accessories.
Features
- Stress-tested over 5,000,000 times: durable and safe
- Burst pressure ≥ 2.0 MPa: high pressure resistance and less noise
- 100% airtight guarantee
- Temperature range ≥ -40°C / ≤ 70°C: premium natural rubber material
- 4-layer reinforced construction for better air spring load support
- High-quality steel with high load capacity and long service life
- Practical and sturdy screw mounting
- Restores original ride height and improves ride comfort
- Reduces tire wear
- Dacromet surface treatment for excellent corrosion resistance compared to traditional galvanizing
- Allows control and adjustment of air pressure from the driver's seat
- Suitable for light to medium duty applications and occasional towing/hauling
- Wiring harness has flame retardant properties; compressor has a waterproof casing
Please note: always compare the product images and technical data / OE numbers before purchasing to avoid incorrect purchases. Professional installation is recommended; a manual is available.
Check Fitment
Before ordering, always check the original OEM part number, year of manufacture, engine code and the version of your vehicle, as there may be differences depending on the version. Are you unsure if this part fits your vehicle? Please feel free to contact us before purchasing.
