Rear Air Suspension with Bracket Kit suitable for Mercedes Sprinter Y.O.M. 2006- 4000KG
Rear Air Suspension with Bracket Kit suitable for Mercedes Sprinter Y.O.M. 2006- 4000KG
- * Concurrerende prijs
- * Sneller verzenden
- * Staat: 100% nieuw!
- * Garantie: 1 jaar garantie op eventuele fabricagefouten
- * Accessoires: je ontvangt precies zoals op de afbeelding hierboven!
Product description

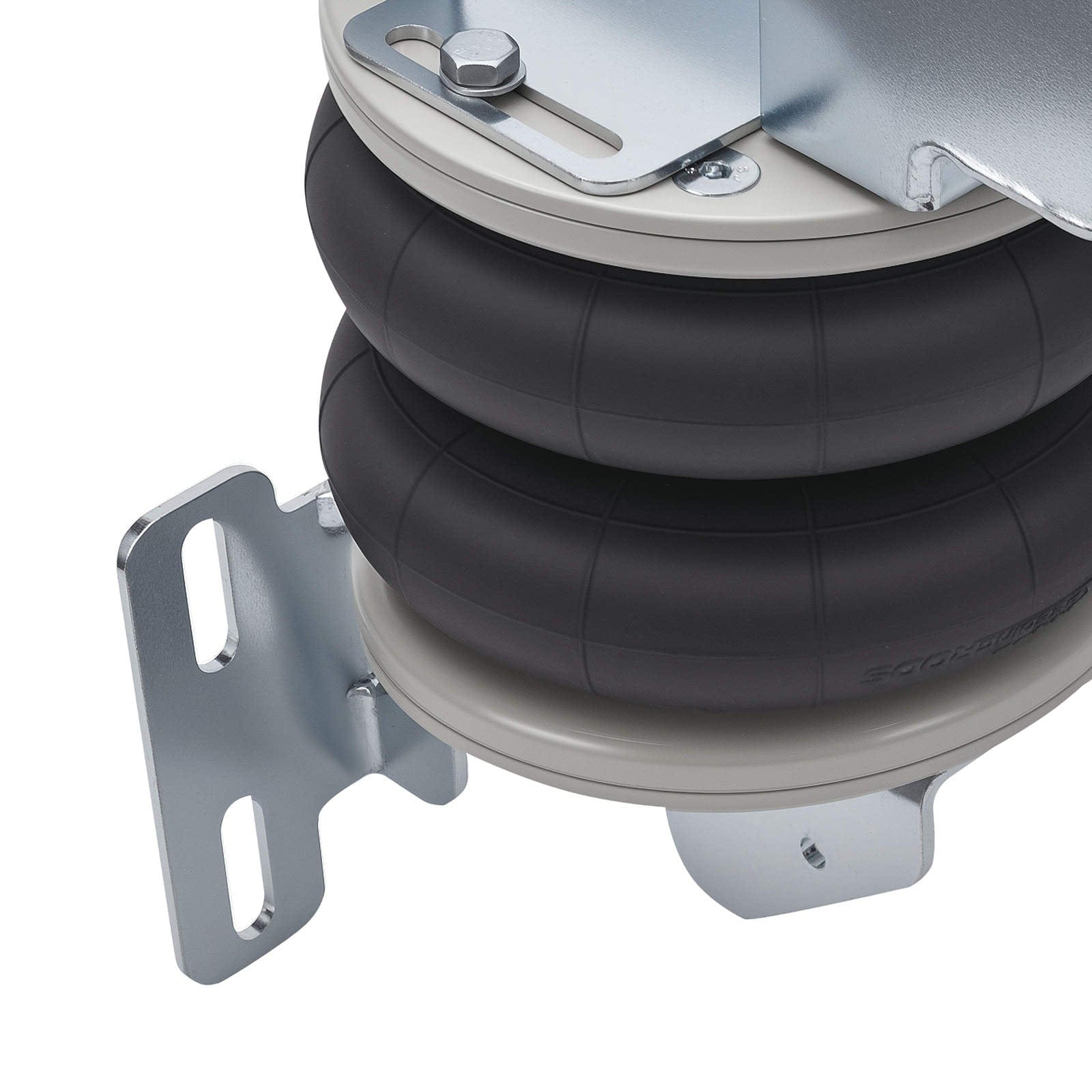

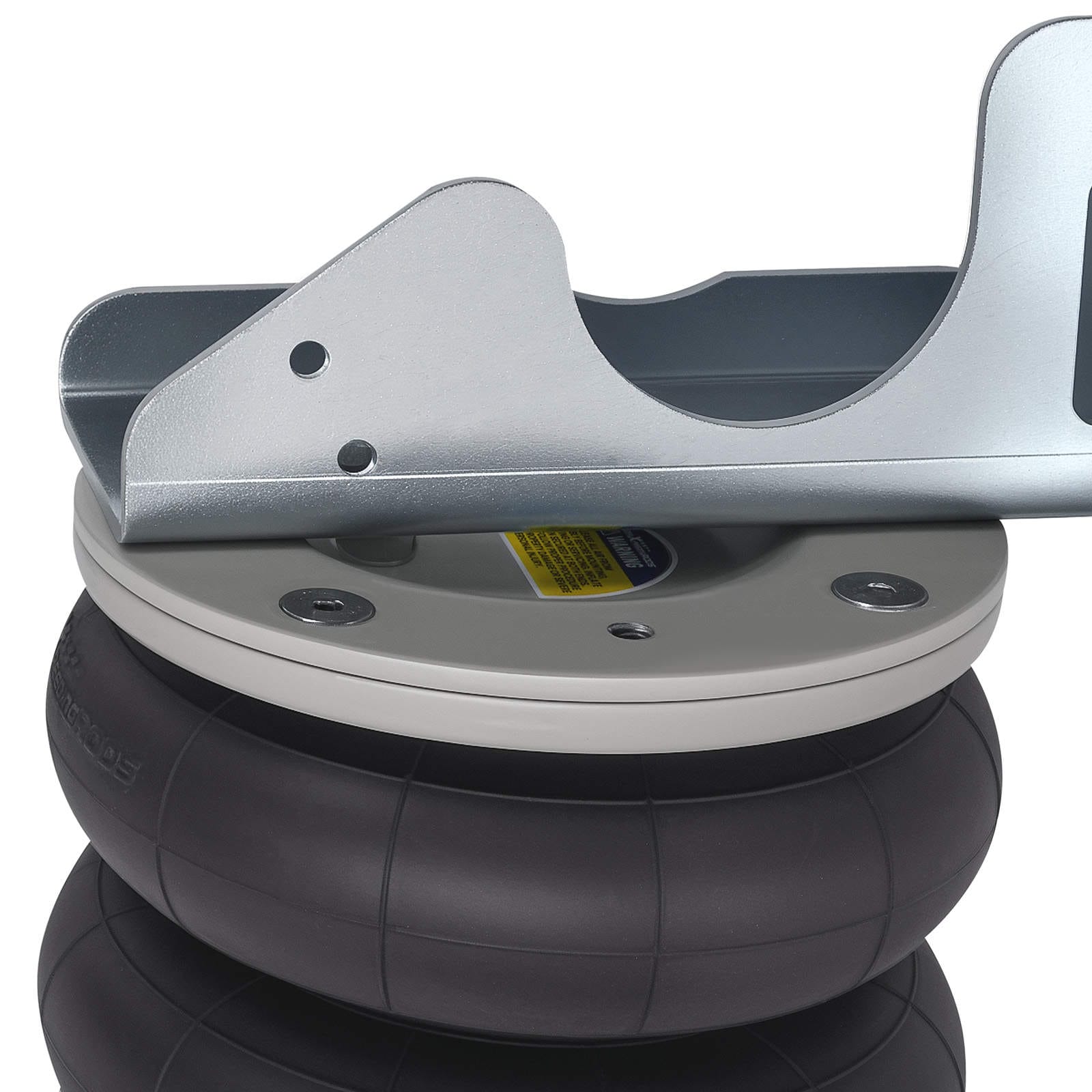

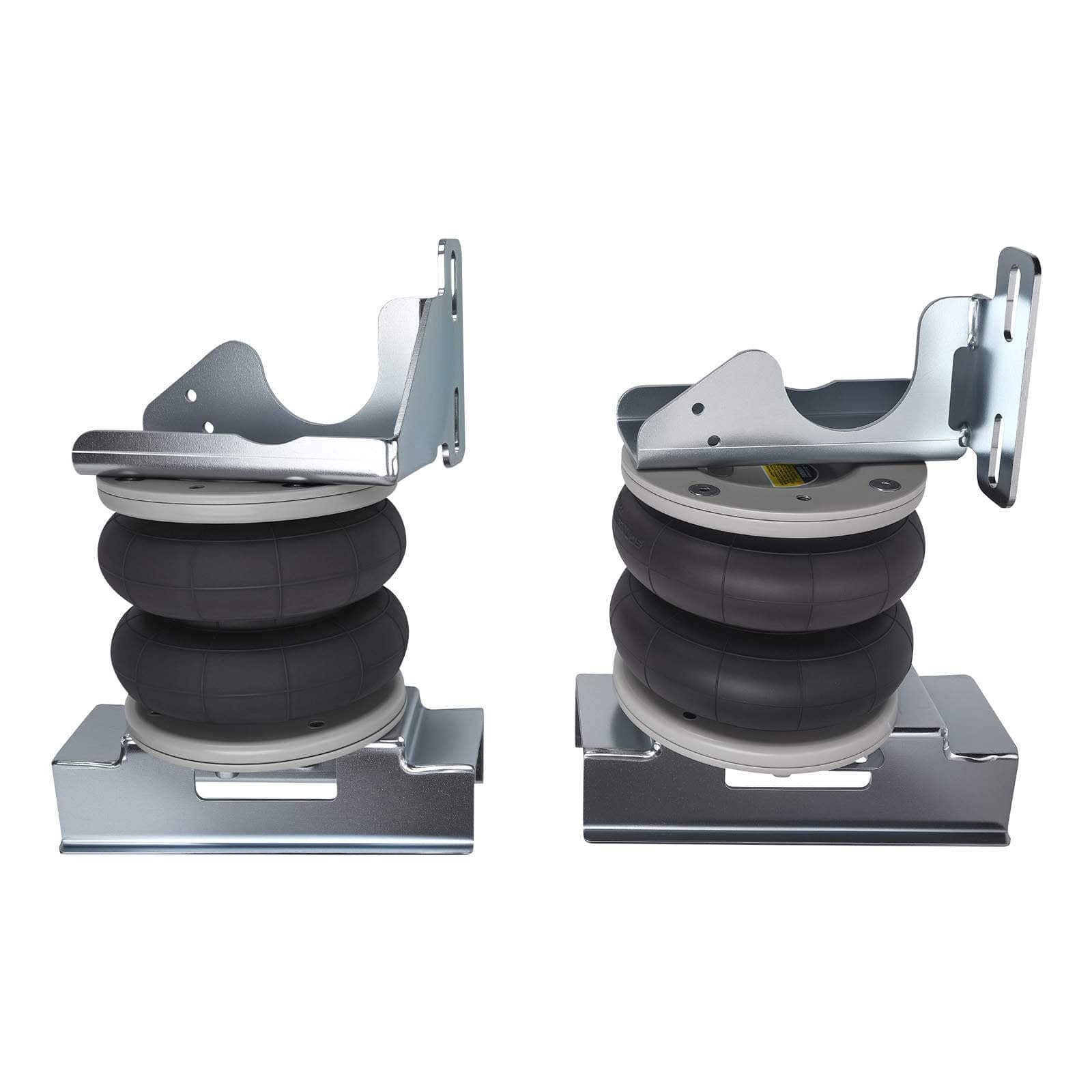

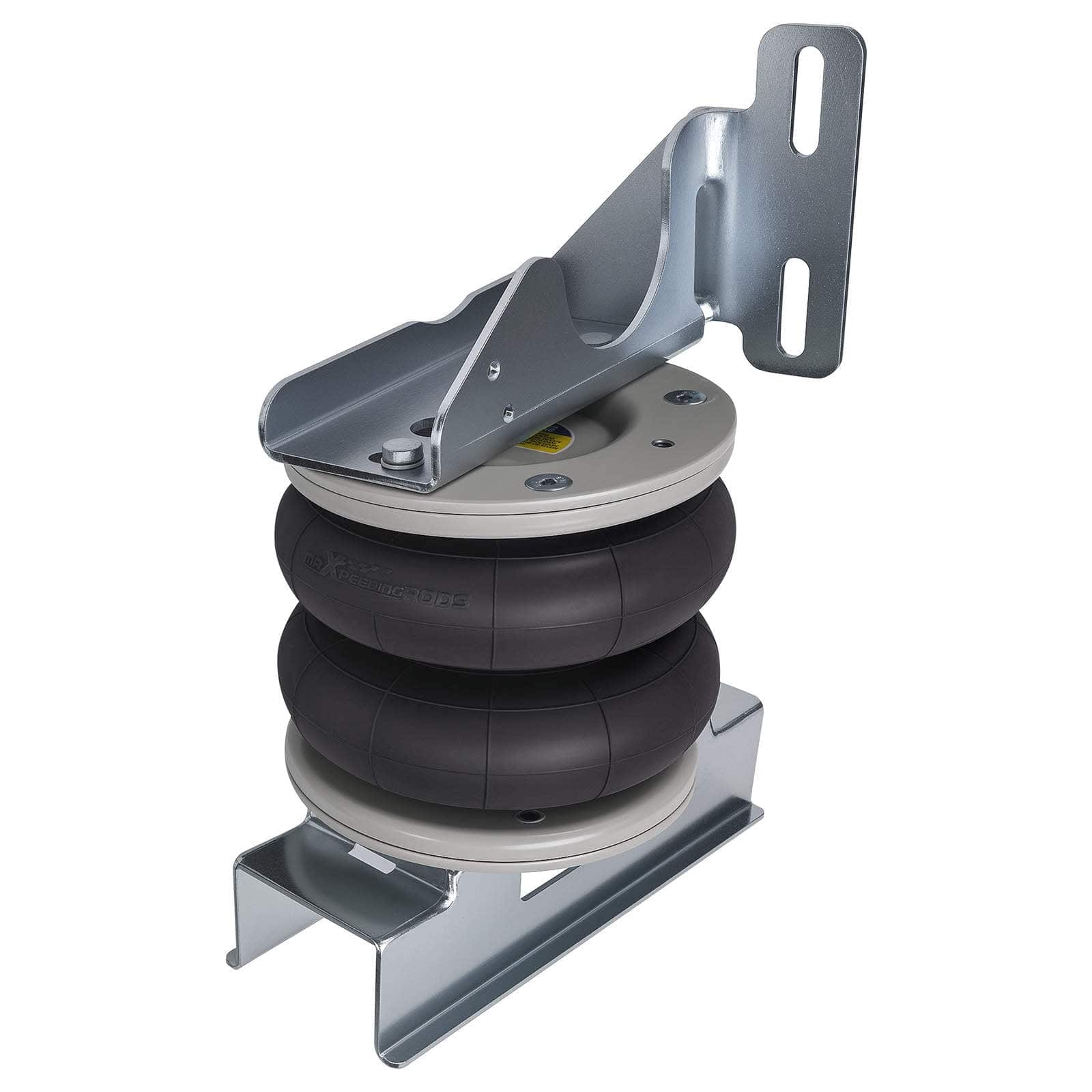

Rear air suspension with mounting brackets, suitable for the Mercedes Sprinter (model year from 2006), max. load 4000 KG.
Suitable for:
- Mercedes-Benz Sprinter, 2006-2022, single rear wheels RWD and front-wheel drive, round axle
- Chassis type: all standard chassis, except Alko chassis with torsion bars
- Body type: van, tipper, camper, minibus, Luton, crew cab, recovery truck, horse trailer, pick-up
Specifications
- Condition: Brand new
- Material: Galvanized high-quality steel S355, rubber
- Max. load: 4000 KG (8818 LBS)
- Mounting position: Rear, left and right
- Drivetrain: Rear-wheel and front-wheel drive
- Rear wheel configuration: Single rear wheels
- Air spring stroke: 140mm
- Max. extended: 230mm
- Min. compressed: 90mm
- Operating pressure: ≤2.0 Mpa
- Temperature range: ≤+70°, ≥-40°
Scope of delivery

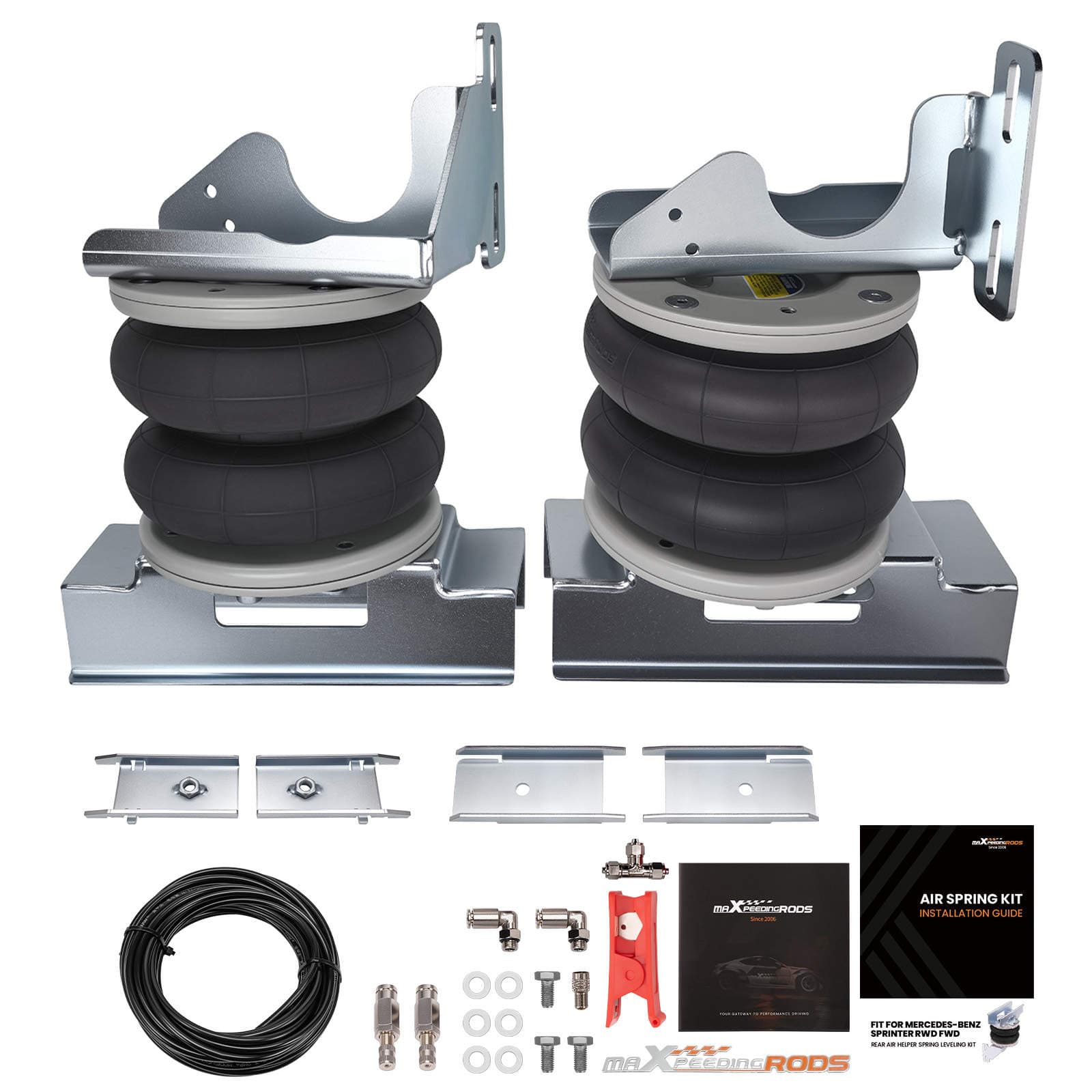

2x air spring; 8x mounting bracket; 1x air line 11.5m; mounting bolts and air fittings.
Features
- Stress-tested over 5,000,000 times: durable and safe
- Burst pressure ≥2.0MPa: high-pressure resistance and less noise
- 100% airtightness guarantee
- Temperature range ≥-40°C/≤70°C, high-quality natural rubber
- 4-layer reinforced construction
- High-quality steel with high load capacity and long service life
- Restores original ride height and improves ride comfort
- Dacromet surface treatment for excellent corrosion resistance
Check fitment
Always check the original OEM part number, year of manufacture, engine code and vehicle specification before ordering, as there may be differences depending on the specification. If you are unsure whether this part fits your vehicle, please feel free to contact us before purchasing.
