Product Description

Air spring bag for the rear axle (left or right), 2-pin version, suitable as a replacement for the original air spring.

Suitable for:

• Mercedes-Benz E-Class T-Model S211 2003-2009
• Mercedes-Benz E-Class T-Model S211 Estate E 55 T AMG Kompressor
• Mercedes-Benz E-Class T-Model S211 Estate E 63 T AMG Kompressor
• Mercedes-Benz E-Class T-Model S211 350 CGI 2006/05-2009/07 3498 cc, 215 kW, 292 hp
• Mercedes-Benz E-Class T-Model S211 E 200 CDI 2006/04-2009/07 2148 cc, 100 kW, 136 hp
• Mercedes-Benz E-Class T-Model S211 E 200 Kompressor 1796 cc, 135 kW, 184 hp 2006/04-2009/07
• Mercedes-Benz E-Class T-Model S211 E 200 T Kompressor 1796 cc, 120 kW, 163 hp 2003/03-2009/07
• Mercedes-Benz E-Class T-Model S211 E 220 CDI 2148 cc, 100 kW, 136 hp 2003/03-2009/07
• Mercedes-Benz E-Class T-Model S211 E 220 T CDI 2148 cc (110/120/125 kW) 2003-2009
• Mercedes-Benz E-Class T-Model S211 E 230 T 2496 cc, 150 kW, 204 hp 2007/05-2009/07
• Mercedes-Benz E-Class T-Model S211 E 240 T (also 4matic) 2597 cc, 130 kW, 177 hp 2003-2009
• Mercedes-Benz E-Class T-Model S211 E 270 T CDI 2685 cc (120/130 kW) 2003-2009
• Mercedes-Benz E-Class T-Model S211 E 280 T (also 4matic) 2996 cc, 170 kW, 231 hp 2005-2009
• Mercedes-Benz E-Class T-Model S211 E 320 T (also 4matic) 3199 cc, 165 kW, 224 hp 2003-2009
• Mercedes-Benz E-Class T-Model S211 E 320 T CDI 2987/3222 cc (150/155/165 kW) 2003-2009 (also 4matic)
• Mercedes-Benz E-Class T-Model S211 E 350 T (also 4matic) 3498 cc, 200 kW, 272 hp 2005-2009
• Mercedes-Benz E-Class T-Model S211 E 500 T 4matic 4966 cc, 225 kW, 306 hp 2003-2009
• Mercedes-Benz E-Class T-Model S211 E 500 T 4matic 5461 cc, 285 kW, 388 hp 2006-2009

Specifications

• OEM / Part Number: 2113200925, A2113200925, 211 320 09 25, A 211 320 09 25, 211320092580, 211 320 09 25 80, A211320092580, A 211 320 09 25 80
• Condition: brand new
• Connection: 2 pins
• Installation: direct replacement
• Installation position: rear, left and right
• Seal: sealed
• Adjustable: yes
• Stroke: 70 mm ± 25 mm
• Dimensions (L×W×H): 36 × 33 × 17 cm
• Weight: 4.85 kg
• Warranty: 1 year

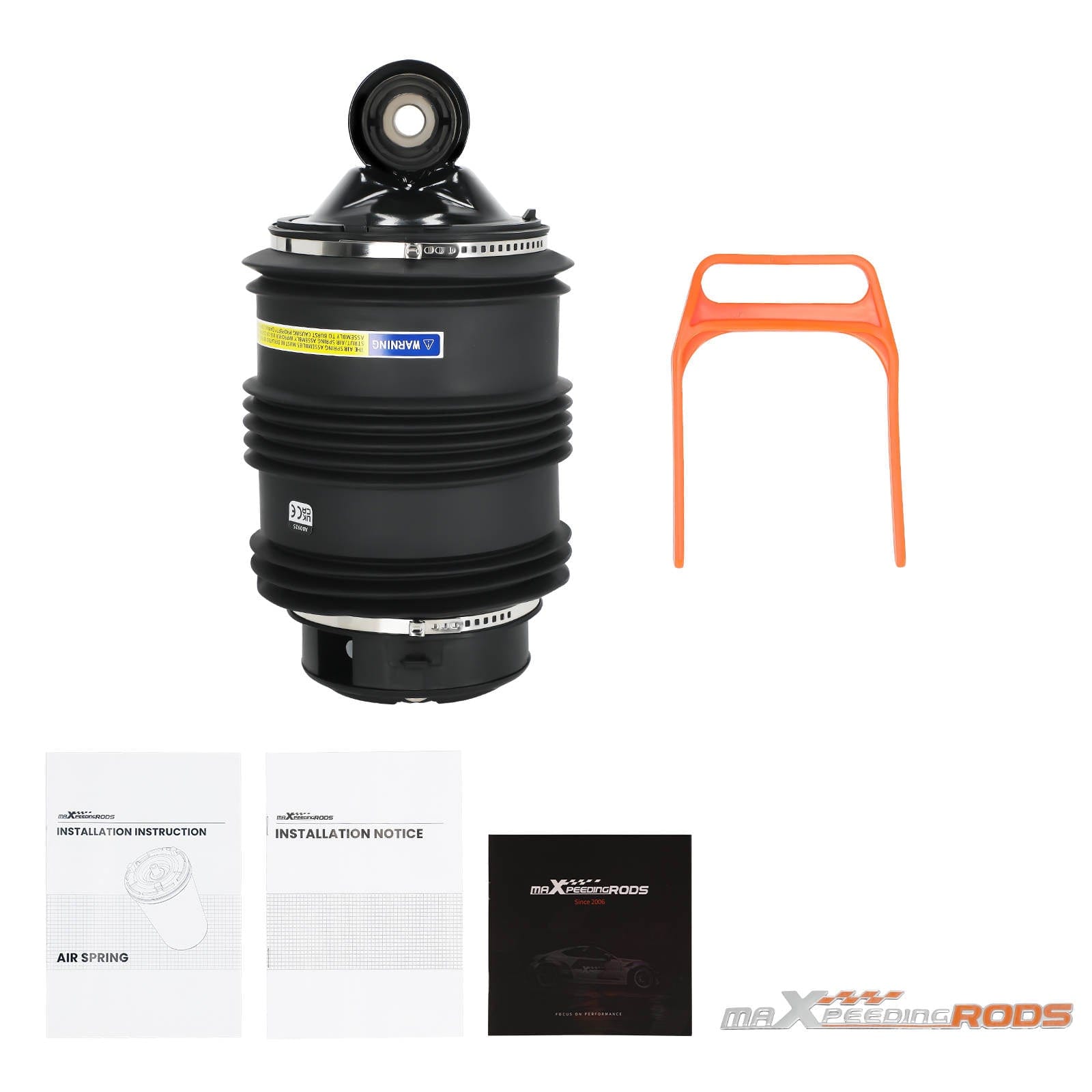

Scope of delivery

• 1x air spring bag rear left / right
• Clip for the air spring bag
• Mounting aid

Features

• OEM product, easy to install
• Tested for airtightness (24-hour test ≤ 0.02 MPa)
• Temperature range ≥ -40 °C / ≤ 70 °C, high-quality natural rubber

Please note

Please note: the connection is 2 pins. This is an aftermarket air spring that replaces the original air spring. Before purchasing, please confirm compatibility and the OEM number. No manual included; professional installation is recommended.

Check fitment

Before ordering, always check the original OEM part number, year of manufacture, engine code and the version of your vehicle, as there may be differences depending on the version. Are you unsure whether this part fits your vehicle? Please feel free to contact us before purchasing.
