Product Description

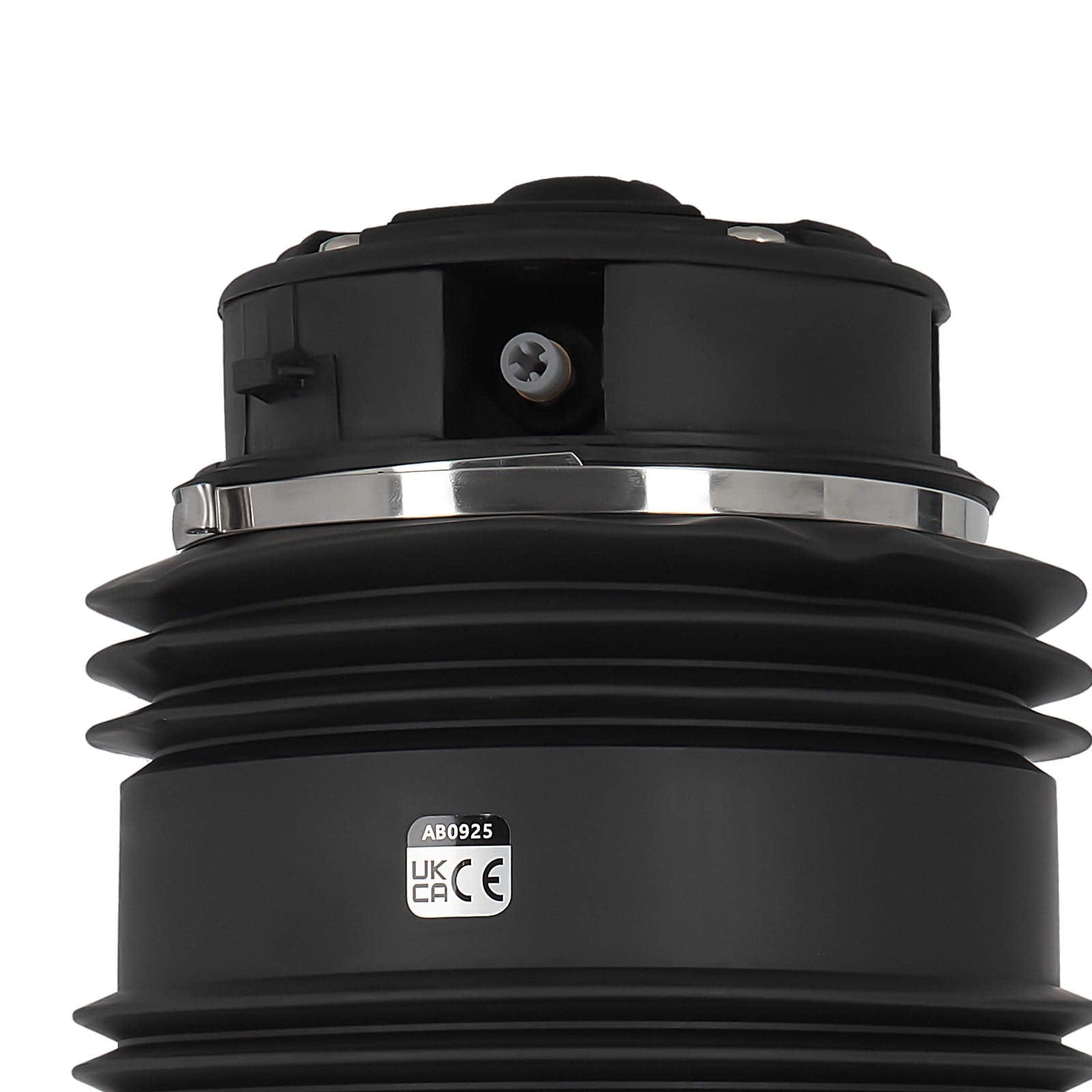

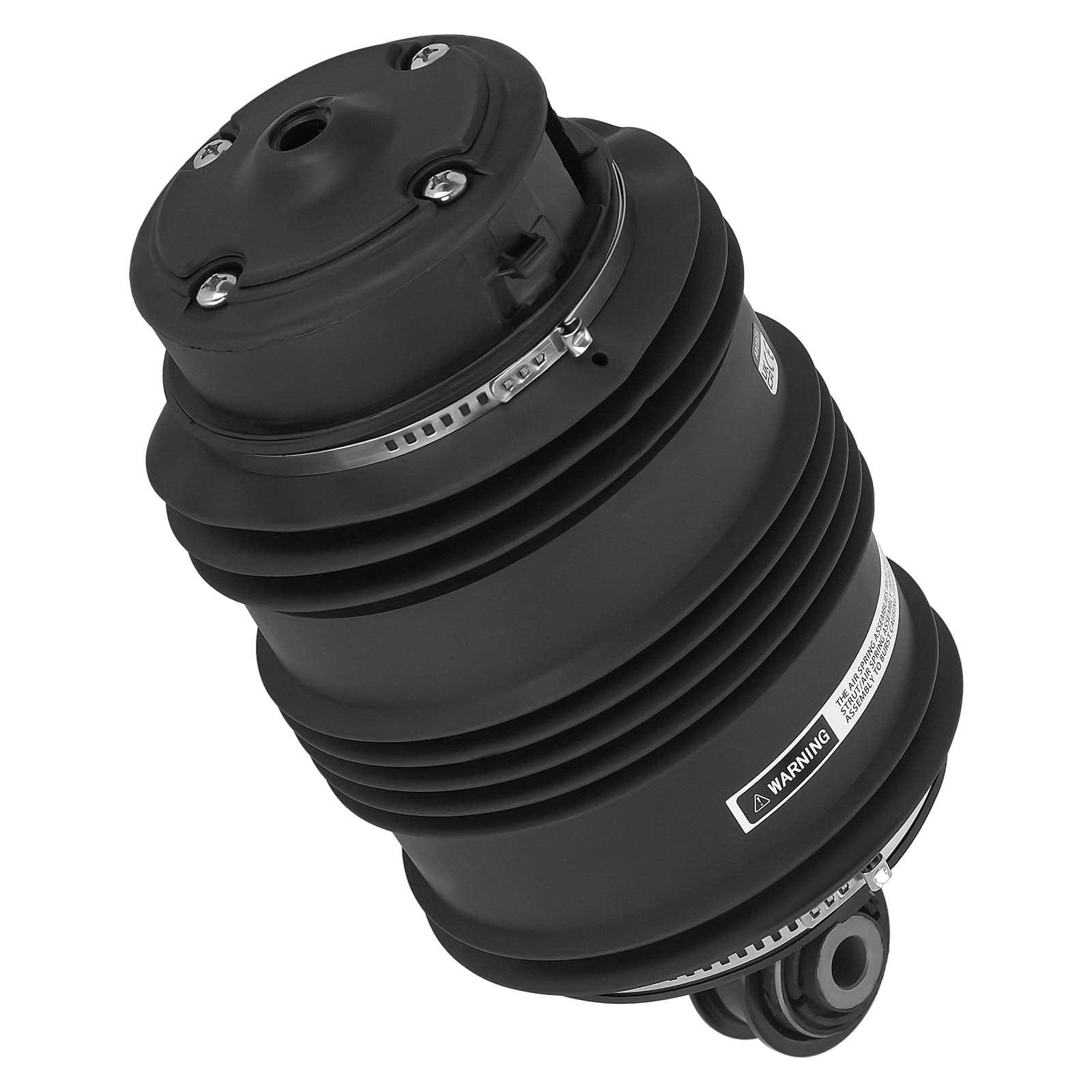

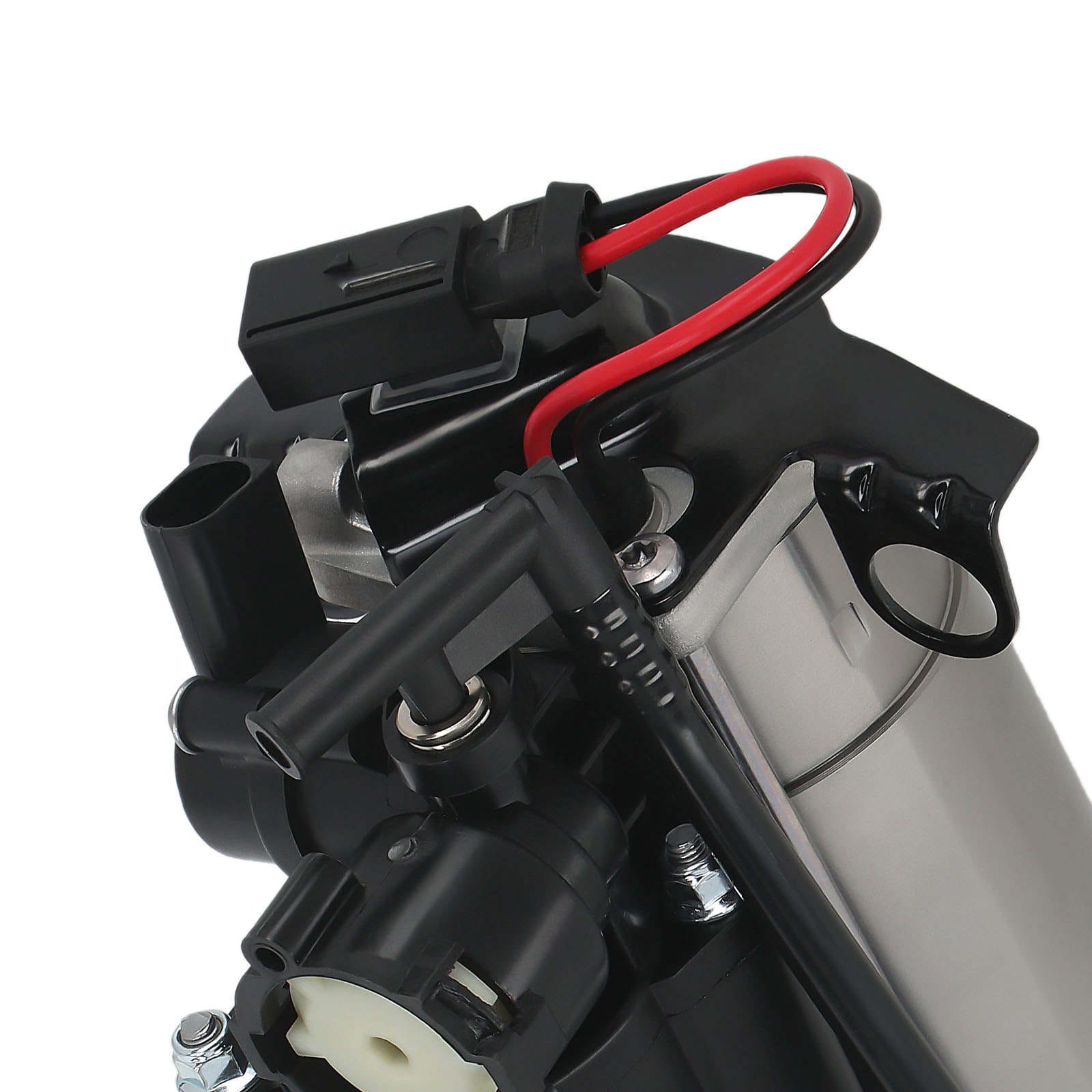

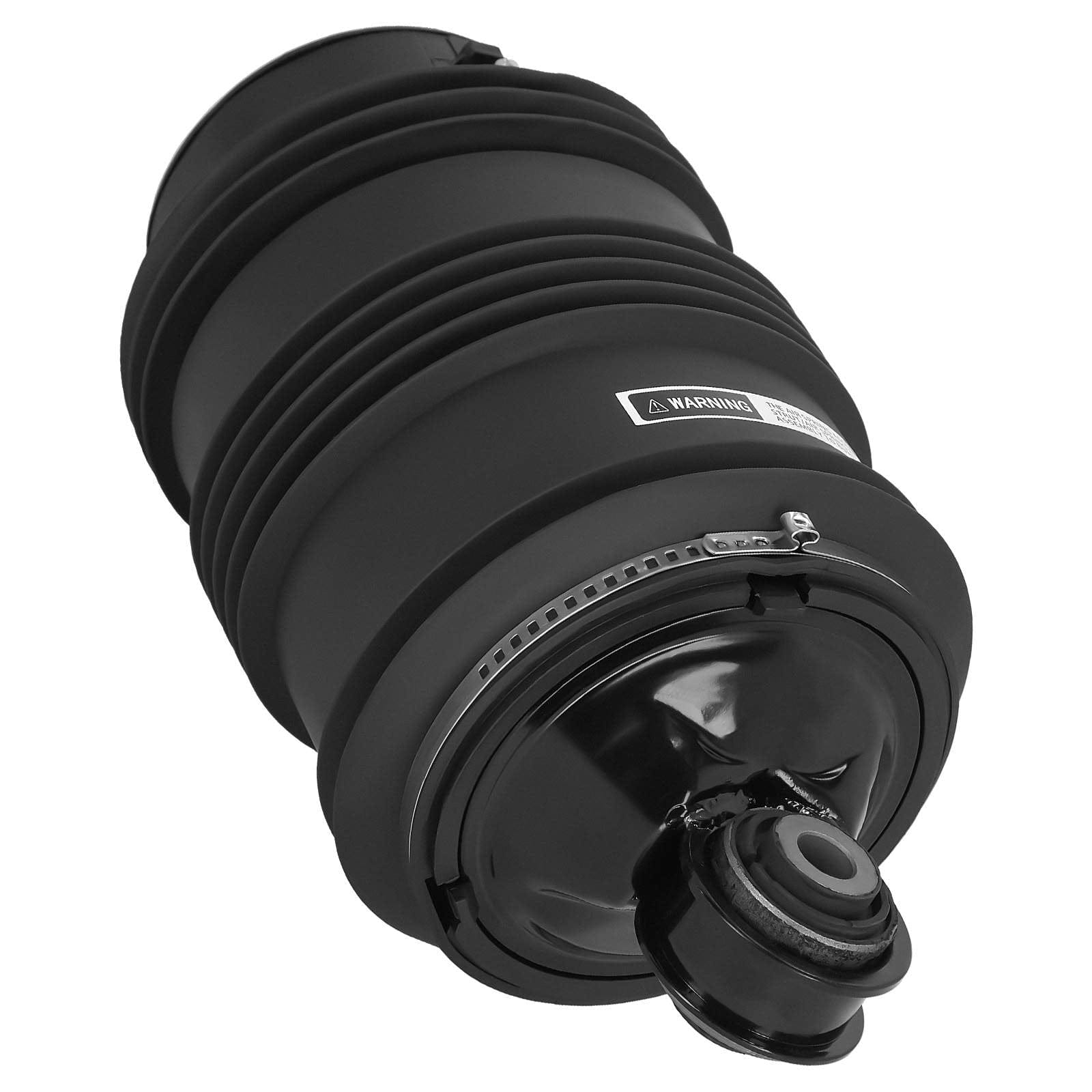

2x rear air spring bags (2-pin) plus compressor for air suspension.

Suitable for:

• Mercedes-Benz E-Class T-Model S211, year 2003-2009
• Mercedes-Benz E-Class T-Model S211 Estate E 55 T AMG (with compressor)
• Mercedes-Benz E-Class T-Model S211 Estate E 63 T AMG (with compressor)
• Mercedes-Benz E-Class T-Model 2006/05-2009/07 S211 350 CGI 3498 cc, 215 KW, 292 PS
• Mercedes-Benz E-Class T-Model 2006/04-2009/07 S211 E 200 CDI 2148 cc, 100 KW, 136 PS
• Mercedes-Benz E-Class T-Model 2006/04-2009/07 S211 E 200 Kompressor 1796 cc, 135 KW, 184 PS
• Mercedes-Benz E-Class T-Model 2003/03-2009/07 S211 E 200 T Kompressor 1796 cc, 120 KW, 163 PS
• Mercedes-Benz E-Class T-Model 2003/03-2009/07 S211 E 220 CDI 2148 cc, 100 KW, 136 PS
• Mercedes-Benz E-Class T-Model 2003/03-2009/07 S211 E 220 T CDI 2148 cc, 120 KW, 163 PS
• Mercedes-Benz E-Class T-Model 2003/03-2009/07 S211 E 220 T CDI 2148 cc, 110 KW, 150 PS
• Mercedes-Benz E-Class T-Model 2006/04-2009/07 S211 E 220 T CDI 2148 cc, 125 KW, 170 PS
• Mercedes-Benz E-Class T-Model 2007/05-2009/07 S211 E 230 T 2496 cc, 150 KW, 204 PS
• Mercedes-Benz E-Class T-Model 2003/03-2009/07 S211 E 240 T 2597 cc, 130 KW, 177 PS
• Mercedes-Benz E-Class T-Model 2003/07-2009/07 S211 E 240 T 4matic 2597 cc, 130 KW, 177 PS
• Mercedes-Benz E-Class T-Model 2003/03-2009/07 S211 E 270 T CDI 2685 cc, 130 KW, 177 PS
• Mercedes-Benz E-Class T-Model 2003/03-2009/07 S211 E 270 T CDI 2685 cc, 120 KW, 163 PS
• Mercedes-Benz E-Class T-Model 2005/03-2009/07 S211 E 280 T 2996 cc, 170 KW, 231 PS
• Mercedes-Benz E-Class T-Model 2005/03-2009/07 S211 E 280 T 4matic 2996 cc, 170 KW, 231 PS
• Mercedes-Benz E-Class T-Model 2003/03-2009/07 S211 E 320 T 3199 cc, 165 KW, 224 PS
• Mercedes-Benz E-Class T-Model 2003/07-2009/07 S211 E 320 T 4matic 3199 cc, 165 KW, 224 PS
• Mercedes-Benz E-Class T-Model 2005/03-2009/07 S211 E 320 T CDI 2987 cc, 165 KW, 224 PS
• Mercedes-Benz E-Class T-Model 2007/11-2009/07 S211 E 320 T CDI 2987 cc, 155 KW, 211 PS
• Mercedes-Benz E-Class T-Model 2003/03-2009/07 S211 E 320 T CDI 3222 cc, 150 KW, 204 PS
• Mercedes-Benz E-Class T-Model 2005/03-2009/07 S211 E 320 T CDI 4matic 2987 cc, 165 KW, 224 PS
• Mercedes-Benz E-Class T-Model 2005/03-2009/07 S211 E 350 T 3498 cc, 200 KW, 272 PS
• Mercedes-Benz E-Class T-Model 2005/03-2009/07 S211 E 350 T 4matic 3498 cc, 200 KW, 272 PS
• Mercedes-Benz E-Class T-Model 2003/10-2009/07 S211 E 500 T 4matic 4966 cc, 225 KW, 306 PS
• Mercedes-Benz E-Class T-Model 2006/04-2009/07 S211 E 500 T 4matic 5461 cc, 285 KW, 388 PS

Specifications

• OEM / Part number air spring bag: 2113200925, A2113200925, 211 320 09 25, A 211 320 09 25
• OEM / Part number compressor: 2203200104, 220 320 01 04, 2113200304, 211 320 03 04, 415403112, 4430201671, 4154033030, 8840103590
• Note: The connector is 2-pin, please check this before purchasing
• Condition: Brand new
• Type: Direct replacement
• Air spring connection: 2 pins
• Air spring installation position: Left, right, rear
• Air spring design: Sealed
• Adjustable: Yes
• Stroke: 70 mm ± 25 mm
• Compressor compression range: 203-246 psi / 13.8-16.9 bar
• Compressor current: 35 A
• Compressor voltage: DC 13 volt
• Warranty: 1 year

Scope of delivery

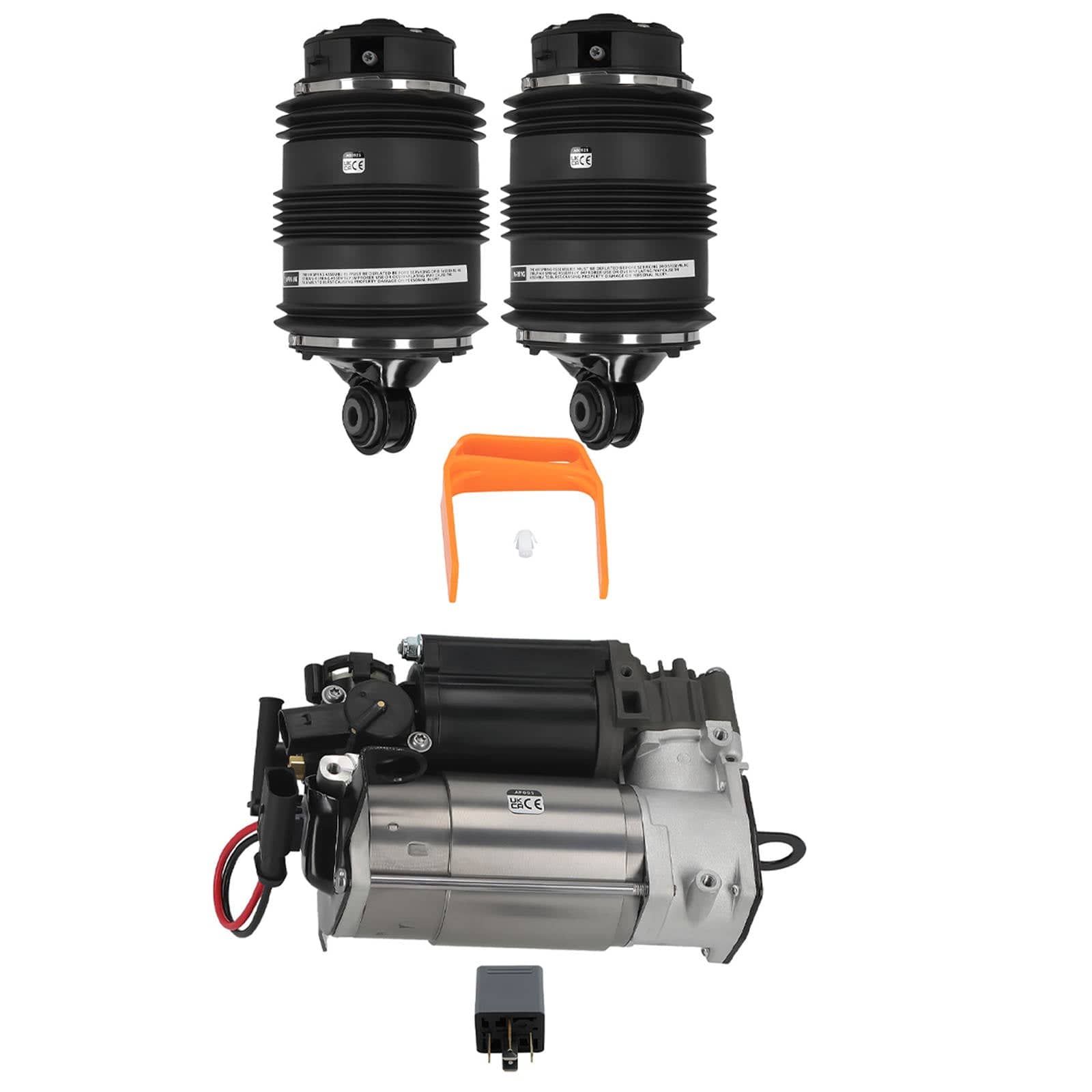

2x air spring bag rear left/right, 1x compressor + relay.

Check fitment

Before ordering, always check the original OEM part number, year of manufacture, engine code and the version of your vehicle, as there may be differences depending on the version. Are you unsure if this part fits your vehicle? Feel free to contact us before purchasing.
