Product Description

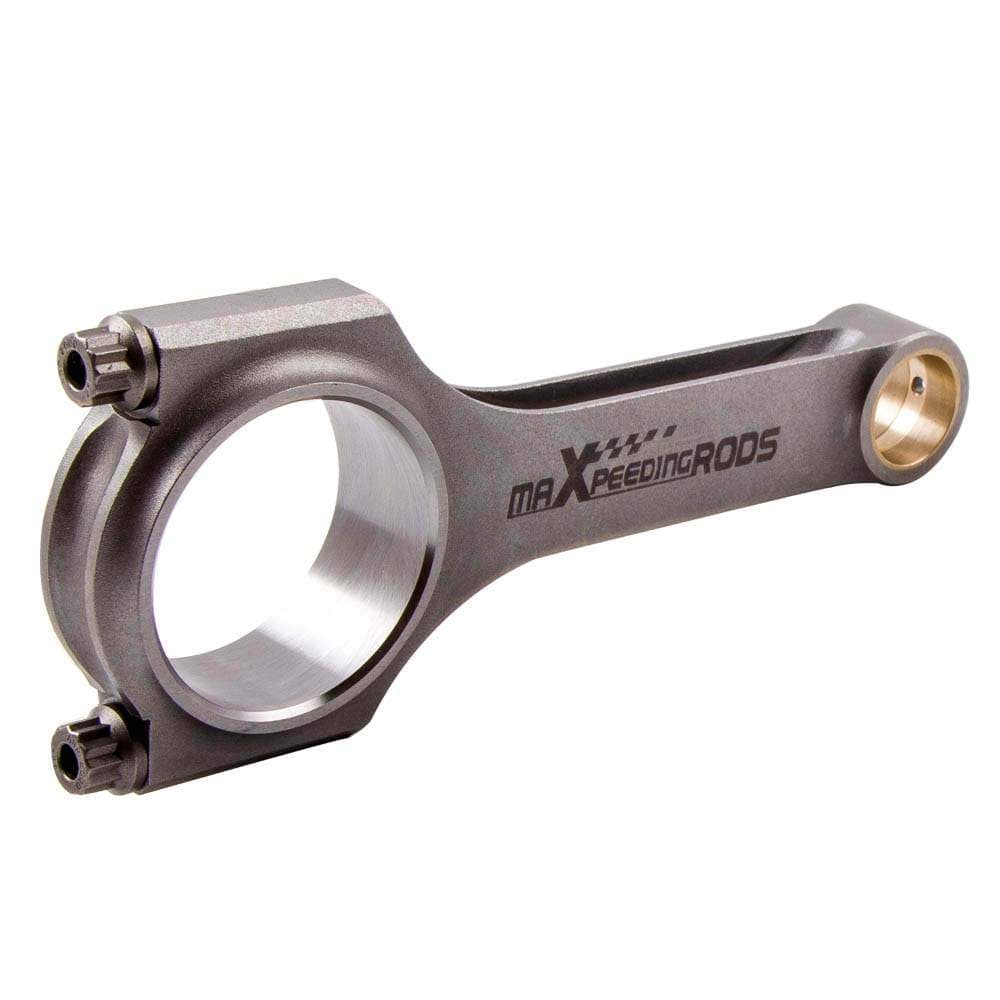

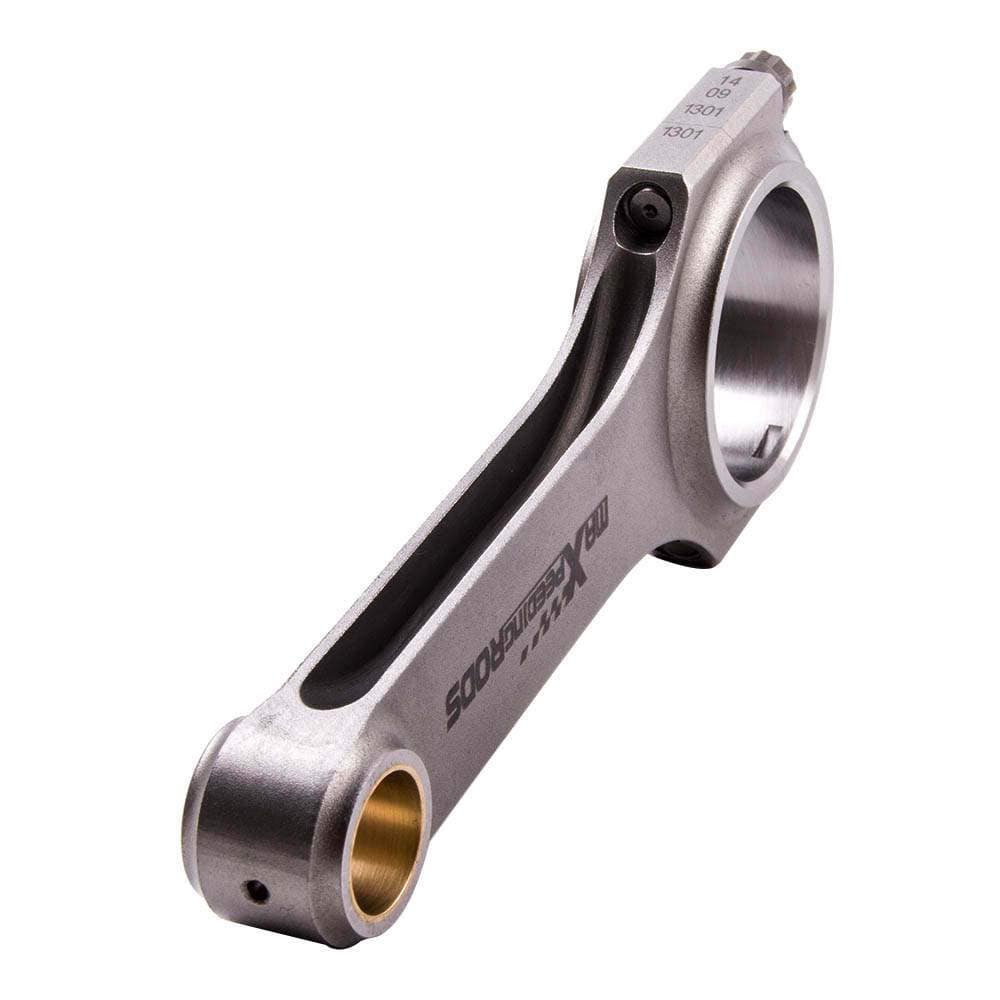

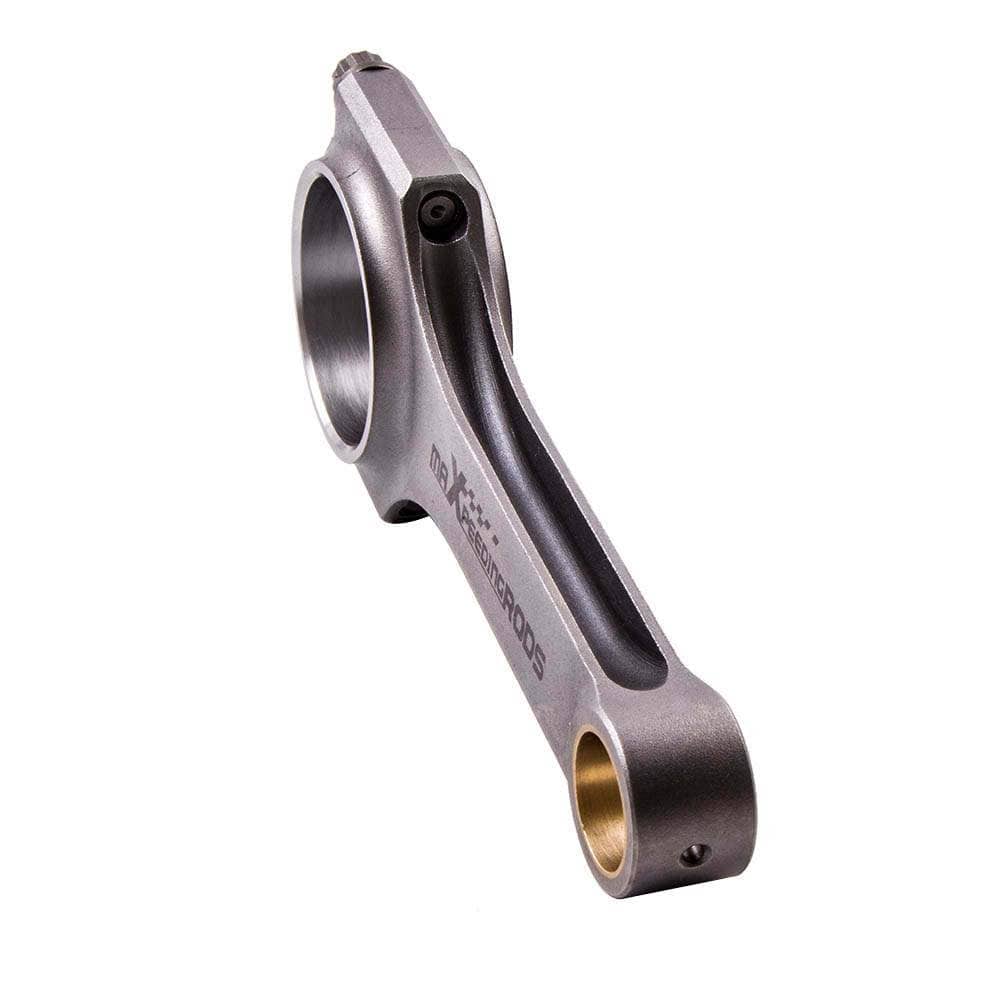

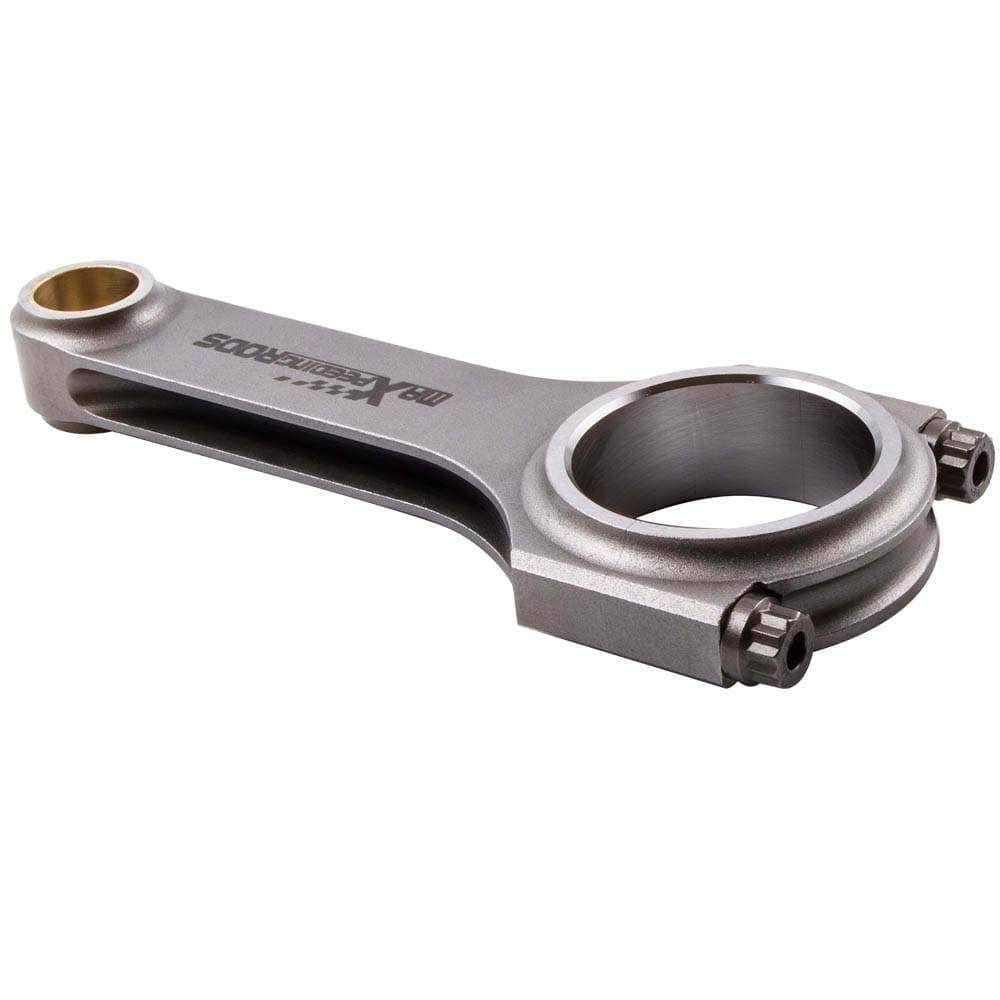

These connecting rods with 19 mm piston pins are intended for the Mitsubishi 4G93 engine (1.8), as used in the Lancer, Mirage, Space Wagon, and other models.
Suitable for:
- Mitsubishi Lancer 1.8 4G93, 19 mm pin
- Mitsubishi Mirage 1.8 4G93, 19 mm pin
- Mitsubishi Space Wagon 1.8 4G93, 19 mm pin
- Mitsubishi Space Star 1.8 4G93, 19 mm pin
- Mitsubishi Carisma 1.8 4G93, 19 mm pin
- Mitsubishi FTO 1.8 4G93, 19 mm pin
- Mitsubishi Colt GTI 1.8 4G93, 19 mm pin
Specifications
- Center-to-center length (C-C): 133.5 mm / 5.2559 inch
- Big end diameter (B/E diameter): 48 mm / 1.8898 inch
- Small end diameter (S/E diameter): 19 mm / 0.7480 inch
- Big end width (B/E width): 21.8 mm / 0.85827 inch
- Small end width (S/E width): 21.8 mm / 0.85827 inch
- Bolt type: ARP 2000 3/8
- Material: Forged SAE 4340 / EN24 (40CrNiMo) chrome-molybdenum steel
- Weight tolerance: +/- 1 gram
- Piston pin bore: +/- 4/1000 mm
- Power: 600-800 hp per set
- Fastener yield strength: 220,000/230,000 psi
- Torque specification: 48 ft ≈ 65 Nm
- Maximum speed: 9000 rpm
Scope of delivery

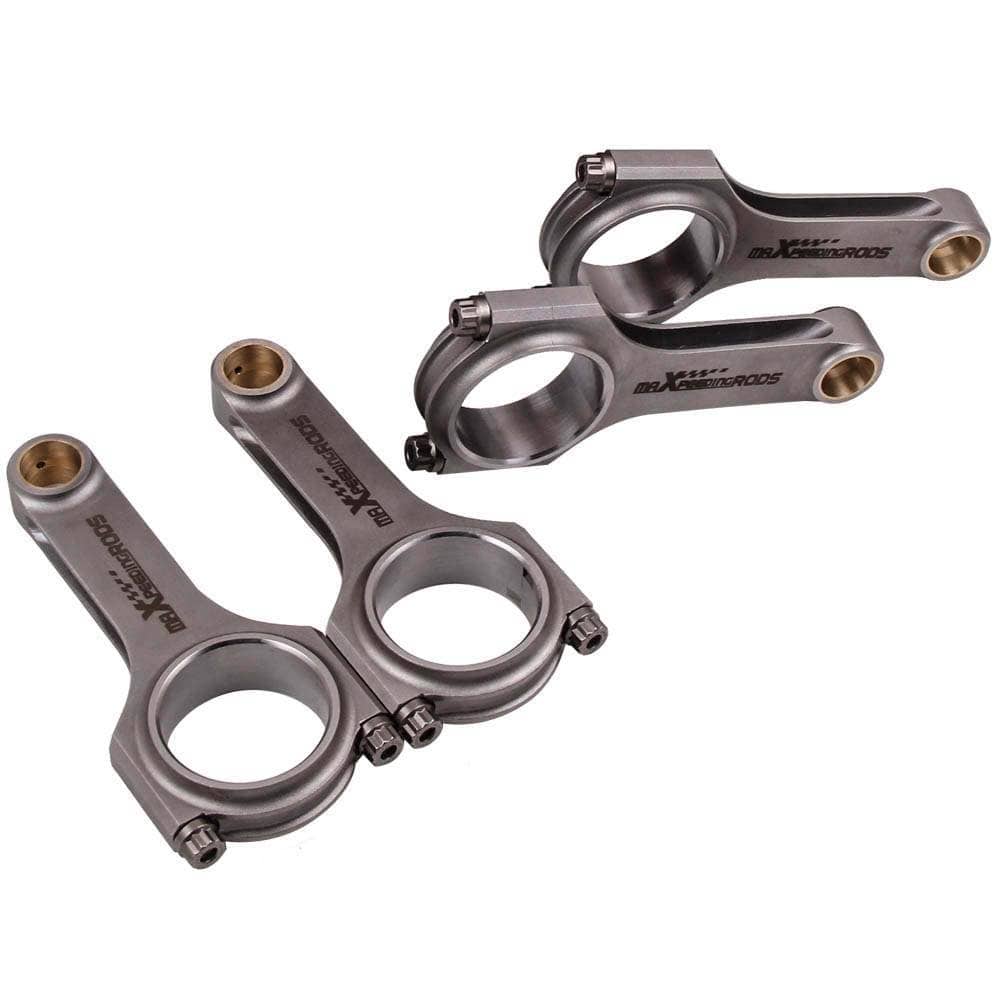

- 4x steel connecting rod (H-beam cross-section)
- 1x set ARP 2000 3/8 bolts
Features
- Connecting rods are angled and ready for direct installation
- Forged SAE 4340 chrome-molybdenum steel for maximum strength and durability, especially for racing use
- Designed and machined on a CNC machine
- All big and small ends finished with a SUNNEN honing machine
- Precision alignment sleeves correctly position the connecting rod cap, maintain the big end bore, and prevent cap shifting
- 100% X-rayed, acoustically tested, and Magnaflux tested
- Multi-stage heat treated
- Shot peened to reduce stress
- Equipped with bronzed bush, suitable for floating piston pin
Please note
There are extra costs for an upgrade to ARP L19 bolts. These ARP bolts are actually manufactured in the USA. Please check if your old connecting rod matches the dimensions above. Professional installation is highly recommended (no instructions included).
Check fitment
Always check the original OEM part number, year of manufacture, engine code, and the specific version of your vehicle before ordering, as there may be differences per version. If you are unsure whether this part fits your vehicle, please contact us before purchase.
