Product Description

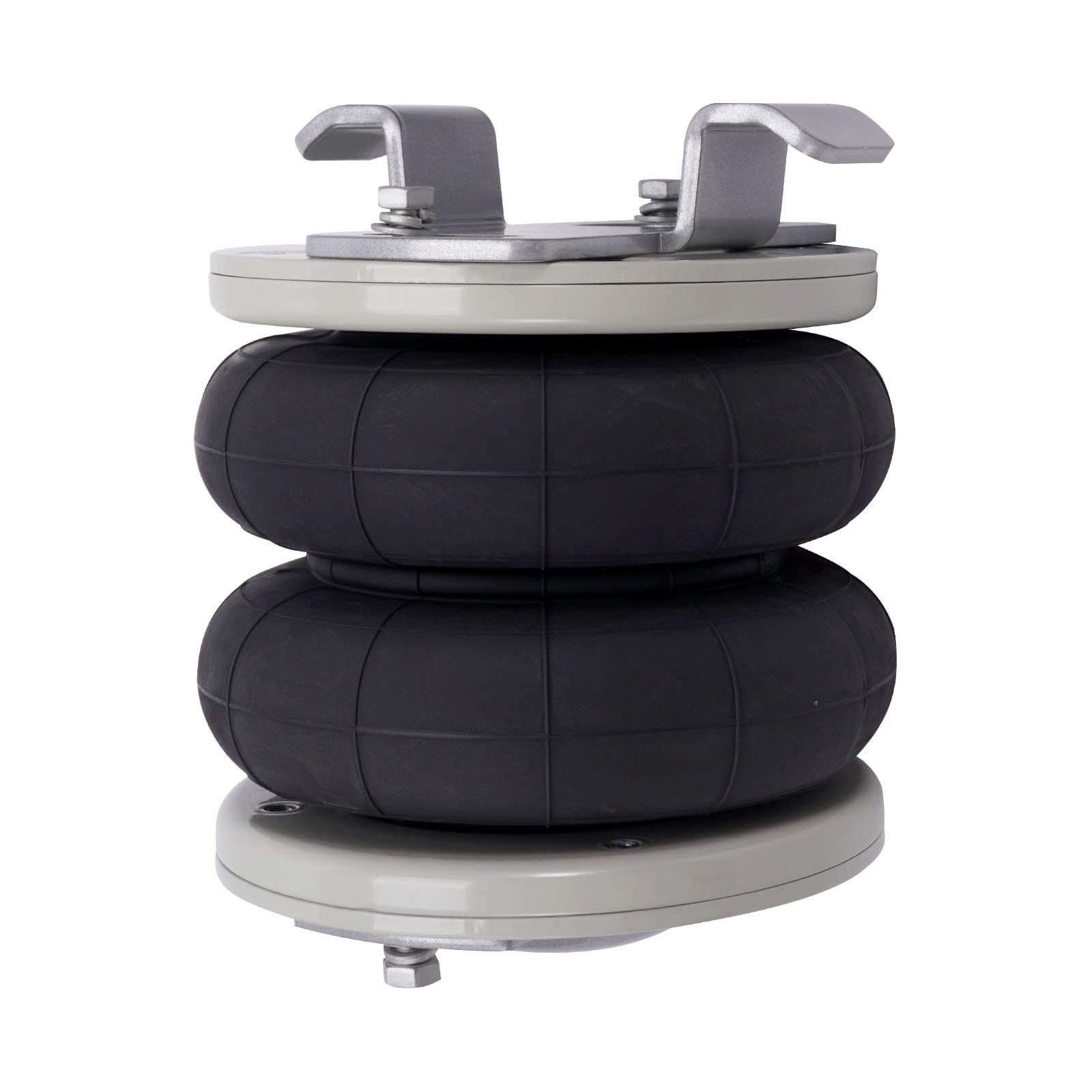

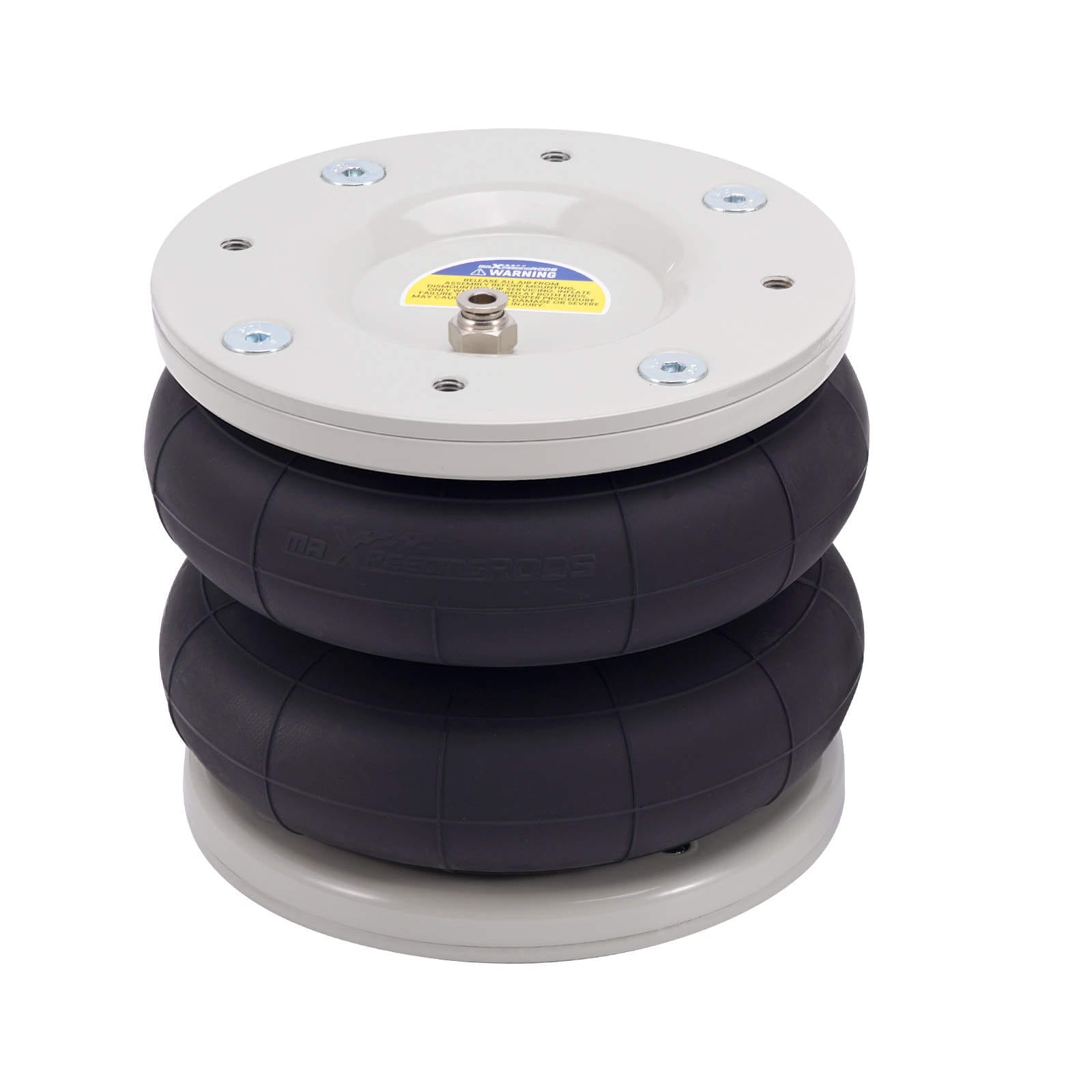

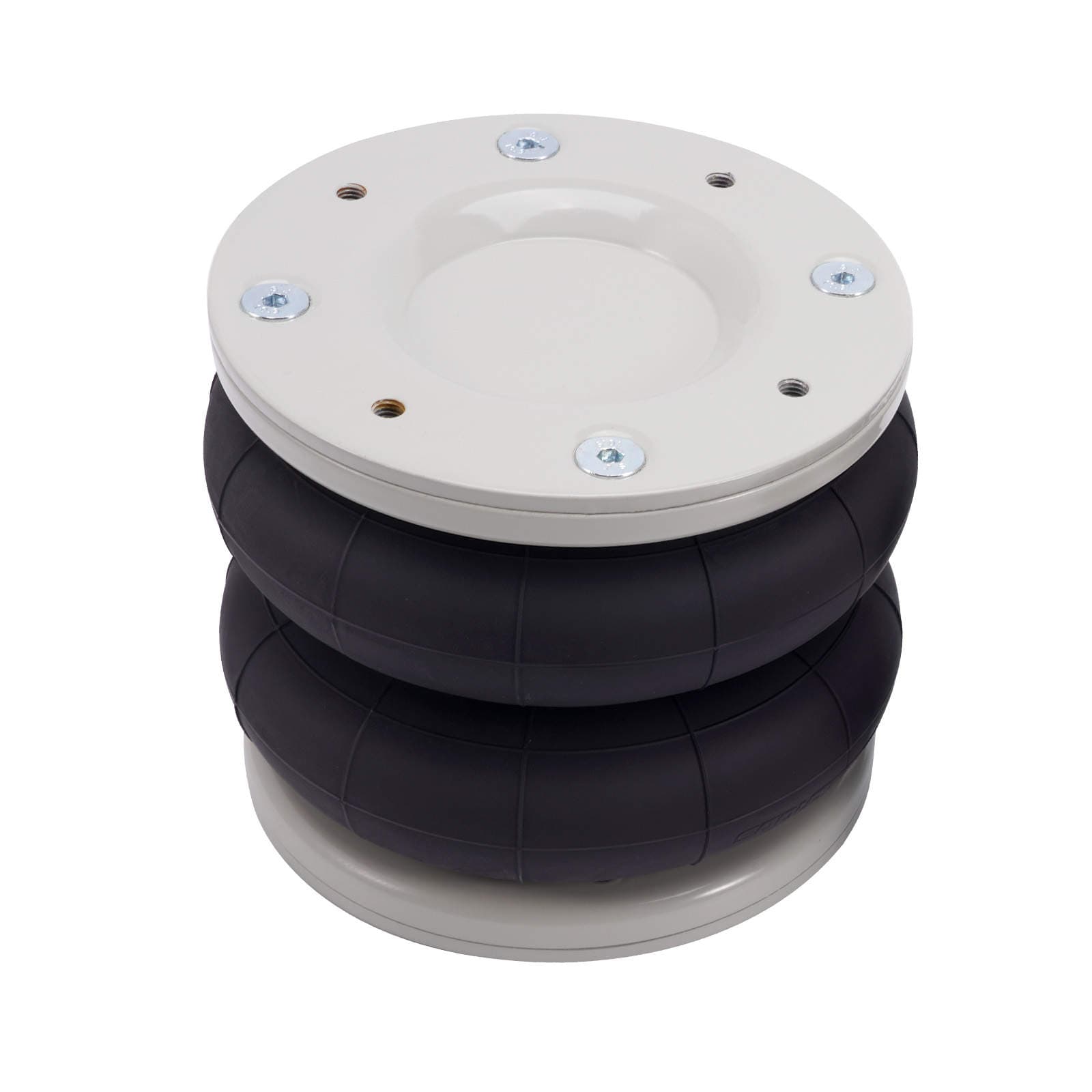

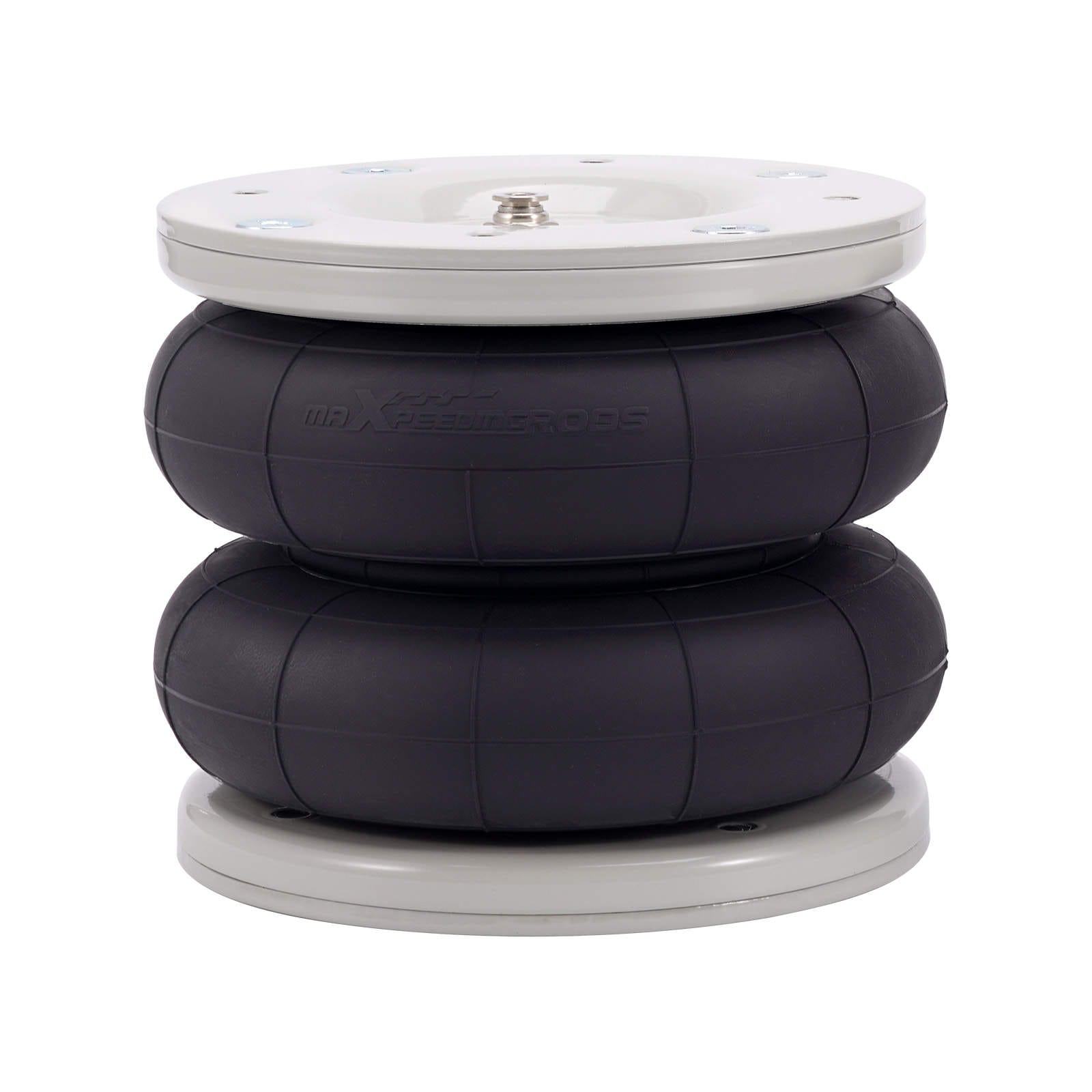

Air suspension kit for the rear axle, suitable for a maximum load of 4000 kg.

Suitable for:

• Fiat Ducato (1994-2024)
• Citroën Jumper (1994-2024)
• Citroën Relay (1994-2024)
• Peugeot Boxer (1994-2024)

Specifications

• Condition: Brand new
• Chassis type: All standard chassis types, except Alco type torsion bar chassis
• Installation position: Rear, left and right
• Maximum load: 4000 kg
• Wheelbase: 156 mm
• Design height air spring: 172 mm
• Stroke: 140 mm
• Max extended: 230 mm
• Min compressed: 90 mm
• Min. height complete kit: 146 mm
• Max. height complete kit: 326 mm

Scope of delivery

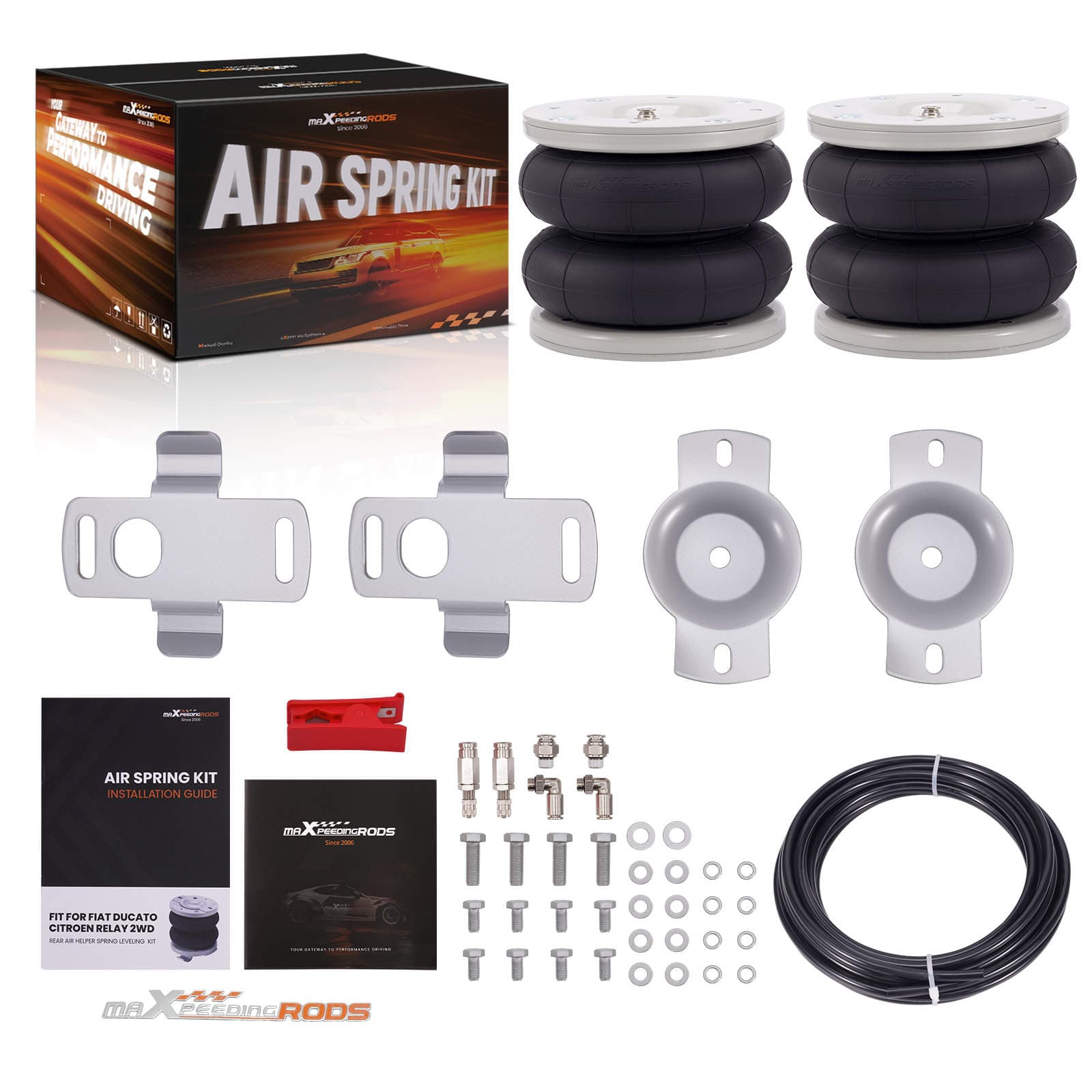

2x air spring, 4x mounting bracket, 1x air line 8 m, mounting bolts and air fittings

Features

• Stress tested for over 5,000,000 cycles: durable and safe
• Burst pressure ≥2.0 MPa: high pressure resistance and less noise
• 100% airtightness guarantee
• Operating temperature ≥-40℃ / ≤70℃, made of premium natural rubber
• 4-layer reinforced construction for better load support
• High-quality steel with large load capacity and long service life
• Practical bolt-on mounting
• Restores original ride height and improves ride comfort
• Dacromet surface treatment for excellent corrosion resistance

Please note

Suitable for single or double rear wheels, and for front or rear wheel drive (FWD/RWD). This is an aftermarket air suspension kit that replaces the original suspension; professional installation is recommended.

Check fitment

Before ordering, always check the original OEM part number, year of manufacture, engine code and the version of your vehicle, as there may be differences per version. Are you unsure whether this part fits your vehicle? Please contact us before purchasing.
