Product description

Aluminum radiator for various SEAT and Skoda models.

Suitable for:

• SEAT Cordoba (6L2) 1.2, 47/64hp, 1198cc, 7593-014/7593-ACJ, 10.02-06.06
• SEAT Cordoba (6L2) 1.2 12V, 51/70hp, 1198cc, 7593-ACW, 05.06-11.09
• SEAT Cordoba (6L2) 1.4 16V, 55/75hp, 1390cc, 7593-015/7593-ACK, 09.02-12.07
• SEAT Cordoba (6L2) 1.4 16V, 74/100hp, 1390cc, 7593-ACL/7593-018, 10.02-11.09
• SEAT Cordoba (6L2) 1.4 16V, 63/86hp, 1390cc, 7593-ACX (with air conditioning), 05.06-11.09
• SEAT Cordoba (6L2) 1.4 TDI, 55/75hp, 1422cc, 7593-020/7593-ACE, 10.02-12.05
• SEAT Cordoba (6L2) 1.4 TDI, 51/70hp, 1422cc, 7593-ACM/7593-515, 05.05-11.09
• SEAT Cordoba (6L2) 1.4 TDI, 59/80hp, 1422cc, 7593-517/7593-ACN, 06.05-11.09
• SEAT Cordoba (6L2) 1.6, 74/101hp, 1598cc (with air conditioning), 04.03-11.09
• SEAT Cordoba (6L2) 1.6 16V, 77/105hp, 1598cc, 7593-ADA, 11.06-11.09
• SEAT Cordoba (6L2) 1.9 SDI, 47/64hp, 1896cc, 7593-012/7593-ACF, 09.02-11.09
• SEAT Cordoba (6L2) 1.9 TDI, 96/131hp, 1896cc, 7593-ACG/7593-017, 10.02-11.09
• SEAT Cordoba (6L2) 1.9 TDI, 74/100hp, 1896cc, 7593-ACH/7593-013, 09.02-11.09
• SEAT Cordoba (6L2) 2.0, 85/115hp, 1984cc, 7593-ACI/7593-022, 09.02-11.09
• SEAT Ibiza III (6L1) 1.2, 47/64hp, 1198cc, 7593-ABW/7593-007, 02.02-06.06
• SEAT Ibiza III (6L1) 1.2, 44/60hp, 1198cc, 7593-ADG, 06.07-05.08
• SEAT Ibiza III (6L1) 1.2 12V, 51/70hp, 1198cc, 7593-ACU, 05.06-11.09
• SEAT Ibiza III (6L1) 1.4 16V, 74/100hp, 1390cc, 7593-ABZ/7593-005, 02.02-11.09
• SEAT Ibiza III (6L1) 1.4 16V, 55/75hp, 1390cc, 7593-010/7593-ABY, 02.02-12.07
• SEAT Ibiza III (6L1) 1.4 16V, 63/86hp, 1390cc, 7593-ACV, 05.06-11.09
• SEAT Ibiza III (6L1) 1.4 TDI, 55/75hp, 1422cc, 7593-ABR/7593-016, 05.02-12.05
• SEAT Ibiza III (6L1) 1.4 TDI, 51/70hp, 1422cc, 7593-514/7593-ACB, 05.05-11.09
• SEAT Ibiza III (6L1) 1.4 TDI, 59/80hp, 1422cc, 7593-516/7593-ACC, 06.05-11.09
• SEAT Ibiza III (6L1) 1.6, 74/101hp, 1598cc (with air conditioning), 02.03-11.09
• SEAT Ibiza III (6L1) 1.6 16V, 77/105hp, 1598cc, 7593-ACZ, 11.06-11.09
• SEAT Ibiza III (6L1) 1.9 SDI, 47/64hp, 1896cc, 7593-ABS/7593-011, 02.02-12.05
• SEAT Ibiza III (6L1) 1.9 TDI, 74/100hp, 1896cc, 7593-ABU/7593-004, 02.02-11.09
• SEAT Ibiza III (6L1) 1.9 TDI, 96/131hp, 1896cc, 7593-ABT/7593-006, 02.02-11.09
• SEAT Ibiza III (6L1) 2.0, 85/116hp, 1984cc, 7593-021/7593-ABV, 04.02-11.09
• SEAT Ibiza IV (6J5, 6P1) 1.4 TDI, 59/80hp, 1422cc, 7593-ADP, 07.08-06.10
• SEAT Ibiza IV (6J5, 6P1) 1.9 TDI, 66/90hp, 1896cc, 7593-ADQ, 07.08-06.10
• SEAT Ibiza IV (6J5, 6P1) 1.9 TDI, 77/105hp, 1896cc, 7593-ADL, 03.08-06.10
• SEAT Ibiza IV SC (6J1, 6P5) 1.9 TDI, 66/90hp, 1896cc, 7593-ADQ, 06.08-06.10
• SEAT Ibiza IV SC (6J1, 6P5) 1.9 TDI, 77/105hp, 1896cc, 7593-ADL, 07.08-06.10
• Skoda Fabia I (6Y2) 1.0, 37/50hp, 996cc, 8004-346, 12.99-08.02

Specifications

• OEM / Part Number: 6Q0121253AD, 6Q0121253L, 6Q0121253M, 6Q0121253, 5Z0121253A, 6Q0121253Q, 6QE121253A, 6QE121253B, 6Q0121253R, 6LL121253
• Condition: New
• Installation type: Direct replacement
• Installation position: Engine compartment
• Radiator core material: Aluminum
• Water tank material: Plastic
• Equipped with dust cover: Yes
• Radiator core dimensions: 63 x 41.6 x 2.4 cm
• Inlet diameter: 3.25 cm (top right)
• Outlet diameter: 3.25 cm (bottom right)
• Number of rows: 1
• Includes engine oil cooler: No
• Includes transmission oil cooler: No
• Transmission type: Manual (MT)

Package contents

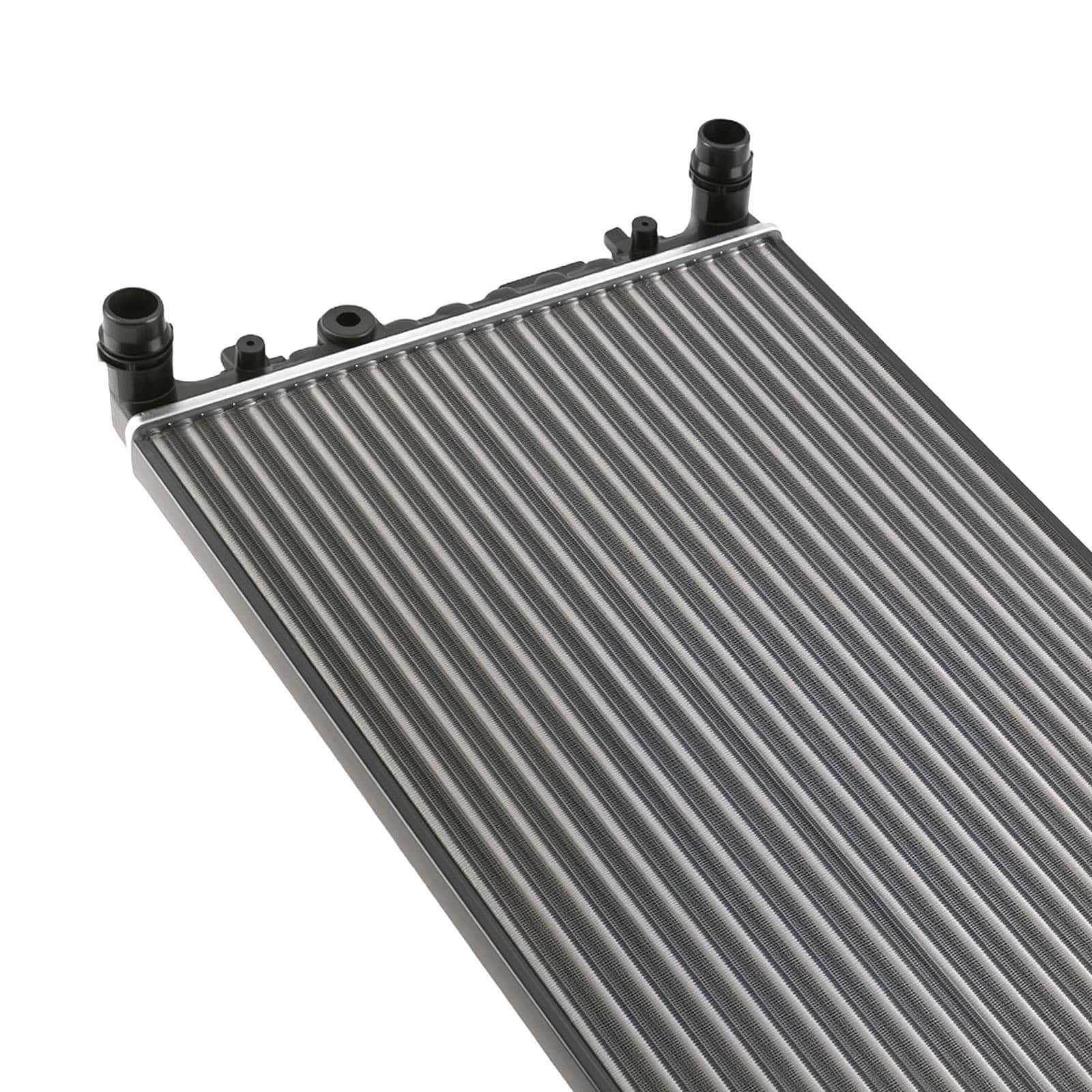

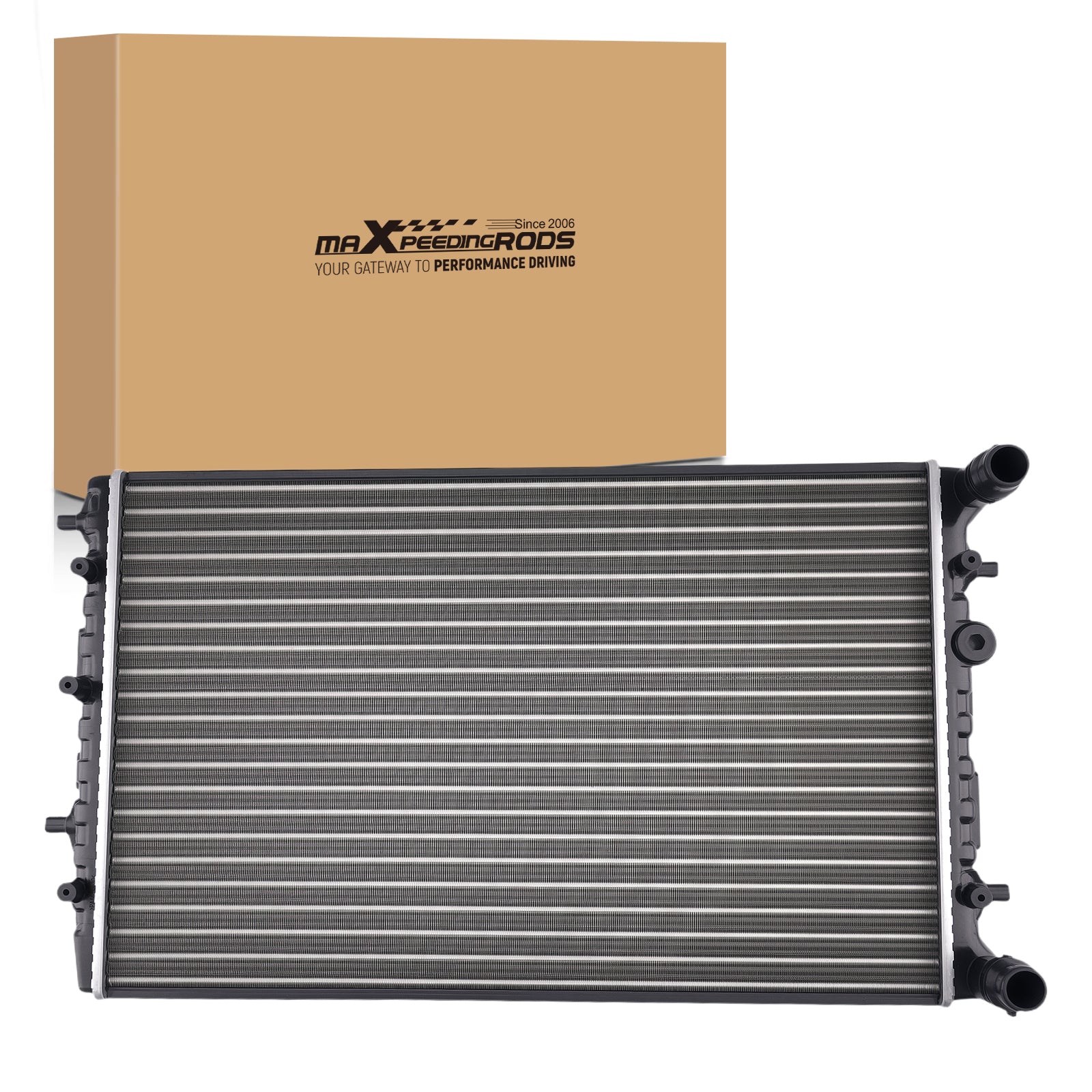

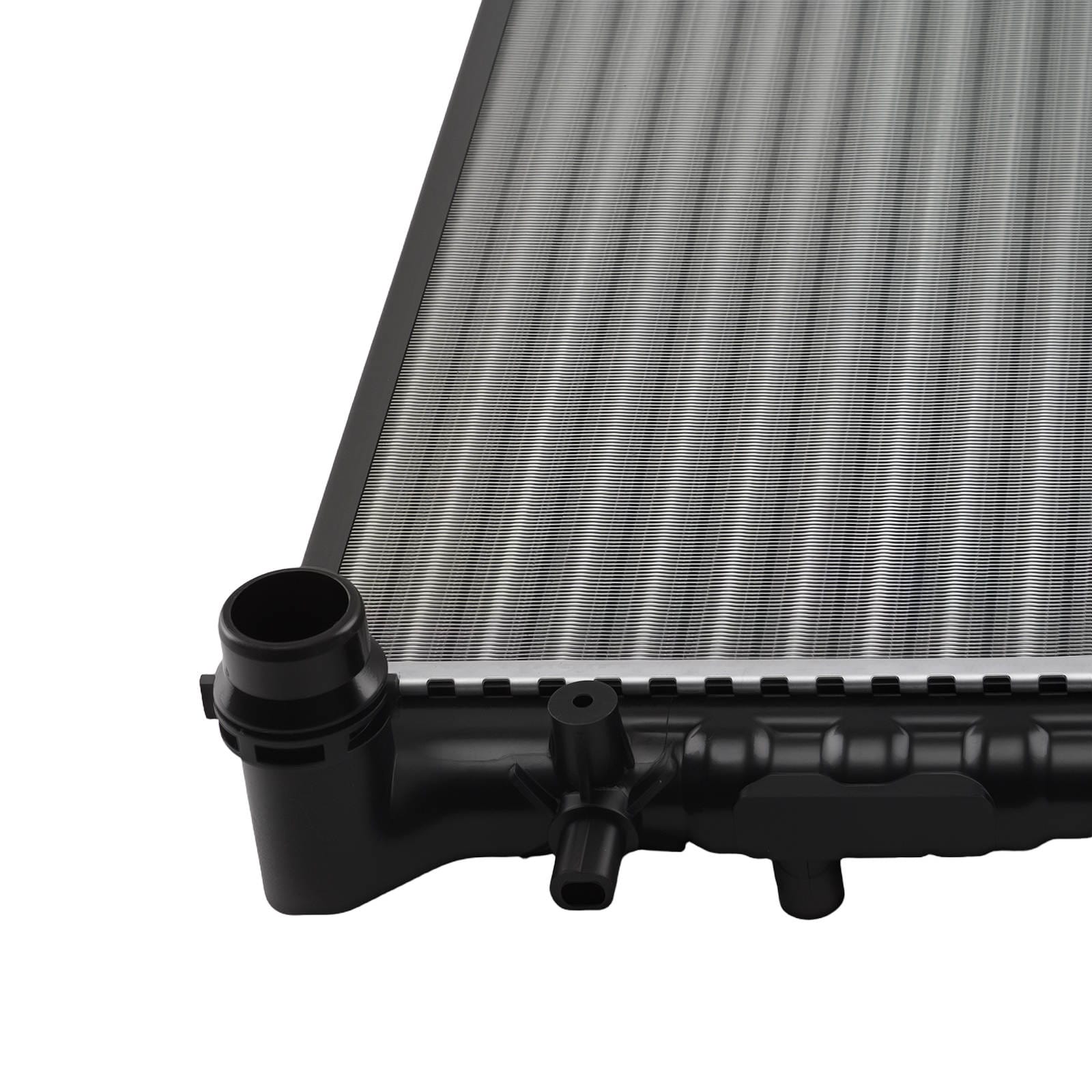

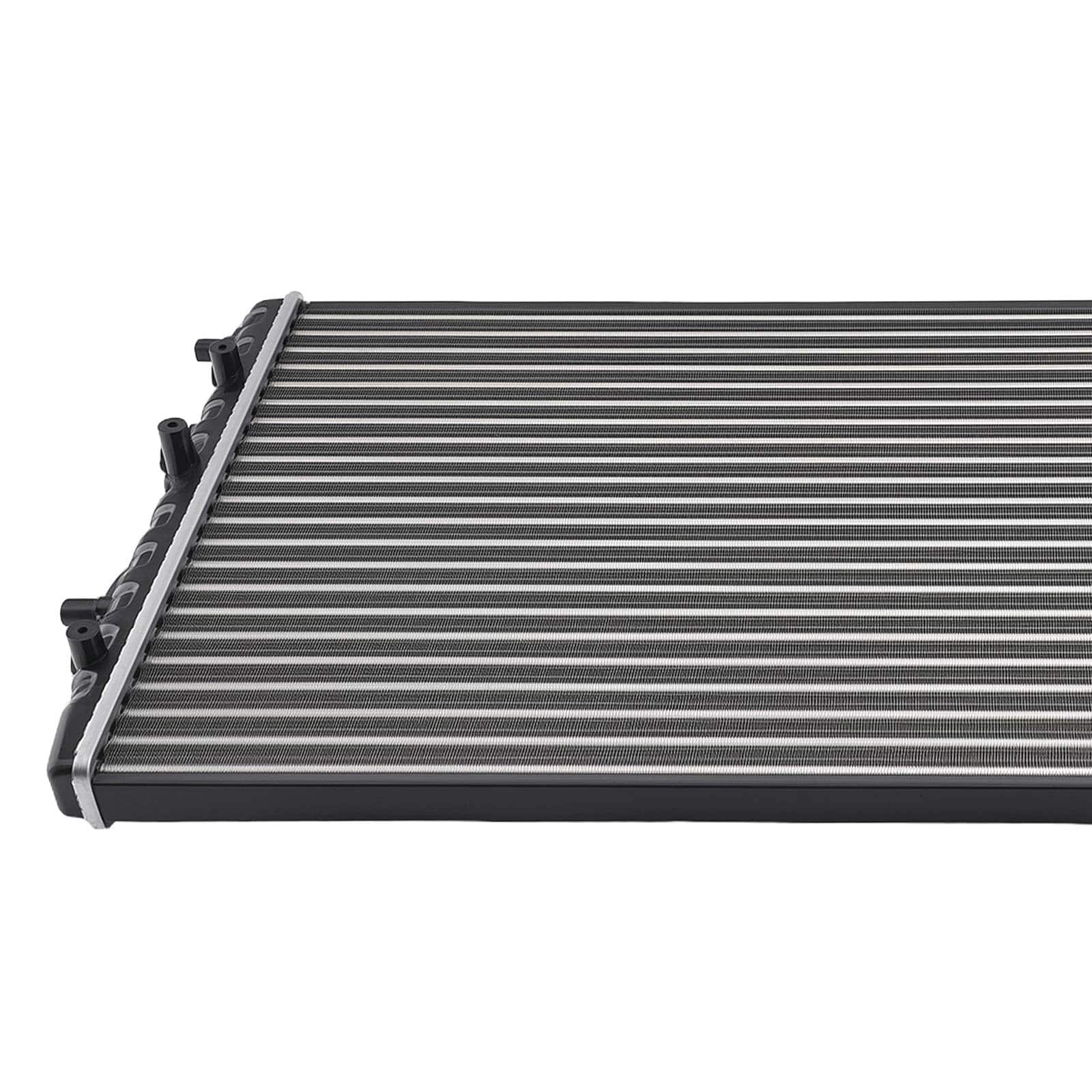

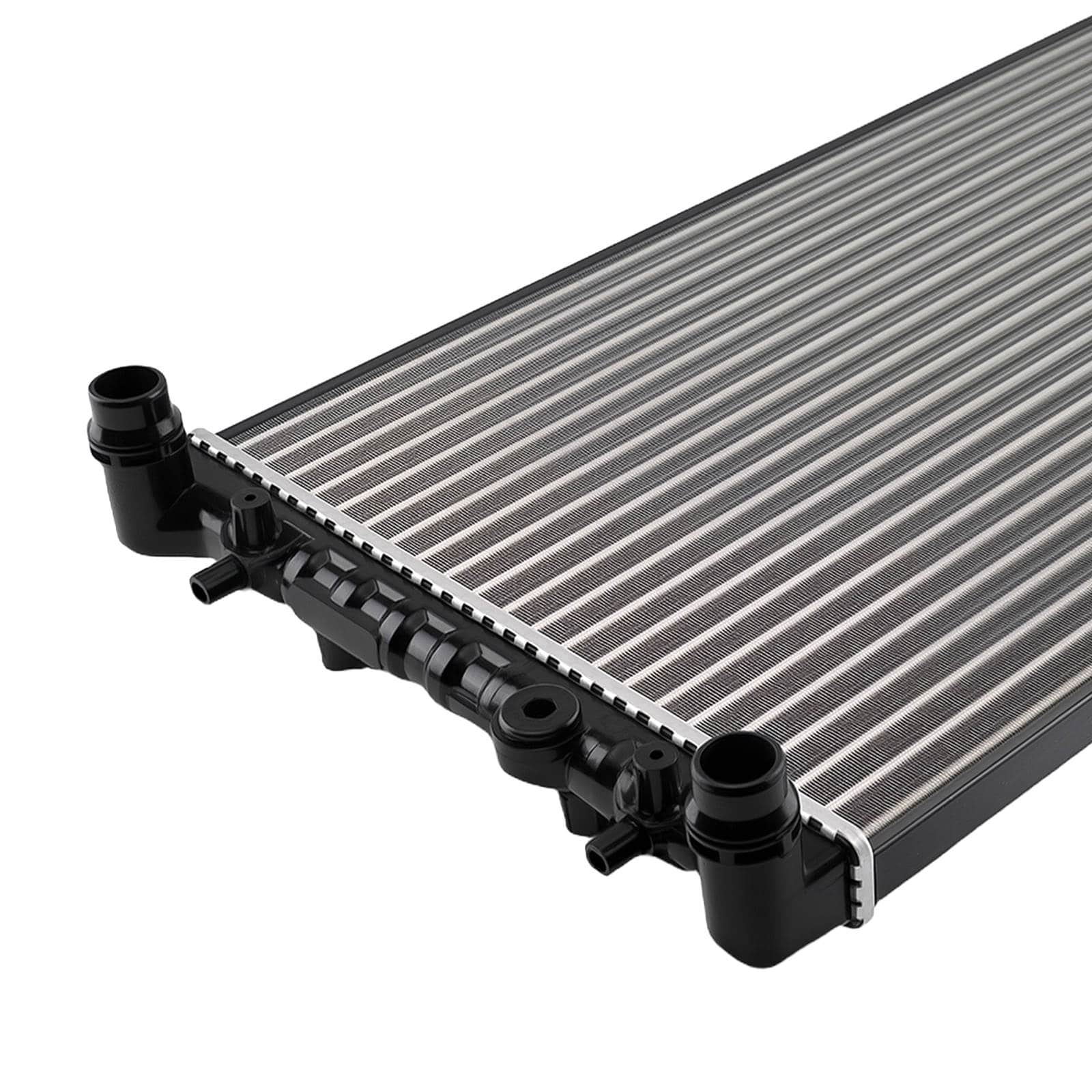

1x radiator (as pictured)

Features

• Improved protective packaging for less transport damage
• Aluminum construction for better heat dissipation
• Precise, leak-free construction
• Easy to install

Please note

The compatibility list from the source data breaks off after the above models; other applications were missing in the source text.

Check fitment

Always check the original OEM part number, year of manufacture, engine code, and vehicle version before ordering, as differences may exist per version. Are you unsure if this part fits your vehicle? Feel free to contact us before purchasing.
