Product Description

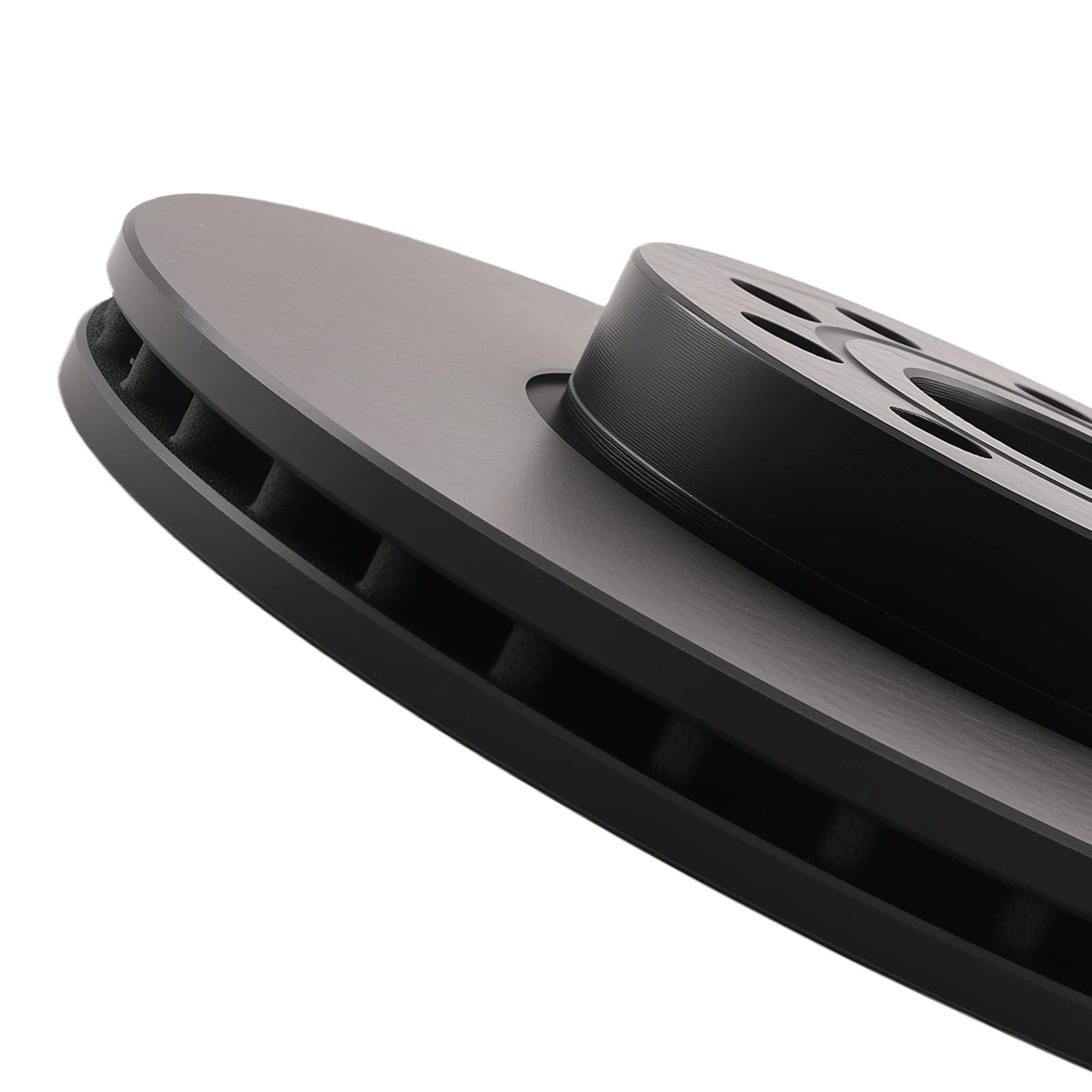

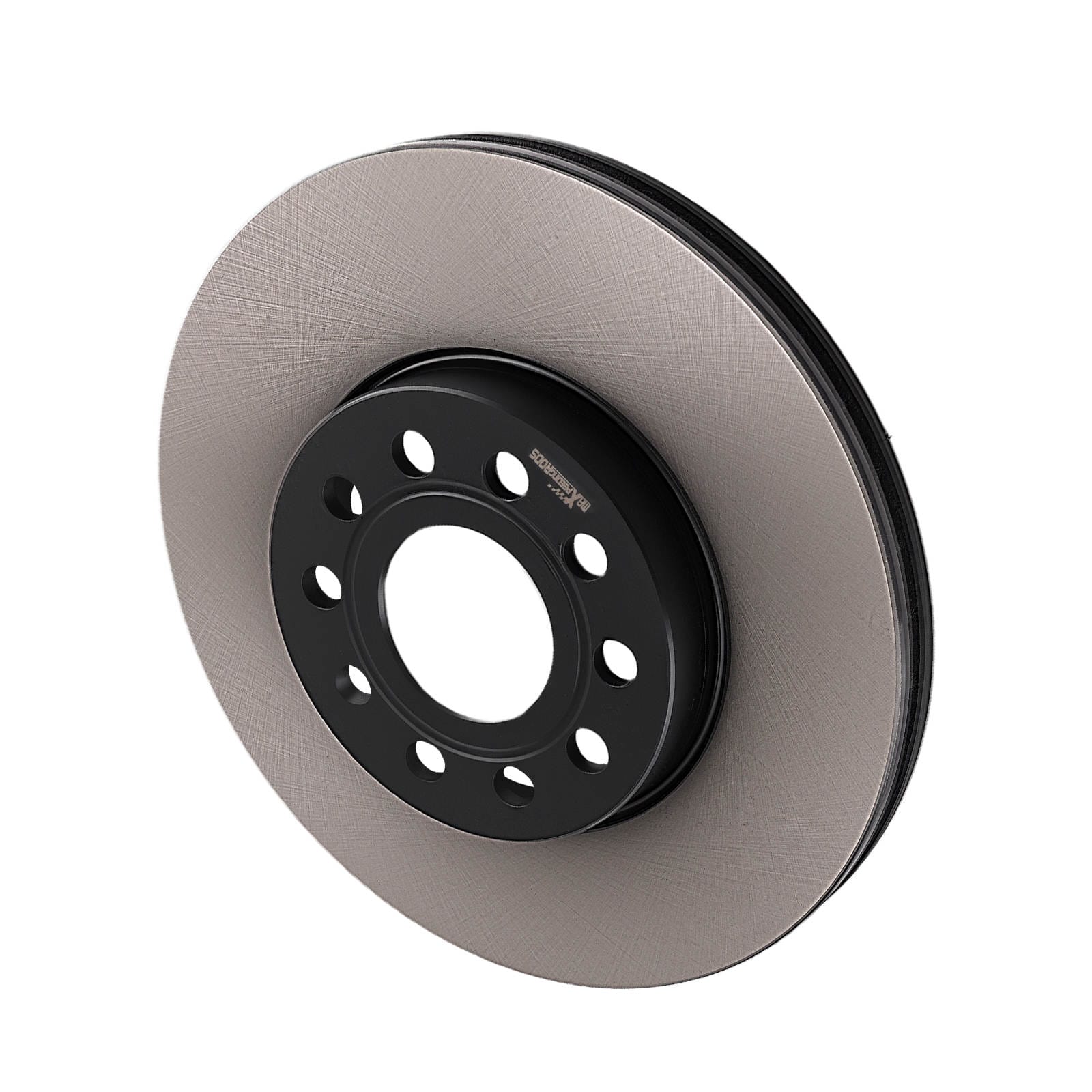

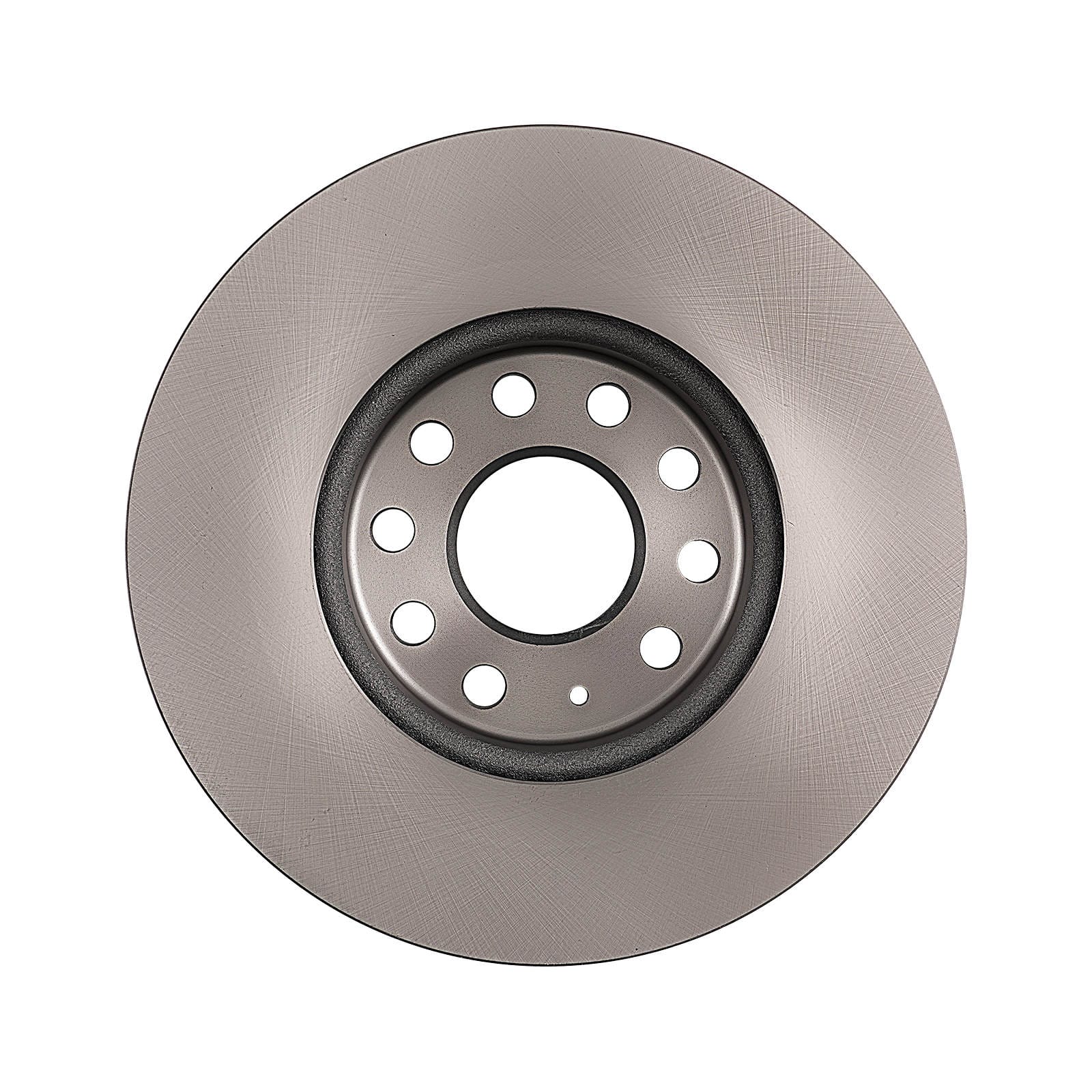

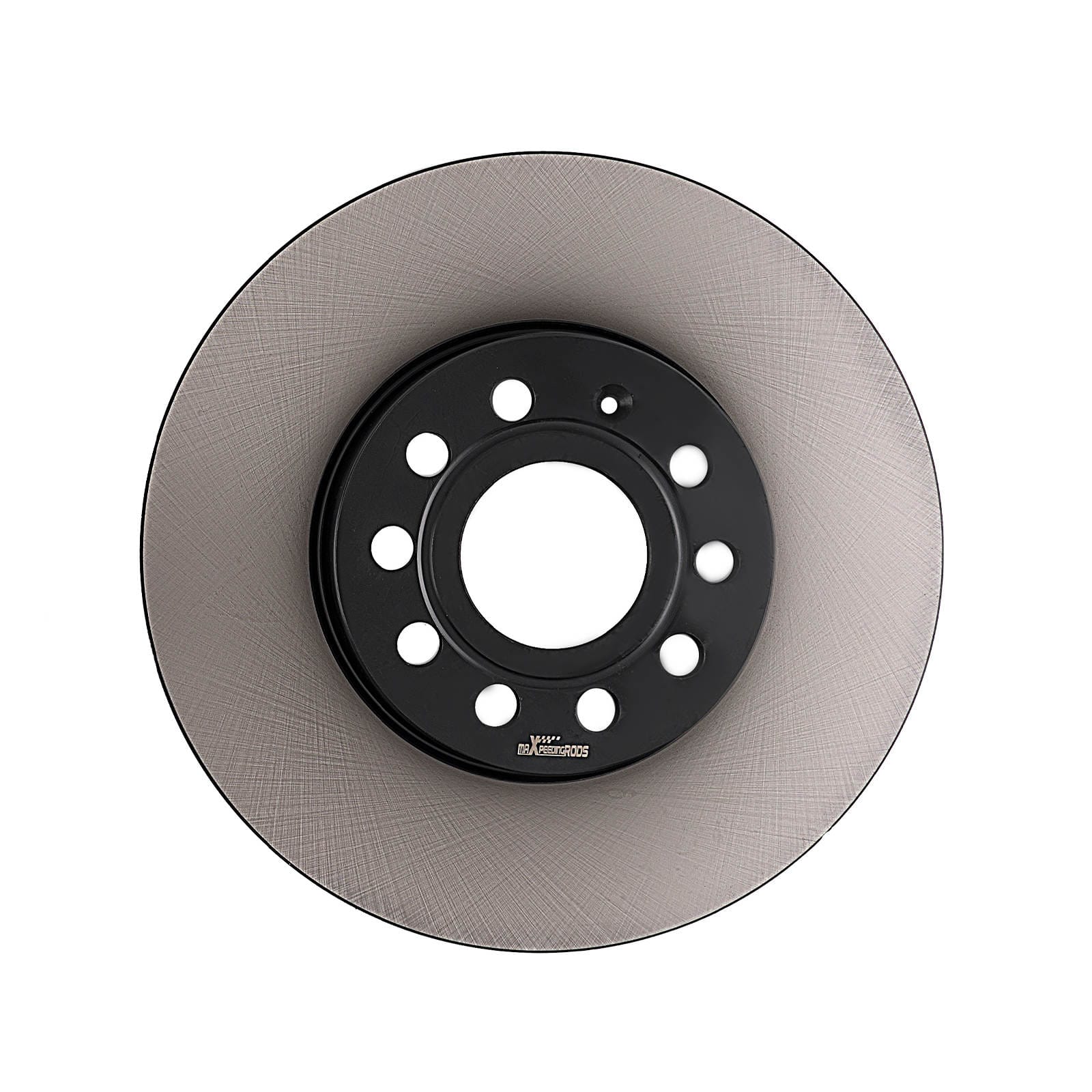

Set of 2 vented front axle brake discs, as a direct replacement for the original brake discs.

Suitable for:

• Audi A3 8V1, 8VK 1.0L-2.0L front axle 2012/04-2020/10
• Audi A3 Cabriolet 8V7, 8VE 1.4L-2.0L front axle 2013/10-2023/12
• Audi A3 Saloon 8VM, 8VS 1.0L-2.0L front axle 2013/05-2023/12
• Audi A3 Sportback 8VA, 8VF 1.0L-2.0L front axle 2012/09-2023/12
• Seat Leon 5F 1.2L-1.6L front axle 2012/09-2020/08
• Seat Leon 5F1 1.0L-2.0L front axle 2012/09-2020/08
• Seat Leon SC 5F5 1.0L-2.0L front axle 2013/01-2018/08
• Seat Leon ST 5F8 1.0L-2.0L front axle 2013/08-2020/08
• Skoda Octavia III 5000, NL3, NR3 1.0L-2.0L front axle 2012/11-2020/10
• Skoda Octavia III Estate 500000, 5000000 1.0L-2.0L front axle 2012/11-2020/10
• Skoda Octavia III Estate 5E5, 5E6 2.0L front axle 2012/11-2020/10
• VW Golf Alltrack BA5, BV5 1.6L-2.0L front axle 2014/12-2020/08
• VW Golf Sportsvan AM1, AN1 1.0L-2.0L front axle 2014/02-2020/08
• VW Golf VII 5G1, BE1, BE2, BQ1 1.0L-2.0L, electric front axle 2012/08-2021/03
• VW Golf VII Variant BA5, BV5 1.0L-2.0L front axle 2013/04-2023/12

Specifications

• OEM- / part number: 24012501451, 24032501451, 09914511, 0991451E, 0991451X, 09914521, KT08024, DF4295, 09914514, 09914575, KT08038, 1K0615301T, 5Q0615301H, JZW615301J, 1K0615301K, 5C0615301A
• Type: brake discs
• Condition: new
• Mounting position: front, left and right
• Material: iron alloy
• Disc type: vented
• Anti-rust coating: black paint
• Braking surface: non-directional
• ABS tone ring included: no
• Bearings included: no
• Number of bolt holes: 9
• Bolt circle diameter: 112 mm
• Outer diameter: 287.8 mm
• Total height: 49.7 mm
• Nominal thickness: 24.9 mm

Scope of delivery

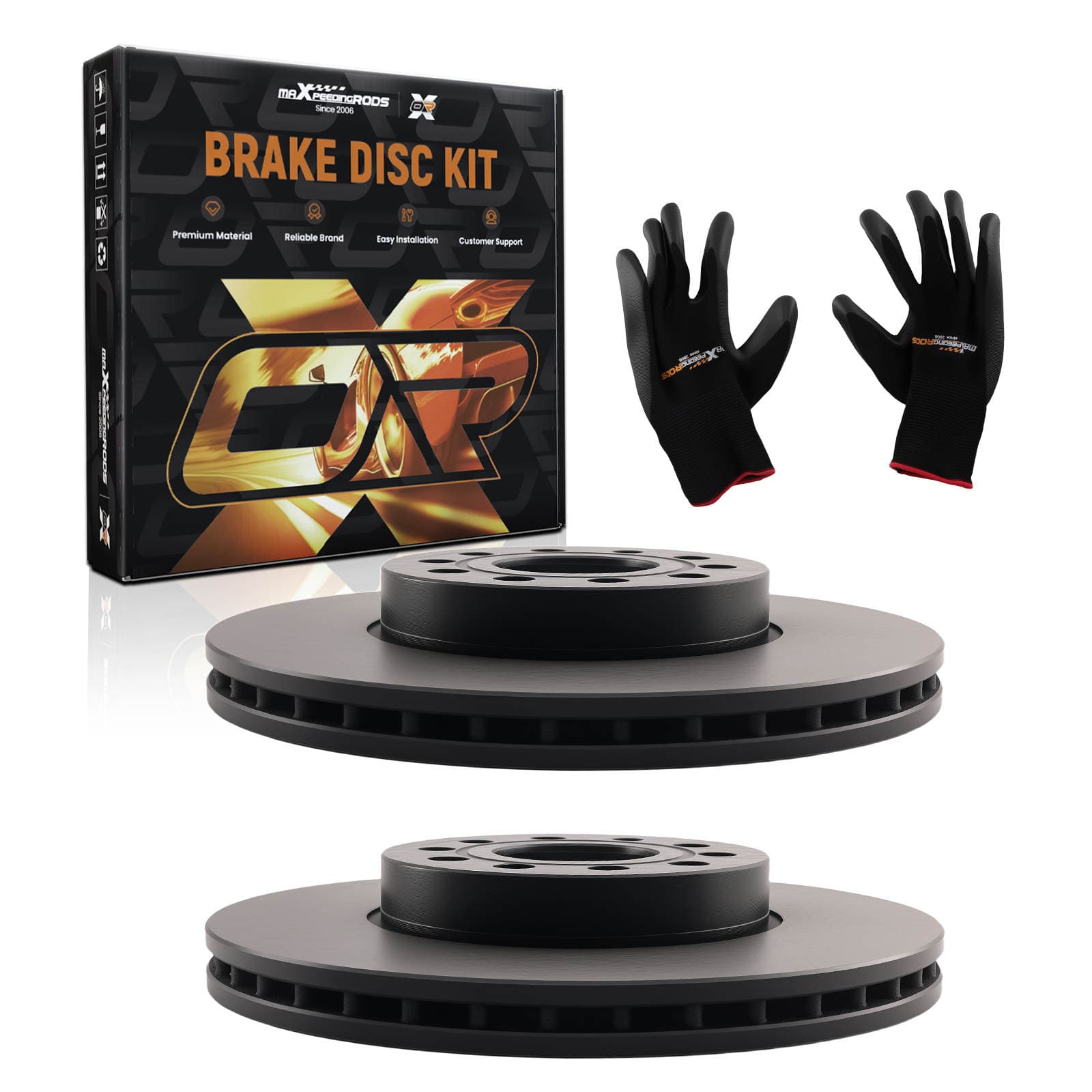

2x brake discs.

Check fitment

Before ordering, always check the original OEM part number, year of manufacture, engine code, and vehicle version, as there may be differences depending on the version. Are you unsure whether this part fits your vehicle? Please feel free to contact us before purchasing.
