Product Description

The brake caliper clamps like a bracket around a wheel's brake disc and prevents the wheel from rotating when you apply the brake. Inside each brake caliper is a pair of metal plates, called brake pads. When you press the brake pedal, the brake fluid pressurizes the pistons in the caliper, forcing the pads against the brake disc and slowing down your vehicle.

Suitable for:

• Mercedes-Benz C-Class W203 C 180 2.0L 2000/10-2002/05
• Mercedes-Benz C-Class W203 C 180 Kompressor 1.8L 2002/05-2007/02
• Mercedes-Benz C-Class W203 C 200 CDi 2.2L 2000/09-2007/02
• Mercedes-Benz C-Class W203 C 200 CGI Kompressor 1.8L 2003/07-2004/07
• Mercedes-Benz C-Class W203 C 200 Kompressor 1.8L 2002/05-2007/02
• Mercedes-Benz C-Class W203 C 200 Kompressor 2.0L 2000/05-2002/06
• Mercedes-Benz C-Class W203 C 220 CDi 2.2L 2000/05-2007/02
• Mercedes-Benz C-Class Coupe CL203 C 160 Kompressor 1.8L 2004/09-2006/07
• Mercedes-Benz C-Class Coupe CL203 C 180 2.0L 2001/03-2002/05
• Mercedes-Benz C-Class Coupe CL203 C 180 Kompressor 1.8L 2002/05-2008/01
• Mercedes-Benz C-Class Coupe CL203 C 200 CDi 2.2L 2003/07-2008/01
• Mercedes-Benz C-Class Coupe CL203 C 200 Kompressor 1.8L 2002/08-2005/04
• Mercedes-Benz C-Class Coupe CL203 C 200 Kompressor 2.0L 2001/03-2002/05
• Mercedes-Benz C-Class Coupe CL203 C 220 CDi 2.2L 2001/03-2008/01
• Mercedes-Benz C-Class T-Model S203 C 180 2.0L 2001/03-2002/05
• Mercedes-Benz C-Class T-Model S203 C 180 Kompressor 1.8L 2002/05-2007/08
• Mercedes-Benz C-Class T-Model S203 C 200 CDi 2.2L 2001/03-2007/08
• Mercedes-Benz C-Class T-Model S203 C 200 CGI Kompressor 1.8L 2003/07-2004/07
• Mercedes-Benz C-Class T-Model S203 C 200 Kompressor 1.8L 2002/05-2007/08
• Mercedes-Benz C-Class T-Model S203 C 200 Kompressor 2.0L 2001/03-2002/05
• Mercedes-Benz C-Class T-Model S203 C 220 CDi 2.2L 2001/03-2007/08
• Mercedes-Benz CLC-Class CL203 CLC 160 1.6L 2009/02-2011/06
• Mercedes-Benz CLC-Class CL203 CLC 180 Kompressor 1.8L 2008/05-2011/06
• Mercedes-Benz CLC-Class CL203 CLC 200 CDi 2.2L 2008/05-2011/06
• Mercedes-Benz CLC-Class CL203 CLC 220 CDi 2.2L 2008/05-2011/06
• Mercedes-Benz CLK C209 CLK 200 CGI 1.8L 2003/07-2005/07
• Mercedes-Benz CLK C209 CLK 200 Kompressor 1.8L 2002/09-2006/05
• Mercedes-Benz CLK C209 CLK 220 CDi 2.2L 2005/01-2009/05
• Mercedes-Benz CLK Cabriolet A209 CLK 200 CGI 1.8L 2003/07-2010/03
• Mercedes-Benz SLK R171 200 Kompressor 1.8L 2004/03-2011/02

Please check the exact model of your car against the compatibility table before purchase.

Specifications

• OEM / Part Number: 0014209483, 0034202183, 0044203383, A0014209483, A0034202183, A0044203383, 343684, 521611, 19-2925
• Warranty: 1 year
• Brake Caliper Type: floating caliper
• Condition: brand new, ready for installation
• Installation Type: direct replacement
• Installation Position: front left
• Brake Disc Thickness: 25 mm
• Piston Diameter: 57 mm
• Brake Disc Diameter: 288 mm
• Number of Brake Pistons: 1 piston
• Piston Material: steel
• Pump Housing Material: spheroidal graphite cast iron

Scope of delivery

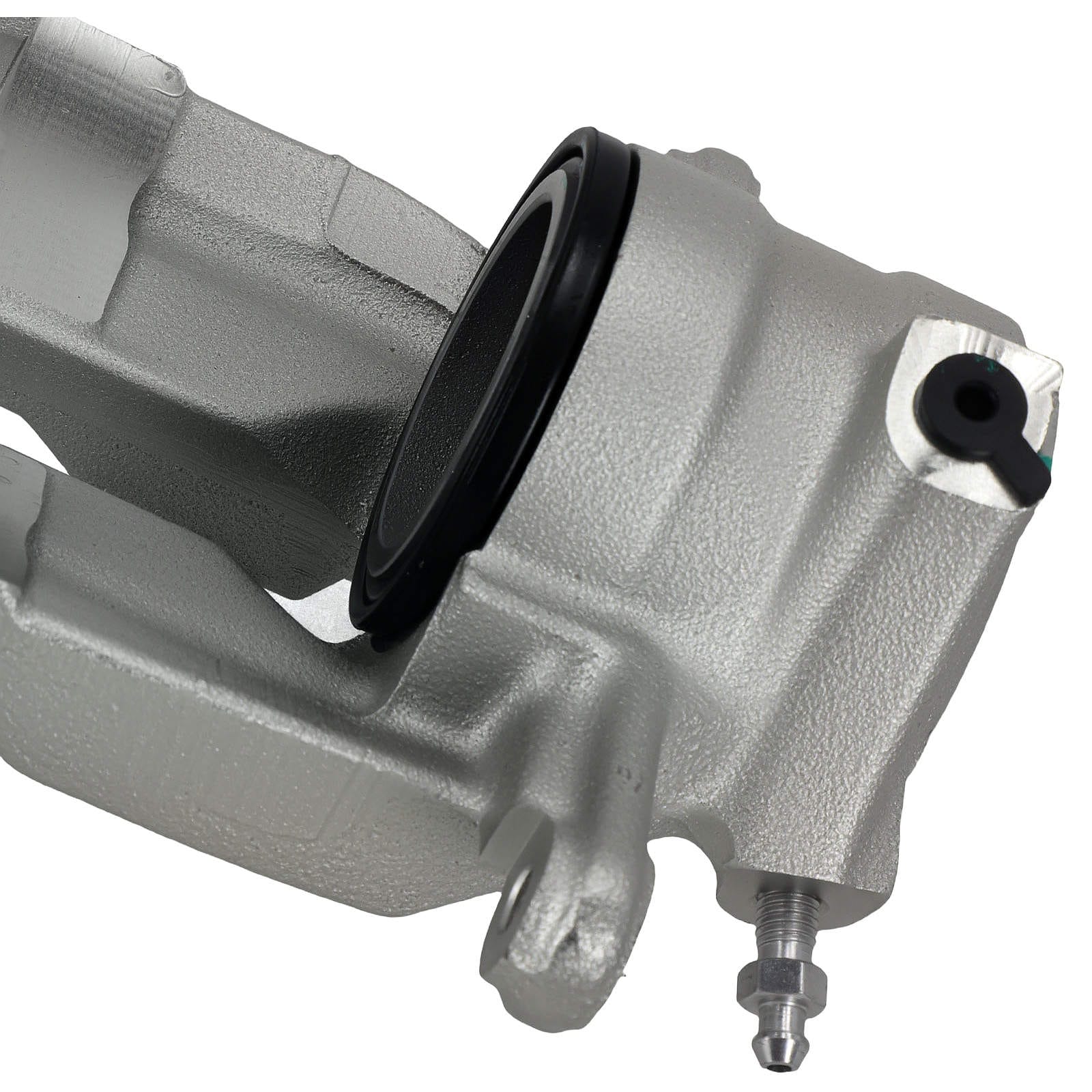

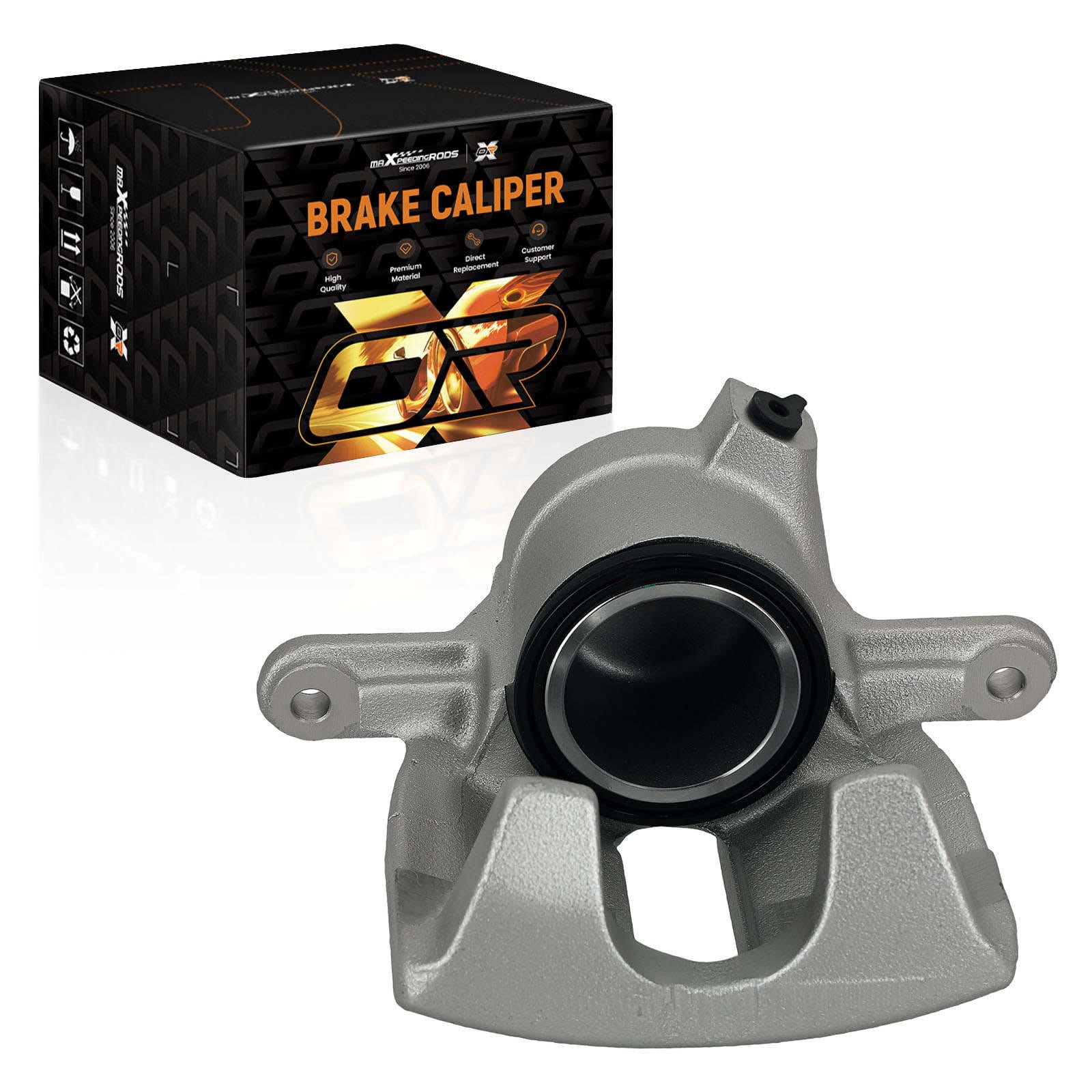

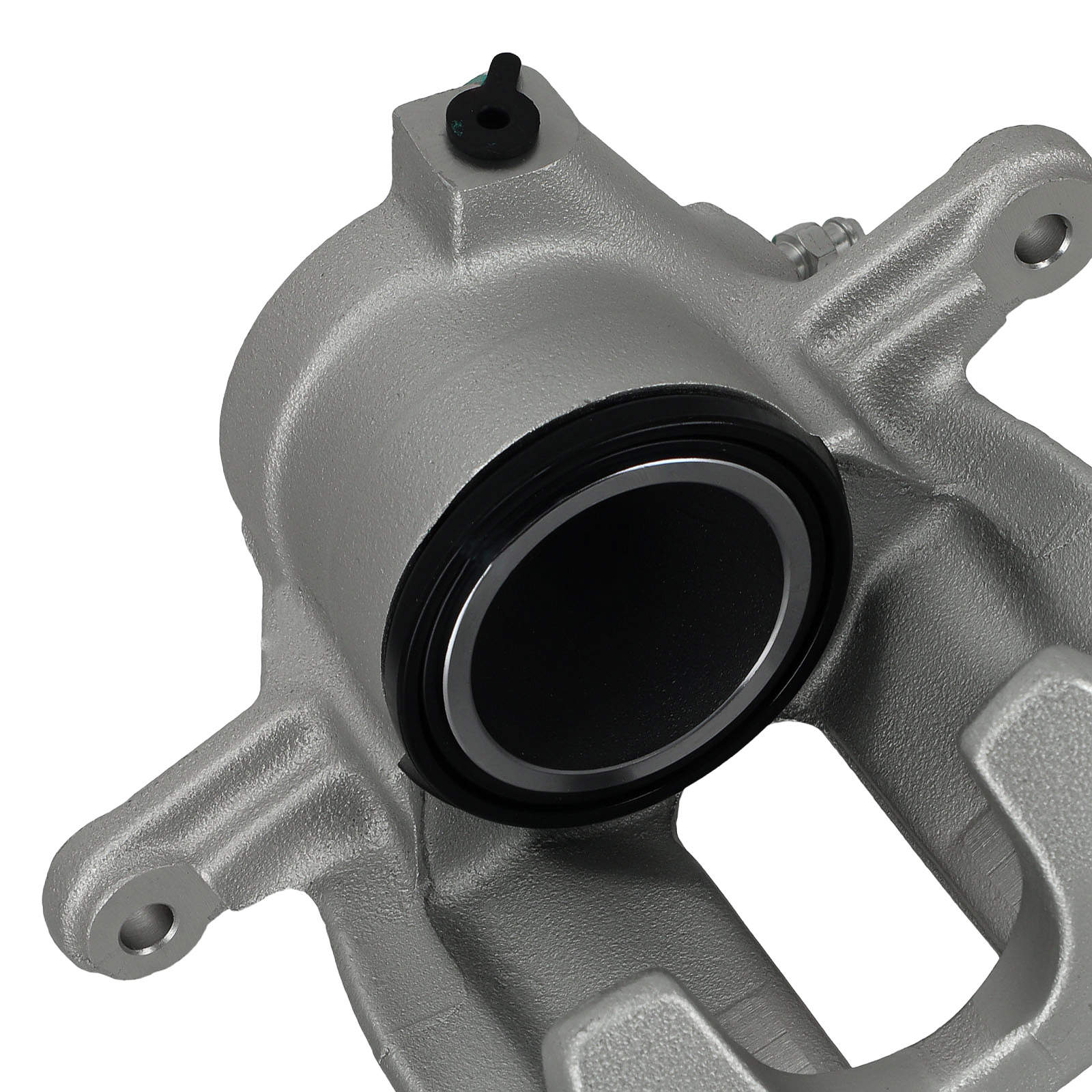

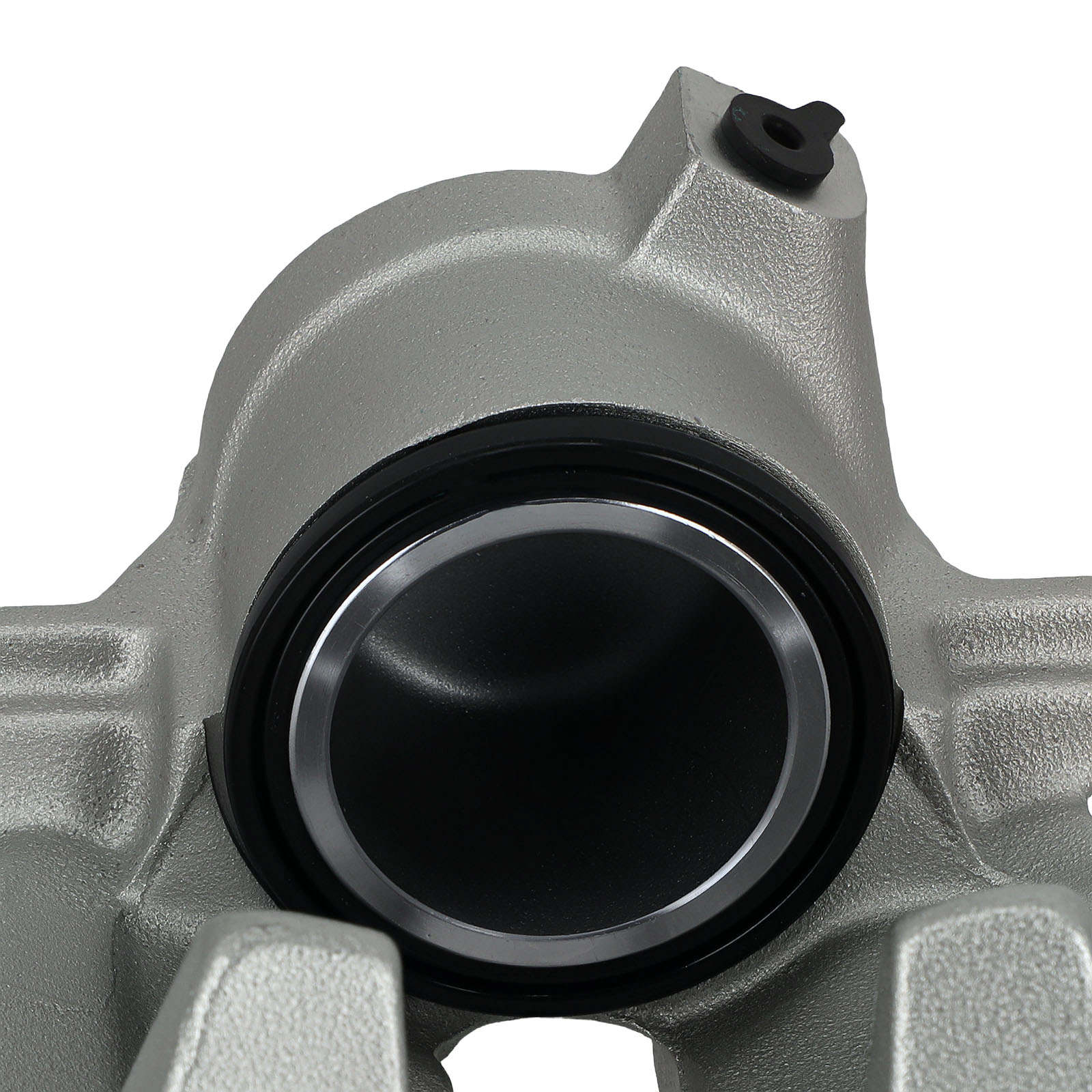

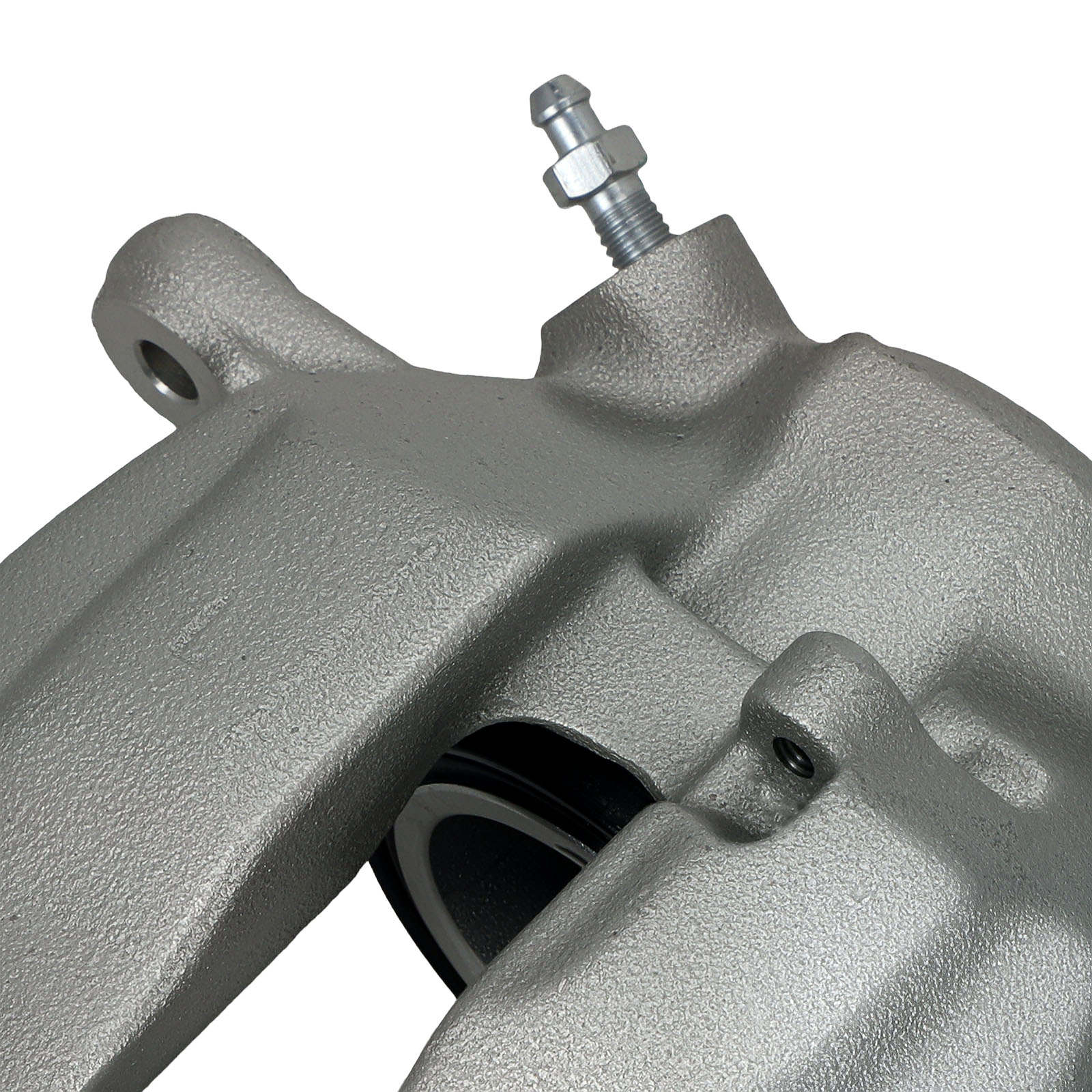

1x brake caliper for front left (as pictured).

Features

• Quick and easy installation thanks to precise fit for direct mounting
• High pressure resistance, tested over a wide pressure range
• High-quality anti-corrosion coating for durable protection of the brake caliper
• Professional workmanship, pressure tested to prevent leakage

Check fitment

Always check the original OEM part number, year of manufacture, engine code and the version of your vehicle before ordering, as differences may exist per version. If you are unsure whether this part fits your vehicle, please feel free to contact us before purchasing.
