Product Description

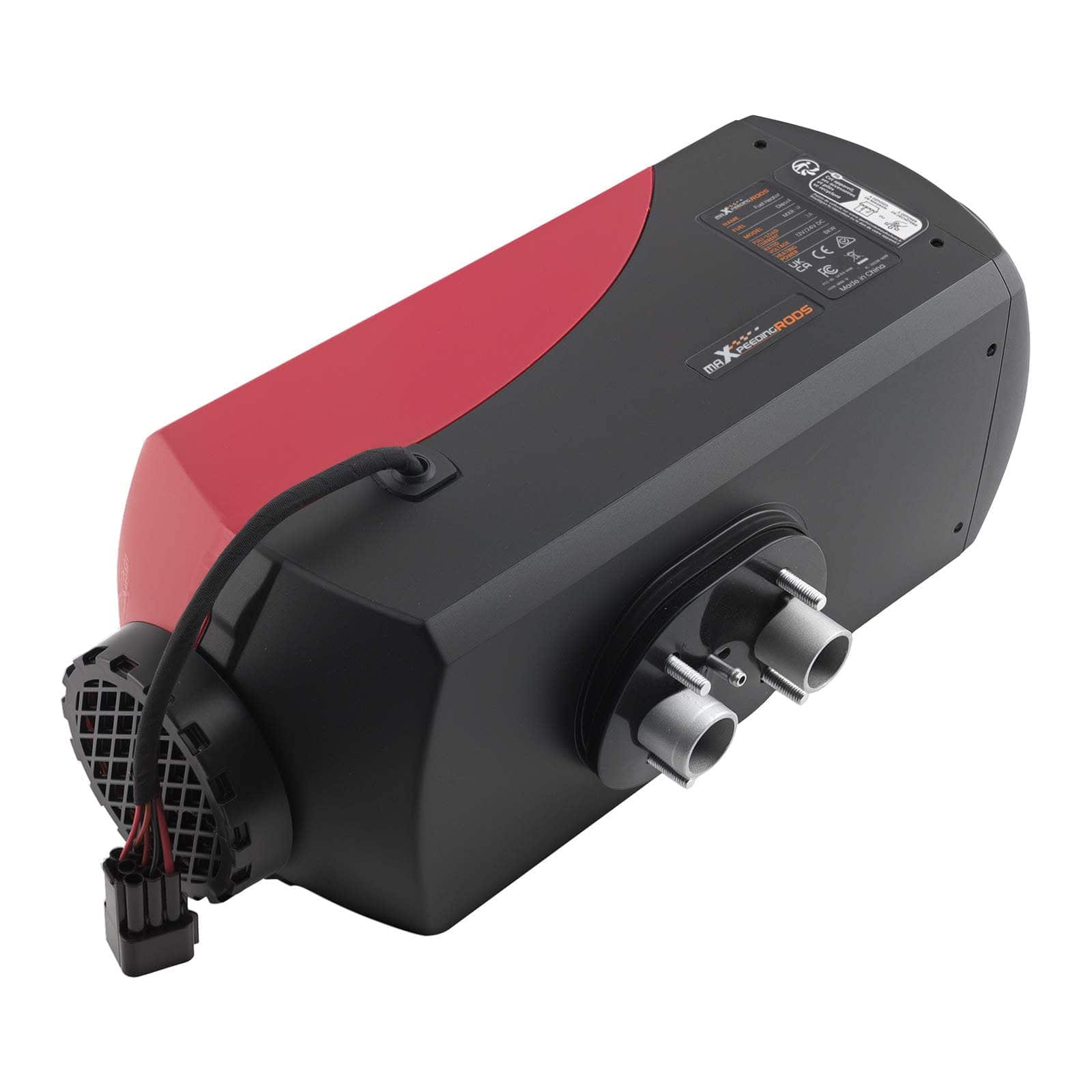

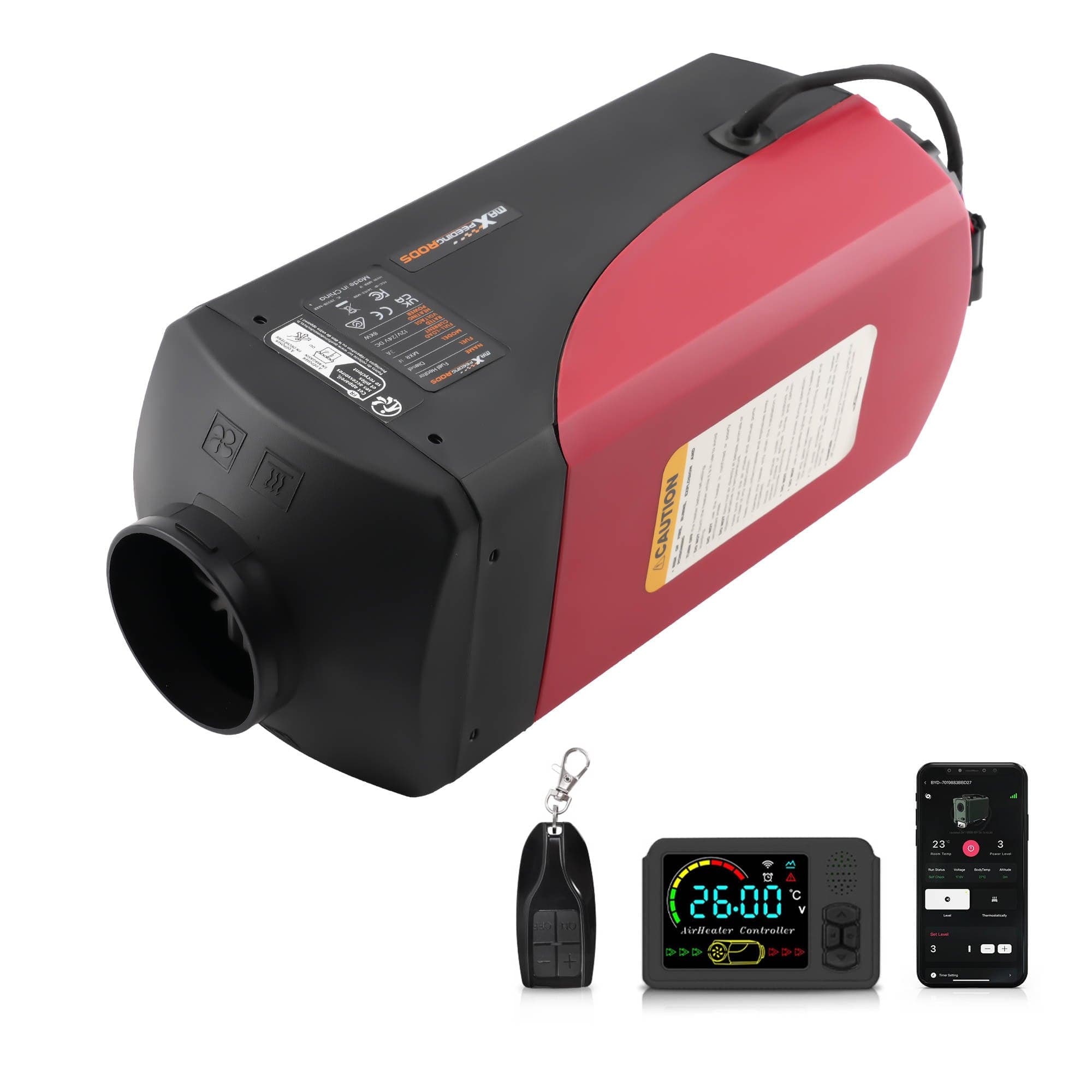

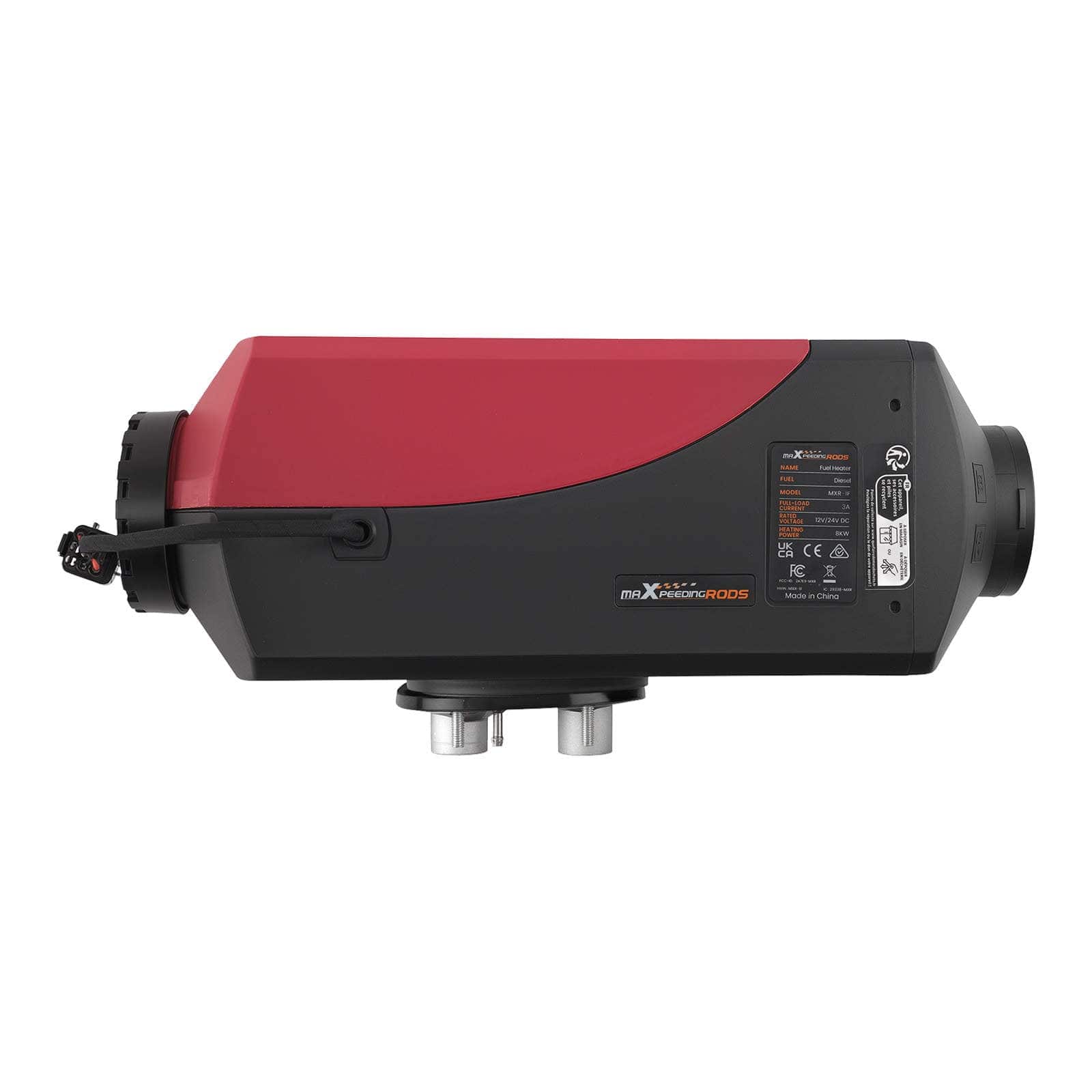

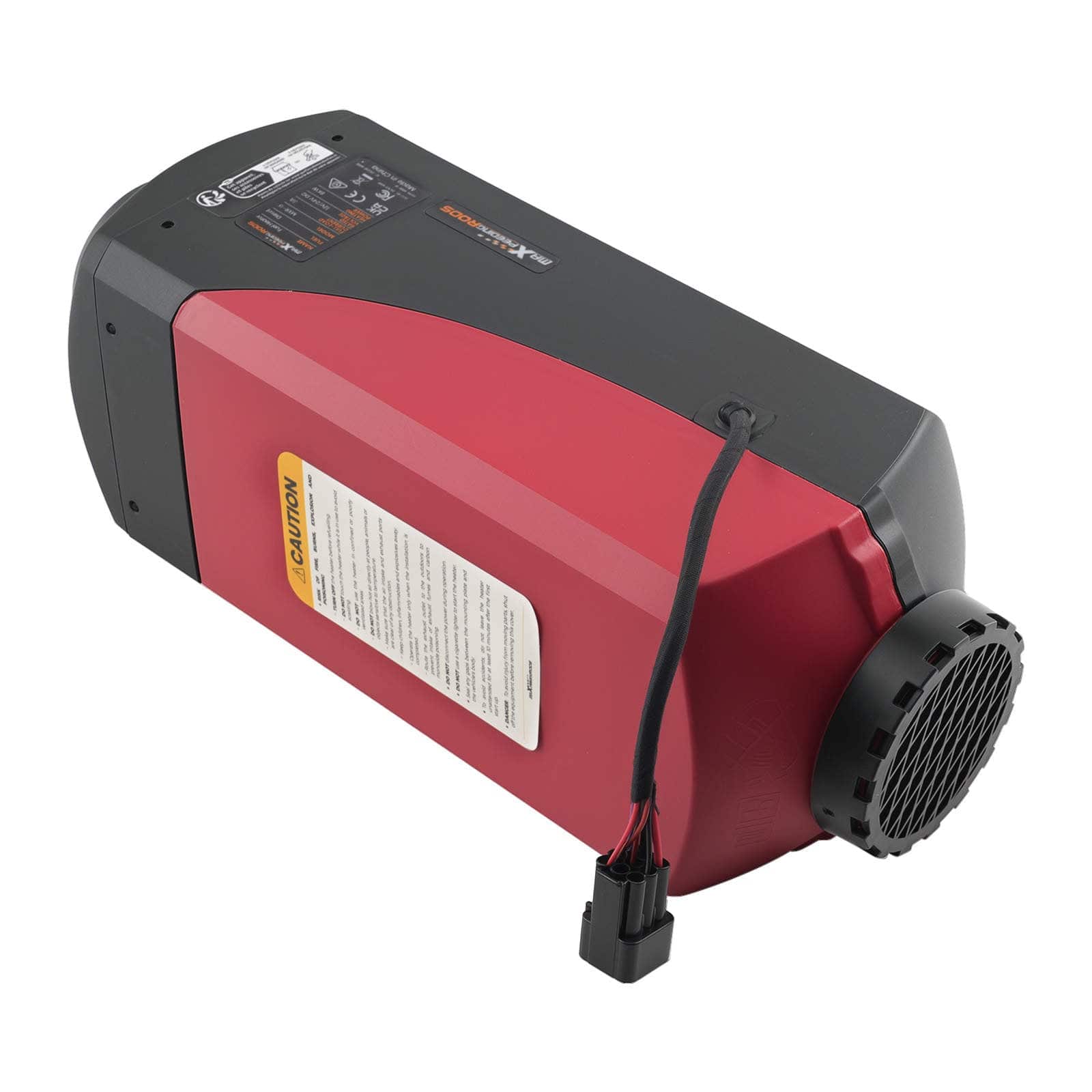

This 12V diesel air heater with 8000W (8KW) LCD control heats the cabin independently of the engine.

Suitable for:

• Small trucks
• Large trucks
• Light and heavy trucks
• Vans and minibuses
• Buses
• Passenger cars and SUVs
• Boats and yachts
• RVs/Caravans
• Forklifts and electric tricycles
• Construction vehicles

Specifications

• Heater Power: 5kW-8kW
• Fuel: Diesel
• Type: Heater
• Rated Voltage: 12V
• Fuel Consumption: 0.64 l/h
• Heater Operating Temperature: -40°C to +50°C
• Oil Pump Operating Temperature: -40°C to +40°C
• Dimensions: 39 x 14.5 x 14.5 cm
• Color: Black/Red
• Material: Metal and plastic
• Water Tank: 10 L
• Warranty: 1 year warranty on manufacturing defects

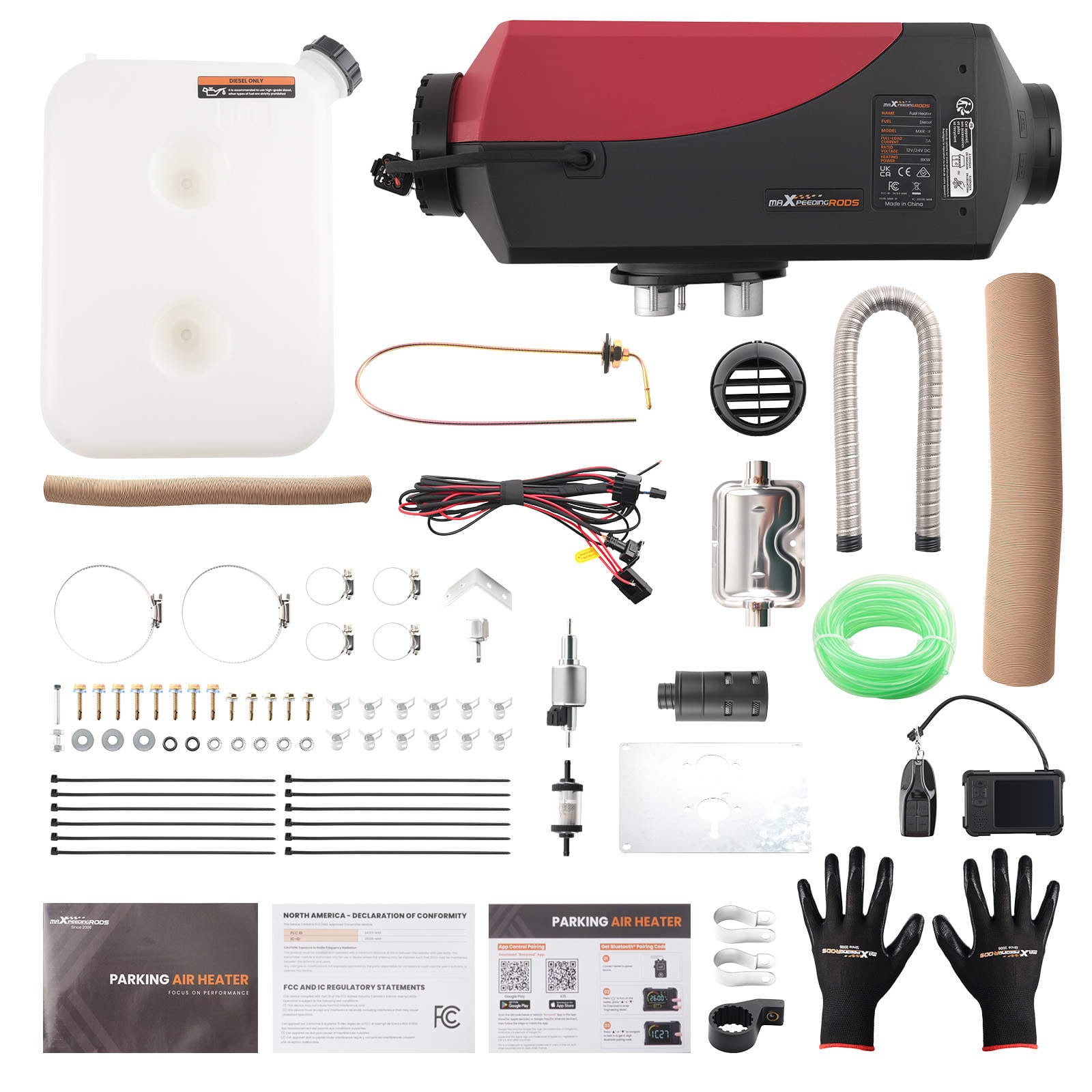

Scope of delivery

1x remote control, 1x 10L diesel tank, 1x parking heater, 1x main wiring harness, 1x oil pump, 1x oil pump connection cable, 1x filter, 1x oil pipe, 1x LCD switch, 1x mufflers, 1x air intake pipe (aluminum alloy, 50 cm), 1x exhaust pipe (stainless steel, 60 cm), 1x gasket, 1x reducer, 2x connection clamps, 1x oil pump clamp, 1x air intake pipe clamp, 1x exhaust pipe clamp, 2x air intake pipe fixing clips, 2x exhaust pipe fixing clips, 6x oil pipe couplings, 2x oil pipe clamps, 4x washers, 4x nuts, 4x self-tapping screws, 1x nylon cable ties, 1x oil suction pipe, 1x air intake hood, 1x metering oil pump.

Features

• Smooth and automatic temperature control with pre-set temperature function
• Dynamic LCD display clearly shows operating status
• Low fuel and power consumption, suitable for longer operating periods
• Quiet operation, even at night
• Fully electronic microprocessor control with continuous monitoring
• Independent heating without wear or carbon build-up on the engine
• Intelligent overheating protection
• Low emissions, meets Euro IV requirements
• Can be disassembled and installed in another vehicle

Please note

The mounting panel must be sealed during installation and separated from metal plates of the vehicle to prevent injury from combustion gases. The exhaust pipe must be at least 30 cm long, and the exhaust opening must not point in the direction of travel (see installation manual for more details).

Check fitment

Always check the original OEM part number, year of manufacture, engine code and the version of your vehicle before ordering, as there may be differences per version. If you are unsure whether this part fits your vehicle, please feel free to contact us before purchasing.
