Product description

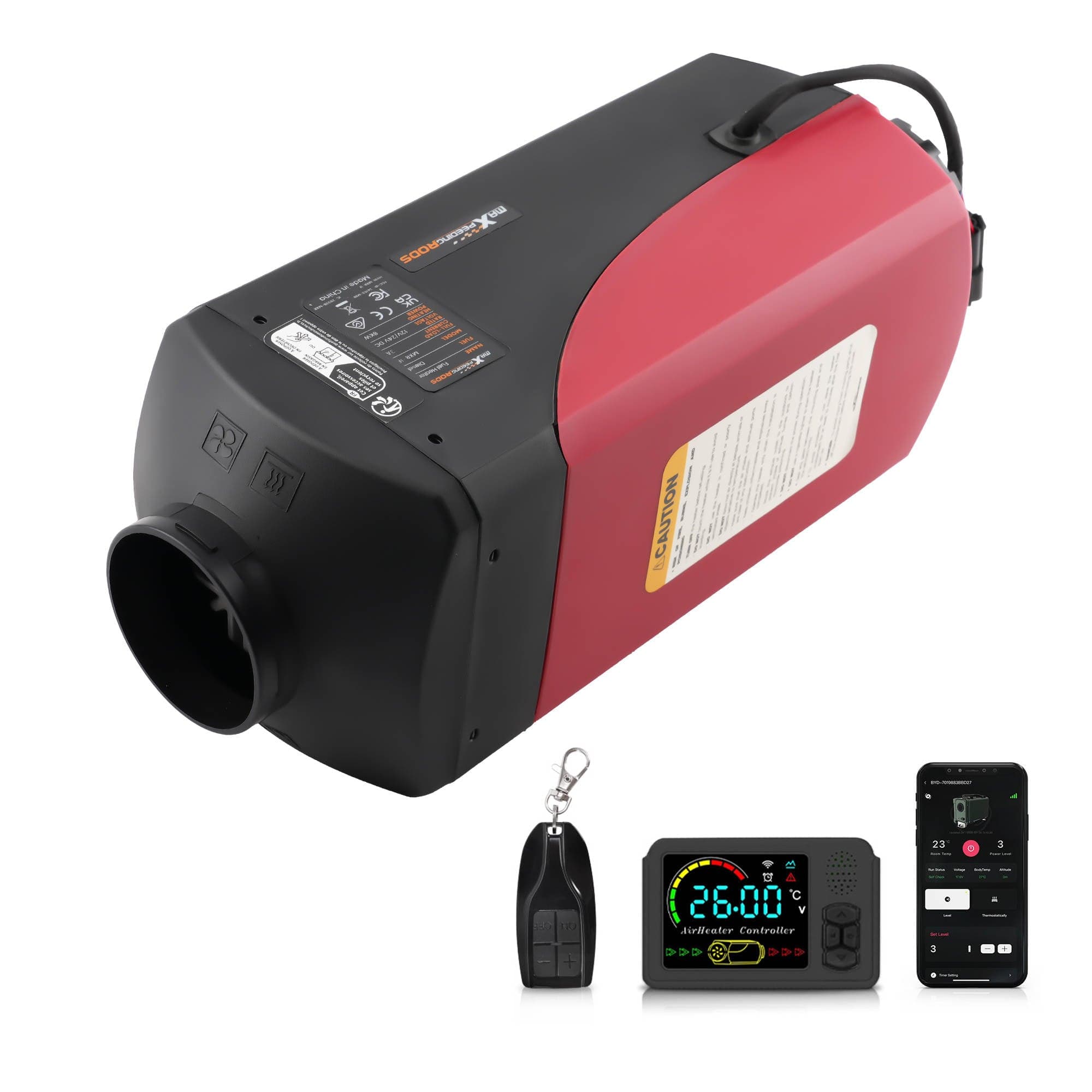

This is an LCD control display with remote control for a 12V diesel air heater of 5-8 kW.

Suitable for:

• Campervans, caravans, travel cars, and camper trailers
• Fifth-wheel trailers, pop-up campers, and camper buses
• Small and large trucks, light and heavy trucks, pick-ups, vans, buses
• Passenger cars, SUVs, boats, forklifts, electric tricycles, utility vehicles, yachts

Specifications

• Heater Power: 5-8 kW
• Fuel: Diesel
• Type: Parking heater (air heater)
• Rated Voltage: 12V
• Fuel Consumption: 0.64 L/h
• Heater Operating Temperature: -40°C to +50°C
• Oil Pump Operating Temperature: -40°C to +40°C
• Dimensions: 39 x 14.5 x 14.5 cm
• Color: Black/red
• Material: Metal and plastic
• Water Tank: 10 L

Package contents

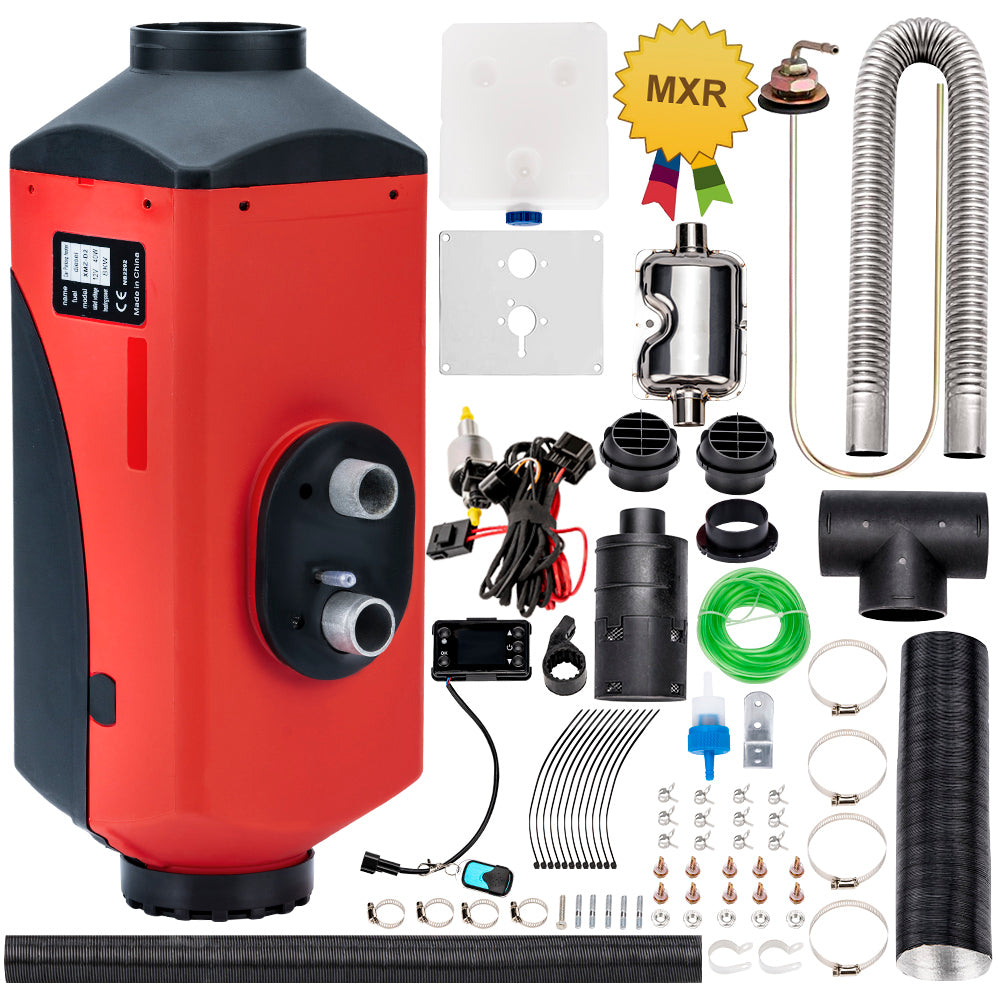

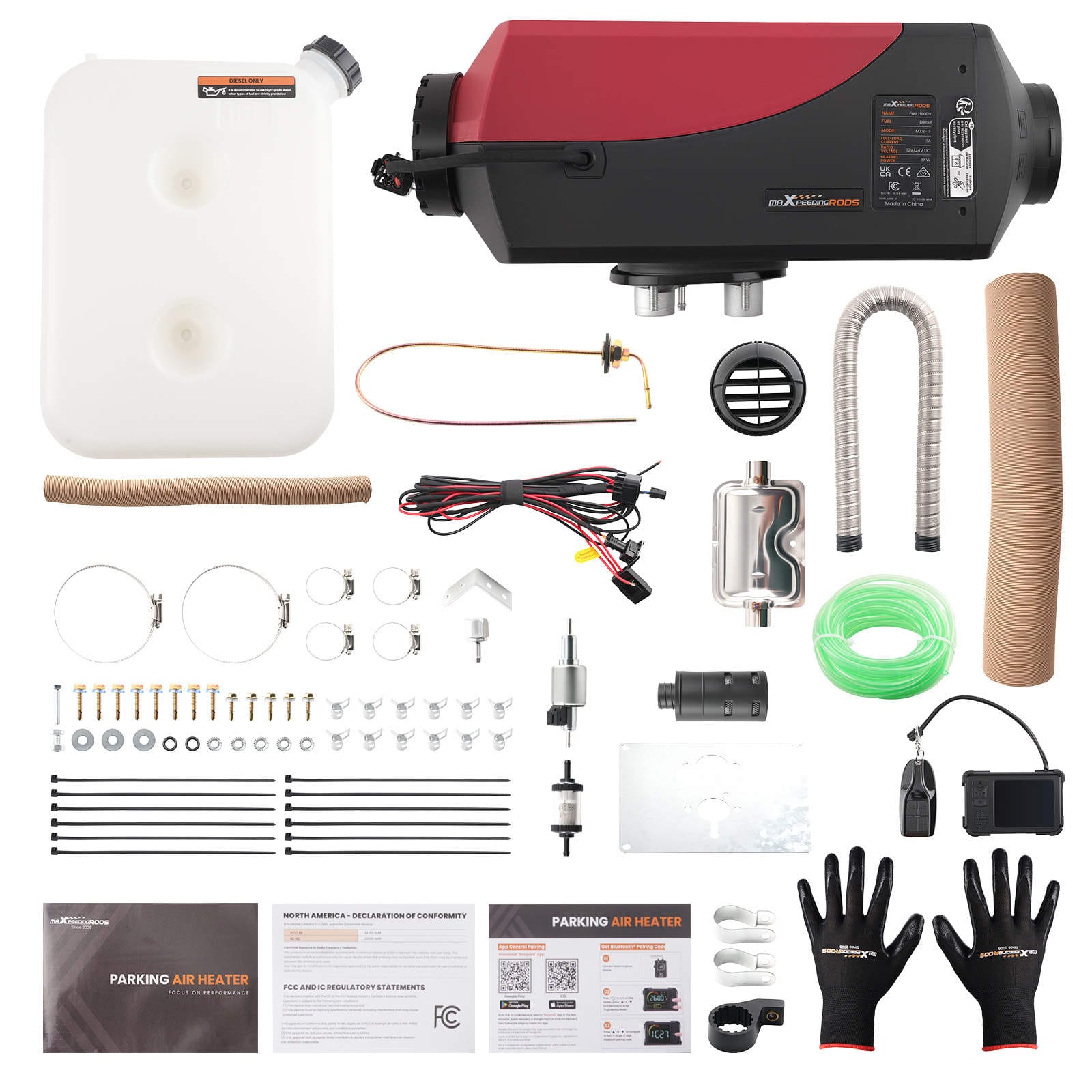

1x remote control, 1x diesel tank (10 L), 1x parking heater, 1x main wiring harness, 1x oil pump with connection cable, 1x filter, 1x oil tube, 1x LCD switch, 1x muffler, 1x air intake tube (aluminum alloy, 50 cm), 1x exhaust pipe (stainless steel, 60 cm), 1x gasket, 1x reducing T-piece, mounting clamps and material (nuts, washers, self-tapping screws, cable ties), 1x oil suction tube, 1x air intake cap and 1x dosing pump.

Features

• Automatic and even temperature control with pre-set function
• Low fuel and energy consumption, suitable for extended periods of use
• Wide adjustment range and quiet operation, even at night
• Fully electronic microprocessor control with continuous monitoring and diagnostic system
• Power phase shortens heating time; quiet operation, low maintenance
• Can be used while driving; fuel comes from the vehicle's fuel tank (diesel only)
• Compact design for easy, space-saving installation, even under the floor
• Independent heating without wear or carbon deposits in the engine
• Intelligent overheating sensor prevents dry running of the heater
• Can counteract window frosting; low emissions, meets Euro IV exhaust requirements

Please note

There is a protective film on the screen; only remove the top layer of film from the switch and leave the underlying layer, otherwise dust may get into the switch and damage it. Due to manual measurement, a deviation of 1-3 cm may occur. Professional installation is recommended. Warranty: 1 year on manufacturing defects.

Check fitment

Before ordering, always check the original OEM part number, year of manufacture, engine code, and the version of your vehicle, as there may be differences depending on the version. Are you unsure whether this part fits your vehicle? Please feel free to contact us before purchasing.
