4 pieces Conrods suitable for Honda and Acura - K24, K24A1, K24A2, K24A4
4 pieces Conrods suitable for Honda and Acura - K24, K24A1, K24A2, K24A4
- * Concurrerende prijs
- * Sneller verzenden
- * Staat: 100% nieuw!
- * Garantie: 1 jaar garantie op eventuele fabricagefouten
- * Accessoires: je ontvangt precies zoals op de afbeelding hierboven!
Product Description

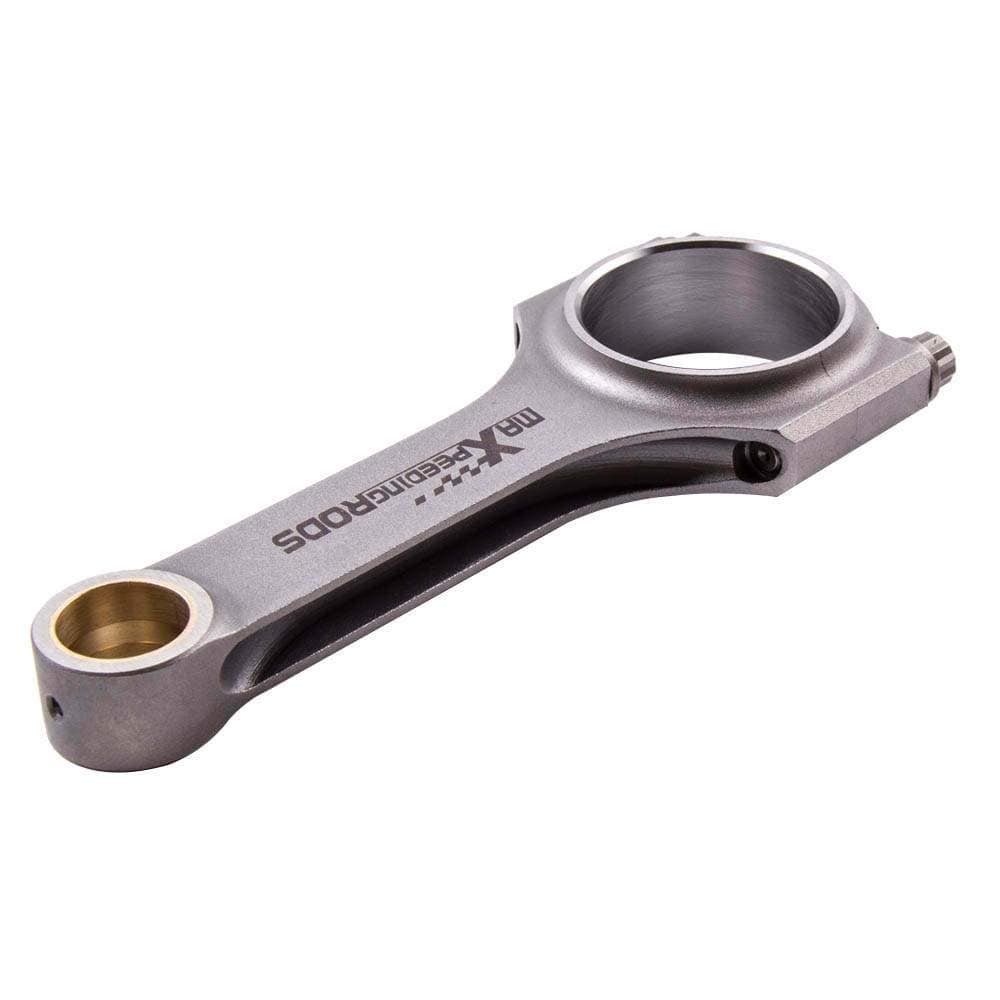

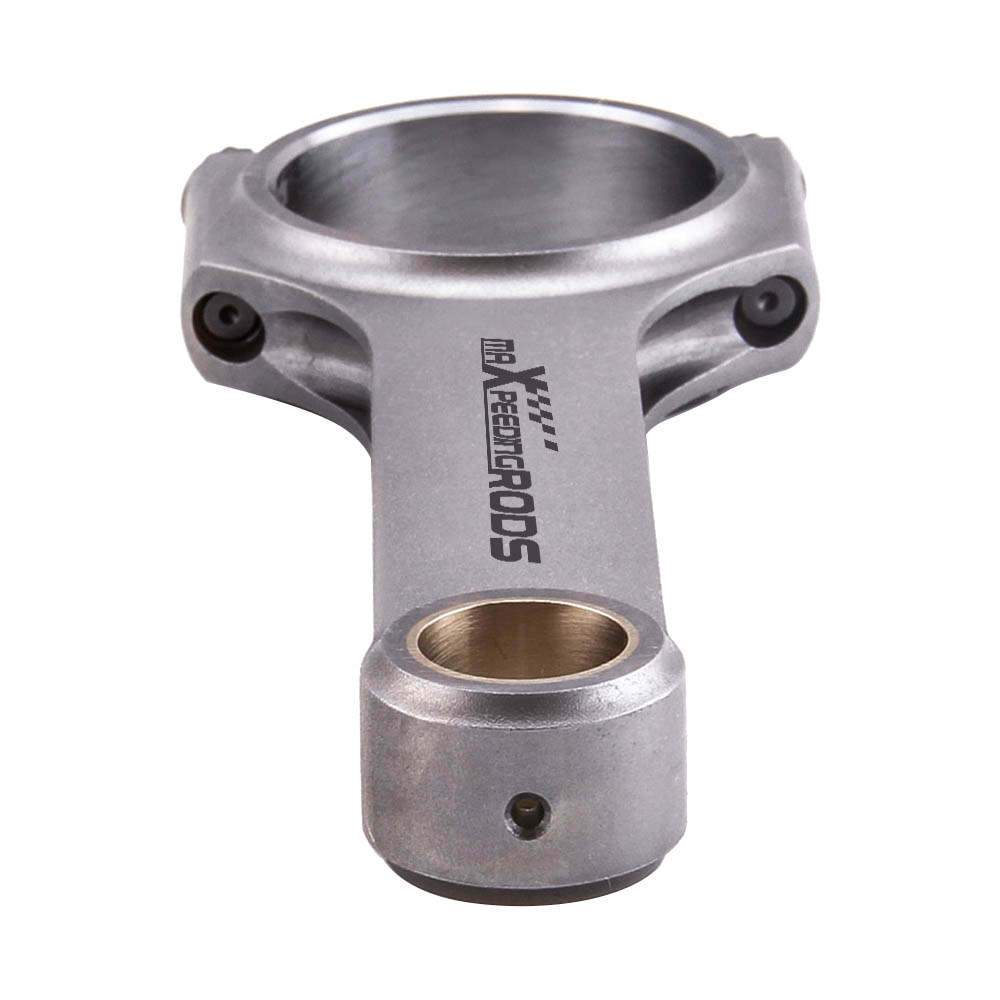

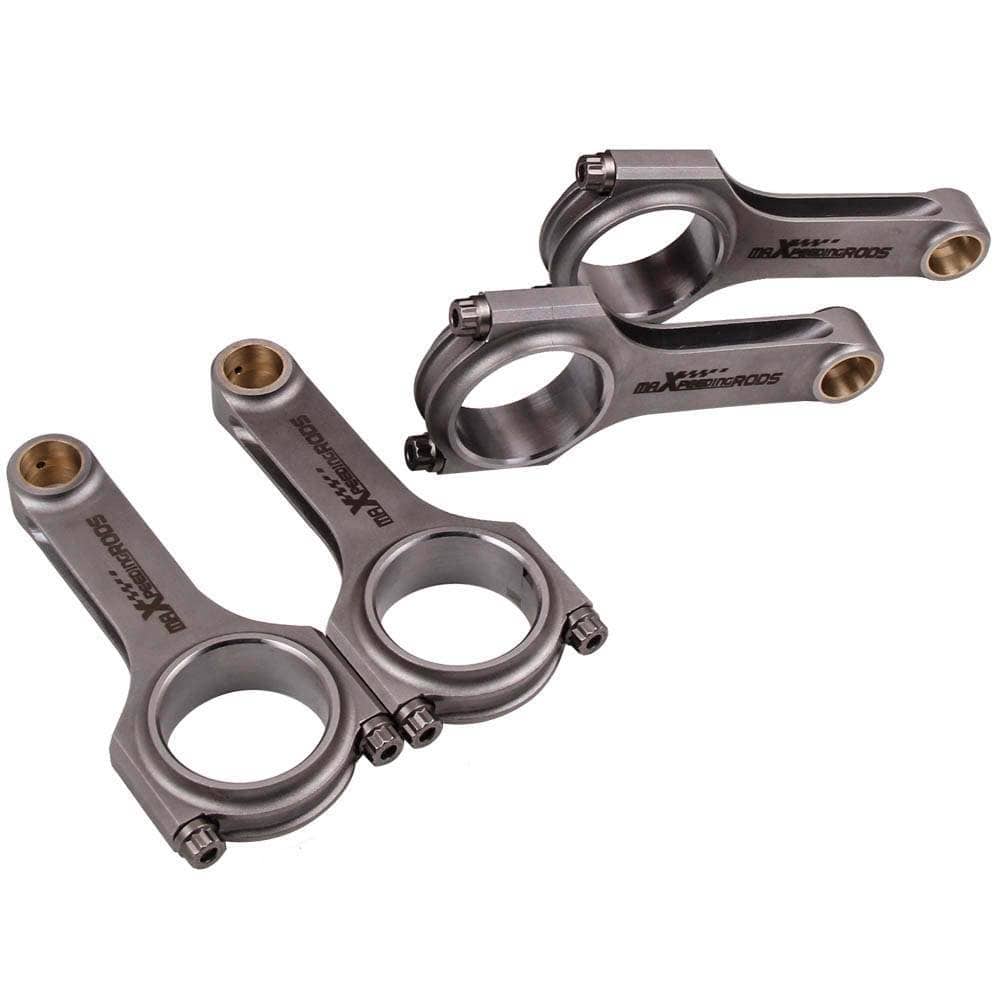

Set of 4 forged H-beam connecting rods made from 4340 chromoly steel with ARP bolts for racing applications, 152 mm center-to-center. Suitable for the Honda/Acura K24 series.
Suitable for:
- Honda/Acura K24 series (K24A1, K24A2, K24A3, K24A4, K24A6, K24A8 and K24Z 2.4L)
- K24A1: Honda CR-V 2002-2006
- K24A2: Acura TSX 2004-2008
- K24A3: Honda Accord 2003-2007, Honda Odyssey 2004-2008
- K24A4: Honda Accord 2003-2014, Honda Element 2003-2006, Honda Odyssey 2003-2008
- K24A6: Honda Accord 2004-2007, Honda CR-V 2005-2006, Honda Element 2006-2008
- K24A8: Honda Accord 2006-2007, Honda Element 2007-2011, Honda Odyssey 2008-2014
- K24Z Series: Honda CR-V 2007-2012, Honda Accord 2008-2013, Acura TSX 2009-2014, Honda Civic Si 2012-2015, Honda Element 2009-2011
Specifications
- Material: 4340 chromoly steel, shot peened
- Connecting rod length (center-to-center): 152.00 mm
- Connecting rod weight: approx. 528 g
- Big end diameter: 51.00 mm
- Small end diameter: 22.00 mm
- Big end width: 19.80 mm
- Small end width: 19.80 mm
- Piston pin: floating
- Bolts: ARP 3/8", alloy steel, 220,000 psi (ARP 2000); optional ARP L19 (260,000 psi)
- Bore tolerance: +/- 0.005 mm
- Balance: +/- 1 gram per connecting rod
- Power: 200 hp per piece
- Maximum RPM: 9000 rpm
- Quantity: set of 4
- Packaging dimensions: 28 × 20 × 10 cm
Features
- H-beam structure for street and light competition applications
- Heat-treated; high-precision CNC machined
- Controlled by magnetoscopy, X-ray and ultrasound
Check Fitment
Always check the original OEM part number, year of manufacture, engine code, and vehicle model before ordering, as differences may exist per model. If you are unsure whether this part fits your vehicle, please feel free to contact us before purchase.
