Connecting rods suitable for Ford Pinto Cosworth YB 5.1 129.54mm APR2000 Connecting rods
Connecting rods suitable for Ford Pinto Cosworth YB 5.1 129.54mm APR2000 Connecting rods
- * Concurrerende prijs
- * Sneller verzenden
- * Staat: 100% nieuw!
- * Garantie: 1 jaar garantie op eventuele fabricagefouten
- * Accessoires: je ontvangt precies zoals op de afbeelding hierboven!
Product description

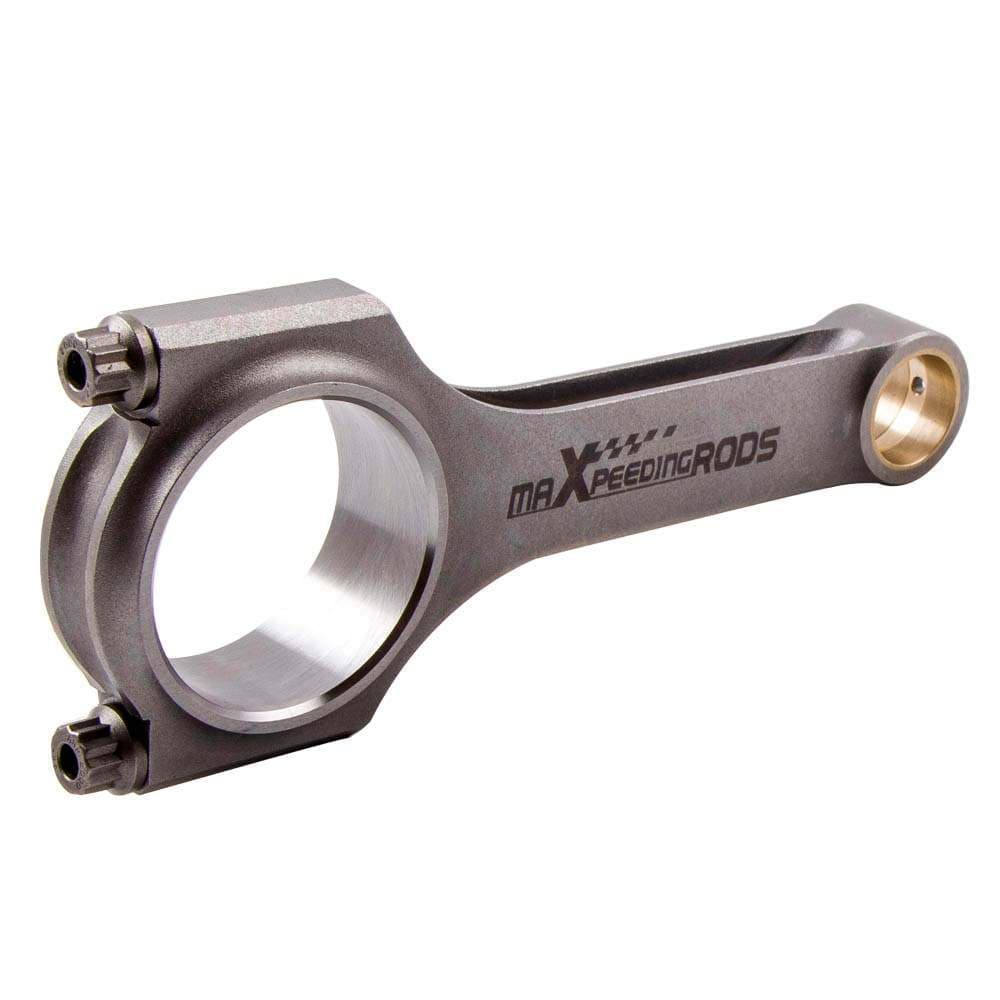

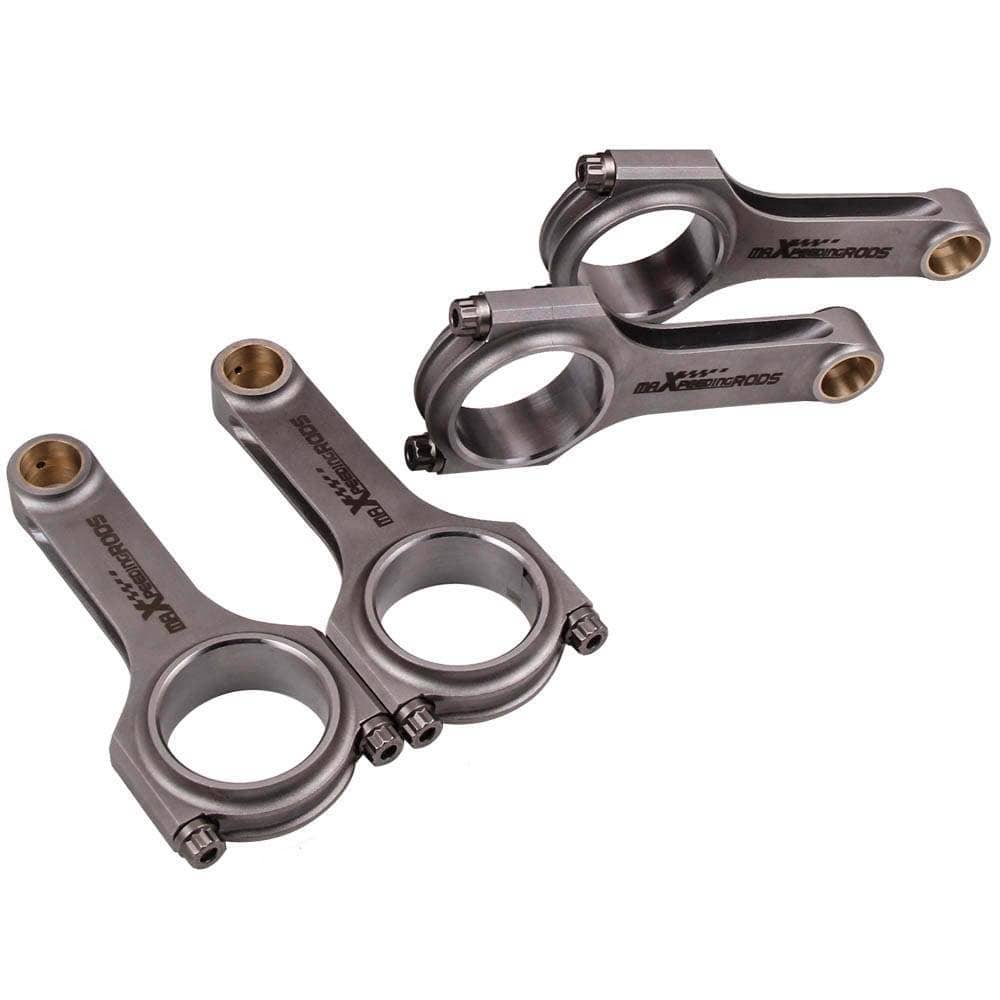

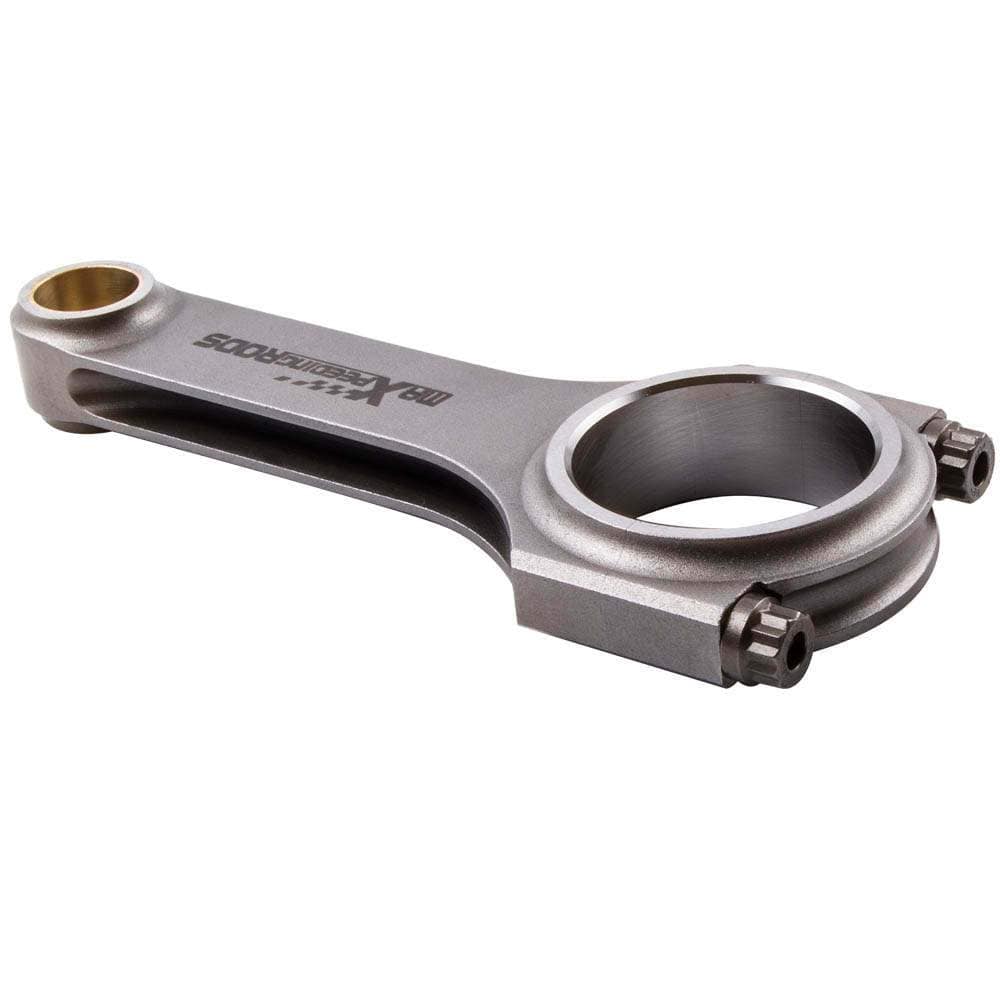

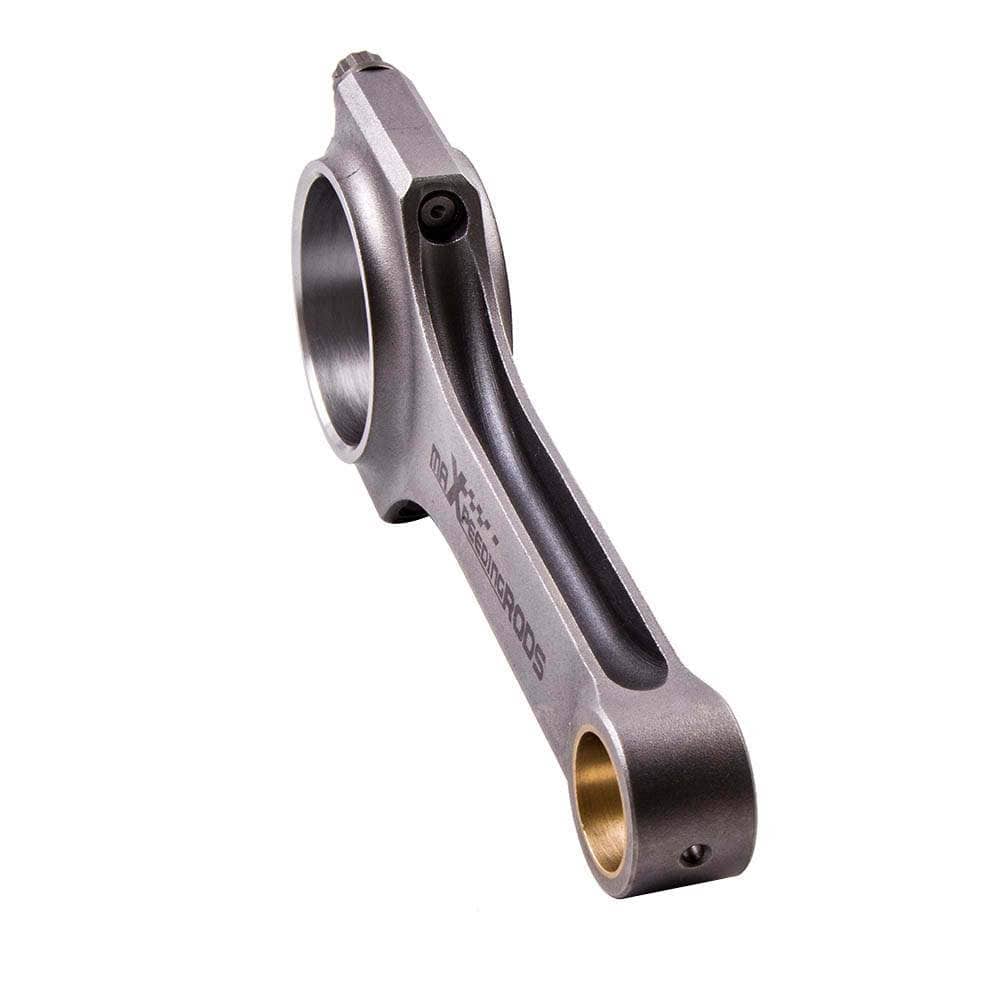

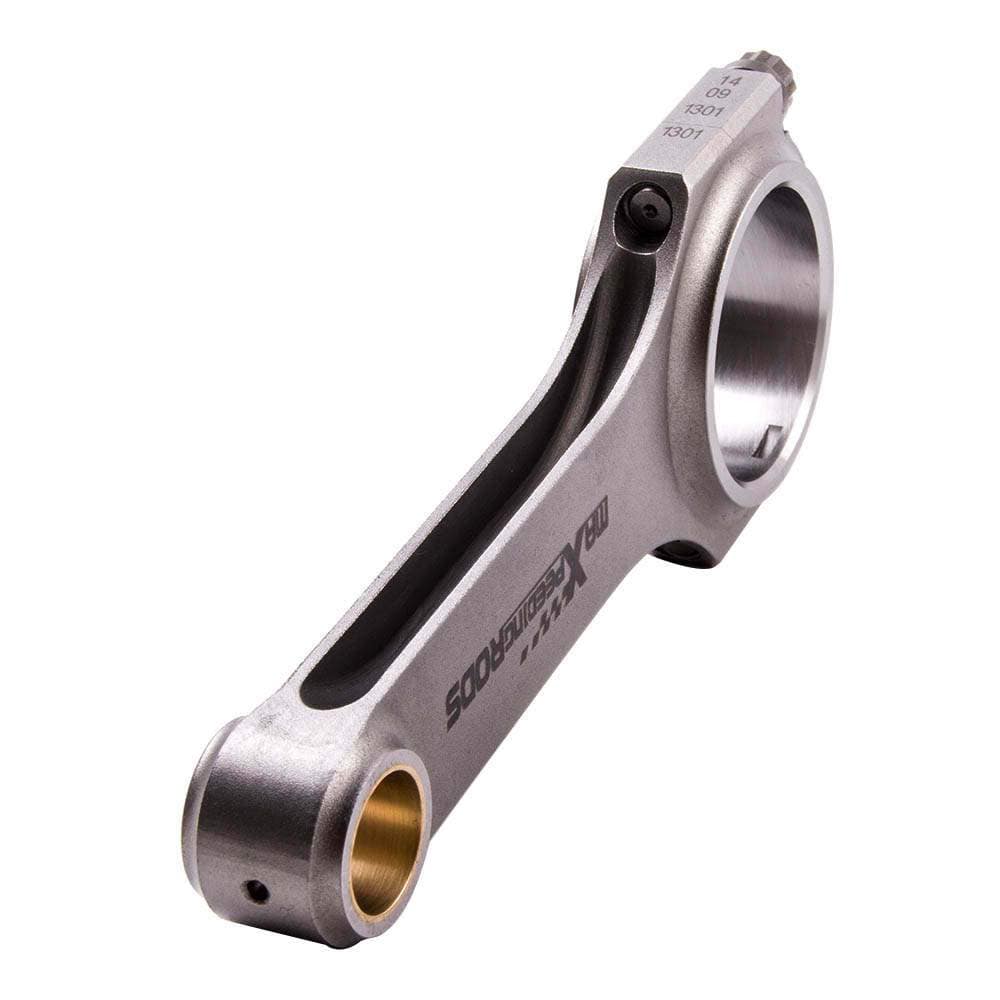

This set of 4 steel connecting rods (including ARP 2000 bolts) is intended for the Ford Pinto Cosworth YB 5.1 engine.
Suitable for:
- Ford Pinto Cosworth YB 5.1
Specifications
- Connecting rod length: 129.54 mm / ≈5.1000 in.
- Crankshaft connecting rod eye: 55 mm / ≈2.16536 in.
- Piston pin: 24 mm / ≈0.9449 in.
- Bottom width: 25.8 mm / ≈1.0157 in.
- Top width: 25.8 mm / ≈1.0157 in.
- Bolt type: ARP 2000 3/8" bolts
- Quantity: 4x steel H-beam connecting rods, 1x set of ARP 2000 3/8" bolts
- Material: Forged 4340 EN24 (40CrNiMo) chromium-molybdenum steel
- Weight tolerance: ± 1 gram
- Piston pin bore: ± 4/1000 mm
- Power: 600hp-800hp per set
- Fastener strength: 220,000 / 230,000 psi
- Tightening torque: 48ft ≈ 65 Nm
- Maximum RPM: 9000 rpm
Features
- New, 100% tested and balanced
- TUV certified
- Multiple heat treatments
- With bronze bushings for floating piston pins
- 100% inspected with X-rays, ultrasonic waves and Magnaflux
- Designed and manufactured with state-of-the-art CNC machines
- All large and small connecting rod eyes are machined on a SUNNEN honing machine
- Shot-peened for long life, even under load
- Precise alignment of the main bore for the connecting rod bearing to prevent shifting
Please note
Upgrade to ARP L19 bolts possible, suitable up to 220,000/230,000 or 260,000/270,000 psi (from 800hp, surcharge 10 EUR/piece for the upgrade to ARP L19 bolts). Professional installation is highly recommended, no manual included.
Check fitment
Always check the original OEM part number, year of manufacture, engine code and the version of your vehicle before ordering, as differences may exist per version. Are you unsure whether this part fits your vehicle? Please feel free to contact us before purchasing.
