4 pcs Conrods Conrod suitable for Nissan 200SX S13 CA18DET 1988-1994
4 pcs Conrods Conrod suitable for Nissan 200SX S13 CA18DET 1988-1994
- * Concurrerende prijs
- * Sneller verzenden
- * Staat: 100% nieuw!
- * Garantie: 1 jaar garantie op eventuele fabricagefouten
- * Accessoires: je ontvangt precies zoals op de afbeelding hierboven!
Product Description

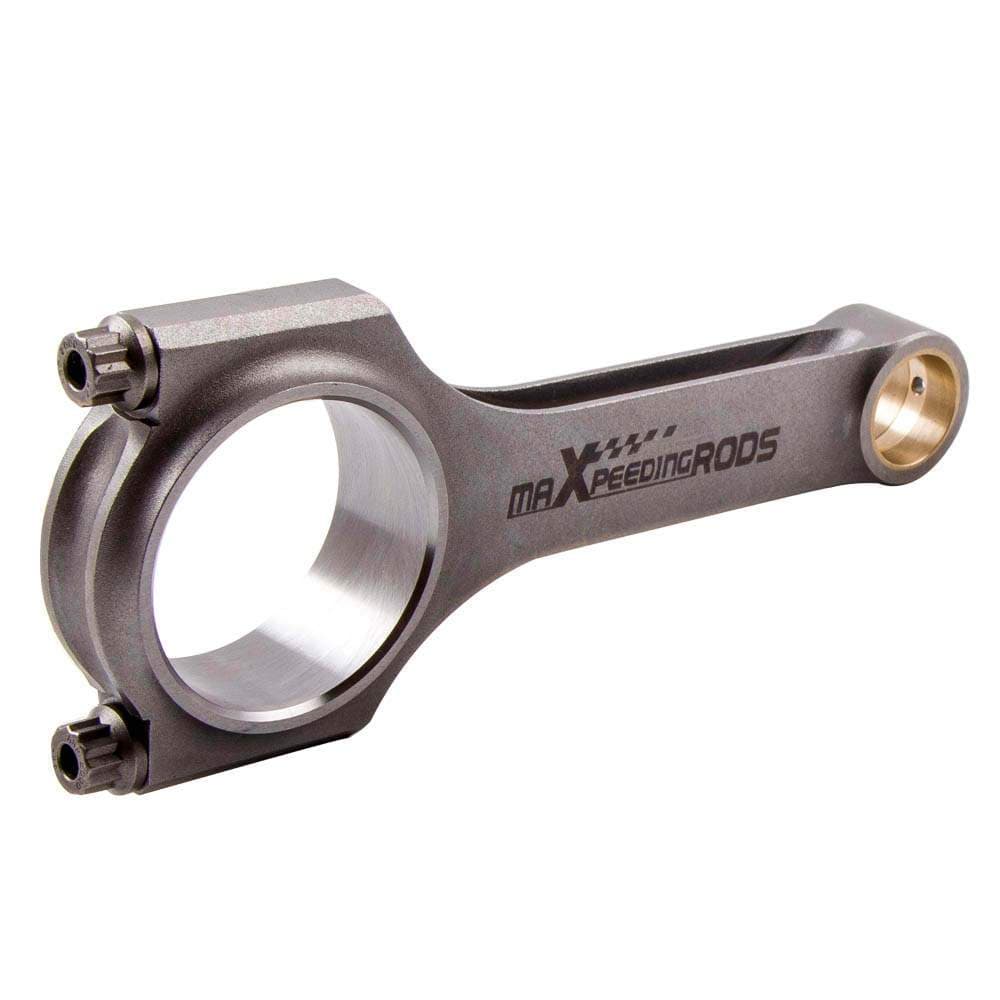

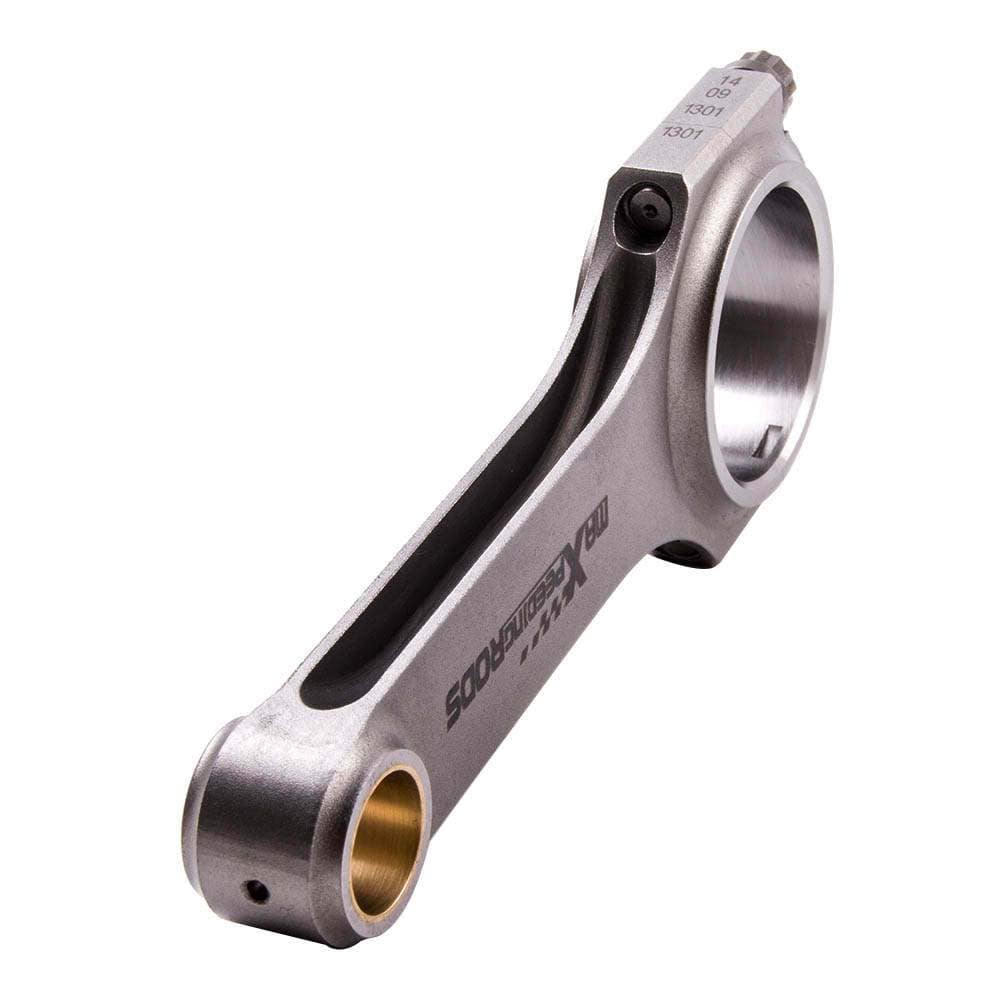

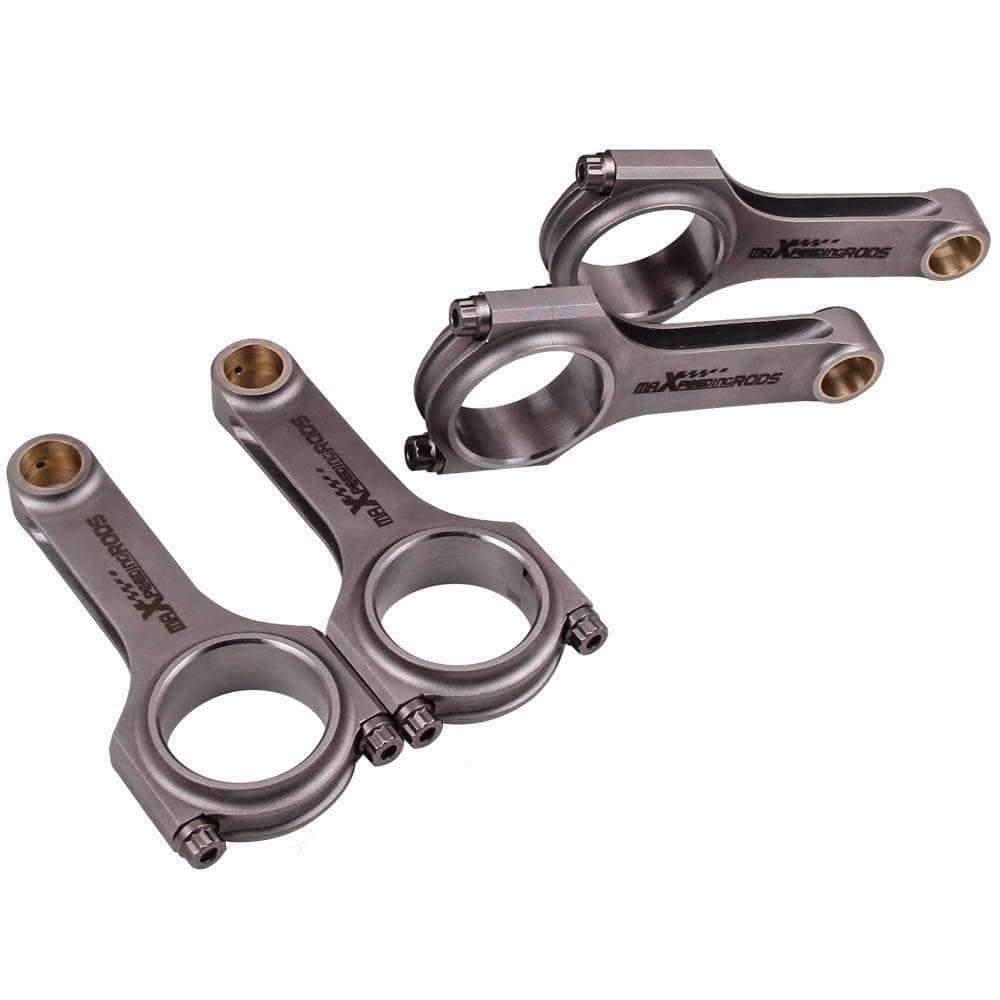

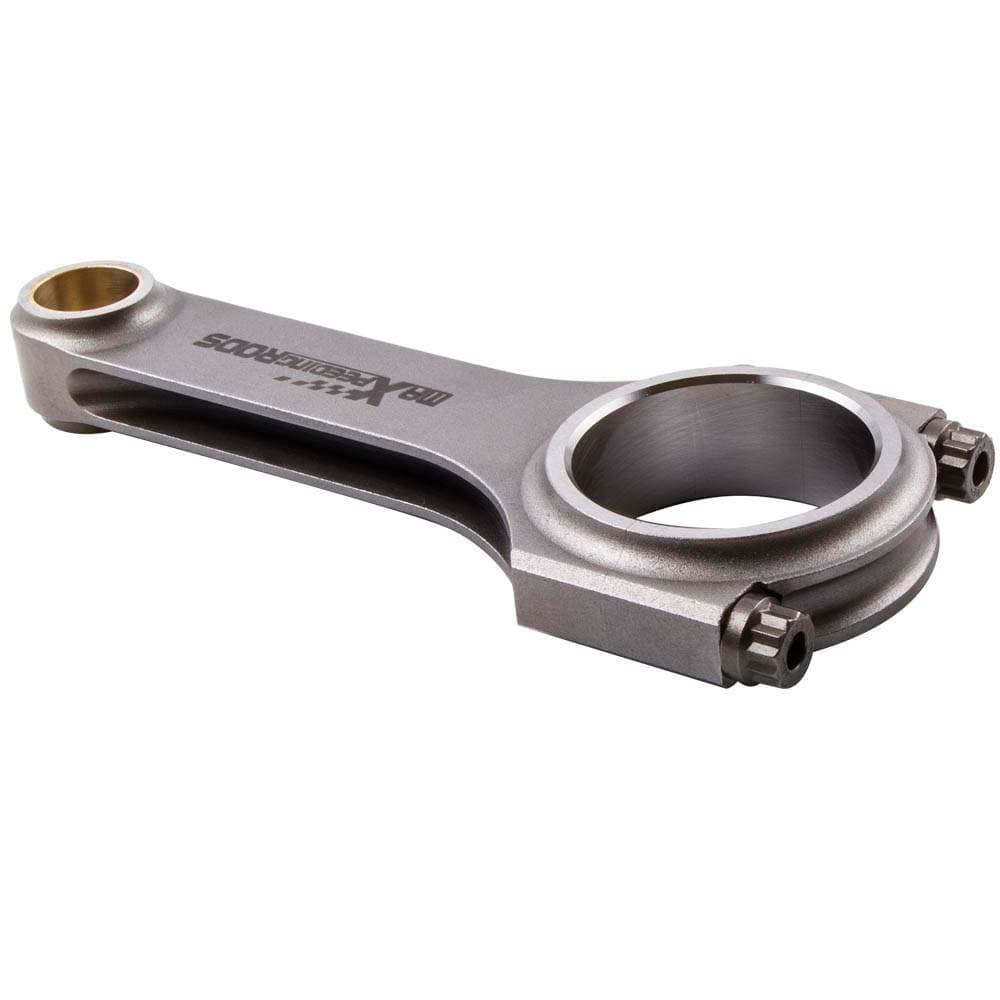

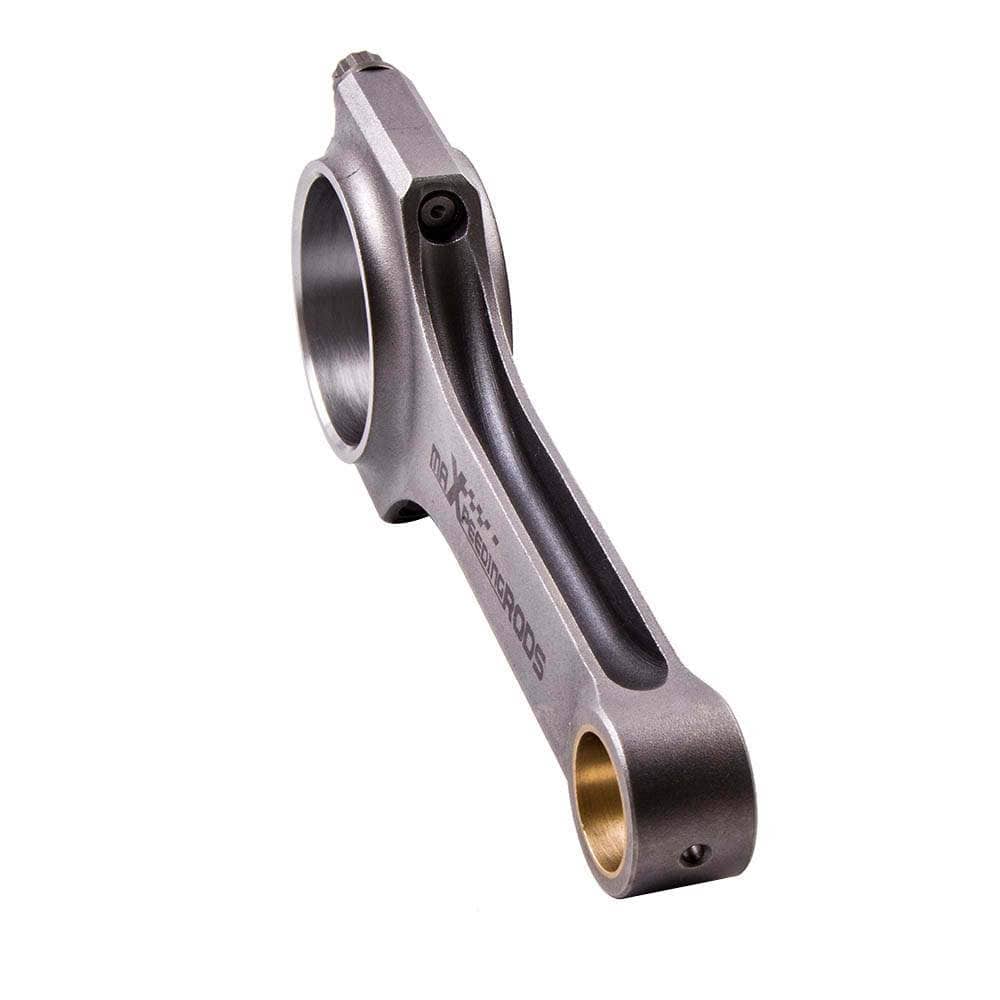

Set of 4 forged H-beam connecting rods (ARP, TÜV) for Nissan 200SX S13 1.8 Turbo CA18DET.
Suitable for:
- Nissan S13 Silvia
- Nissan 180SX
- Nissan Bluebird
- Nissan Sunny
- Engine: CA18, CA18DE, CA18DET
Specifications
- Connecting rod length: 133 mm (≈ 5.2362 in.)
- Crankshaft-connecting rod bearing eye: 48 mm (≈ 1.8897 in.)
- Piston pin: 20 mm (≈ 0.78740 in.)
- Width below: 24.2 mm (≈ 0.95276 in.)
- Width above: 21 mm (≈ 0.82677 in.)
- Material: Forged 4340 EN24 (40CrNiMo) chromium-molybdenum steel
- Weight tolerance: +/- 1 gram
- Piston pin bore: +/- 4/1000 mm
- Power: 600-800 hp per set
- Tensile strength of fastening (PSI): 220,000 / 230,000 psi
- Torque: 48 ft ≈ 65 Nm
- Max RPM: 9000 rpm
Scope of delivery
4x steel H-beam connecting rods, 1x set of ARP 2000 3/8 bolts
Features
- New, 100% tested and balanced
- TÜV certified
- Multiple heat treatments
- Bronze bushings for floating piston pins
- 100% X-ray, ultrasonic, and Magnaflux inspected
- Manufactured with CNC machines
- Large and small connecting rod eyes machined with SUNNEN honing machine
- Shot peened for long lifespan, even under load
- Precise alignment of the mounting bore to prevent displacement
- Optional upgrade to ARP L19 bolts (up to 220,000/230,000 or 260,000/270,000 PSI) possible from 800 hp, at an additional cost
Check fitment
Always check the original OEM part number, year of manufacture, engine code, and vehicle version before ordering, as differences may exist per version. If you are unsure whether this part fits your vehicle, please feel free to contact us before purchase.
