4Pcs Forged 4340 Connecting Rods Conrods suitable for Mazda CX-7 2.3L (06-) 150.
4Pcs Forged 4340 Connecting Rods Conrods suitable for Mazda CX-7 2.3L (06-) 150.
- * Concurrerende prijs
- * Sneller verzenden
- * Staat: 100% nieuw!
- * Garantie: 1 jaar garantie op eventuele fabricagefouten
- * Accessoires: je ontvangt precies zoals op de afbeelding hierboven!
Product description
This set of 4 forged 4340 connecting rods is intended for various Mazda 2.3L DISI Turbo engines.
Suitable for:
- Mazda Speed3 MZR 2.3L DISI Turbo
- Mazda 3 MPS / Mazda Speed3 2.3L (06-13)
- Mazda Speed Atenza / Mazda Speed6 / Mazda 6 MPS 2.3L (06-13)
- Mazda CX-7 2.3L (06-)
Specifications
- Type: Forged 4340 chrome-molybdenum steel, aerospace quality, for racing use
- Pin type: Floating pin
- Center-to-center length: 150.55 mm / 5.927"
- Big end bore diameter: 55.03 mm / 2.165"
- Small end bore diameter: 22.5 mm / 0.886"
- Big end width: 21.82 mm / 0.859"
- Small end width: 21.82 mm / 0.859"

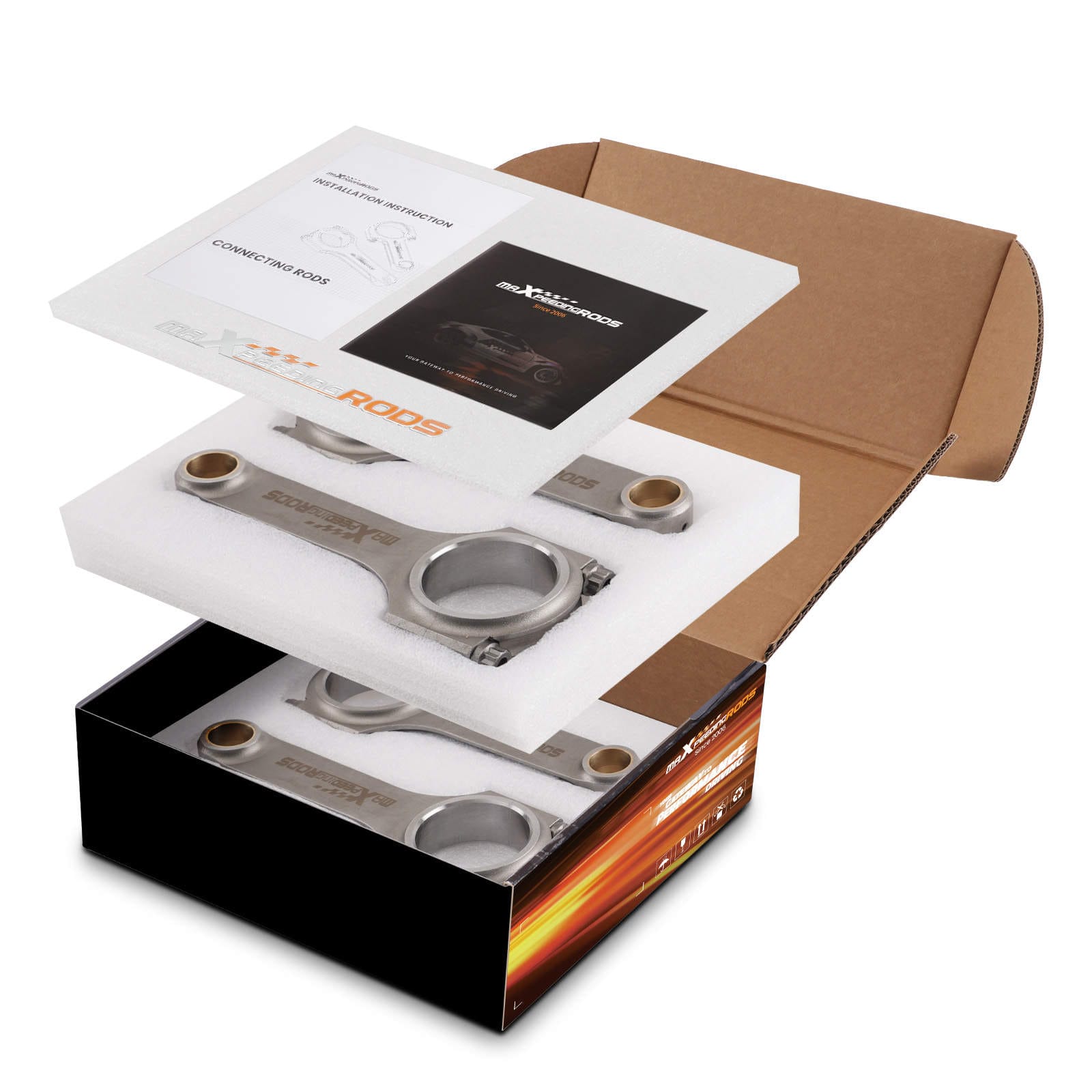

- Number of H-Beam connecting rods: 4 pieces, as pictured
- Bolts: includes ARP 2000 3/8" bolts (upgrade to ARP L19 bolts possible for an additional charge); ARP 2000 bolts are rated at 220,000 psi, optional ARP L19 material at 260,000 psi
- Rated power: 200 hp/piece
- Maximum RPM: 9000 rpm
- Warranty: 1 year warranty on manufacturing defects
Features
- TÜV certified connecting rods
- Material: SAE 4340 chrome-molybdenum steel for maximum strength and durability, designed for racing use
- Genuine ARP 2000 bolts, optional ARP L19 fasteners as an upgrade
- H-Beam design reduces weight without sacrificing strength
- Heat-treated and shot-peened for consistency and strength, shot-peen finish to eliminate stress risers
- High-precision CNC machining, precision alignment pins for the bearing cap
- Bores finished to +/- 0.01 mm
- Balanced to +/- 1 g per rod
- Each rod tested with magnetic particle inspection to rule out defects
- Tested with X-ray and ultrasonic inspection
- Customization service available
Please note
Professional installation is highly recommended. Do you have a specific request that is not in our assortment? Please contact us, we are happy to help determine your needs and develop a suitable solution.
Check fitment
Always check the original OEM part number, year of manufacture, engine code, and vehicle version before ordering, as there may be differences per version. Do you doubt whether this part fits your vehicle? Feel free to contact us before purchasing.
