Connecting Rods 4340 EN24 ARP 2000 Bolts suitable for Toyota 20R/22R/22RE/22RET 2.2/2.4L
Connecting Rods 4340 EN24 ARP 2000 Bolts suitable for Toyota 20R/22R/22RE/22RET 2.2/2.4L
- * Concurrerende prijs
- * Sneller verzenden
- * Staat: 100% nieuw!
- * Garantie: 1 jaar garantie op eventuele fabricagefouten
- * Accessoires: je ontvangt precies zoals op de afbeelding hierboven!
Product Description

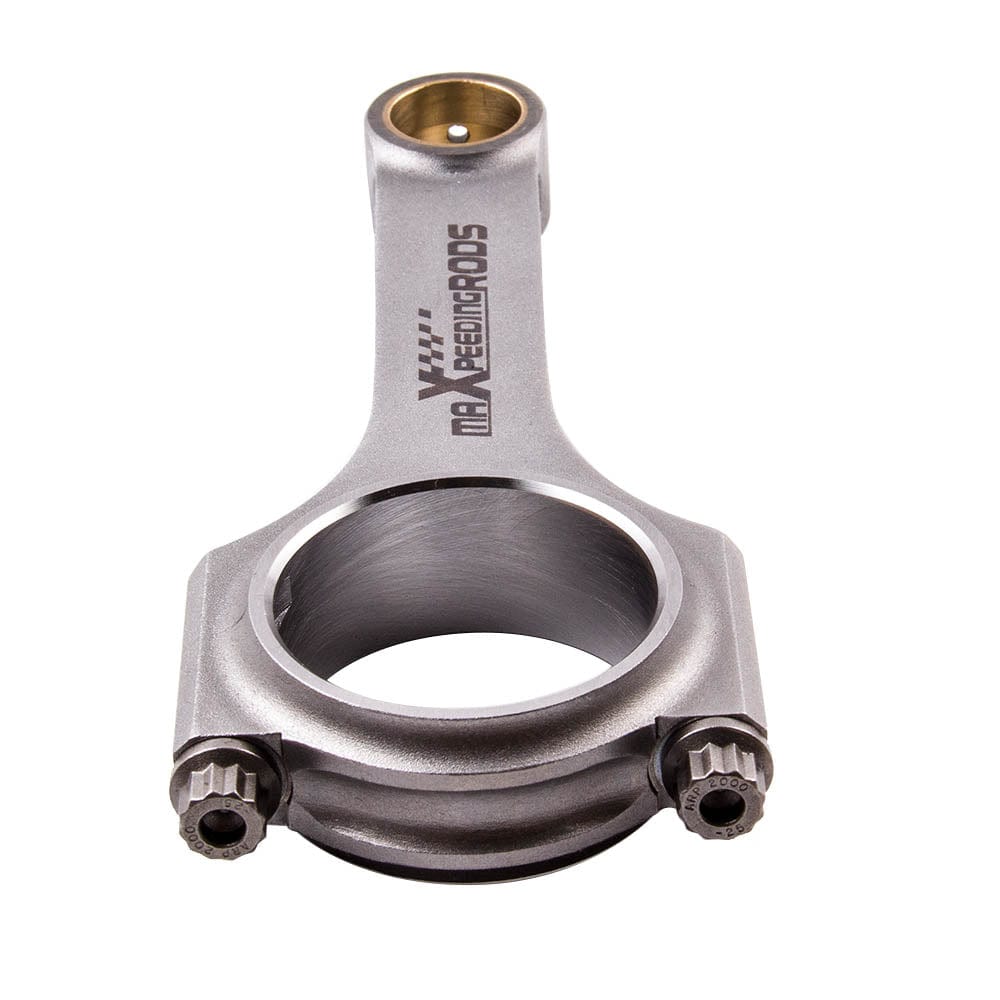

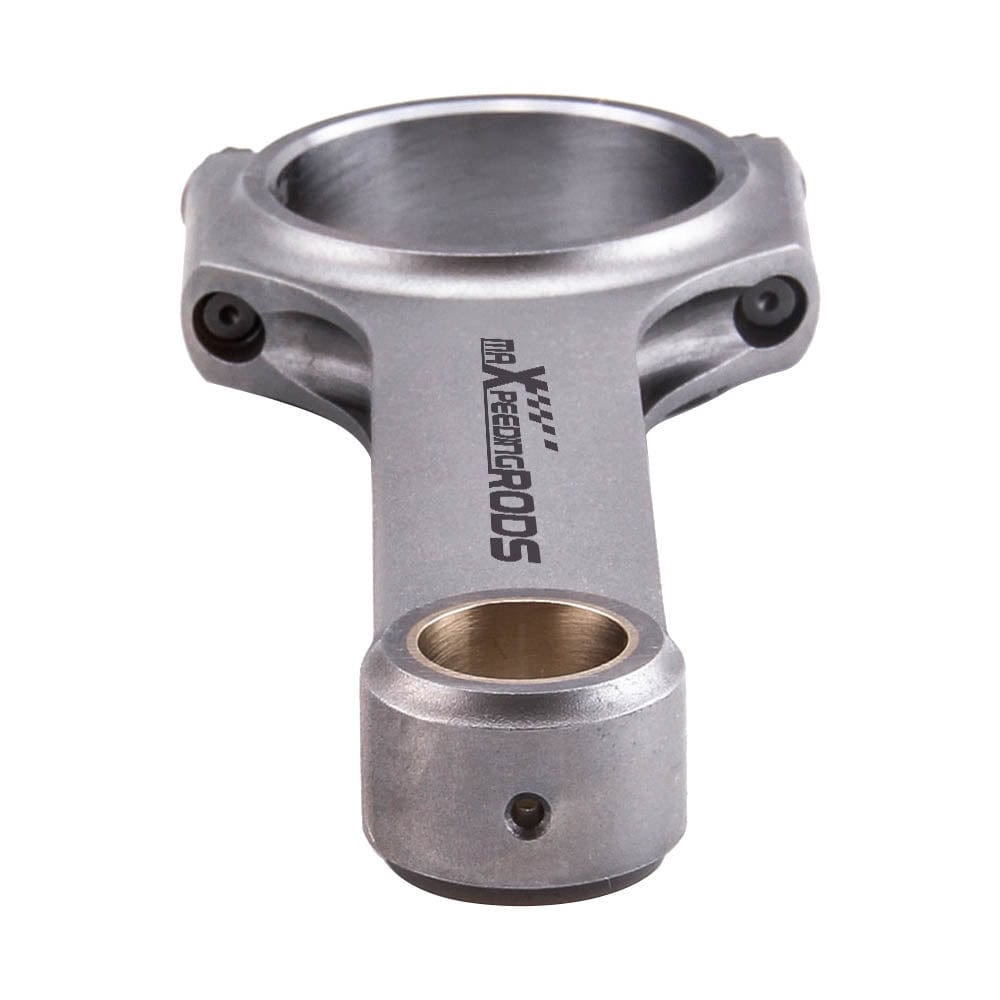

Set of H-beam connecting rods made of 4340 steel with ARP 2000 bolts.
Suitable for:
- Toyota 20R/22R/22RE/22RET, 2.2/2.4L
Specifications
- Type: Forged 4340 aircraft quality chromoly steel, for racing use

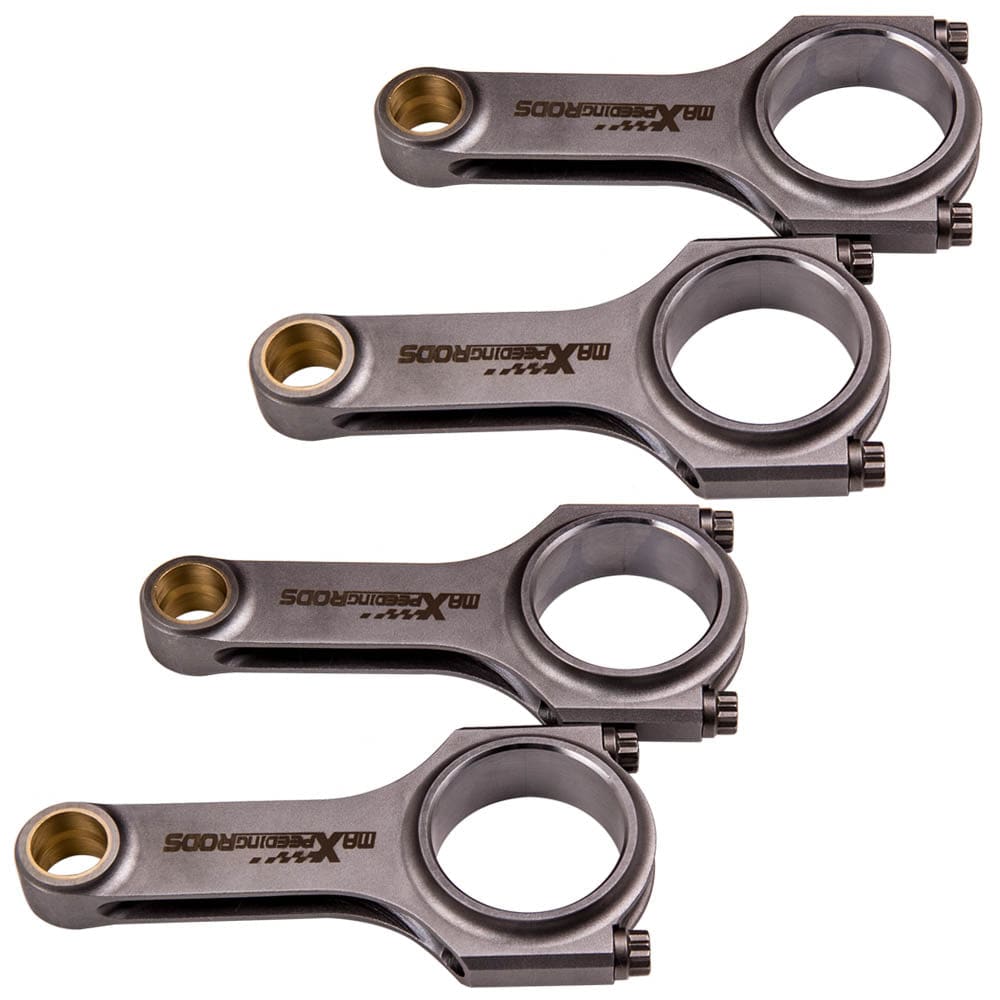

- Quantity: 4 H-beam connecting rods (as pictured)

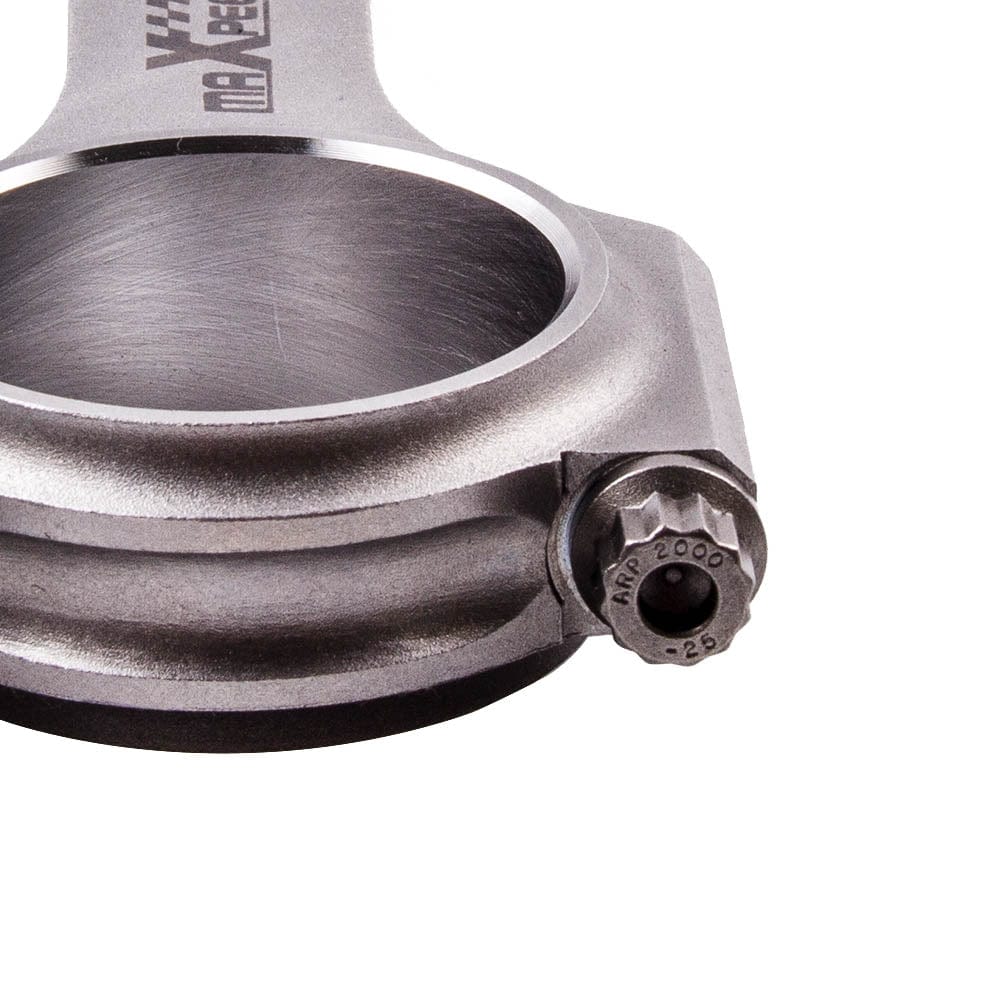

- Bolts: Includes 7/16" ARP 2000 bolts (optional upgrade to ARP L19 bolts at extra cost)
- ARP 2000 bolt rating: 220,000 psi; optional ARP L19 material up to 260,000 psi as an upgrade
- Power capacity: 200 HP per rod
- Max. RPM: 9000 rpm
- Center-to-center length: 147.8 mm
- Big end bore: 56 mm
- Small end bore: 22 mm
- Big end width: 27.75 mm
- Small end width: 27.75 mm
- Warranty: 1 year warranty against manufacturing defects
Features
- TÜV product tested and TÜV ISO 9001 certified
- Material: Forged SAE 4340 chromoly steel for maximum strength and durability, specially for racing
- Genuine ARP 2000 bolts; optional ARP L19 fasteners as an upgrade
- H-beam design reduces weight without sacrificing strength
- Heat-treated and shot-peened for consistency and strength; shot-peening eliminates stress concentrations
- High-quality CNC machining, precision alignment sleeves on the rod cap
- Bores finished to +/-0.01 mm accuracy
- Balanced to +/-1g per rod
- Each rod is magnetic particle tested to ensure no flaws
- X-ray and sonic tested
- Custom service possible
Check fitment
Before ordering, always check the original OEM part number, year of manufacture, engine code, and the version of your vehicle, as there may be differences per version. If you are unsure whether this part fits your vehicle, please feel free to contact us before purchase.
