Connecting Rods suitable for Fiat Abarth 850 A112 110mm Conrods ARP 2000
Connecting Rods suitable for Fiat Abarth 850 A112 110mm Conrods ARP 2000
- * Concurrerende prijs
- * Sneller verzenden
- * Staat: 100% nieuw!
- * Garantie: 1 jaar garantie op eventuele fabricagefouten
- * Accessoires: je ontvangt precies zoals op de afbeelding hierboven!
Product Description

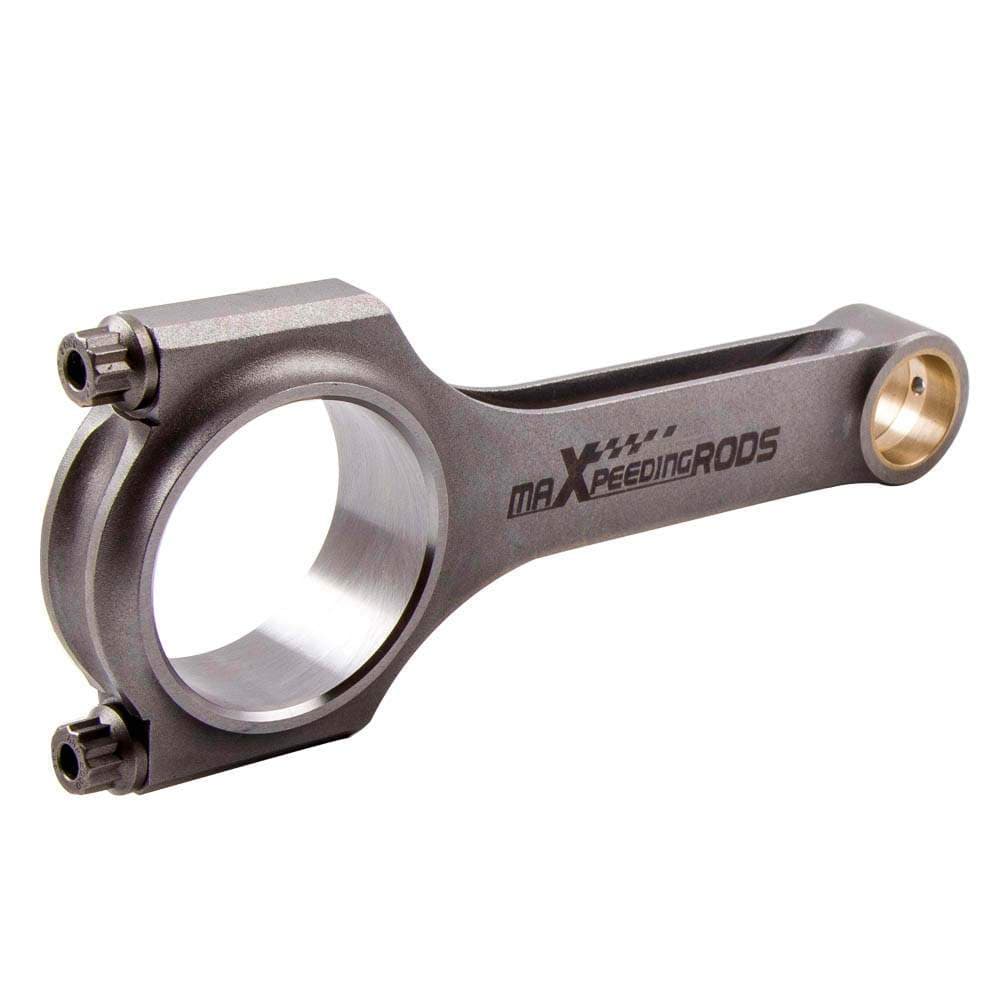

Set of connecting rods (conrods) for racing use, with ARP 2000 bolts, suitable for the Fiat Abarth 850 and A112.
Suitable for:
- Fiat Abarth 850
- Fiat A112
Specifications
- Pin type: floating piston pin
- Material: forged 4340 chrome-molybdenum aircraft-grade steel, for racing use
- Number of connecting rods (H-beam): 4 pieces, as shown in the image
- Bolts: includes ARP 2000 5/16" bolts (rated to 220,000 psi); optional ARP L19 material up to 260,000 psi as an upgrade for an additional charge
- Rated power: 200 hp per piece
- Maximum RPM: 9000 rpm
- Center-to-center length: 110 mm / 4.331"
- Big end bore diameter: 43.62 mm / 1.717"
- Small end bore diameter: 18 mm / 0.709"
- Big end width: 21.7 mm / 0.854"
- Small end width: 21.7 mm / 0.854"
- Packaging dimensions: 28 x 21 x 10 cm
- Warranty: 1 year warranty on manufacturing defects
Features
- Forged SAE 4340 chrome-molybdenum steel for maximum strength and durability, designed for racing use
- Designed and machined with CNC machines
- Big and small ends finished with SUNNEN honing machine
- Precision alignment sleeves accurately position the bearing cap
- 100% X-ray, sonic, and magnaflux tested
- Multi-stage heat treatment and shot peening to reduce stress
- Supplied with suitable bronze bushing for the floating piston pin
Check Fitment
Always check the original OEM part number, year of manufacture, engine code, and vehicle model before ordering, as there may be differences per model. Are you unsure whether this part fits your vehicle? Please feel free to contact us before purchasing.
