Thermostatic Oil Filter Adapter AN10 M20 3/4-16 UNF with Sensor Port 1/8
Thermostatic Oil Filter Adapter AN10 M20 3/4-16 UNF with Sensor Port 1/8
- * Concurrerende prijs
- * Sneller verzenden
- * Staat: 100% nieuw!
- * Garantie: 1 jaar garantie op eventuele fabricagefouten
- * Accessoires: je ontvangt precies zoals op de afbeelding hierboven!
Product Description

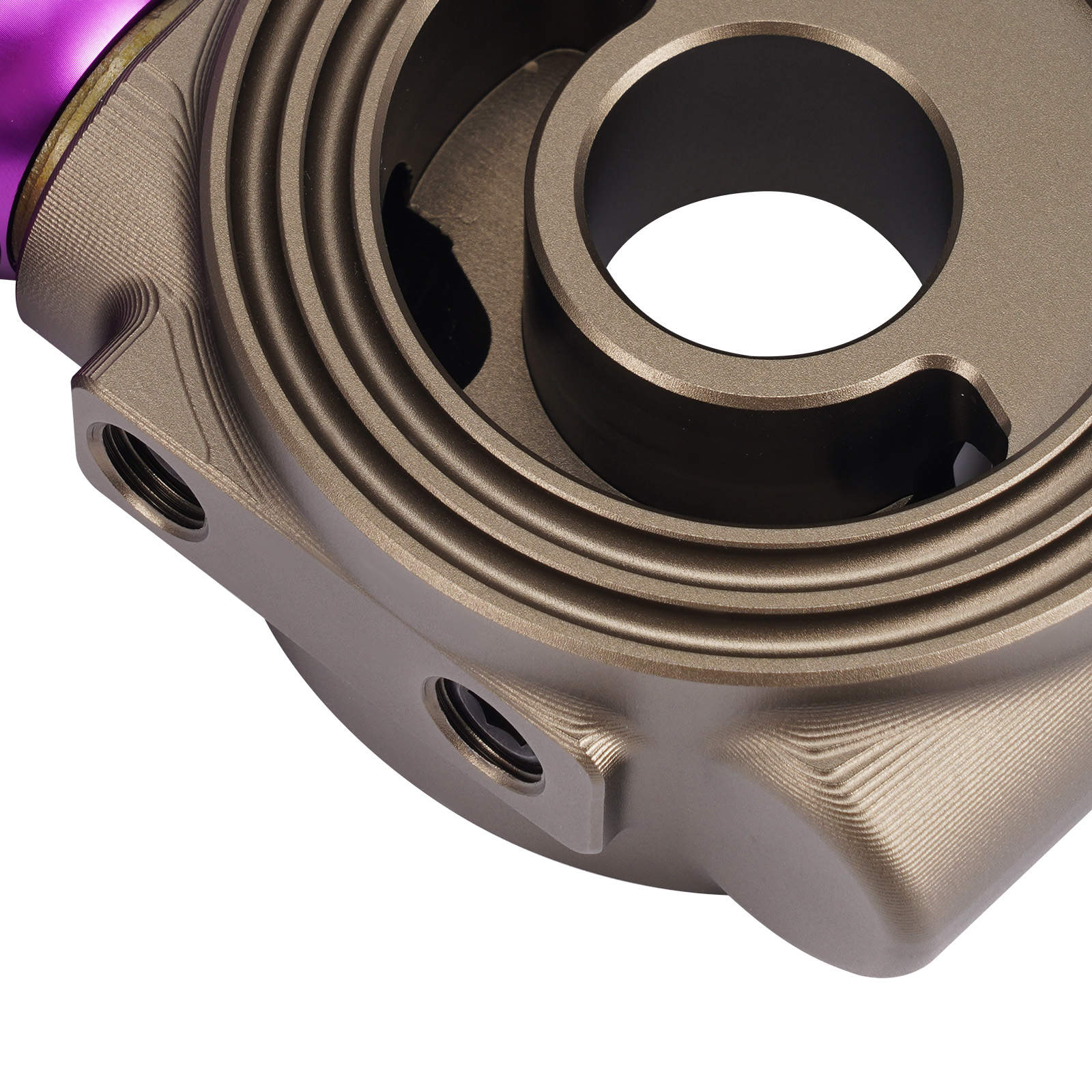

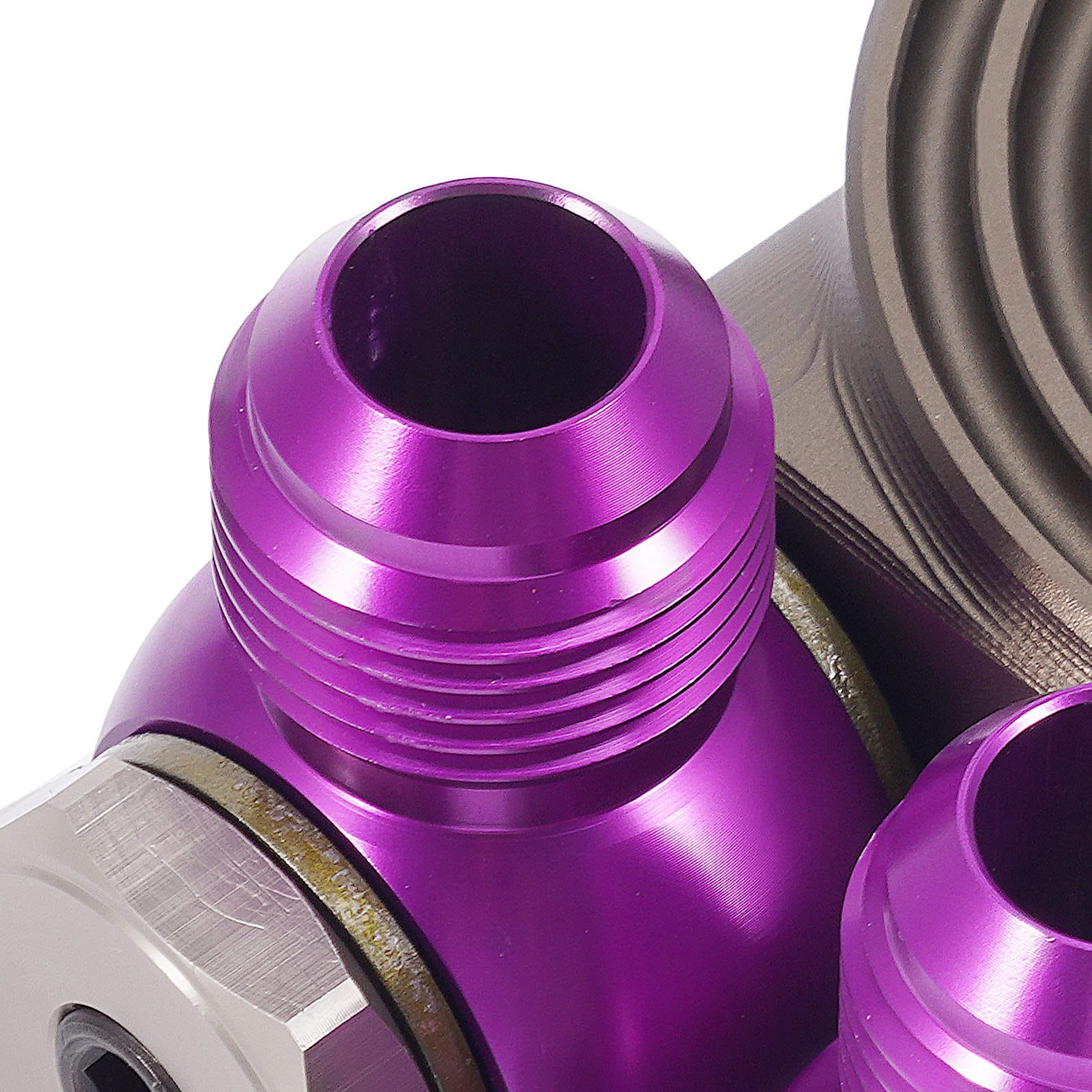

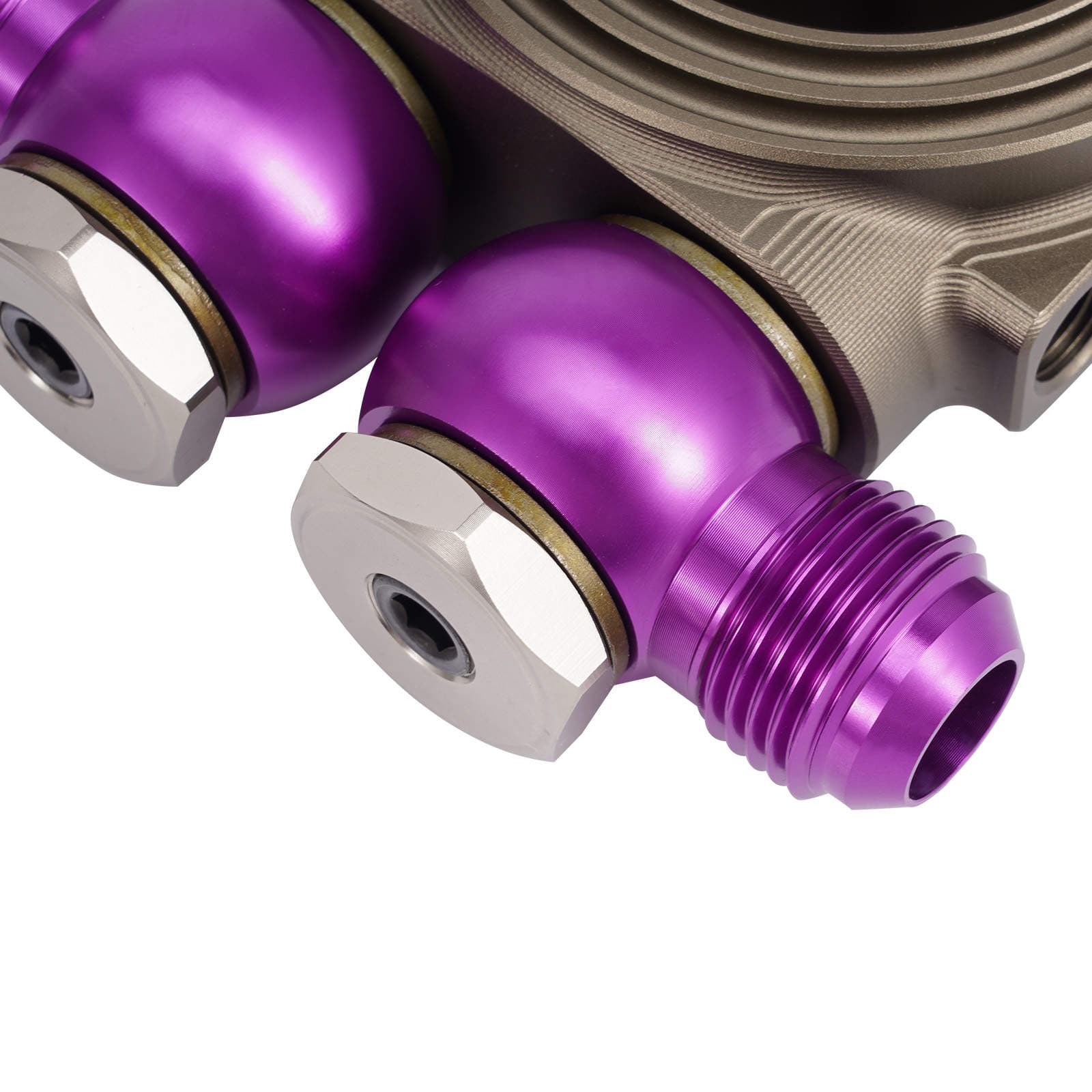

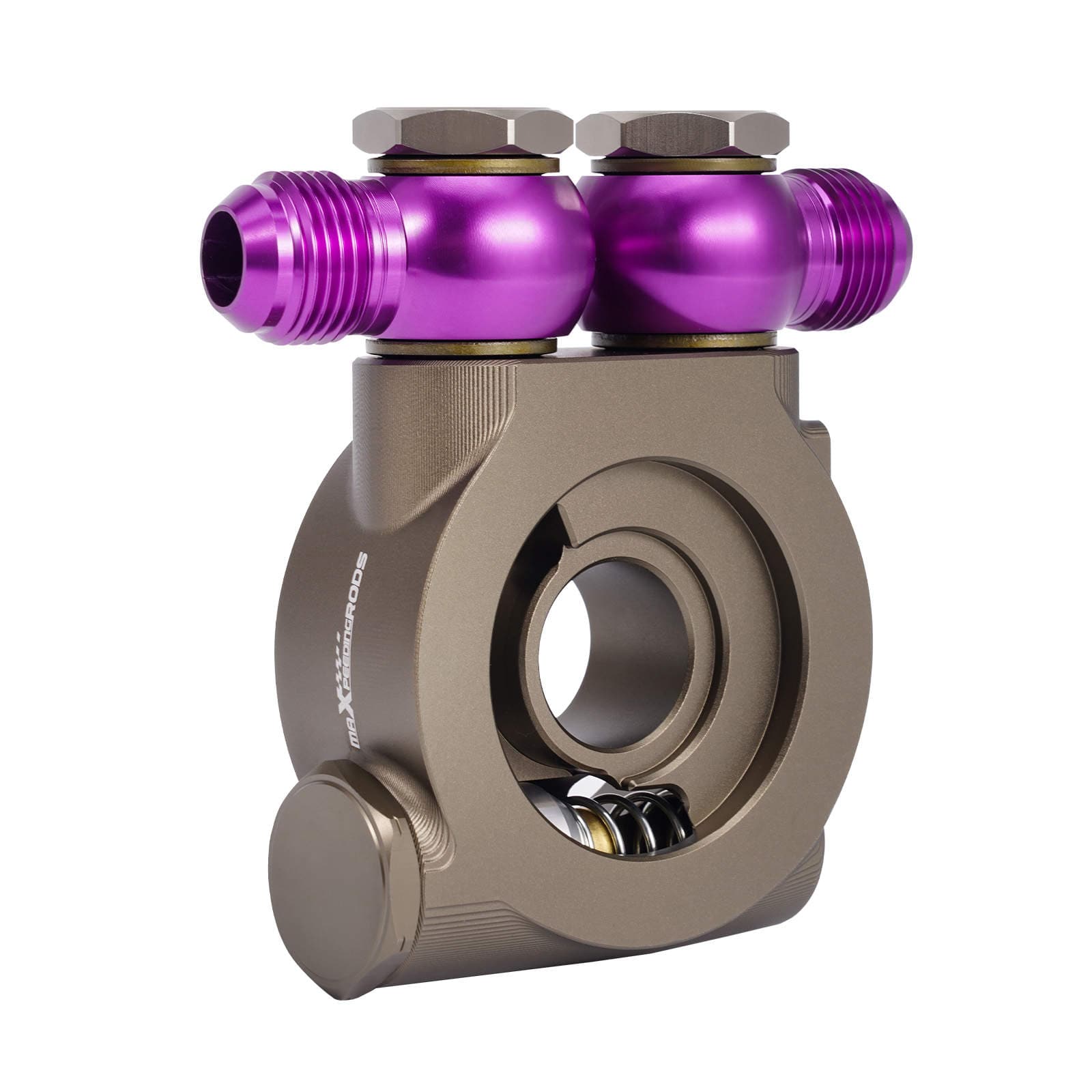

Universal thermostatic oil filter adapter kit with M20 and 3/4-16 UNF threads and AN10 connections.
Universally applicable to engine blocks and oil filters with M20 x 1.5 or 3/4-16 UNF thread.
Specifications
- Material: Aluminum
- Color: Gold-colored copper
- Design: 360° rotatable thermostat adapter
- Central adapter thread: M20 x 1.5 and 3/4 x 16 UNF
- Inlet/outlet connection: 10AN
- Port size: 1/8 NPT

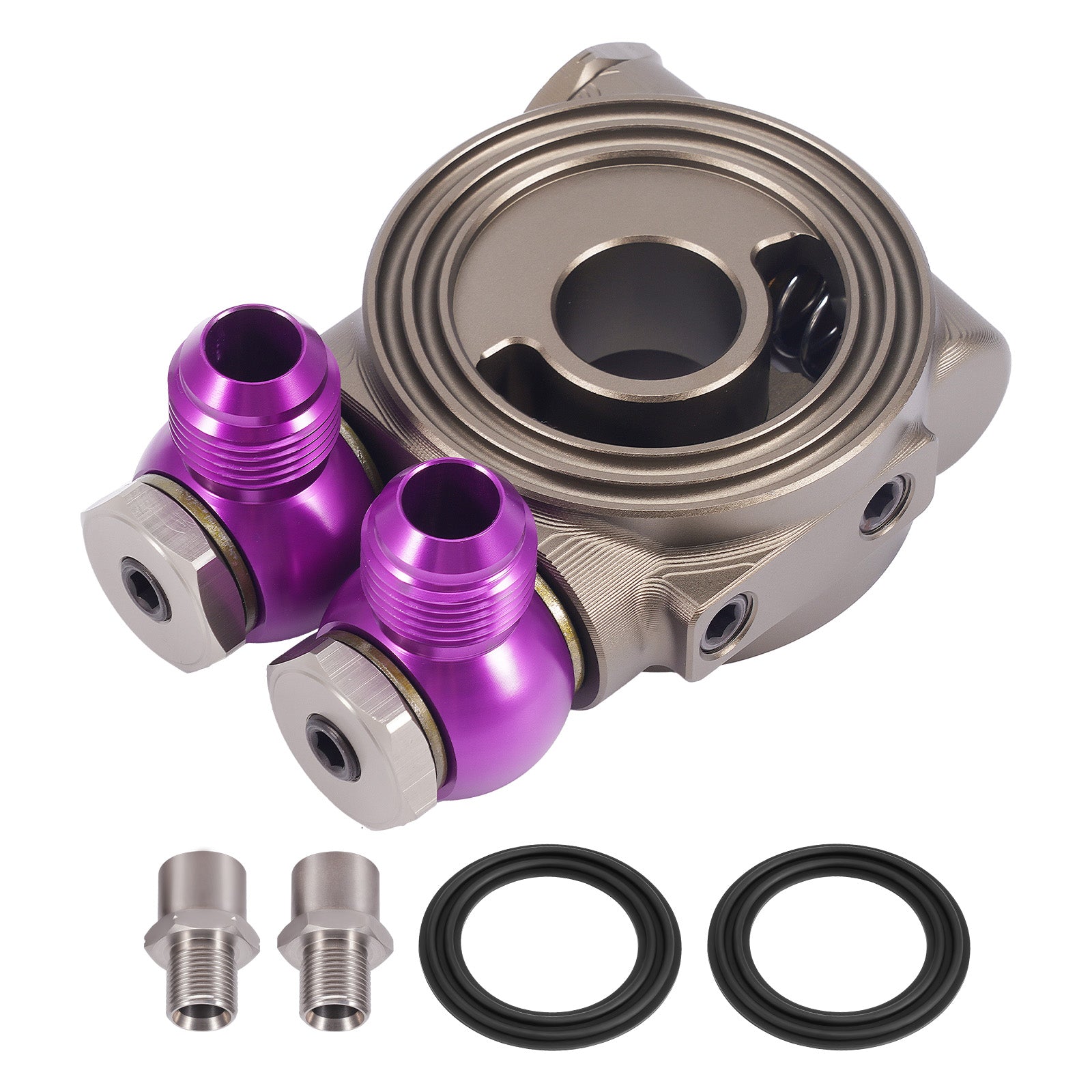

Scope of delivery
1x oil filter sandwich adapter, 1x central adapter M20 x 1.5, 1x central adapter 3/4 x 16 UNF, 2x AN10 fittings, 2x sealing rings
Features
- Valve remains closed below 73°C so that oil goes directly to the filter and back to the engine, which shortens warm-up time
- From 73°C, the valve opens gradually and part of the oil is routed through the oil cooler; at 83°C, the valve is fully open
- 360° swivel fisheye fittings for optimal positioning
- Compact and lightweight design
- Four 1/8 NPT ports for mounting a temperature or pressure sensor
- CNC machined aluminum with anodized finish
- Includes high-quality sealing rings to prevent oil leakage
Check fitment
Always check the original OEM part number, year of manufacture, engine code and the version of your vehicle before ordering, as there may be differences per version. Are you unsure whether this part fits your vehicle? Feel free to contact us before purchasing.
