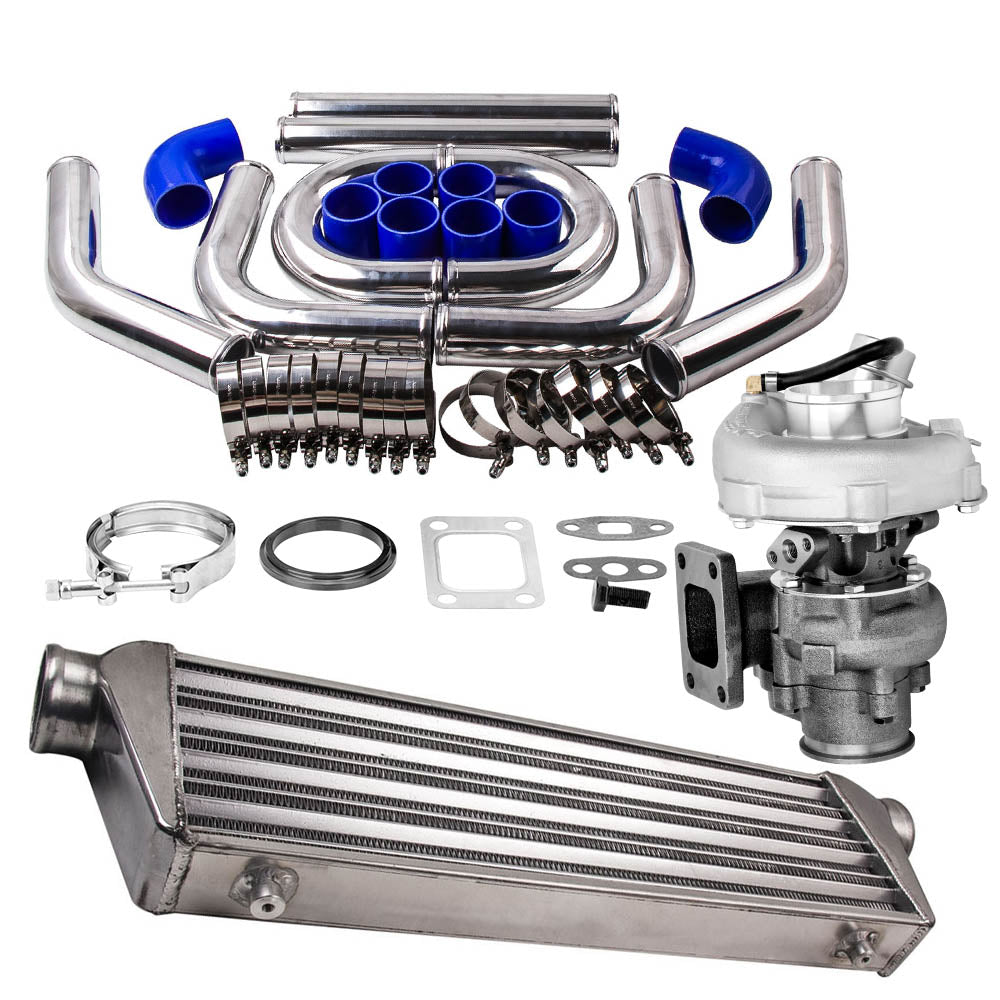

T04E T3 Universal Turbo Turbocharger V-Band 2.5Intercooler Pipe Piping Kit

This MaXpeedingRods part is suitable as a replacement or upgrade part. Always check part number, fitment, and specifications before ordering.

Advantages

• Based on original MaXpeedingRods product information
• Suitable for direct replacement or performance upgrade

Application, specifications and compatibility

* This is universal application turbo, so modification might be required for some vehicles.

Application :

Perfect for all 4 or 6 CYL, 1.5L to 2.5L engines

T04E Turbocharger with Internal Wastegate

Exhaust (Turbo Manifold) Flange: Standard T3 4-Bolt

Exhaust Outlet Flange: V-Band Flange (ID/OD: 2.5"/3.1")

Intake Inlet/ Outlet:3.00"/ 2.00"

Turbine Side:

Turbine Trim: 74.2

Turbine A/R: 0.63

Turbine Inducer: 64.8mm

Turbine Exducer: 55.8mm

Turbine exhaust outlet : 79mm

Turbine exhaust inlet: 44.7mm (length) /85.8mm (width)

Compressor Side:

Compressor Trim: 48.1

Compressor A/R: 0.5

Compressor Inducer: 52.7mm

Compressor Exducer: 76mm

Compressor outlet:78 mm

Compressor inlet:51.5 mm

Oil Inlet:M12*1.25 & 2*M8*1.25

Oil Outlet:2*M8*1.25

Bearing: Journal Bearing

Cooling Type:Oil Cooled

Wastegate:w/Wastegate

Thrust Bearings:270 Degrees

Hosepower:Up to 420 HP

2.5" Universal Aluminum Intercooler Pipe

Made out of high quality of 6061 aluminum Manual polishing finished

Manufactured from high quality aluminum for durable use:

Straight Layout and Appropriate Pipes' Radius lead to less pressure loss

High Pressure Resistant Hoses bring out high of intercooler

All pipes are well externally polished

All intercoolers are bar & plate design for better cooling efficiency

Professional Installation Is Highly Recommended

Pipe Thickness: 1.8mm

Pipe length: 18"

27x7x2.5 2.5" Universal Intercooler

Inlet/outlet size: 2.5"

Core size: 21"x 7"x 2.5"

Full size: 27.00" (L) X 7.00" (H) X 2.50"(W)

Compress Air Flow Rate
