T3 T04E GEN2 Turbocharger .63 A/R 48.1 Trim V-Band Flange for 4-6 Cyl 1.5-2.5L

This MaXpeedingRods part is suitable as a replacement or upgrade part. Always check part number, fitment, and specifications before ordering.

Benefits

• Based on original MaXpeedingRods product information
• Suitable for direct replacement or performance upgrade

Application, specifications, and compatibility

Application Perfect for all 4 or 6 CYL, 1.5L- 2.5L engines

*Please note:

1. Please confirm that there is enough space in your car to install this turbo before purchasing.

2. Lack of oil will cause the turbocharger shaft play and damage, please adjust the oil pressure and ensure that the turbocharger is fully lubricated.

3. Make sure actuator pressure lowering than 25psi, Oil pressure lowering than 2 bar.Specifications Exhaust Inlet Flange: T3 4 bolt Flange

Exhaust Outlet Flange: V-Band Flange (ID/OD: 2.5"/3.1")

Turbine Side:

Turbine Trim: 74.2

Turbine A/R: 0.63

Turbine Inducer: 64.8mm

Turbine Exducer: 55.8mm

Turbine exhaust outlet : 79mm

Turbine exhaust inlet: 44.7mm（length）/85.8mm（width）

Compressor Side:

Compressor Trim: 48.1

Compressor A/R: 0.5

Compressor Inducer: 52.7mm

Compressor Exducer: 76mm

Compressor outlet:78 mm

Compressor inlet:51.5 mm

Oil Inlet: M12*1.25 & 2*M8*1.25

Oil Outlet: 2*M8*1.25

Bearing: Journal Bearing

Cooling Type: Oil Cooled

Wastegate：With Wastegate

Thrust Bearings: 270 Degrees

Hosepower:Up to 420 HP

Turbo Type: Individual

Universal Fitment: Yes

Finish:Polished

Condition: 100% Brand New

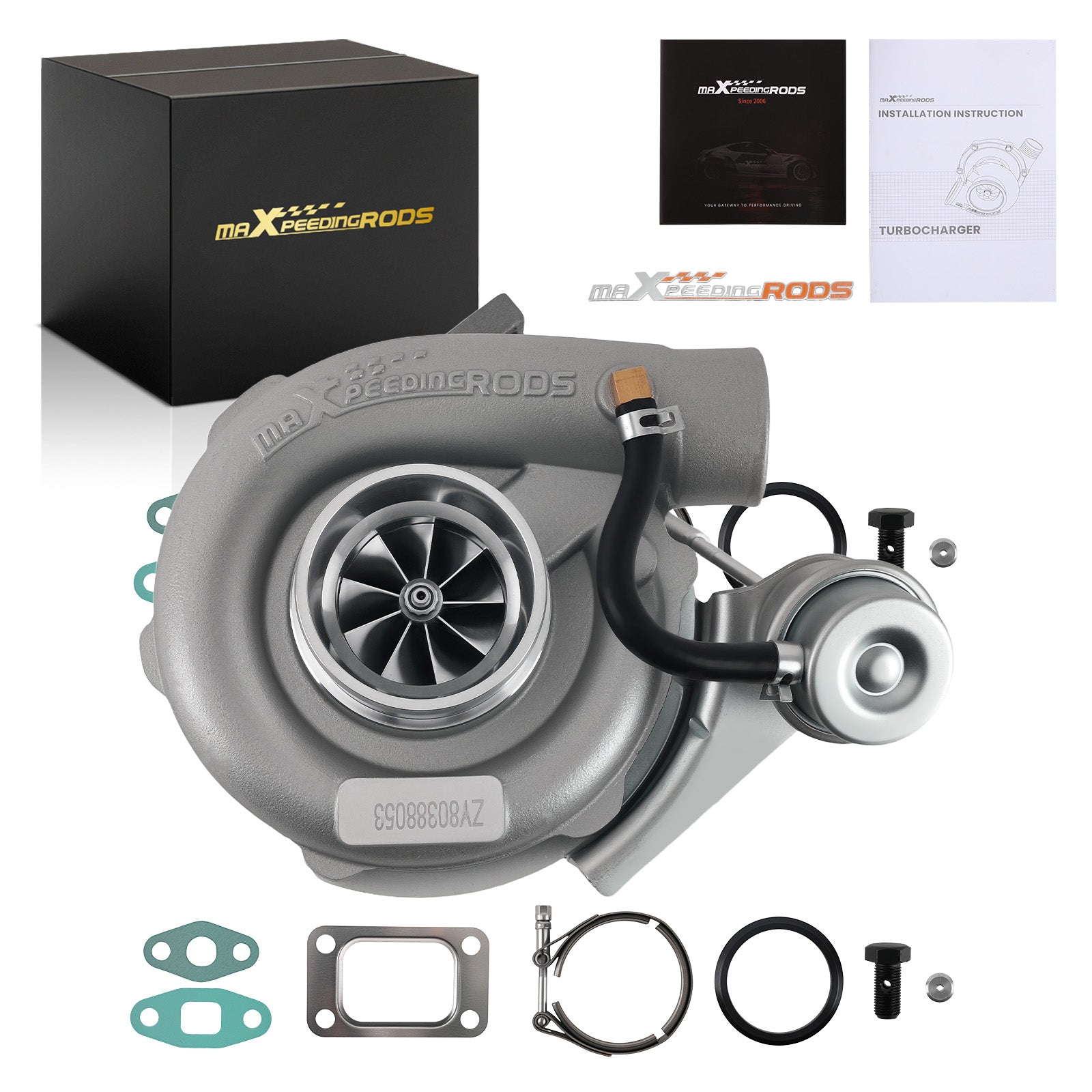

Accessories: You will get exactly as shown as picture above

Package Size:30x 28x 24 cm

Package Weight: 9180g Package included1x Turbocharger

1x Flange gasket

1x V-Band flange Adapter Ring & Clamp

2x Oil port gaskets

1x Bolt

1x Manual

1x Brochure

1x Sticker Features*Product Material

1. Turbine housing: Ductile iron QT450-10 - temperature resistant up to 700℃

2. Steel turbine wheel：K418 alloy -highoxidation stability and resistanceupto 900℃

3. Compressor housing: ZL104 aluminum with lightweight

4. Billet Compressor Wheel: Forged billet aluminum CNC machined compressor wheel - High efficiency, fast response, lower fuel consumption, smooth operation

5. Appearance upgrade: New compressor wheel design

*Product

1. Cost-effective turbo increase 20-40% power for your car

2. Rich experience in turbo production and own factory

3. High-Speed oil seal ring and Precision clearance

4. Built for durability and strength

* Technology Advantage:

1. 100% balancing Test by TURBOTECHNICSVSR3

2. G3-min-Flow VNT Turbo testing

3.Advanced Actuator Tester/Programmer Note* Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.

* Make sure the oil drain line is lower than the turbo itself.

* Ensure exhaust outlet are well sealed by welding

* The degree of modification of the universal turbo depends on your individual vehicle.Professional installation is highly recommended.

* This Turbo is not vehicle specific. Please check the specifications and verify compatibility prior to placing your order.

* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
