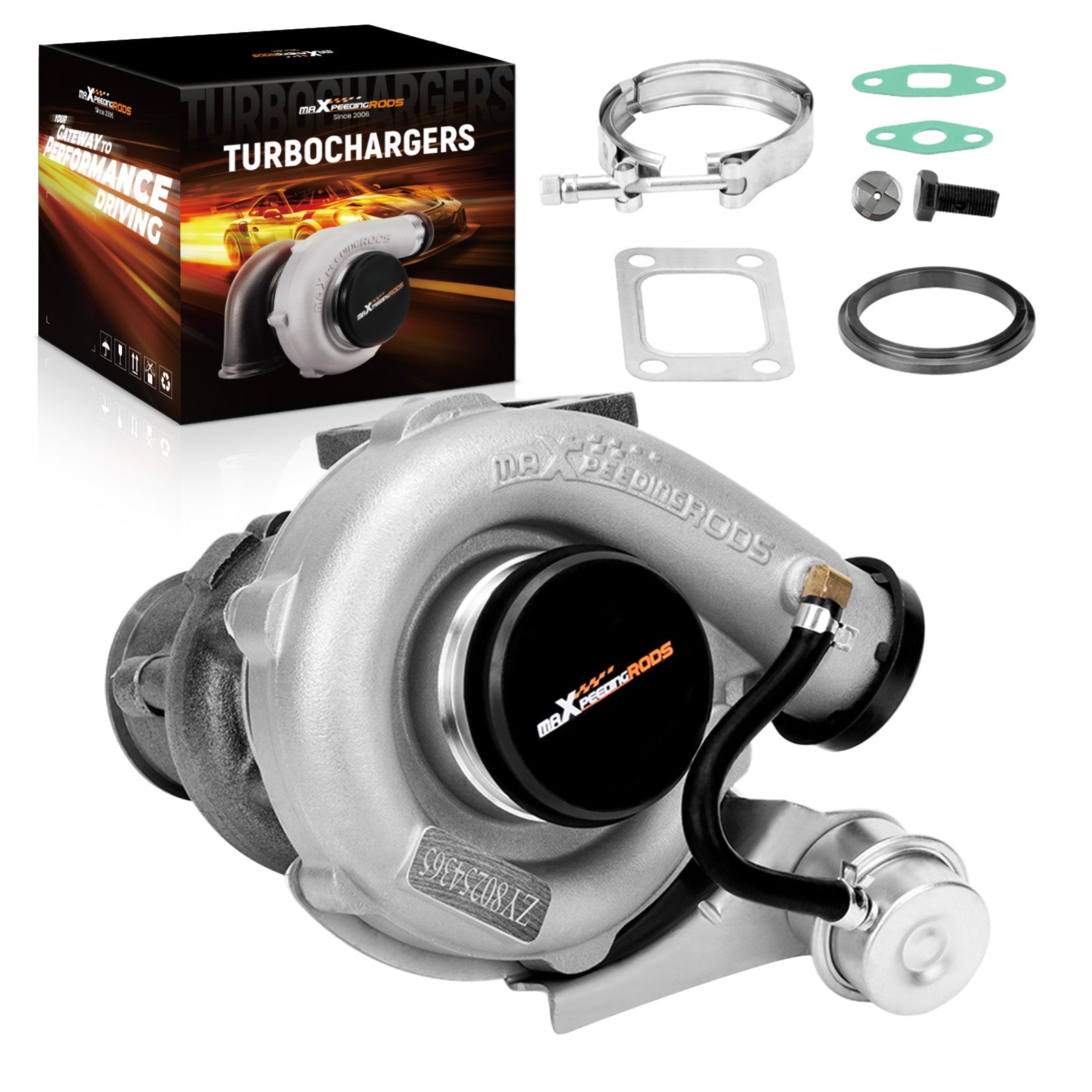

Universal Turbo Turbocharger T3 T4 T04E trim 73 44 V-band Oil cool 1.5-2.5L

This MaXpeedingRods part is suitable as a replacement or upgrade part. Always check part number, fitment and specifications before ordering.

Benefits

• Based on original MaXpeedingRods product information
• Suitable for direct replacement or performance upgrade

Application, specifications and compatibility

Application Perfect for all 4 or 6 CYL, 1.5L- 2.5L engines*Please note: 1. Please confirm that there is enough space in your car to install this turbo before purchasing.2. Lack of oil will cause the turbocharger shaft play and damage, please adjust the oil pressure and ensure that the turbocharger is fully lubricated.3. Make sure actuator pressure lowering than 25psi, Oil pressure lowering than 2 bar.Specifications Exhaust Inlet Flange: T3 4 bolt Flange Exhaust Outlet Flange: V-Band Flange (ID/OD: 2.5"/3.1")Turbine Side:Turbine Trim: 74.2 Turbine A/R: 0.63 Turbine Inducer: 64.8mm Turbine Exducer: 55.8mm Turbine exhaust outlet : 79mm Turbine exhaust inlet: 44.7mm（length）/85.8mm（width）Compressor Side:Compressor Trim: 48.1 Compressor A/R: 0.5 Compressor Inducer: 52.7mm Compressor Exducer: 76mm Compressor outlet:78 mm Compressor inlet:51.5 mm Oil Inlet: M12*1.25 & 2*M8*1.25 Oil Outlet: 2*M8*1.25 Bearing: Journal Bearing Cooling Type: Oil Cooled Wastegate: Internal Wastegate Thrust Bearings: 270 Degrees Hosepower:Up to 420 HPTurbo Type: Individual Universal Fitment: Yes Finish:Polished Condition: 100% Brand New Accessories: You will get exactly as shown as picture above Package Size:30x 28x 24 cm Package Weight: 9180g Package included1x Turbocharger1x Flange gasket1x Vband Clamp1x Adapter2x Oil port gaskets1x Bolt1x Manual1x Brochure1x Sticker Features*Product Material1. Turbine housing ：Ductile iron QT450-10 - temperature resistant up to 700℃2. Steel turbine wheel：K418 alloy -highoxidation stability and resistanceupto 900℃3. Compressor housing：ZL104 aluminum with lightweight 4. Compressor wheel/blades：Cast aluminium blades – superior air tightness & corrosion resistance*Product Performance1. Cost-effective turbo increase 20-40% power for your car2. Rich experience in turbo production and own factory3. High-Speed oil seal ring and Precision clearance4. Built for durability and strength* Technology Advantage: 1. 100% balancing Test by TURBOTECHNICSVSR32. G3-min-Flow VNT Turbo testing3.Advanced Actuator Tester/Programmer Note* Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.* Make sure the oil drain line is lower than the turbo itself.* Ensure exhaust outlet are well sealed by welding* The degree of modification of the universal turbo depends on your individual vehicle.Professional installation is highly recommended.* This Turbo is not vehicle specific. Please check the specifications and verify compatibility prior to placing your order.* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
