2500 LBS Universal Air Suspension Spring Kit for Towing
Product Description
Universal air spring (2500 lbs) for helper air suspension, suitable for most trucks' towing/hauling use.
Suitable for:
- GMC Sierra
- Ford F150 / F250
- Chevrolet Silverado
- Dodge Ram 1500 / 2500 / 3500
- Fiat Ducato, Vauxhall, Citroën, etc.
Specifications
- Installation Position: Left, Right, Front, Rear
- Design Height: 165 mm
- Minimum Height: 45 mm
- Maximum Height: 250-280 mm
- Working Stroke: 205-235 mm
- Air Port Size: G1/4-19
- Mounting Hole Size: 3/8-16UNC
- Top Plate Diameter: 112 mm
- Bellows Body Diameter: 146 mm
- Capacity: 2500 lbs
- Minimum Pressure: 5 PSI
- Maximum Pressure: 100 PSI
- Condition: 100% New

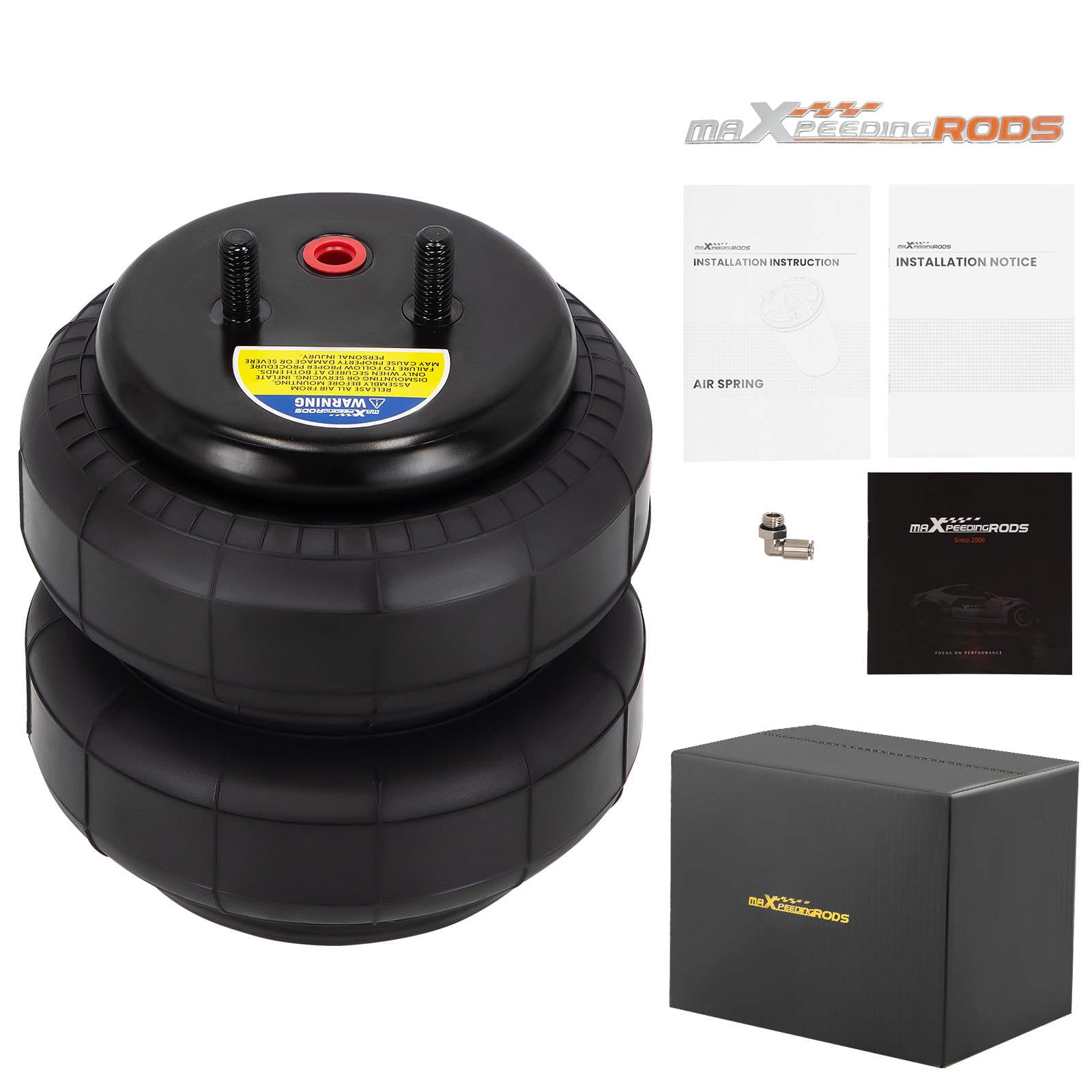

Package Contents
1x air spring
Features
- ISO 9001:2015 certification; tested for over 5,000,000 cycles
- Burst pressure ≥ 2.0 MPa; 100% airtightness test
- High-quality natural rubber, temperature range ≥ -40 °C / ≤ 70 °C; CE certification
Please Note
Please check the dimensions and drawing carefully before purchasing. Manual included; professional installation is recommended.
Check Fitment
Always check the original OEM part number, year of manufacture, engine code, and the version of your vehicle before ordering, as differences may exist per version. If you are unsure whether this part fits your vehicle, please feel free to contact us before purchasing.
