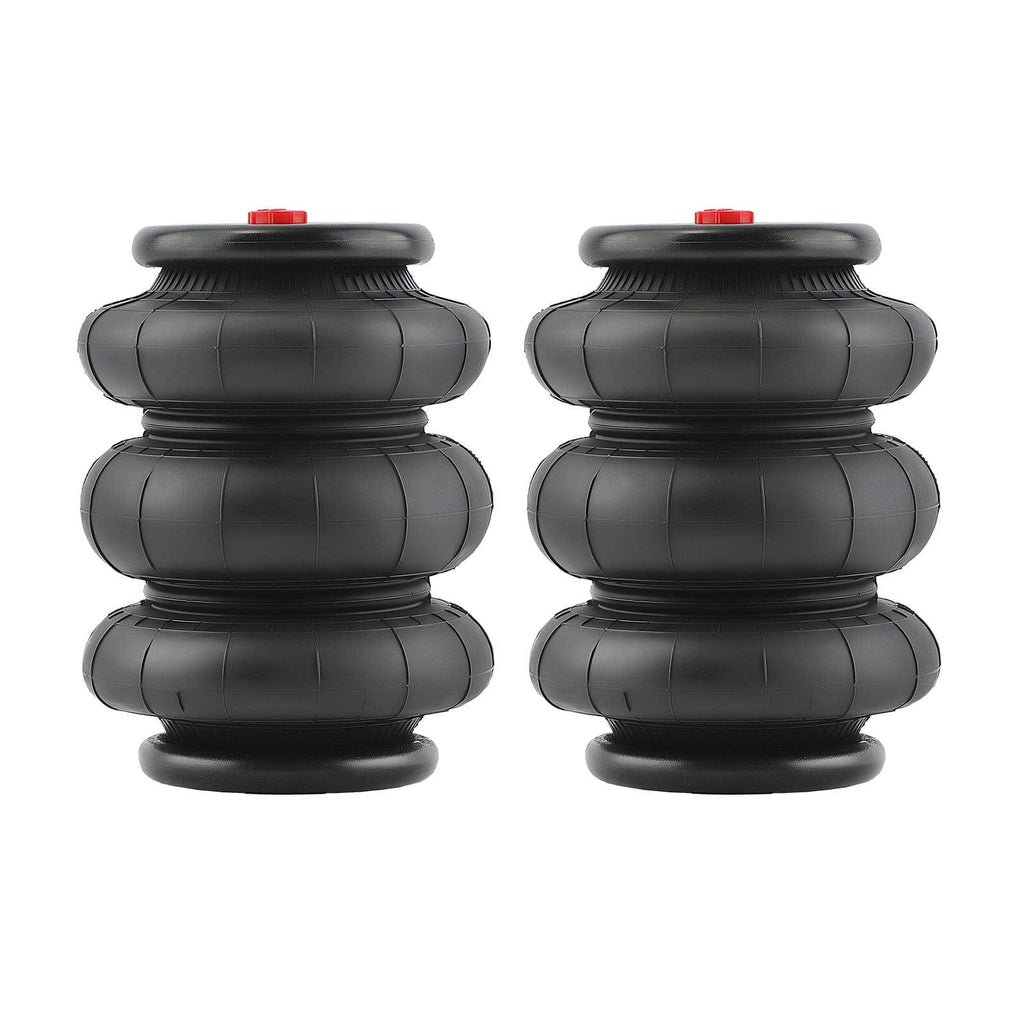

2x Air Suspension Standard 2600lbs 1/2-14NPT Triple Bellow Heavy Duty Truck
2x Air Suspension Standard 2600lbs 1/2-14NPT Triple Bellow Heavy Duty Truck
- * Concurrerende prijs
- * Sneller verzenden
- * Staat: 100% nieuw!
- * Garantie: 1 jaar garantie op eventuele fabricagefouten
- * Accessoires: je ontvangt precies zoals op de afbeelding hierboven!
Product Description
Universal air suspension (2x), suitable for most buses, trucks and trailers, including light commercial vehicles and chassis.
Specifications
- Stroke/Closed: 150 mm (5.9 inch)
- Maximum Height: 330 mm
- Minimum Height: 110 mm
- Design Height: 250 mm (9.8 inch)
- Top Plate Diameter: 131 mm (5.2 inch)
- Port Size: 1/2-14NPT, single port
- Mounting Hole Size: 3/8-16UNC
- Independently Tested Pressure: minimum 290 psi
- Recommended Working Pressure: 0-170 psi
- Air Spring Bellows Capacity: 2600 lbs per side
- Condition: new
- Part Type: air suspension
- Installation Position: rear
- Quantity: 2 pieces (for rear left and right)
- Dimensions (length x width x height): 400 x 290 x 220 mm
- Weight: 5.8 kg
Features
- OEM product, easy to install
- Tested over 5,000,000 times: durable and safe
- 24-hour airtightness test ≤ 0.02 MPa: airtightness guarantee
- Temperature range ≥ -40°C / ≤ 70°C: high-quality natural rubber material
- Allows vehicles to carry uneven or heavy loads
- Helps maintain control of a loaded vehicle
Please note: these air spring bellows are replacement parts that replace the original air spring bellows. Before purchasing, please carefully compare the image and drawing to ensure you have the correct items. Professional installation is recommended.
Check Fitment
Before ordering, always check the original OEM part number, year of manufacture, engine code, and the version of your vehicle, as there may be differences per version. If you are unsure whether this part fits your vehicle, please feel free to contact us before purchasing.
