Product Description
Air suspension with dual-circuit system for Iveco Daily.
Suitable for:
- Iveco Daily 35C, 40C, 45C, 50C, 55C, 1999-2024
- Iveco Daily 30-8 / 49-12, 1985-1999
Specifications
- Drive type: Rear-wheel drive (RWD)
- Chassis type: All standard chassis types
- Condition: Factory new
- Max. load: 7800 kg
- Installation position: Rear left and right, with dual-circuit system
- Air spring installation height: 239.5 mm
- Stroke: 280 mm
- Max. extended: 320 mm
- Min. compressed: 40 mm
- Min. height of complete set: 264 mm
- Max. height of complete set: 544 mm
- Air spring material: Natural rubber and high-quality steel
- Air pump power: 150 W
- Air pump output voltage: 12 V
- Max. current: 10 A
- Max. working pressure: 10 bar (1 MPa)
Scope of delivery

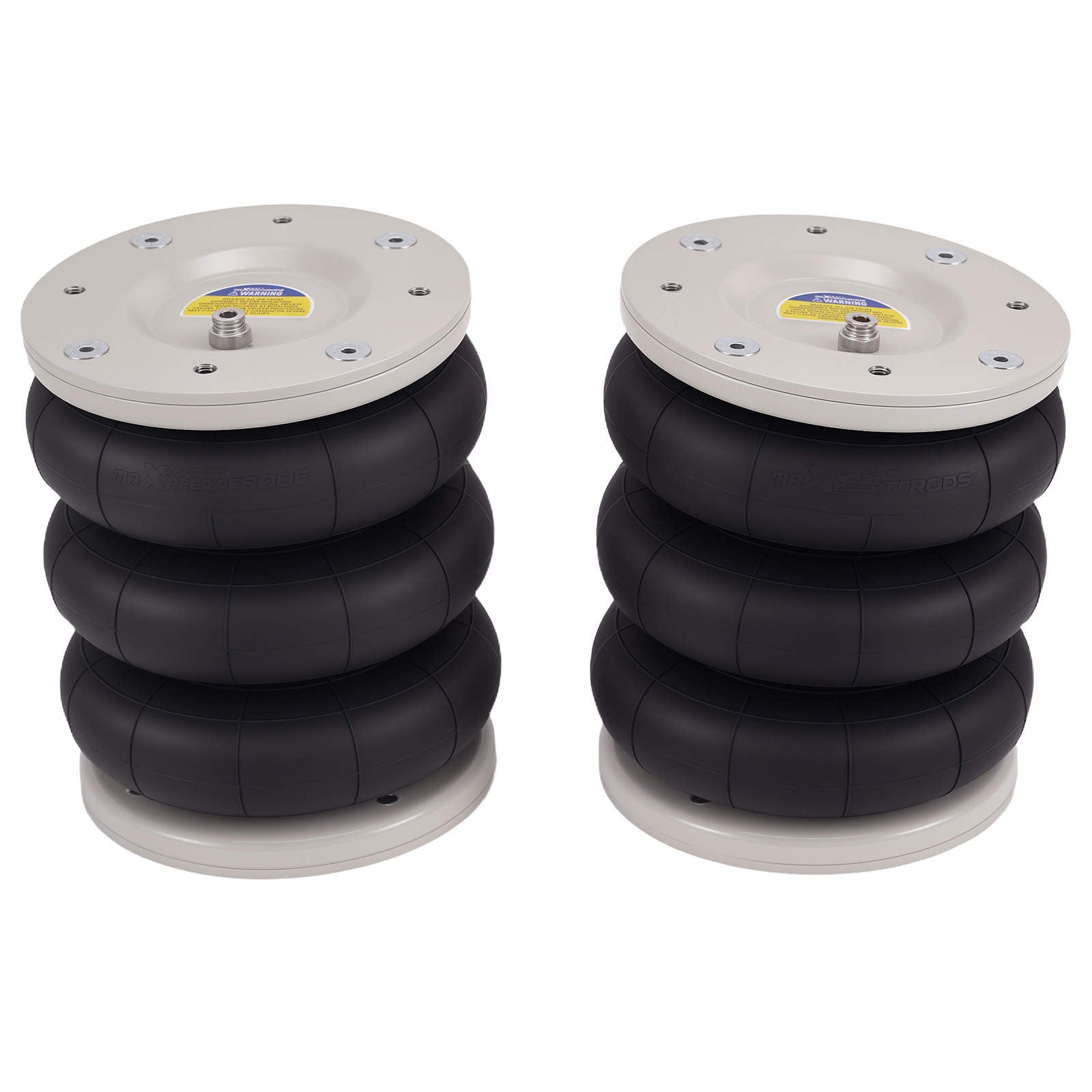

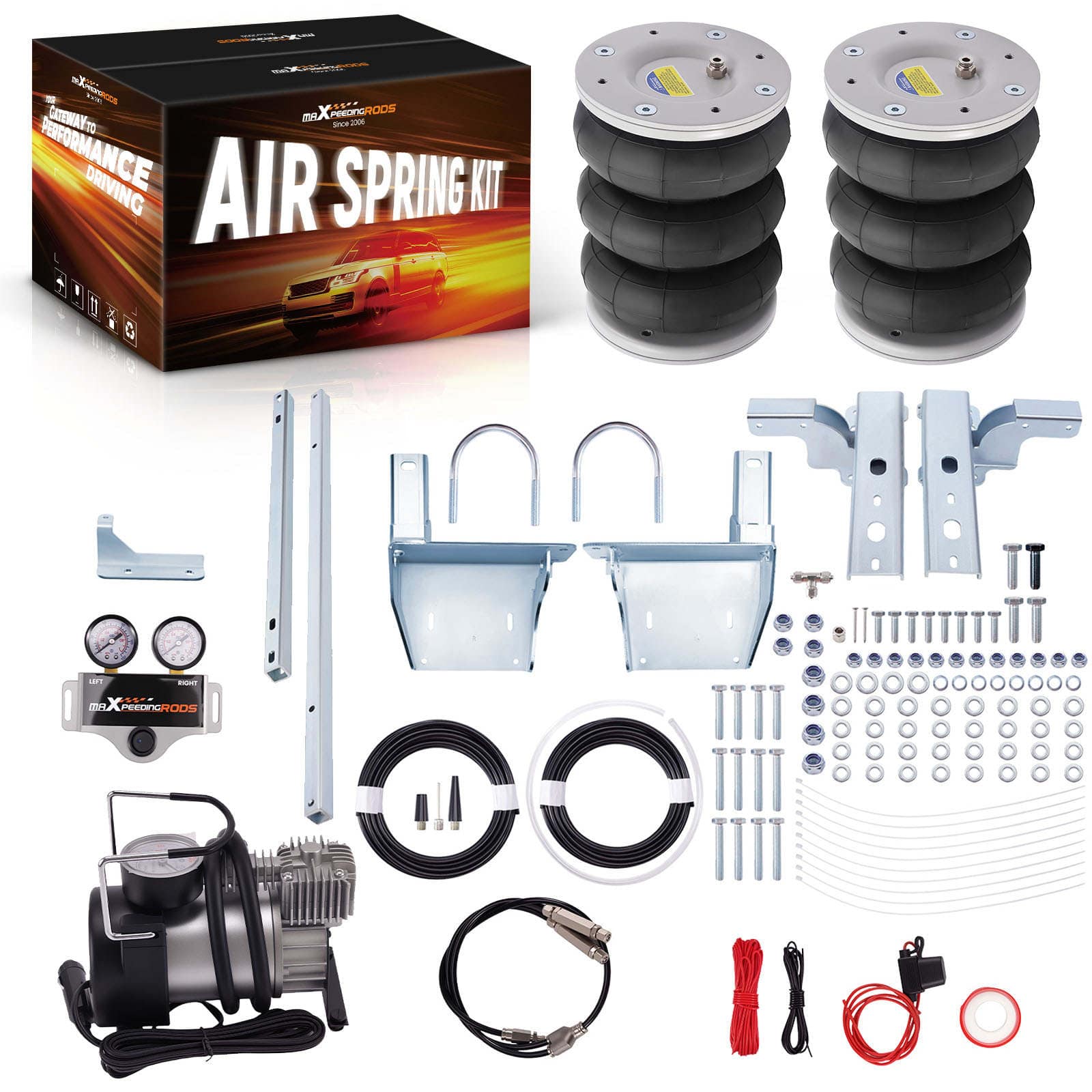

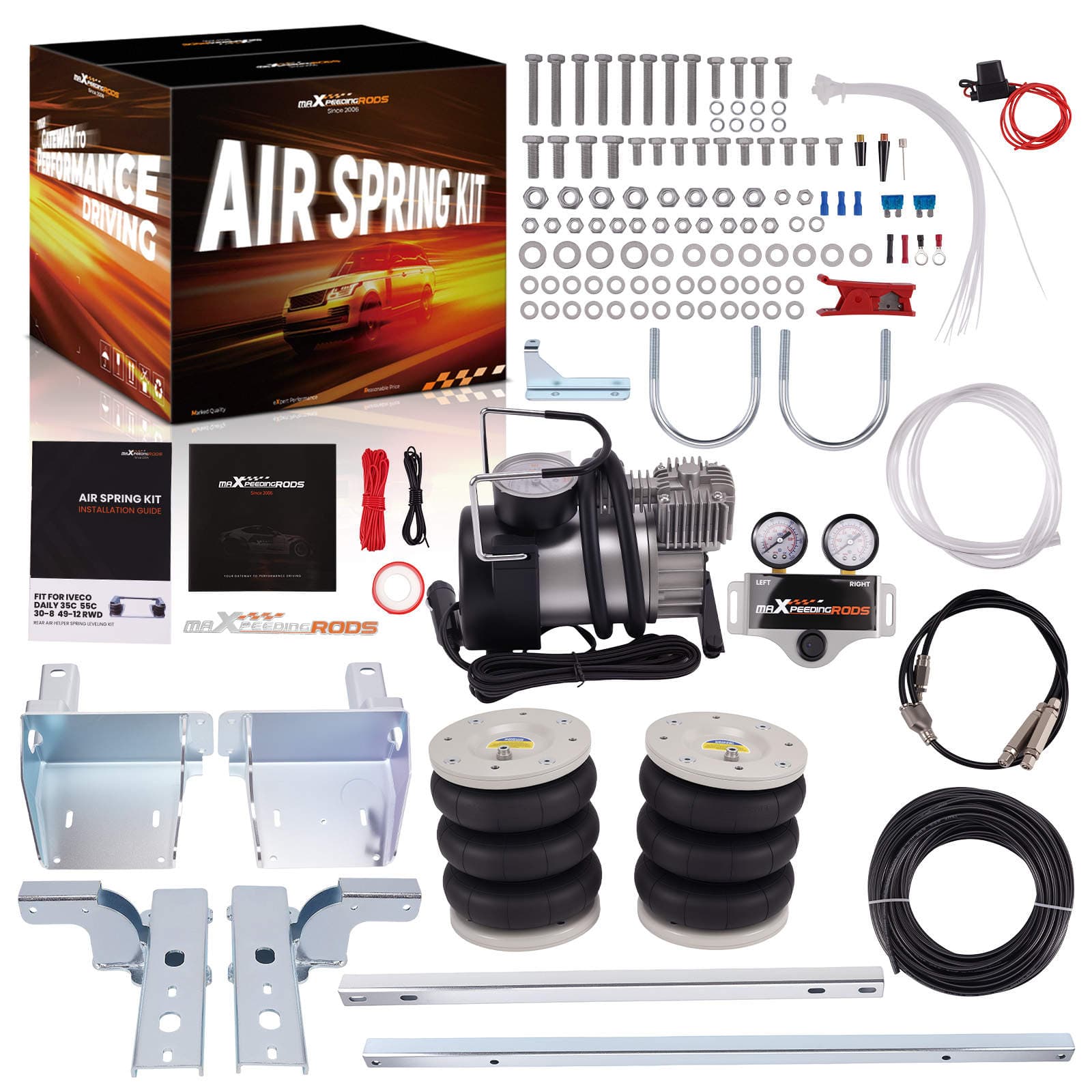

2x air spring bellows (triple convoluted bellows), 1x compressor, 1x dual switch panel/display, 4x mounting brackets, 2x crossbars, 1x air line 21 m, 1x fuse wiring harness, 1x Y-air line connection, mounting bolts and air connections.
Features
- Tested for over 5,000,000 load cycles
- Burst pressure ≥2.0 MPa: high pressure resistance and reduced noise
- 100% airtightness guarantee
- Temperature range ≥-40°C/≤70°C, premium natural rubber material
- 4-layer reinforced construction, improves air suspension load capacity
- High-quality steel with high load capacity and long service life
- Easy bolt-on installation
- Restores original ride height and improves driving comfort
- Dacromet surface treatment for excellent corrosion resistance
Check fitment
Before ordering, always check the original OEM part number, year of manufacture, engine code, and the version of your vehicle, as differences may exist depending on the version. Are you unsure whether this part fits your vehicle? Please feel free to contact us before purchasing.
