Standard Pneumatic Air Ride Suspension Pair 2500 lb 1/2" NPT Single Port Universal
Standard Pneumatic Air Ride Suspension Pair 2500 lb 1/2" NPT Single Port Universal
- * Concurrerende prijs
- * Sneller verzenden
- * Staat: 100% nieuw!
- * Garantie: 1 jaar garantie op eventuele fabricagefouten
- * Accessoires: je ontvangt precies zoals op de afbeelding hierboven!
Product Description

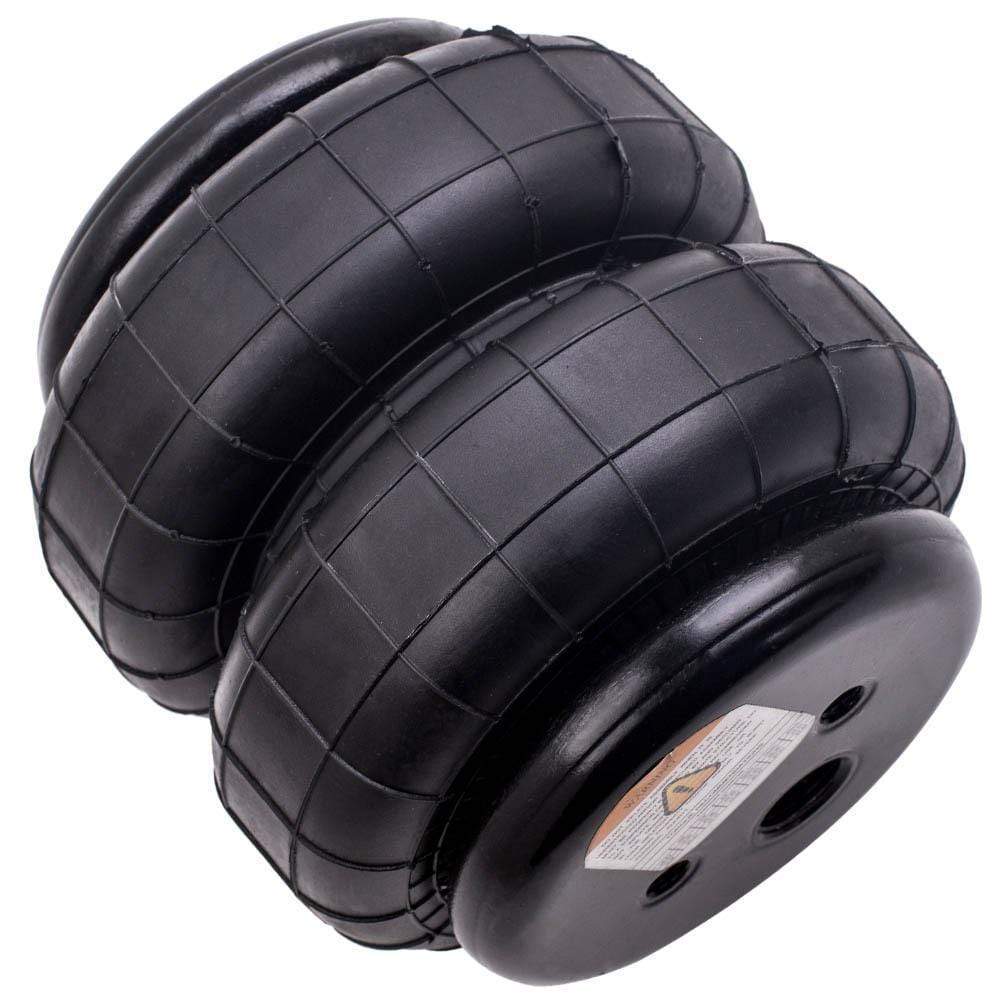

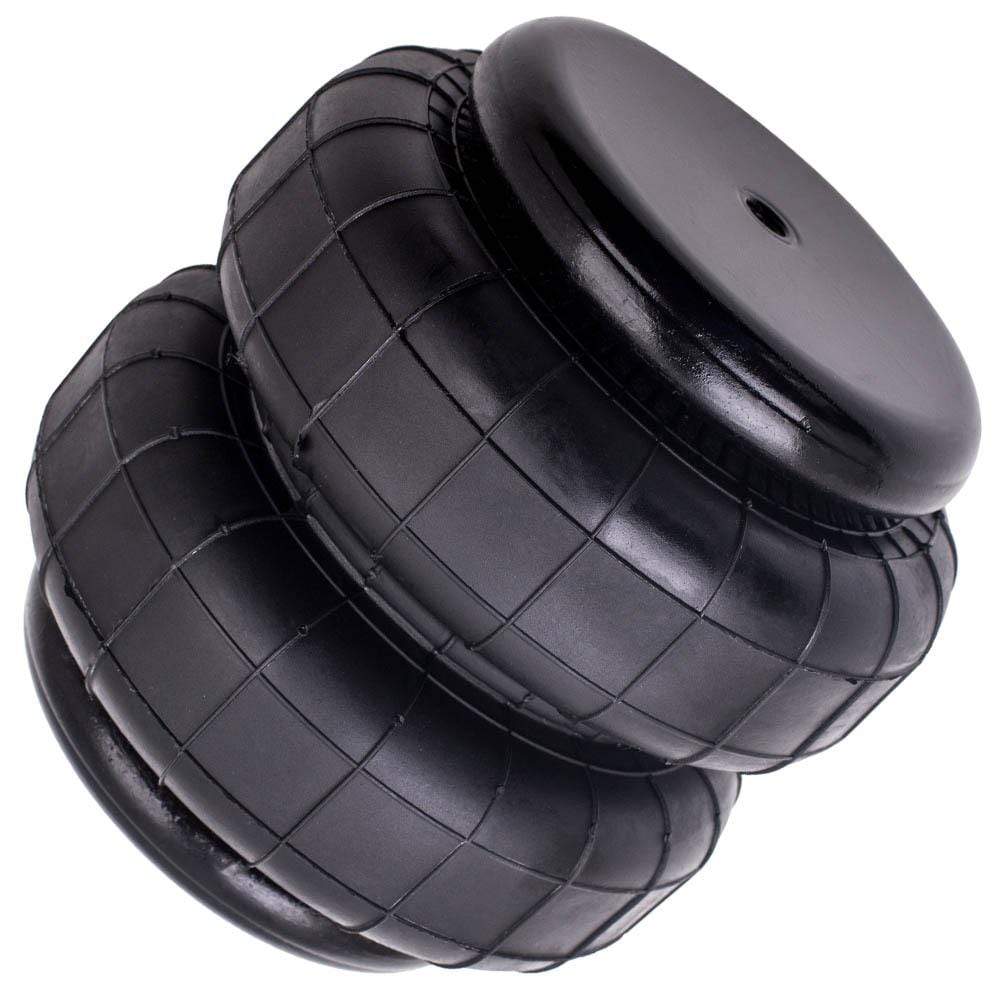

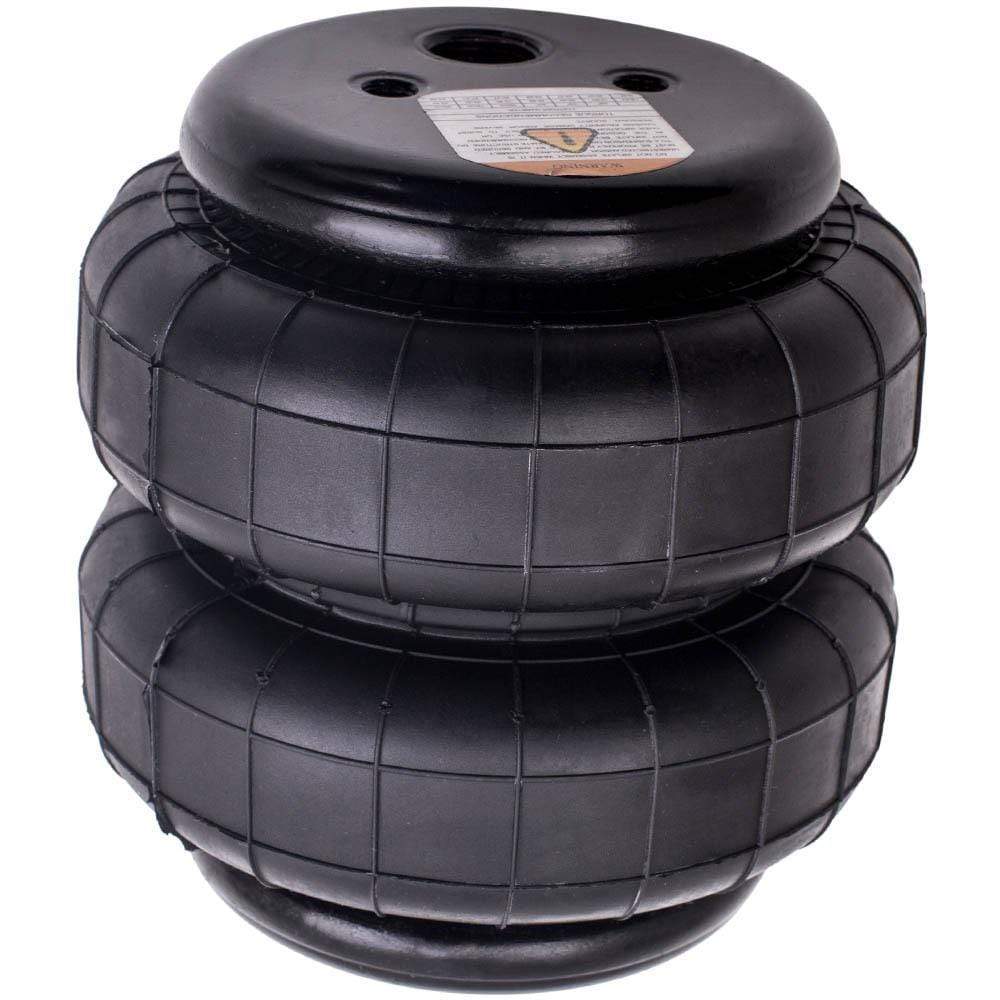

Set of 2 universal air springs (standard, 2500 lb, 1/2" NPT single port). The air spring is constructed with steel wire-reinforced ribs and multi-ply nylon cords in the rubber, with all-steel top and bottom plates.
Suitable for:
- Universal - including Ford F-150 / F-250, GMC Sierra, Chevrolet Silverado, Dodge Ram 1500 2500 3500 (suitable for most truck brands)

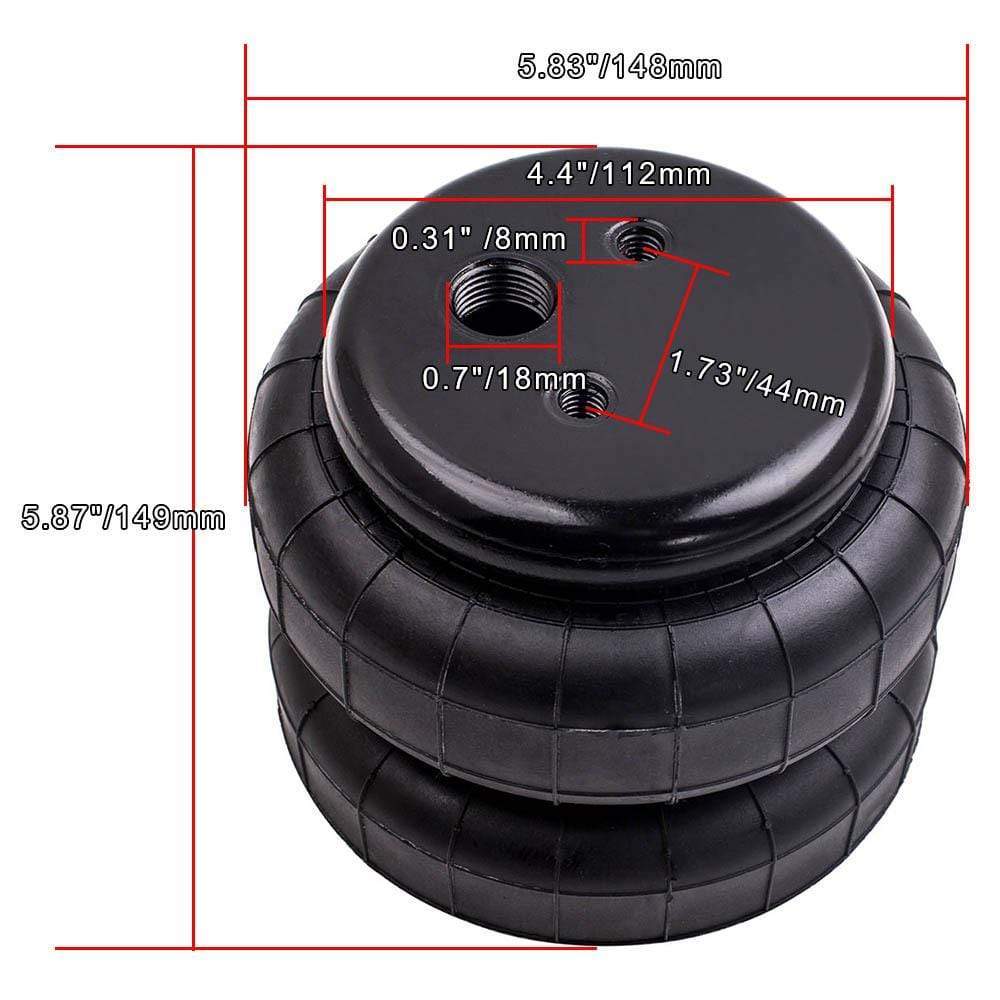

Specifications
- Air Spring Capacity: 2500 lb
- Load at 3.0 bar: 2.88 kN
- Load at 7.0 bar: 7.25 kN
- Minimum Height: 72 mm ±5 mm
- Maximum Height: 218 mm ±5 mm
- Working Stroke: 146 mm ±5 mm
- Air Port Size: 1/2 NPT (pitch 1.814 mm)
- Elbow Air Fitting: G1/2-Ø6 (male)
- Mounting Hole: 3/8-16UNC (pitch 1.587 mm)
- Top Plate Diameter: 113 mm
- Bellows Body Diameter: 148 mm ±2 mm
- Installation Position: left, right, front, rear
- Mounting: direct replacement
- Adjustable: yes
- Sealed: yes
- Condition: new
- Warranty: 1 year
Scope of Delivery

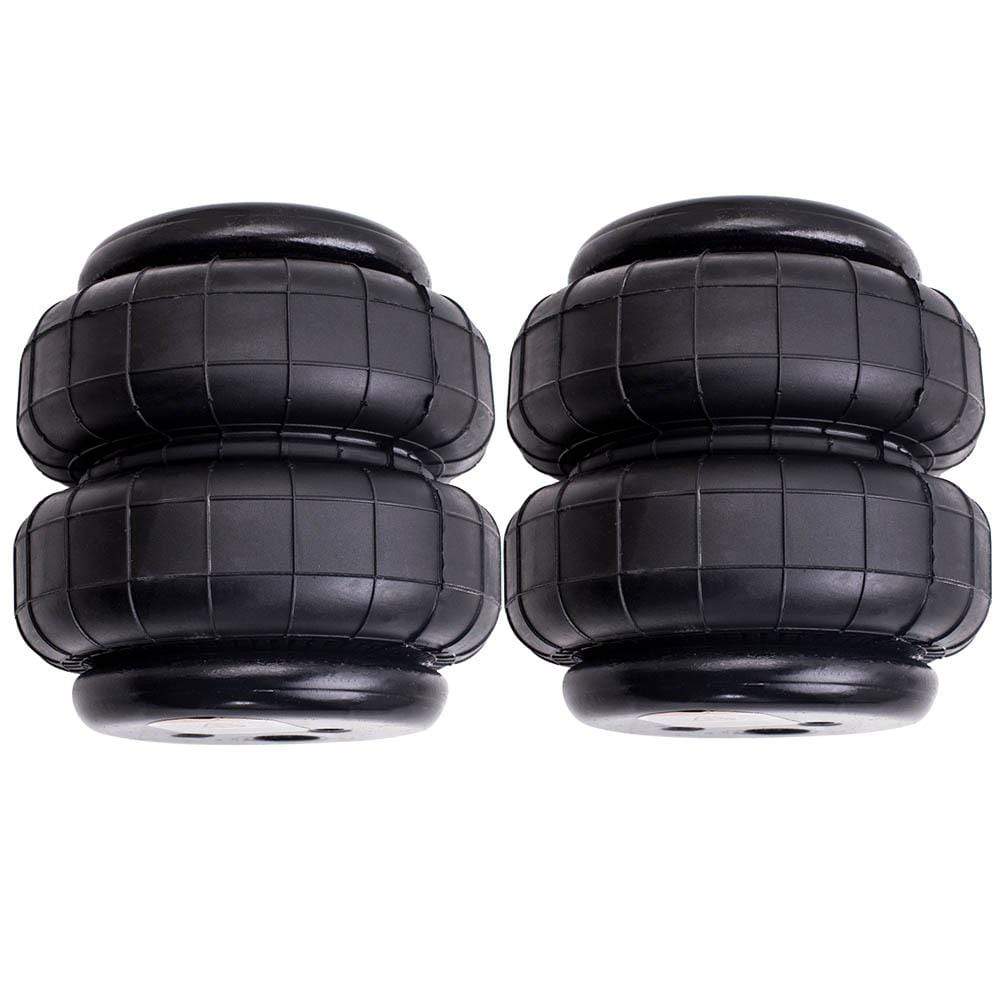

1x pair of air springs
Please note
Before purchasing, please check that the parameters of the air spring (especially height, diameter and bolt specifications) match ours. No manual included; professional installation is highly recommended.
Check fitment
Before ordering, always check the original OEM part number, year of manufacture, engine code, and the version of your vehicle, as there may be differences depending on the version. If you are unsure whether this part fits your vehicle, please feel free to contact us before purchasing.
