4 Link Suspension Universal Air Ride Suspension + 12V Compressor Controller Kit for Truck
4 Link Suspension Universal Air Ride Suspension + 12V Compressor Controller Kit for Truck
- * Concurrerende prijs
- * Sneller verzenden
- * Staat: 100% nieuw!
- * Garantie: 1 jaar garantie op eventuele fabricagefouten
- * Accessoires: je ontvangt precies zoals op de afbeelding hierboven!
Product Description
Universal 4-link air suspension kit with 12V compressor controller kit, for trucks and pick-ups.
Suitable for:
- Universal weld-on triangulated 4-link suspension kit with two 2500 lb air springs and mounting brackets, for most pick-up trucks, hot rods, rat rods or classics with a 2.75" axle tube
- Ford F150/F250
- GMC Sierra
- Chevrolet Silverado
- Jeep Cherokee XJ
- Jeep CJ-7 4WD
- Jeep Wrangler TJ (1997)
- Dodge Ram 1500/2500/3500, etc.
Specifications
- Airbag capacity: max. 5000 lbs (2500 lbs each)
- Diameter: 6"; extended: 8"; collapsed: 2.75"
- Mounting bolts: M16x1.5x75-40 (top A) and M16x1.5x90-40 (top B)
- All mounting holes: 3/8"-16 UNC
- Tube diameter 4-link bars: 1.25" (wall thickness 0.156")
- Length of all four bars: 24.00" (center-to-center, fully adjusted)
- Maximum air pressure compressor: 100 psi
- Recommended working pressure: 5-70 psi
- Drilling required: yes
- Installation manual: included
Scope of delivery

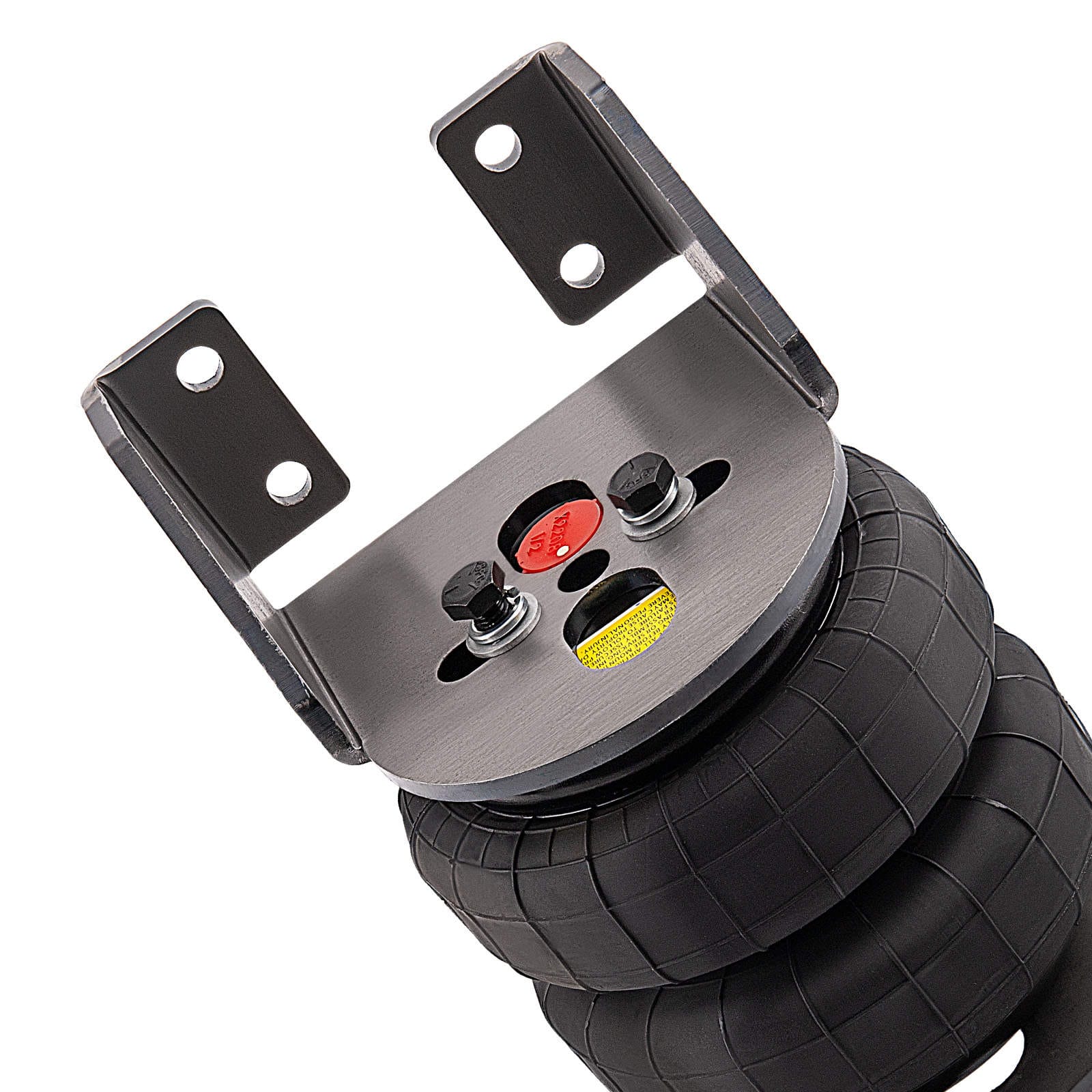

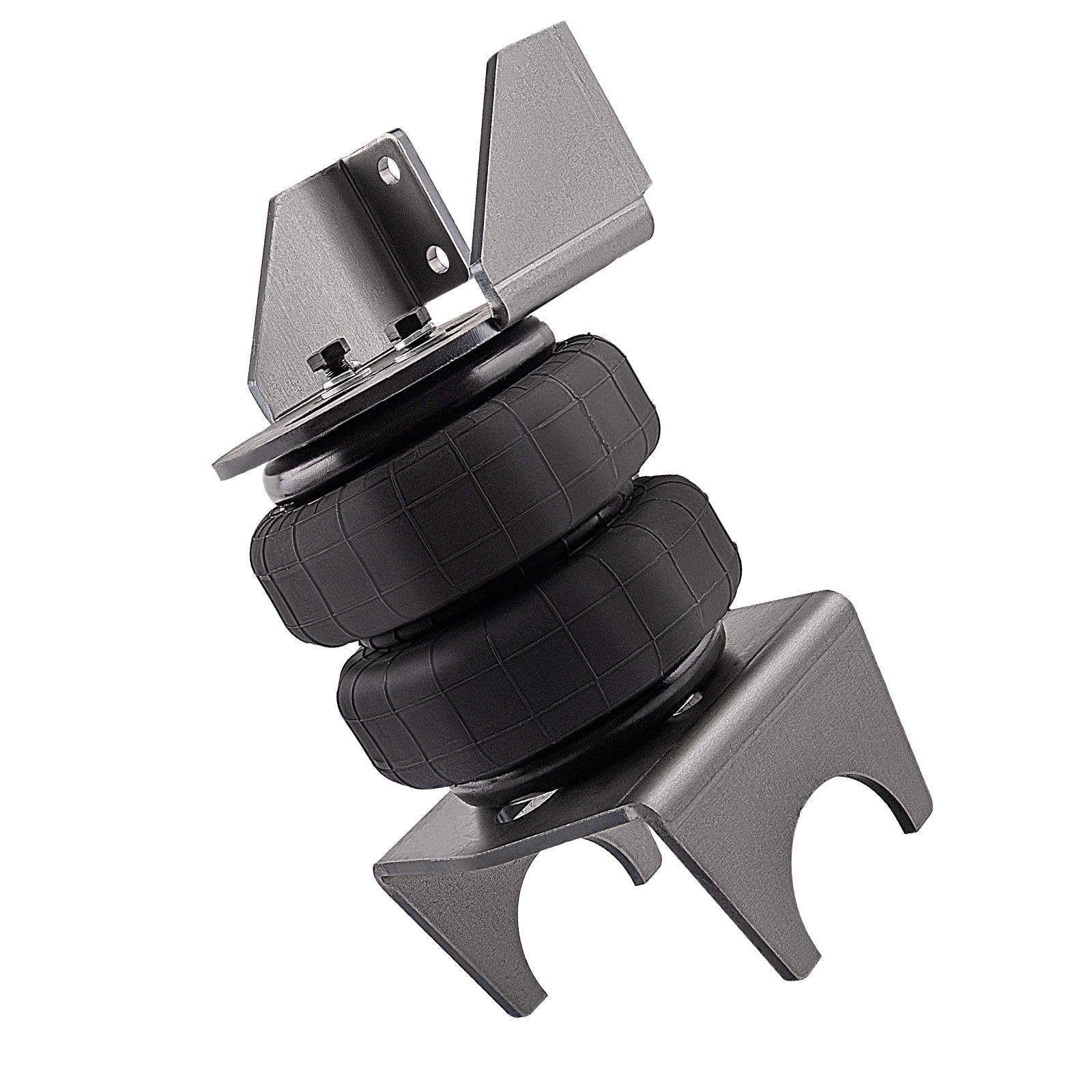

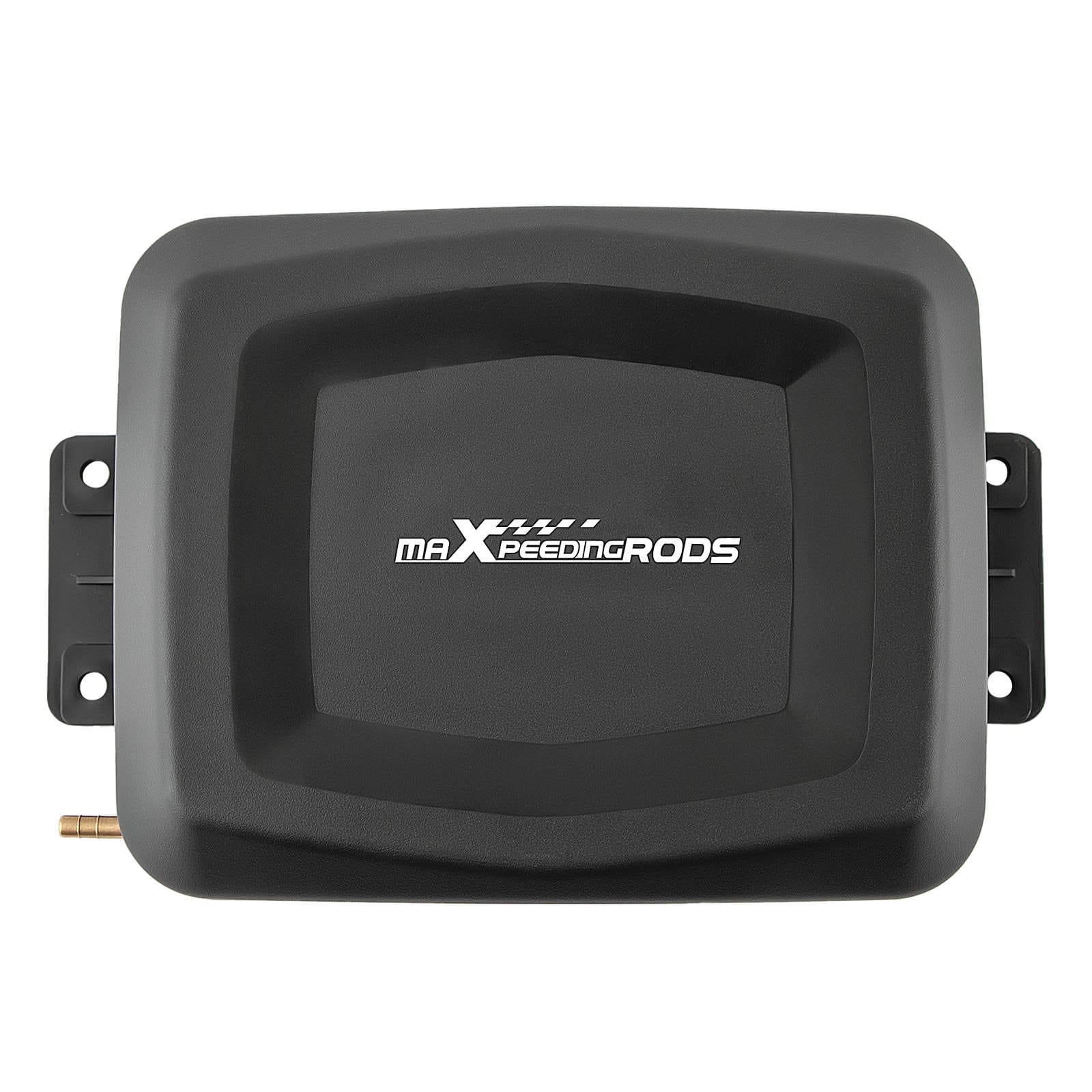

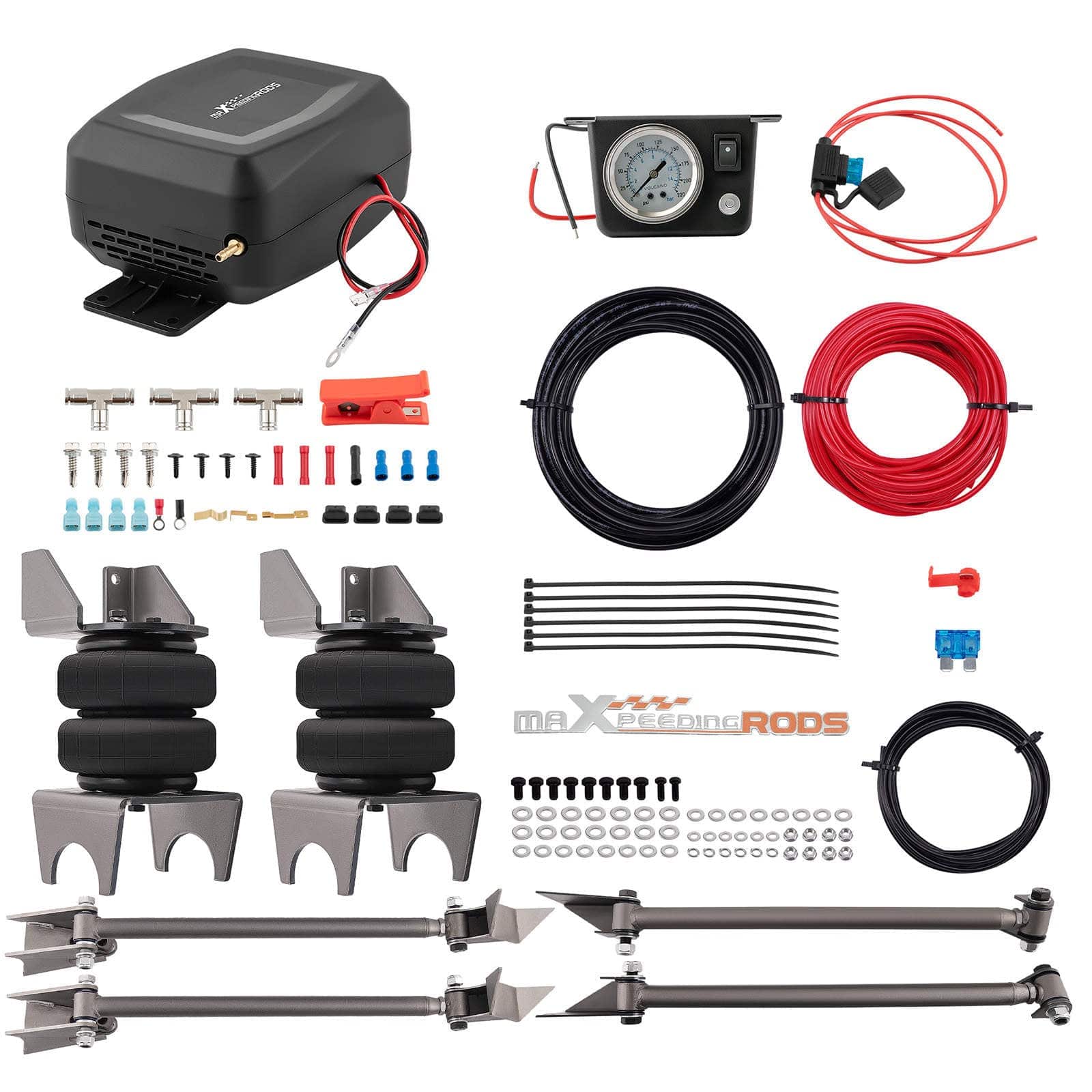

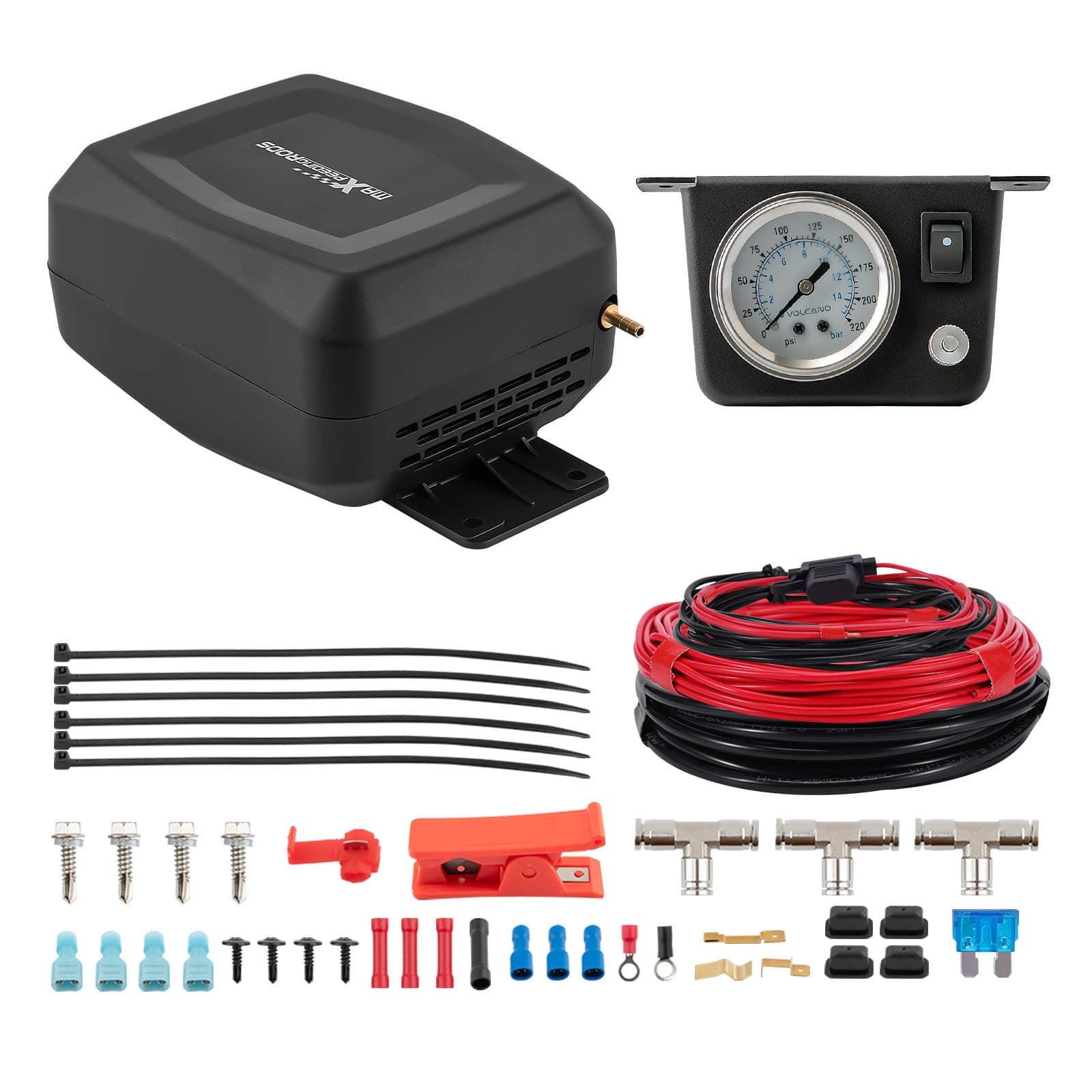

Universal rear triangulated 4-link kit with air bags: 4x heavy duty steel bars, 4x eye bolts with urethane bushings, 2x weld-on triangulated frame brackets, 2x weld-on lower axle tube brackets, 4x weld-on center-link axle mounts, 2x weld-on side frame brackets, 8x cylinder head bolts with lock nuts, 2x weld-on lower axle bag mount, 2x weld-on upper frame bag mount, 2x standard 2500 lb air springs with 1/2" NPT port. Compressor controller kit: 1x 12V MaXpeedingrods air compressor (black), 1x pressure gauge panel, 1x air line ø6x1 (6 m), 1x wiring harness (2.5 m) black, 1x wiring harness (8.5 m) red, 1x relay wiring (1 m), 3x T-connectors and other accessories.
Features
- Brand new and functional, replaces the original air suspension in OE quality
- High-quality materials for safety, load-bearing capacity and long service life
- Air pressure in the air spring adjustable and controllable from the driver's seat
- Suitable for light to medium duty applications and occasional towing
- Includes onboard compressor, single pressure gauge panel, air lines and mounting hardware
- Strict quality control; wiring harness with flame-retardant properties; compressor with waterproof housing
Please note: the connecting rods are supplied randomly in black or silver; the actual product received may differ from the image. Before purchasing, confirm compatibility and technical data. Professional installation is recommended.
Check fitment
Before ordering, always check the original OEM part number, year of manufacture, engine code and the version of your vehicle, as differences may exist depending on the version. Are you unsure whether this part fits your vehicle? Feel free to contact us before purchasing.
