2x Rear Shock Absorber Air Ride Suspension Kit fits Harley Touring Models 94-20
2x Rear Shock Absorber Air Ride Suspension Kit fits Harley Touring Models 94-20
- * Concurrerende prijs
- * Sneller verzenden
- * Staat: 100% nieuw!
- * Garantie: 1 jaar garantie op eventuele fabricagefouten
- * Accessoires: je ontvangt precies zoals op de afbeelding hierboven!
Product Description
This rear air suspension shock absorber kit replaces the original shock absorbers with an adjustable air suspension system.
Suitable for:
- Harley-Davidson Touring models 1994-2020
Please note: Not suitable for Electra Glide Ultra Classic Limited Low and not suitable for CVO Tri Glide.
Specifications
- Condition: Brand new
- Warranty: 1 year for manufacturing defects
- Mounting position: Rear left and right
- Air damper, max. extended: 400 mm
- Air damper, min. retracted: 300 mm
- Stroke: 100 mm
- Eye-to-eye length fully compressed: approx. 268 mm
- Eye-to-eye length fully extended: approx. 368 mm
- Eye diameter: Ø13 mm
- Air hose inner diameter: 4 mm
- Working pressure: ≤2.0 MPa
- Temperature range: ≤+70°C, ≥-40°C
- Air pump power: 168 W
- Air pump output voltage: DC-12V
- Max. current: 14 A
- Max. operating pressure: 130 PSI (9.1 kg/cm²)

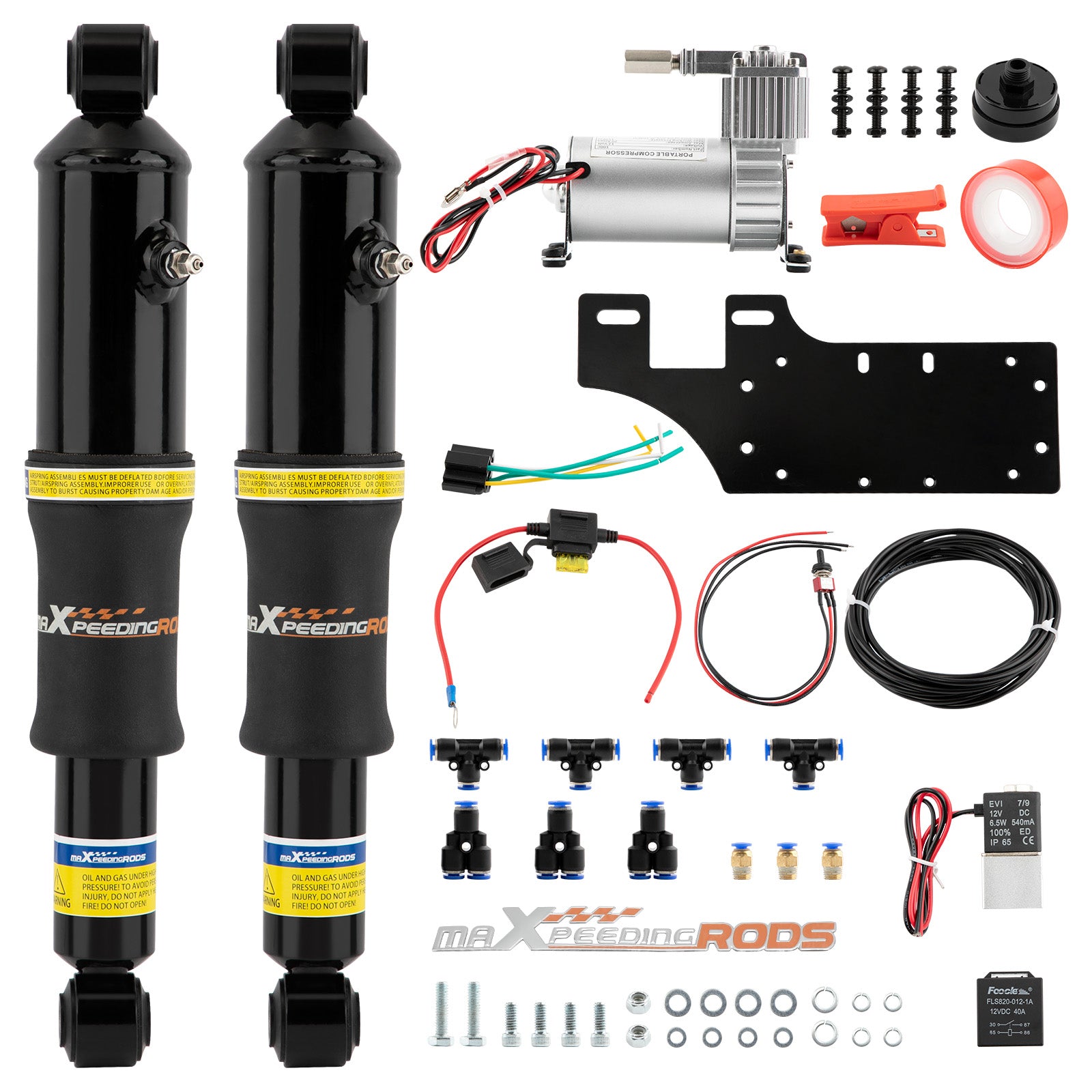

Scope of delivery
Air pump with mounting bracket x1, relay x1, electromagnetic valve x1, air damper x2, air hose x1, hose cutter x1, switch x1, safety seat x1, fuse 20A x1, installation instructions x1, mounting bolts and nuts, other accessories.
Features
- 100% airtightness test
- 24-hour airtightness test ≤0.02 MPa
- Corrosion-resistant with a more even wear surface
- Manufactured under strict quality control with CNC machined components
- Direct replacement for the OEM strut without modifications
- Reduces abnormal noises and restores original ride height
- Lowers 2-3 inches when fully deflated; original ride height is restored after inflation
Check fitment
Always check the original OEM part number, year of manufacture, engine code and vehicle version before ordering, as differences may exist per version. If you are unsure whether this part fits your vehicle, please feel free to contact us before purchase.
