Rear Air Suspension + Compressor Kit suitable for VW Crafter 4X2 Single Tire 1995-2021
Rear Air Suspension + Compressor Kit suitable for VW Crafter 4X2 Single Tire 1995-2021
- * Concurrerende prijs
- * Sneller verzenden
- * Staat: 100% nieuw!
- * Garantie: 1 jaar garantie op eventuele fabricagefouten
- * Accessoires: je ontvangt precies zoals op de afbeelding hierboven!
Product Description
Rear axle air suspension plus compressor kit, suitable for the listed vans. Restores original vehicle height, improves ride comfort, and reduces tire wear.
Suitable for:
- VW Crafter 4X2 1995-2021
- Mercedes-Benz Sprinter 4X2 1995-2021
Please note: suitable for single rear wheel with 3-inch axle tube.
Specifications
- Condition: Brand new
- Airbag installation position: Rear left and right
- Load capacity: Max. 5600 LBS
- Design height: 152 mm
- Stroke: 110 mm
- Max. extended: 175 mm
- Min. compressed: 65 mm
- Top plate length: 135 mm; height 38 mm
- Bottom plate length: 135 mm; height 33.3 mm
- Max. air pressure compressor: 100 psi
- Recommended working pressure: 5-70 psi
- Drilling required: Yes
- Package dimensions: 32 × 20 × 20 cm
- Weight: 2.2 kg

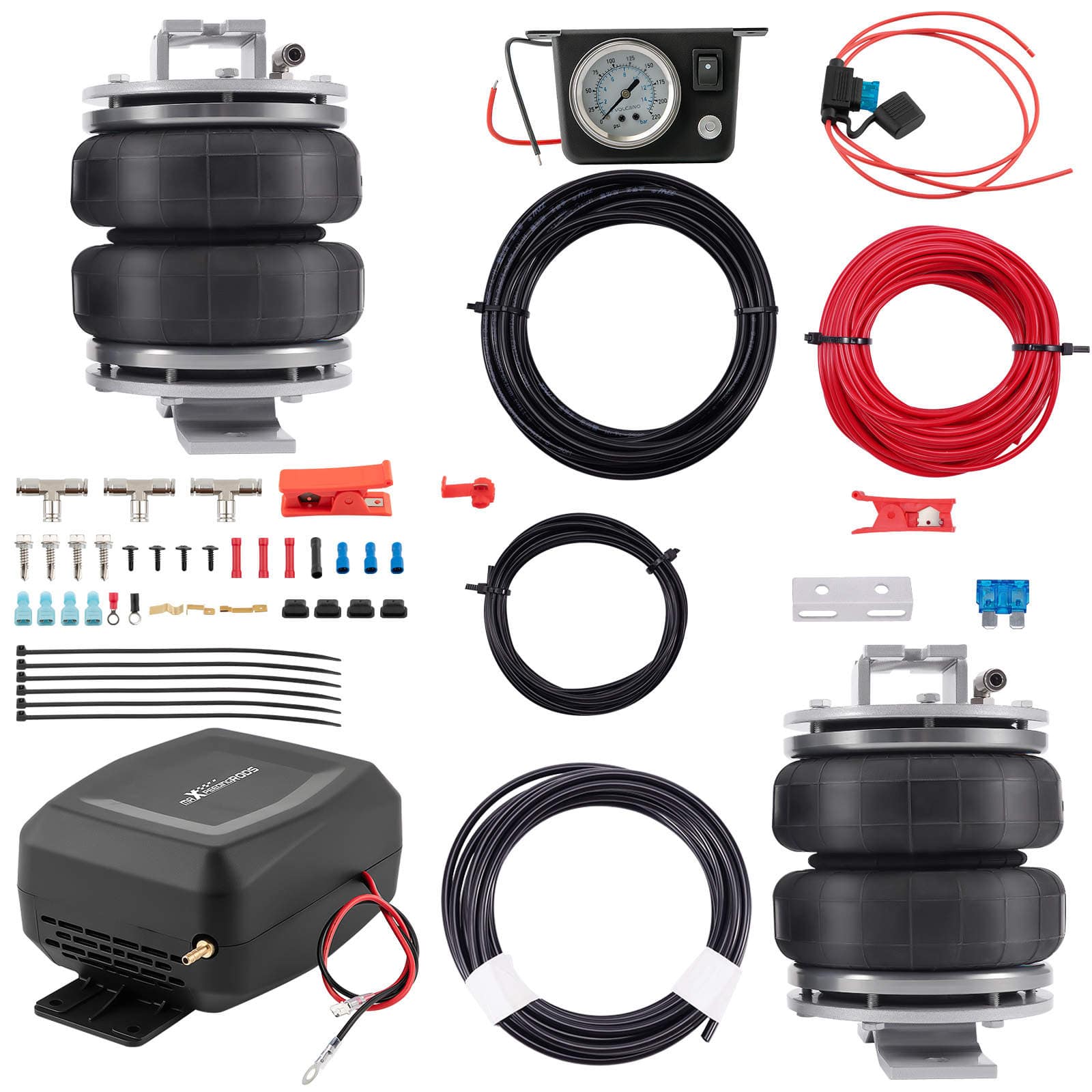

Scope of delivery

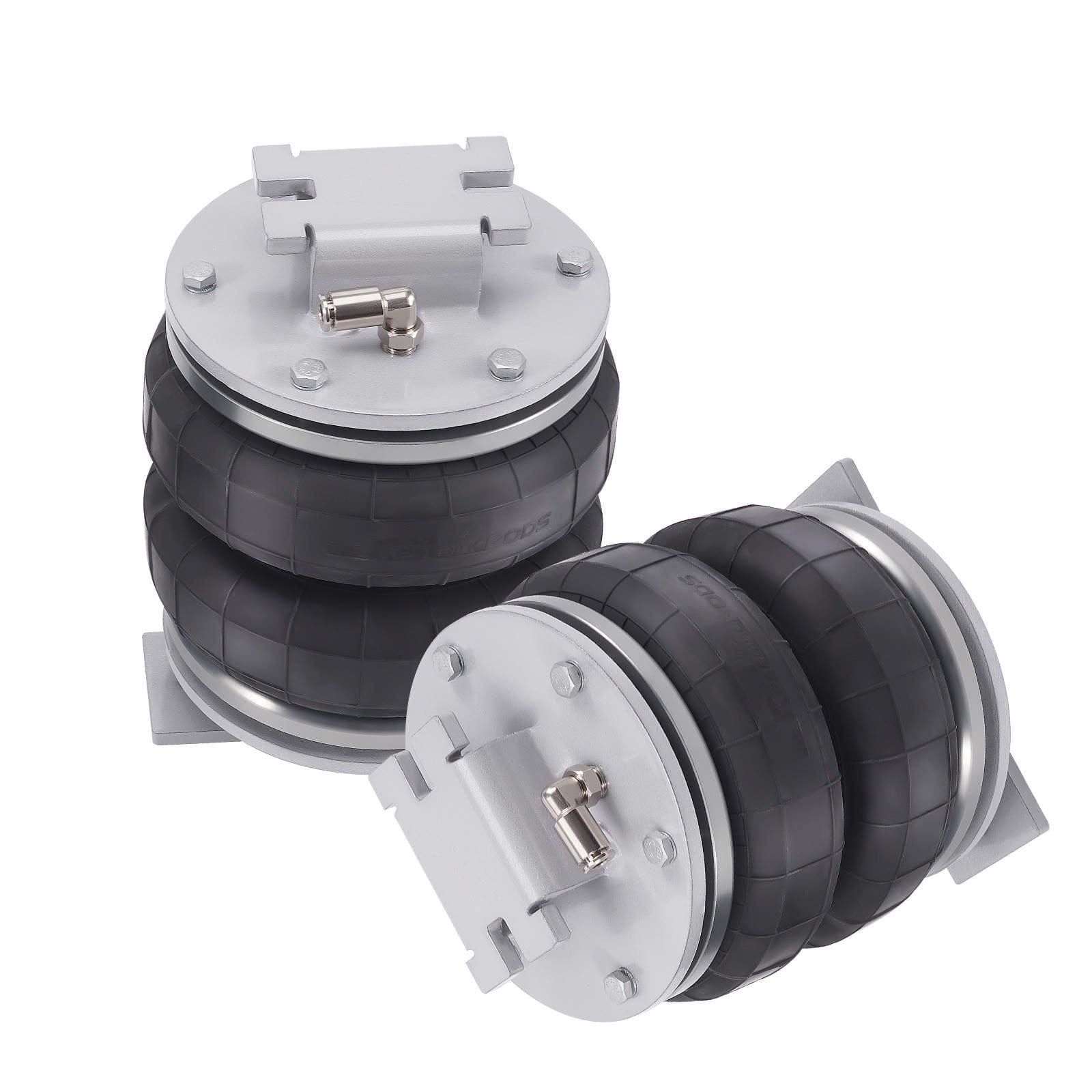

- 2x Double bellow air suspension (heavy duty)

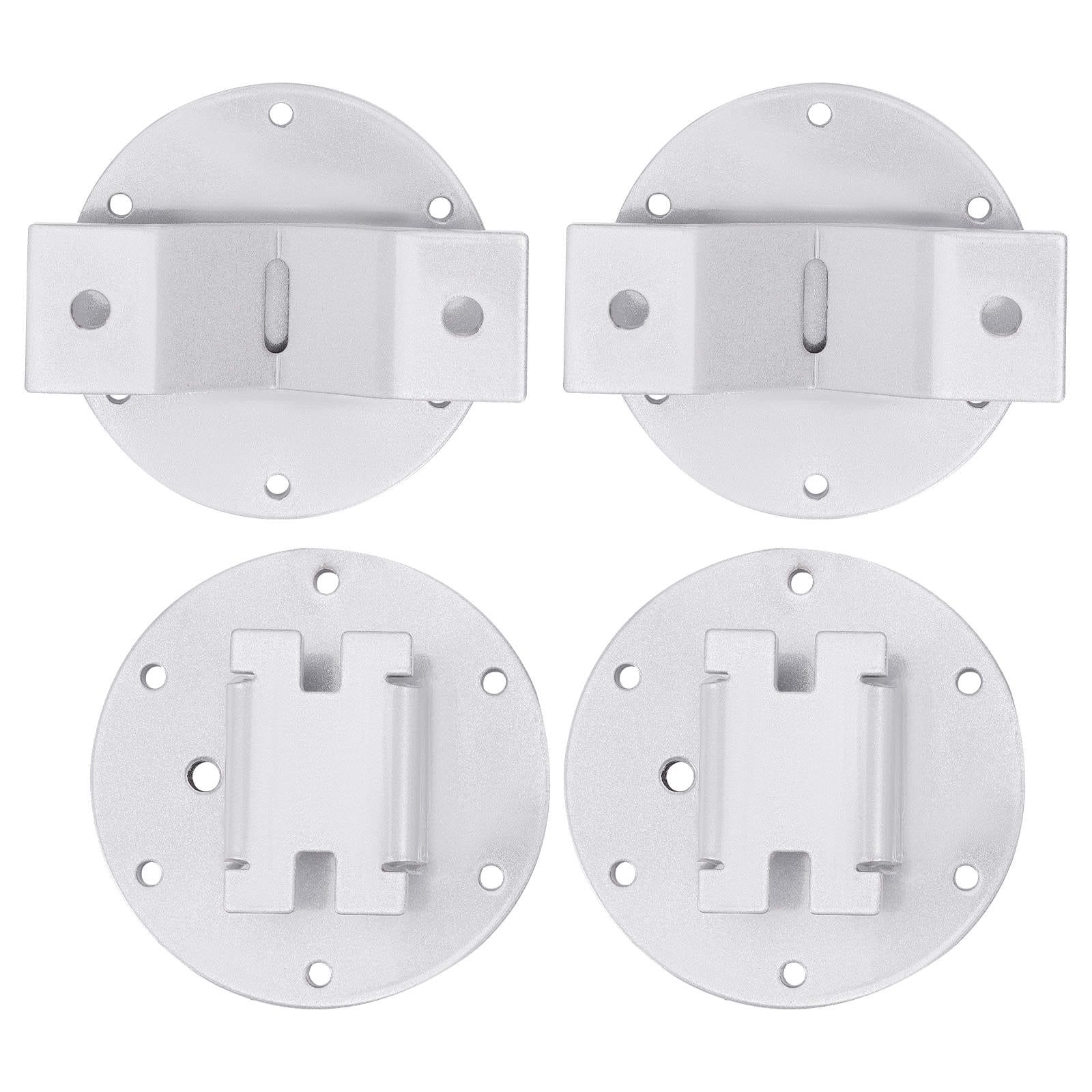

- 4x Top and bottom mounting brackets
- Mounting hardware

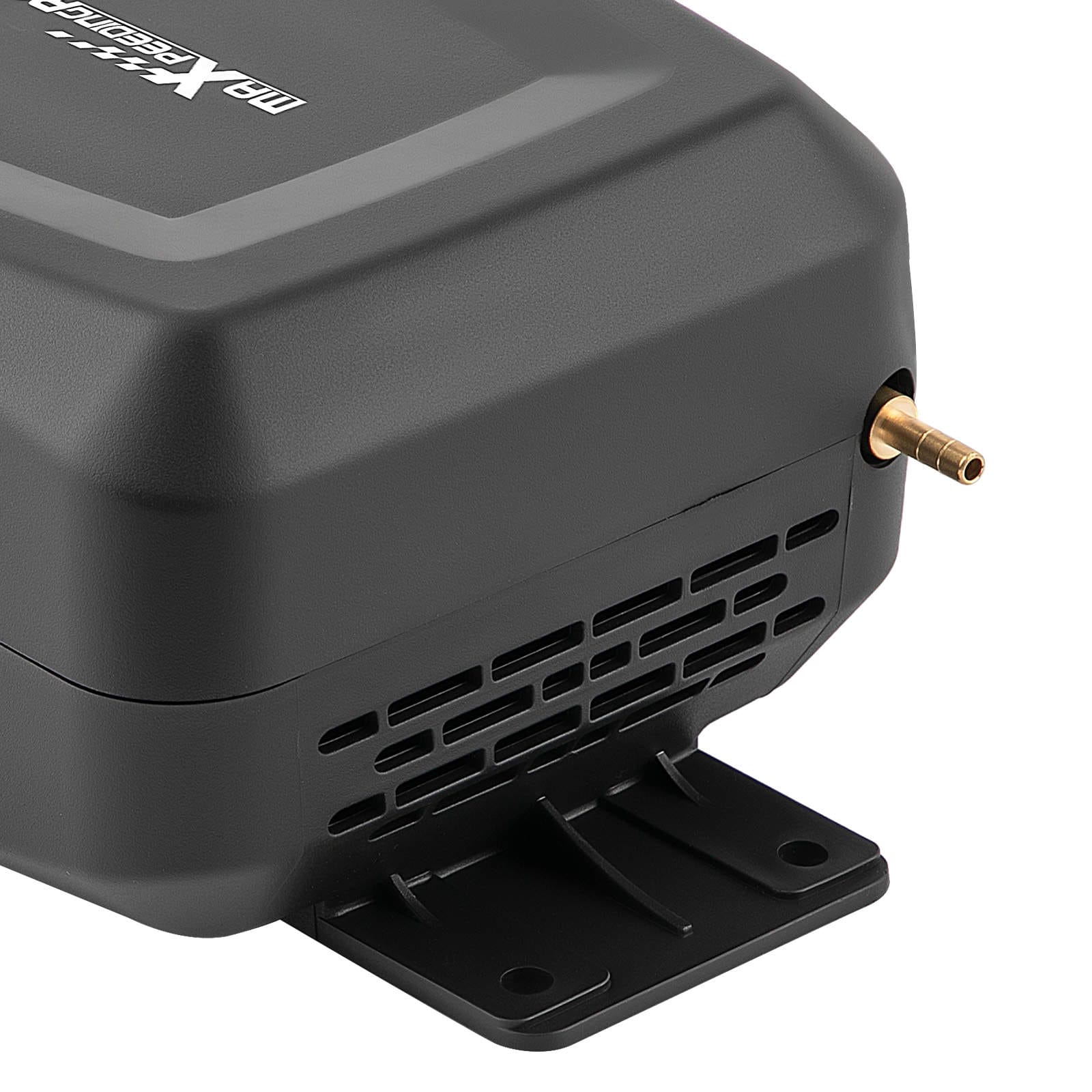

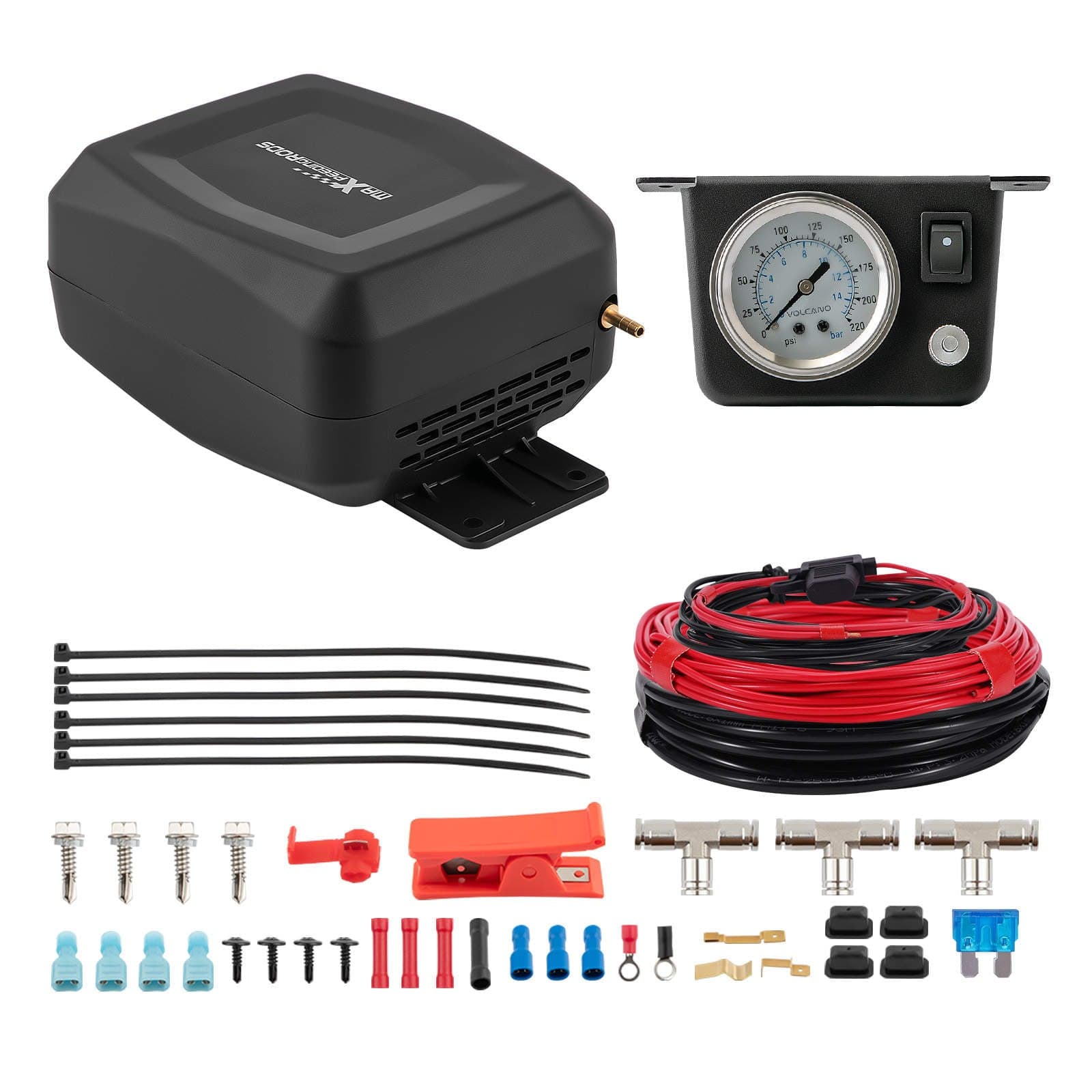

- 1x 12V MaXpeedingrods air compressor (black)
- 1x Gauge panel (push buttons for up and down)
- 1x Air line ⌀6*1 (6 m)
- 1x Wiring harness (2.5 m) black and 1x Wiring harness (8.5 m) red
- 1x Relay wiring harness (1 m), 3x T-connectors and other accessories
Features
- Load tested over 5,000,000 times: durable and safe
- Burst pressure ≥ 2.0 MPa and 100% airtightness guarantee
- Temperature range ≥ -40 °C / ≤ 70 °C, high-quality natural rubber
- 4-layer reinforced construction for higher load capacity
- Dacromet surface treatment for excellent corrosion resistance
- Air pressure can be monitored and adjusted from the driver's seat; air compressor with waterproof housing
Please note
Before purchasing, compare the item images and the OE number to avoid incorrect purchases. We recommend professional installation.
Check fitment
Always check the original OEM part number, year of manufacture, engine code, and version of your vehicle before ordering, as differences may exist per version. If you are unsure whether this part fits your vehicle, please feel free to contact us before purchasing.
