Universal turbo T3/T4 T04E V-band A/R 0.63 internal wastegate up to 420 hp compatible with Audi VW 1.8T VR6
Universal turbo T3/T4 T04E V-band A/R 0.63 internal wastegate up to 420 hp compatible with Audi VW 1.8T VR6
- ✓ Price includes VAT — no surprises later
- ✓ Fast shipping from our own stock
- ✓ 100% new, aftermarket in OE quality
- ✓ 2-year warranty against manufacturing defects
Product description
Universal T3/T4 (T04E) hybrid street turbo with T3 inlet flange, V-band outlet flange and internal wastegate, designed to increase engine power or replace a worn original turbo. Oil cooled, up to approx. 420 hp. This is not a vehicle-specific part; modifications may be required.
Fits:
- Universal: 4- and 6-cylinder engines (suitability depends on displacement and power target; have the turbo choice assessed beforehand)
- Audi / VW 1.8T and VR6 (universal application)
Specifications
- OEM / part number: no vehicle-specific OEM number; turbo model T3/T4 T04E
- Exhaust inlet flange (turbo manifold): T3, 4-bolt
- Exhaust outlet flange (downpipe): V-band (2.5/3.1 inch)
- Turbine: trim 74.2, A/R 0.63, inducer 64.8 mm, exducer 55.8 mm, outlet 79 mm, inlet 44.7 mm / 85.8 mm
- Compressor: trim 48.1, A/R 0.5, inducer 52.7 mm, exducer 76 mm, outlet 78 mm, inlet 51.5 mm
- Bearing type: journal bearing, wet floating
- Cooling: oil cooled
- Wastegate: internal wastegate
- Oil inlet: M12x1.25 and 2x M8x1.25
- Oil outlet: 2x M8x1.25
- Power: up to approx. 420 hp

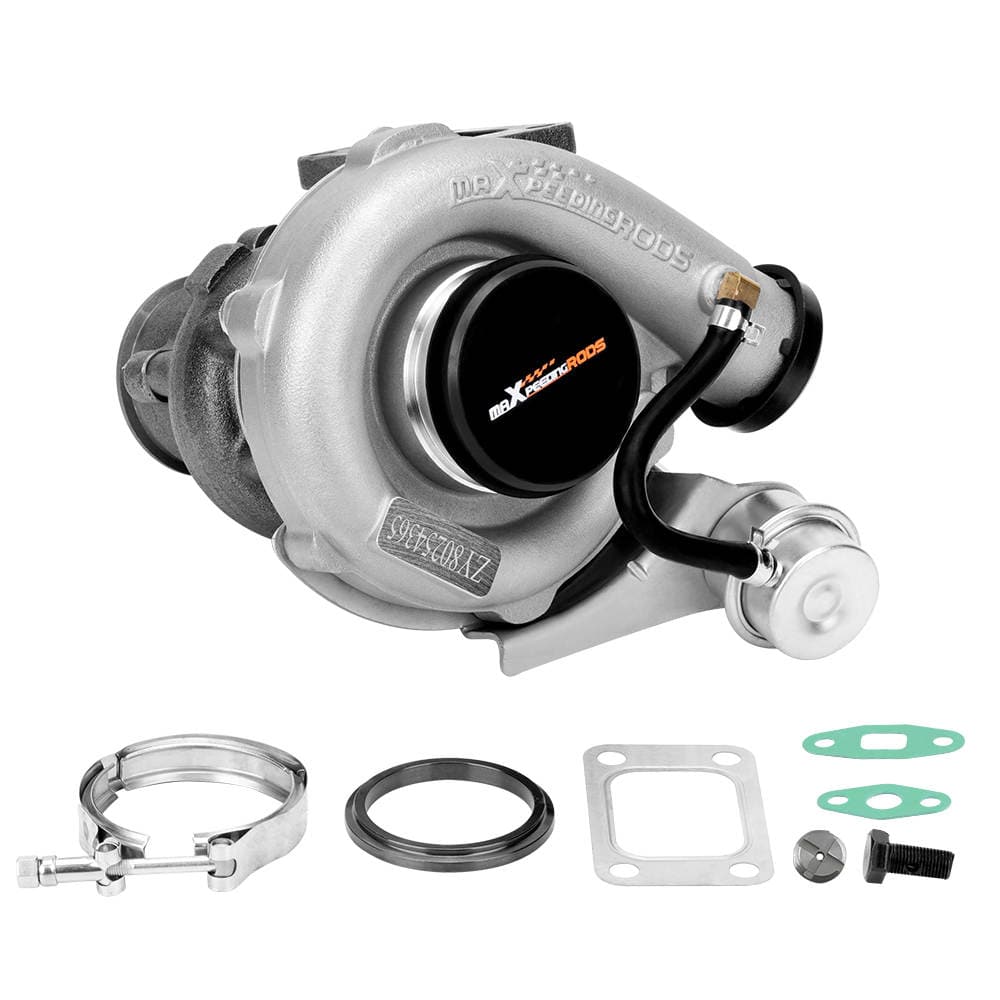

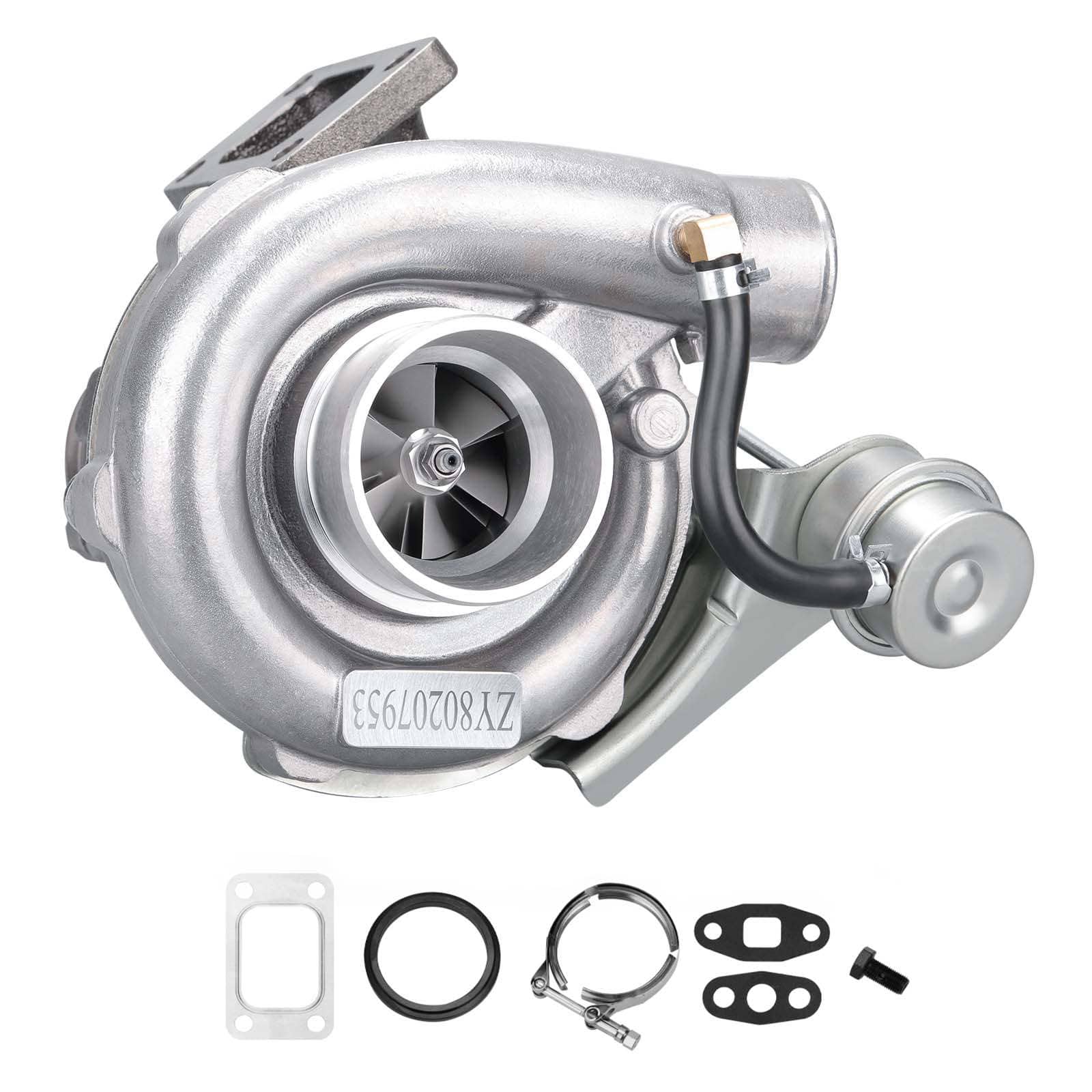

- Quantity: 1 turbocharger with required gaskets
- Condition: New
- Warranty: 1 year on manufacturing defects
Features

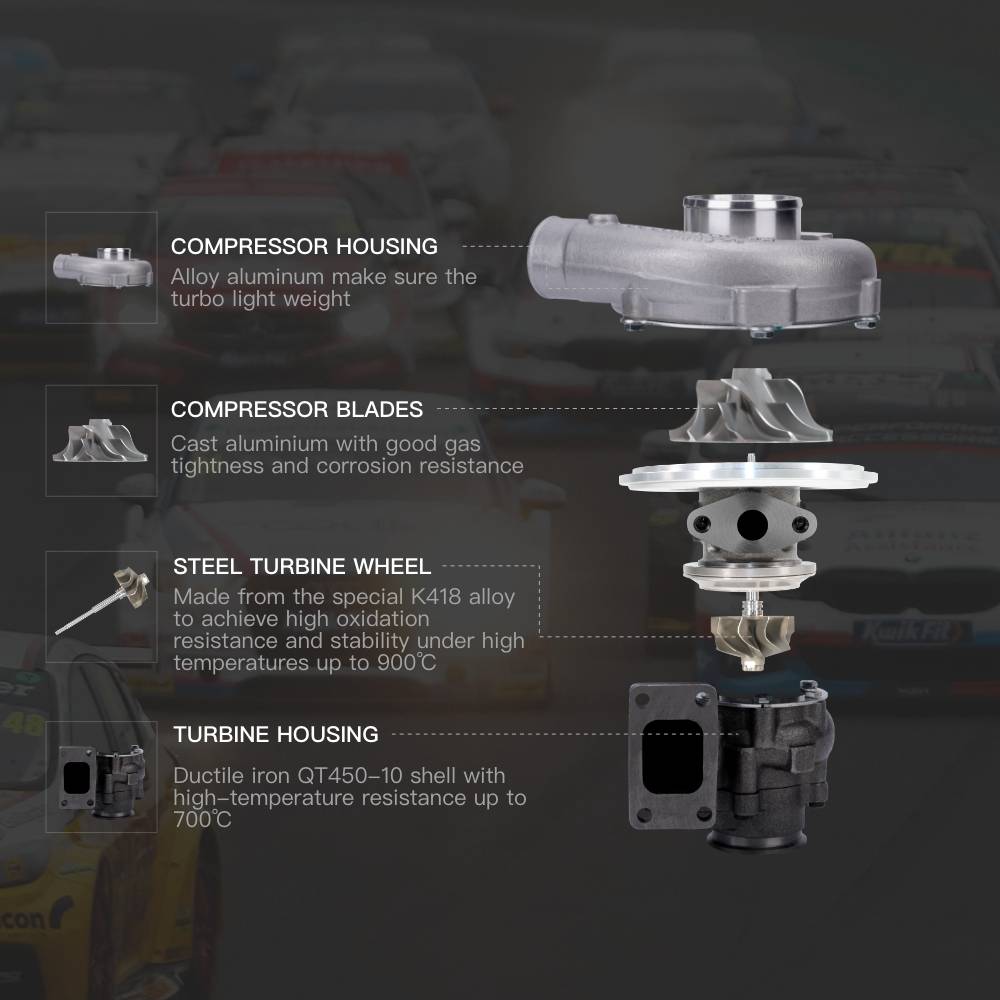

- Turbine housing of ductile cast iron QT450-10, heat resistant up to 700 °C
- K418 alloy turbine wheel, heat resistant up to 900 °C
- Lightweight ZL104 aluminium compressor housing with cast aluminium compressor wheel
- Increases engine power and torque
- Gaskets included for easy installation
Check fitment
Before ordering, always check the original OEM part number, year of manufacture, engine code and version of your vehicle, as there may be differences between versions. Not sure whether this part fits your vehicle? Feel free to contact us before purchasing.
