Forged Connecting Rods Conrods suitable for BMW S38B35 S38B36 Conrod ARP 2000 Bolts Pleuel
Forged Connecting Rods Conrods suitable for BMW S38B35 S38B36 Conrod ARP 2000 Bolts Pleuel
- * Concurrerende prijs
- * Sneller verzenden
- * Staat: 100% nieuw!
- * Garantie: 1 jaar garantie op eventuele fabricagefouten
- * Accessoires: je ontvangt precies zoals op de afbeelding hierboven!
Product Description

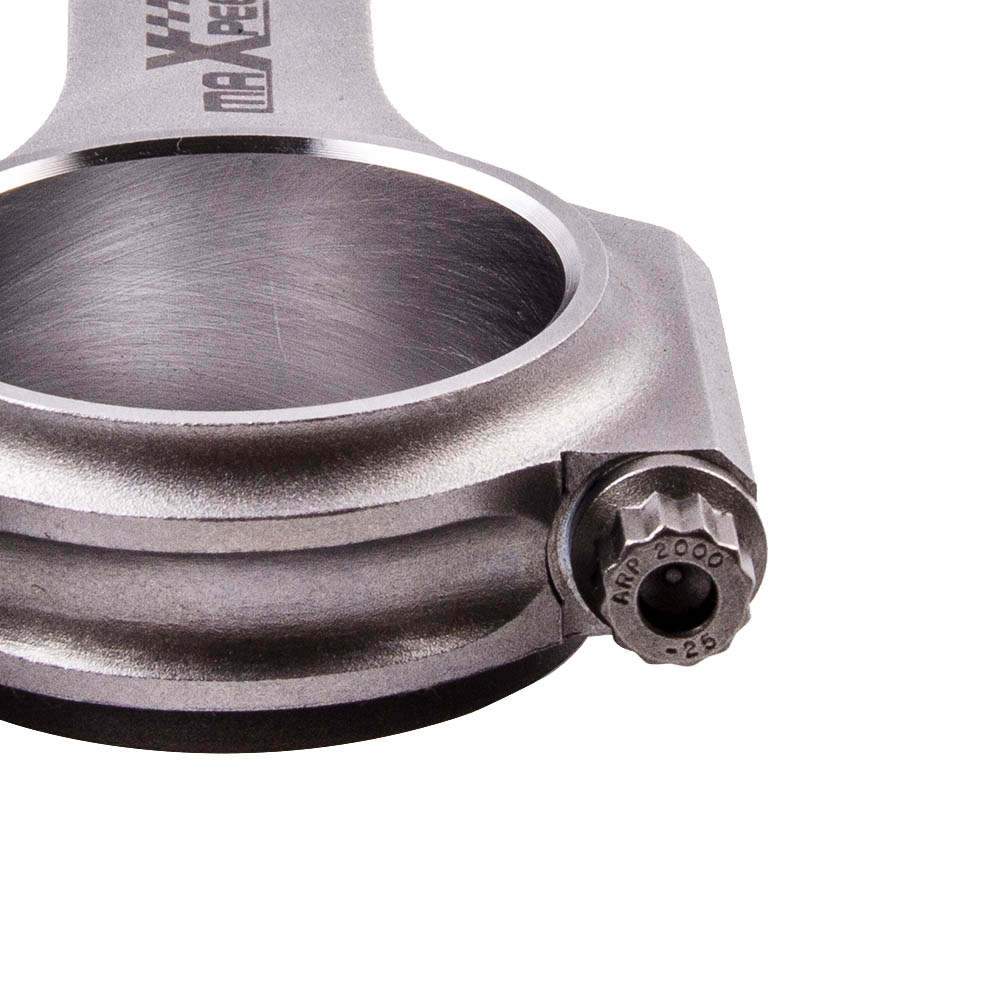

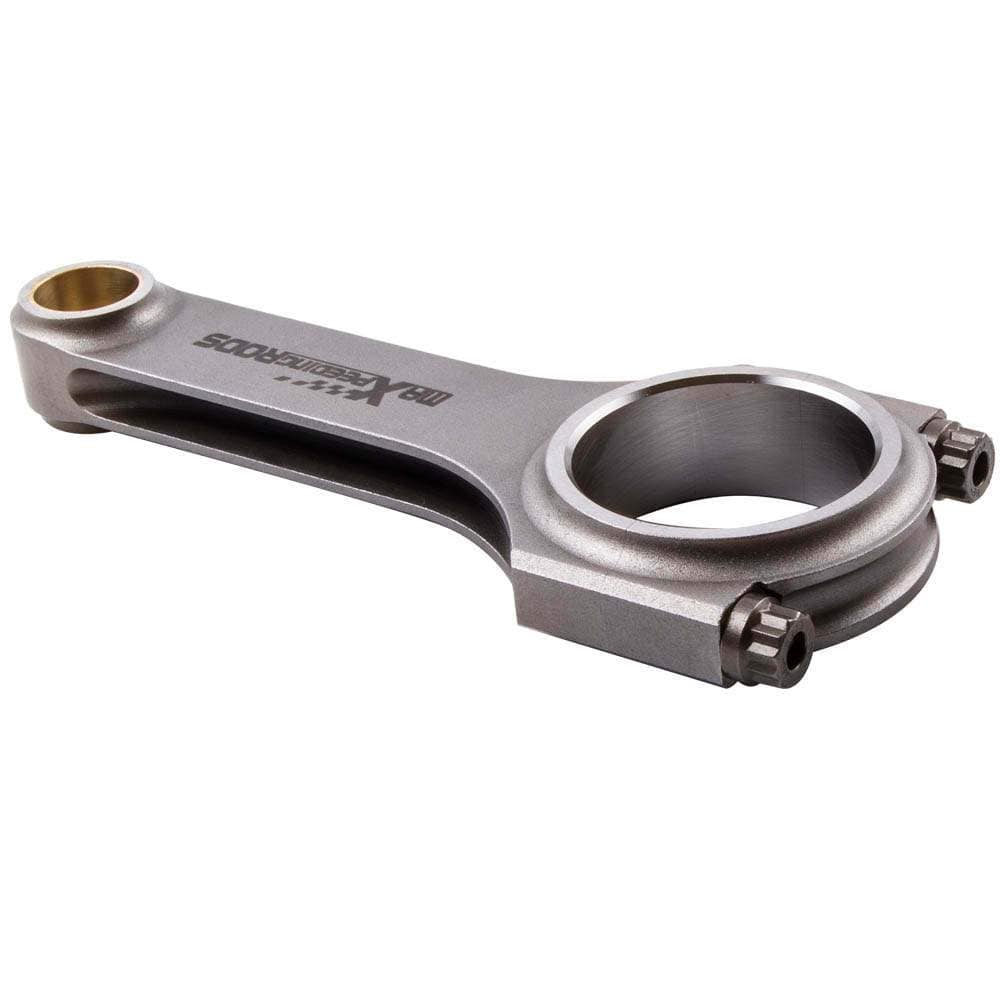

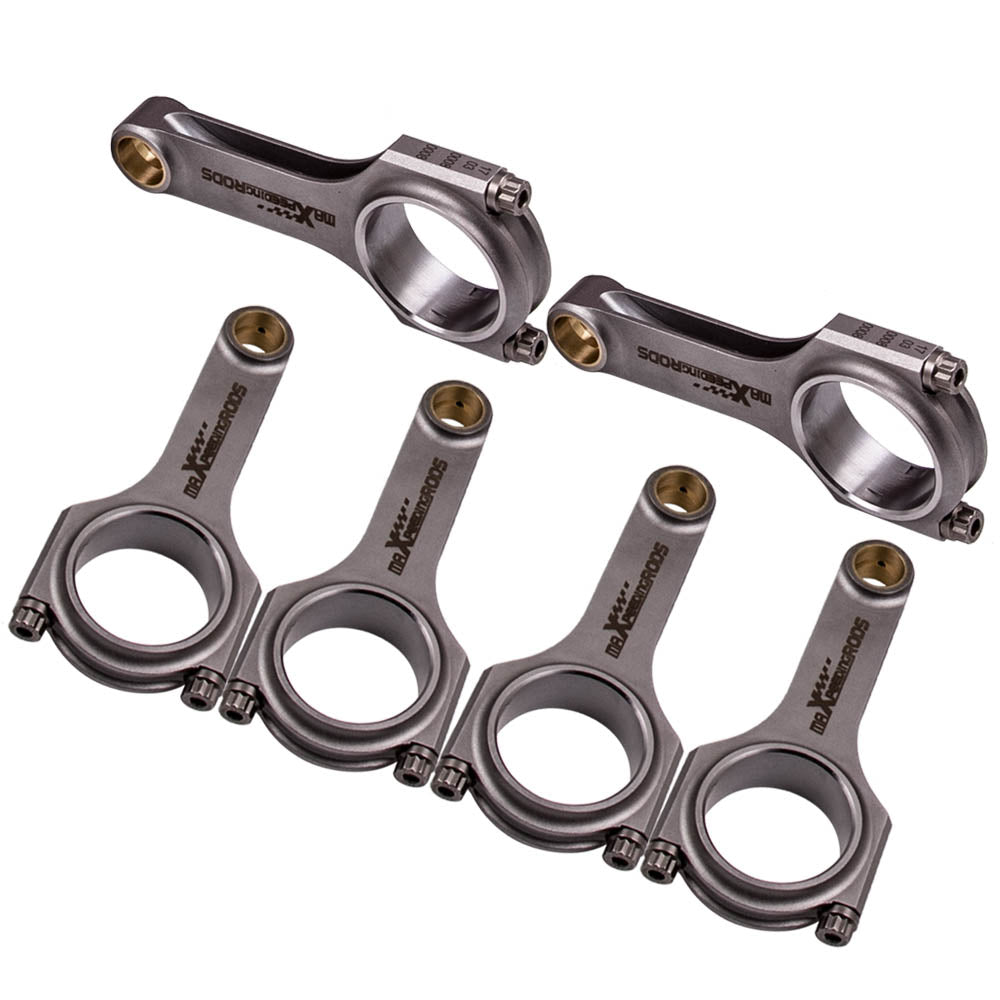

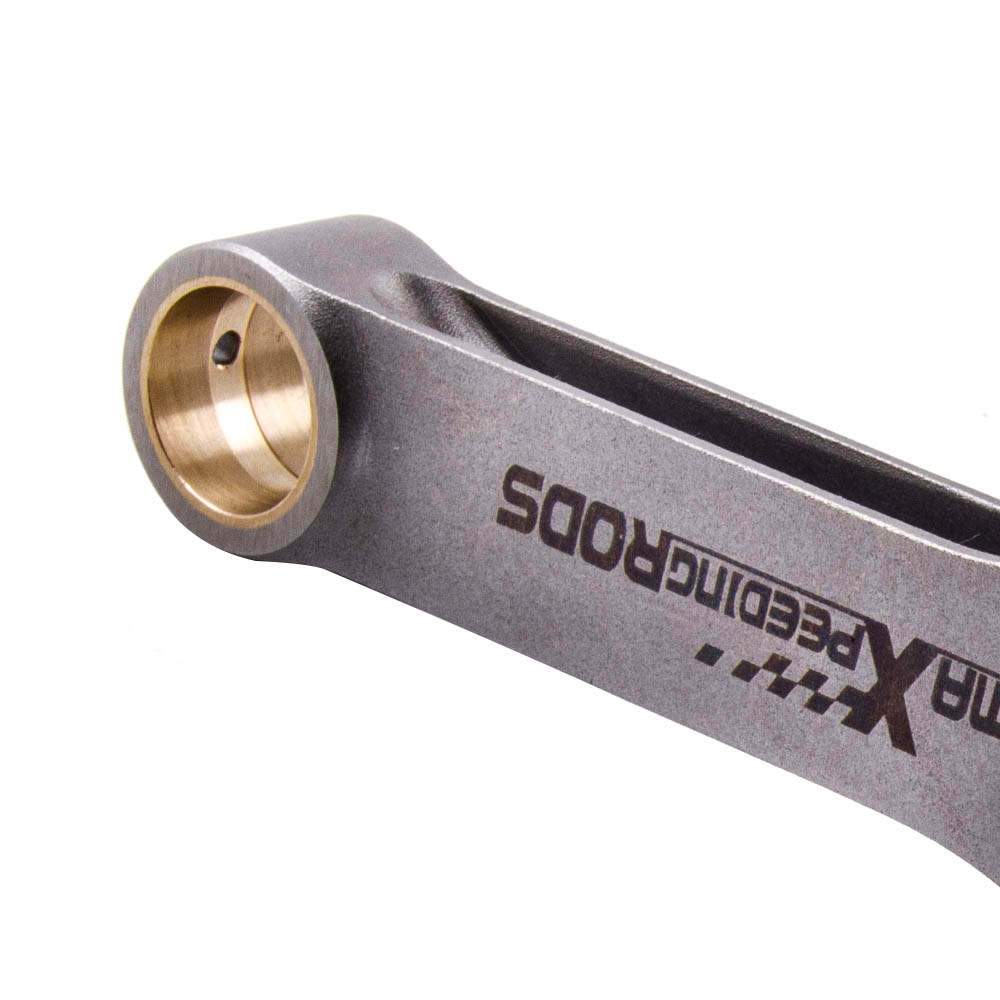

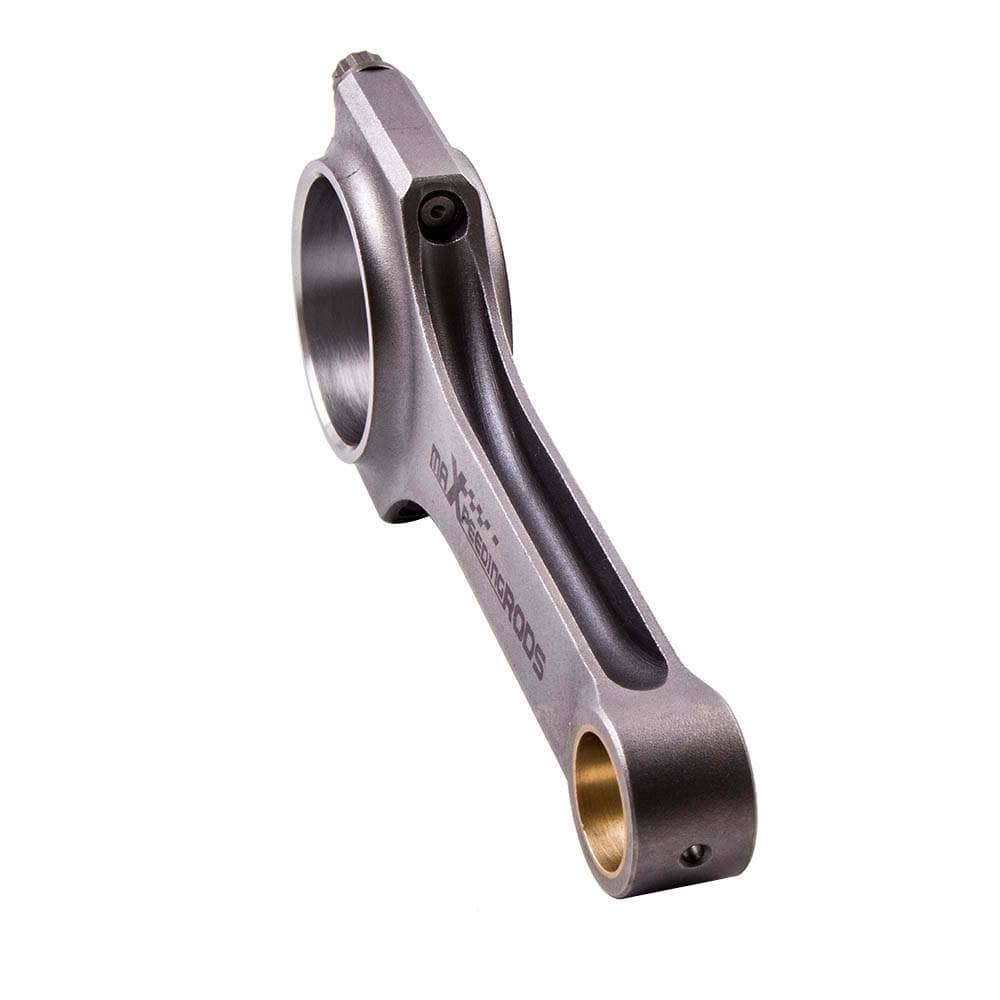

Set of 6 forged connecting rods (conrods) with ARP 2000 bolts, designed for racing applications on the BMW S38 straight-six DOHC engine.
Suitable for:
- BMW S38B35 1986-1988: E28 M5 (NA-spec), E24 M6 (NA-spec), E24 M635CSi with catalytic converter
- BMW S38B36 1989-1993: E34 M5 (NA-spec) and Euro-spec 1989-1992
- BMW S38B38 1992-1996: E34 M5
Specifications
- Center-to-center length (C-C): 144 mm / 5.66929"
- Big end bore (B/E): 52 mm / 2.0472"
- Small end bore (S/E): 22 mm / 0.86614"
- Big end width: 23.9 mm / 0.9409"
- Small end width: 23.9 mm / 0.9409"
- Bolts: ARP 2000 3/8"
- Material: forged chrome-molybdenum steel SAE 4340 / EN24 (40CrNiMo)
- Weight tolerance: +/- 1 gram
- Piston pin bore: +/- 4/1000 mm
- Power: 600 HP ~ 800 HP per set
- Fastener tensile strength: 220,000 / 230,000 psi
- Torque specification: 48 ft
- Max RPM: 9000 rpm
- Warranty: 1 year against manufacturing defects
Scope of delivery
- 6x H-beam steel connecting rods
- 1x ARP 2000 3/8 bolt set
Features
- New, balanced, and ready for installation
- CNC designed and machined, big and small ends finished with SUNNEN honing machine
- 100% X-ray, sonic, and magnaflux tested
- Multi-stage heat treatment and shot-peened for stress relief
- Supplied with suitable bronze bushing for floating piston pin
Please note
These ARP bolts are manufactured in the USA. Please confirm that your old connecting rod matches the dimensions above. Professional installation is recommended (no manual included).
Check fitment
Before ordering, always check the original OEM part number, year of manufacture, engine code, and the version of your vehicle, as there may be differences per version. Are you unsure if this part fits your vehicle? Feel free to contact us before purchasing.
