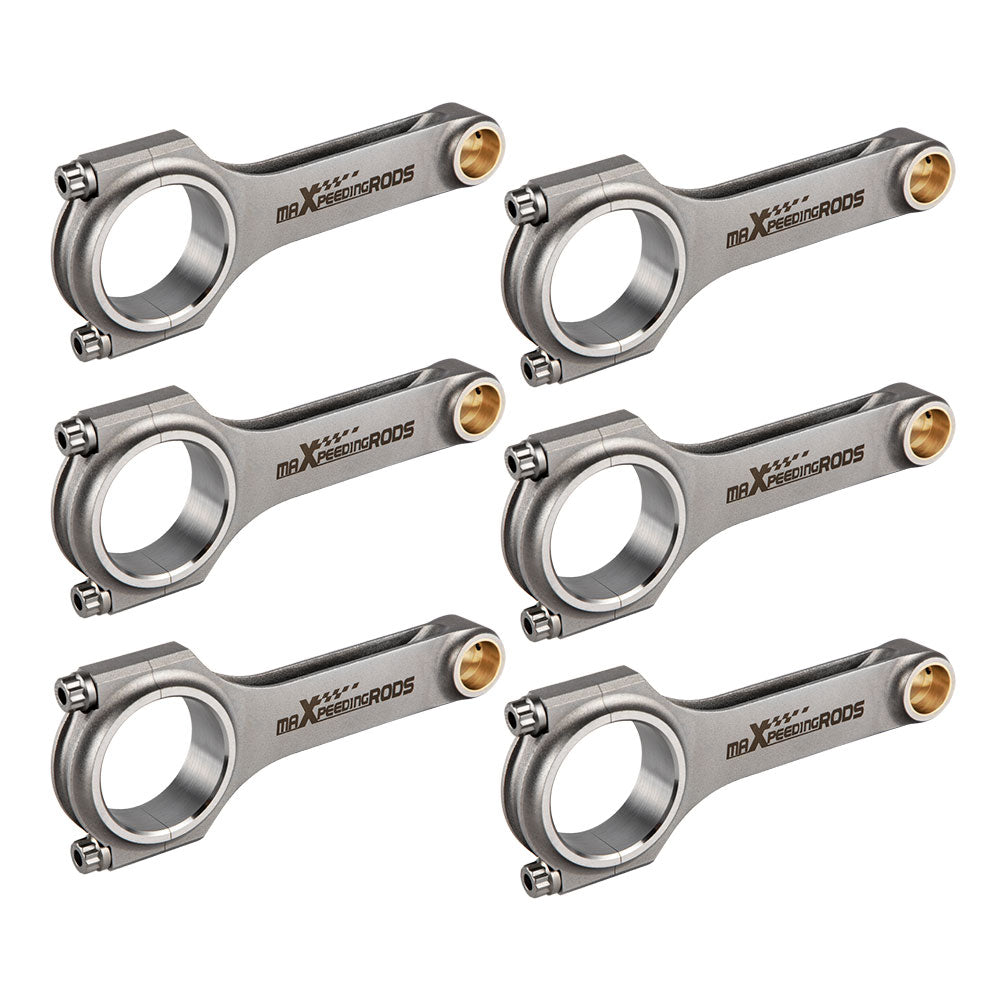

Compatible for BMW S38 S38B35 S38B36 S38B38 e24 e34 e28 144mm ARP2000 Connecting Rod Rods

This MaXpeedingRods part is suitable for BMW applications as listed. Always check the part number, year of manufacture, engine code and fitment before ordering.

Benefits

• Based on original MaXpeedingRods product information
• Suitable for direct replacement or performance upgrade

Application, specifications and compatibility

Application Suitable for BMW S38 B35 1988 M5 M6 suitable for BMW S38: straight-6 DOHC piston engine S38B35 1986 - 1988, suitable for BMW E28 M5 (NA spec), suitable for BMW E24 M6 (NA spec),; Suitable for BMW E24 M635CSi with catalytic converter S38B36 1989 - 1993 suitable for BMW E34 M5 (NA spec) and Euro spec 1989–1992 S38B38 1992 - 1996 suitable for BMW E34 M5 Features- Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing

Designed and processed by CNC machine.

All big and small ends are finished with SUNNEN honing machine

Precision alignment sleeves positively locate the rod cap, maintaining big end bore size and eliminating cap walk

100% X-rayed, sonic tested and magnafluxed

Multi-stage heat treated

Shot peened to relieve stress

Come with the bronzed bushing suitable for the floating piston pin Dimensions Center to center length: 144mm Big end diameter: 52mm Small end diameter: 22mm Big end width: 24mm Small end width: 24mm Specifications- TÜV Certification Con Rods- Type: Forged 4340 aircraft chrome moly quality steel for racing- H-beam Conrods Quantity: 6 Pieces as showing in the picture- Bolts: Including ARP 2000 bolts- Note: Extra cost for upgrading to ARP L19 bolts - Bolts Size: ARP 2000 3/8" bolts- Tolerance: Balanced to +/- 1 gram inset - Piston Bolt Hole: +-4/1000mm - Power: 600hp ~ 800hp per set - Strength of the fastening (PSI): 220,000/230,000 PSI Torque: 48ft ≈ 65 NM - Top acceleration: 9000rpm - Warranty: one year warranty for any manufacturing defect Please note- Professional installation is highly recommended (No Instruction Included)

Custom Service:If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.
