Fuel Pump Sender Unit for Mercedes E320 E350 E500 CLS500 2003-09 P76500M
Fuel Pump Sender Unit for Mercedes E320 E350 E500 CLS500 2003-09 P76500M
- * Concurrerende prijs
- * Sneller verzenden
- * Staat: 100% nieuw!
- * Garantie: 1 jaar garantie op eventuele fabricagefouten
- * Accessoires: je ontvangt precies zoals op de afbeelding hierboven!
Product description

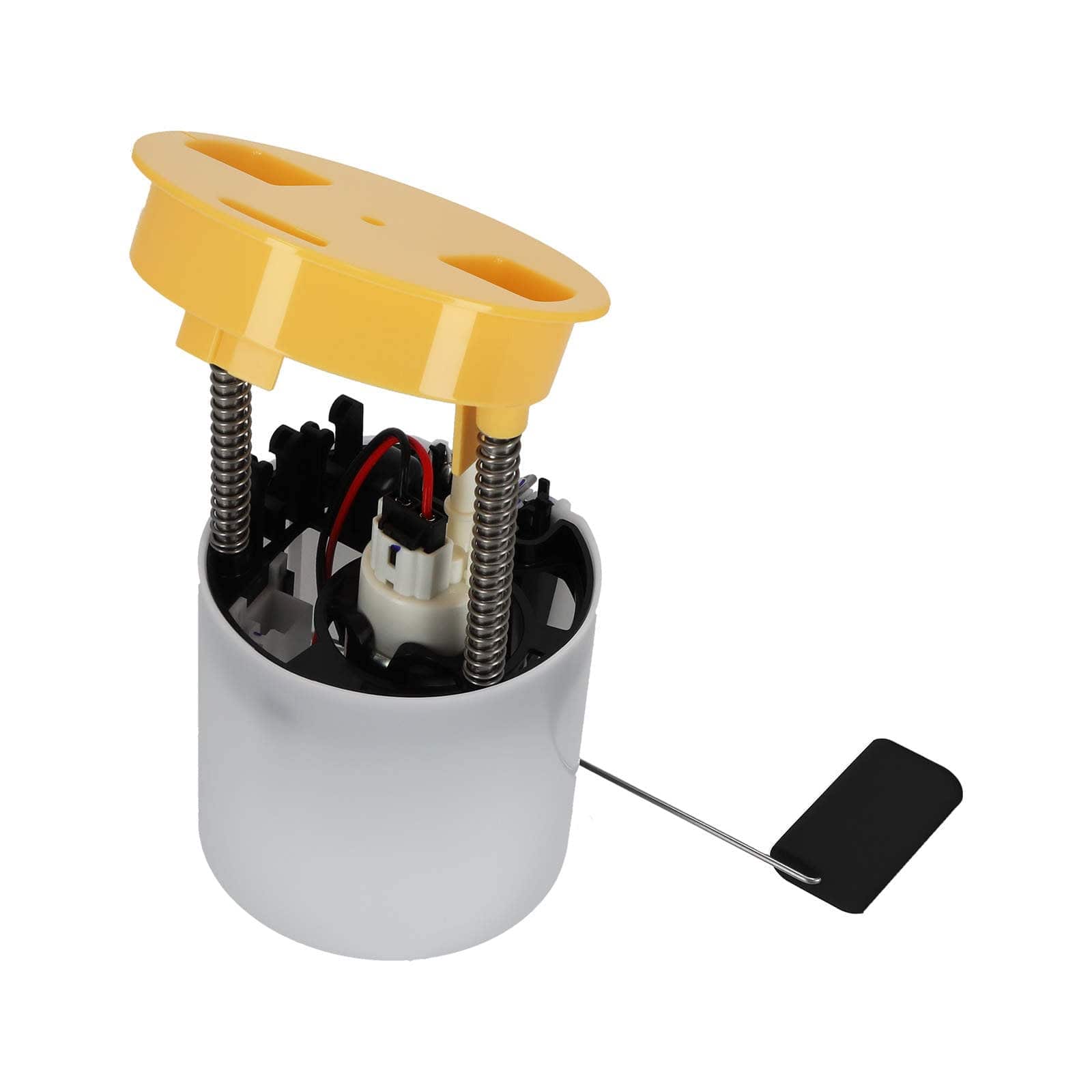

Complete fuel pump module for the Mercedes-Benz E320, E350, E500 and CLS500.
Suitable for:
- Mercedes-Benz CLS500 V8 5.0L 2006
- Mercedes-Benz E320 V8 3.2L 2003-2005
- Mercedes-Benz E350 V8 3.5L 2006-2009
- Mercedes-Benz E500 V8 5.0L 2003-2006
Specifications
- OEM / Part Number: SP5029M, FG0979, E8530M, 2114702994, 2114704194, 2114701494, 323-50115, A2114702994, P76500M
- Drive: Electric
- Fuel type: Petrol
- Voltage: 12 V
- Capacity: ≥ 39 gallon/hour
- Pressure: 0.55-0.75 MPa
- Outlet Type: SAE J2044 2009
- Number of outlets: 1
- Material: Plastic (POM)
- Housing material: Plastic
- Fuel gauge included: Yes
- Fuel pressure sensor included: No
- Fuel level sensor included: Yes
- Float included: Yes
- Fuel reservoir included: Yes
- Fuel filter included: Yes
- Sealing ring included: Yes
- Filter internal/external: Internal
- Installation position: Rear (fuel tank)
Scope of delivery

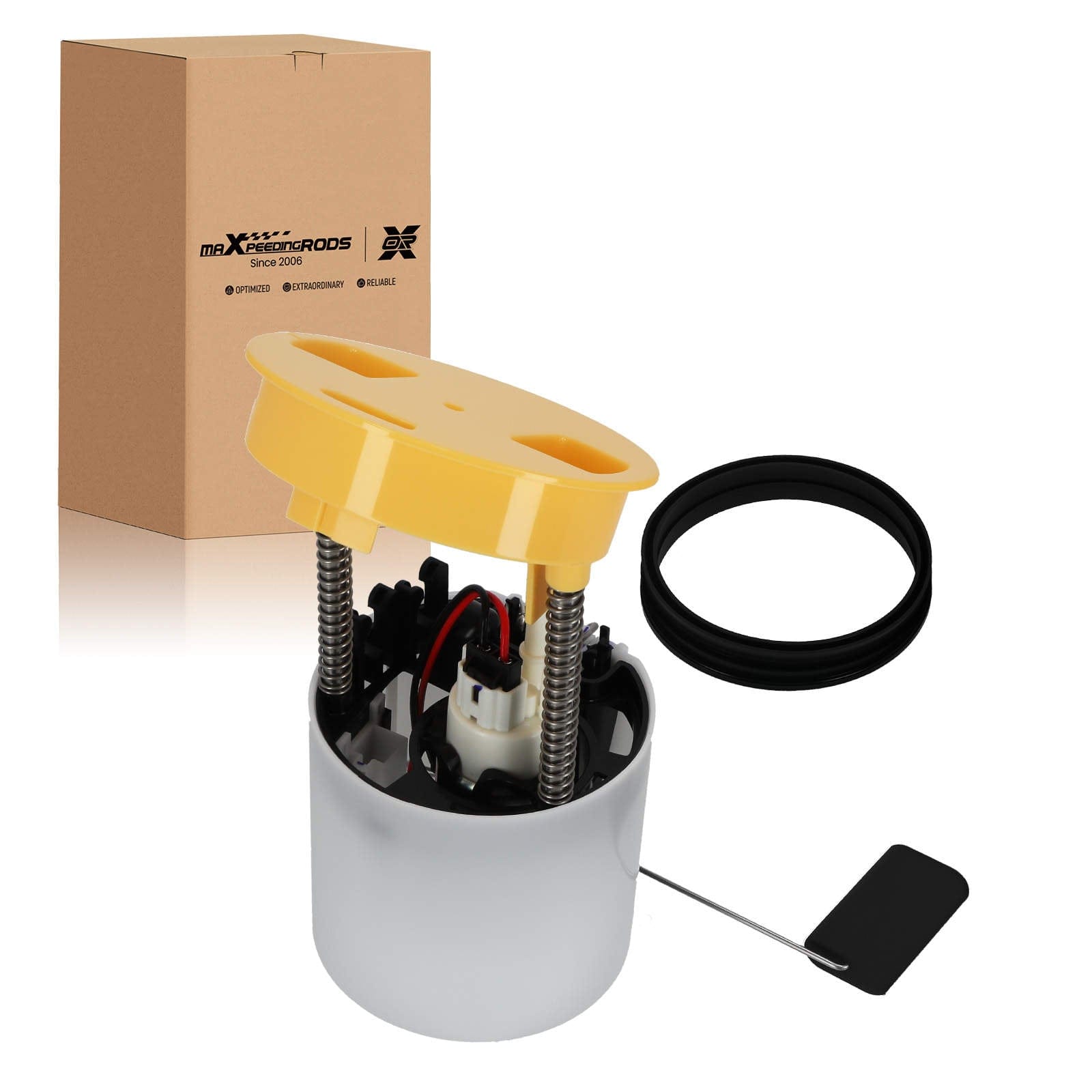

1x complete fuel pump module (as pictured)
Features
- High-quality fuel tank pressure sensor (CMOS and MEMS technology, modular design, waterproof and dustproof, zero drift -40 to 125°C, measurement accuracy 2% FSO, response time 1 ms, complies with Euro 6 emission standards)
- Durable dual-channel level sensor with double contact for greater stability; HERAEUS conductive strip and laser-cut resistance track for more accurate level display
- Low fuel level design: maintains fuel pressure from as little as 10 mm residual liquid level in the tank
- Filter with high dust capacity: one-piece injection moulding process with nylon skeleton, low resistance, high strength and long service life; SEFAR fabric with dust capacity of 575 g/m² and filter efficiency of more than 90% at 60 μm
Please note
Professional installation is strongly recommended. Even if your car is in the compatibility list, always double-check the mounting details and photos before ordering.
Check fitment
Before ordering, always check the original OEM part number, year of manufacture, engine code and the version of your vehicle, as differences may exist per version. Are you unsure whether this part fits your vehicle? Please feel free to contact us before purchase.
