2x rear air spring bag left and right compatible with Citroen C4 Picasso Grand Picasso 2006-2016 5102R8 5102GN
2x rear air spring bag left and right compatible with Citroen C4 Picasso Grand Picasso 2006-2016 5102R8 5102GN
- ✓ Price includes VAT — no surprises later
- ✓ Fast shipping from our own stock
- ✓ 100% new, aftermarket in OE quality
- ✓ 2-year warranty against manufacturing defects
Product description

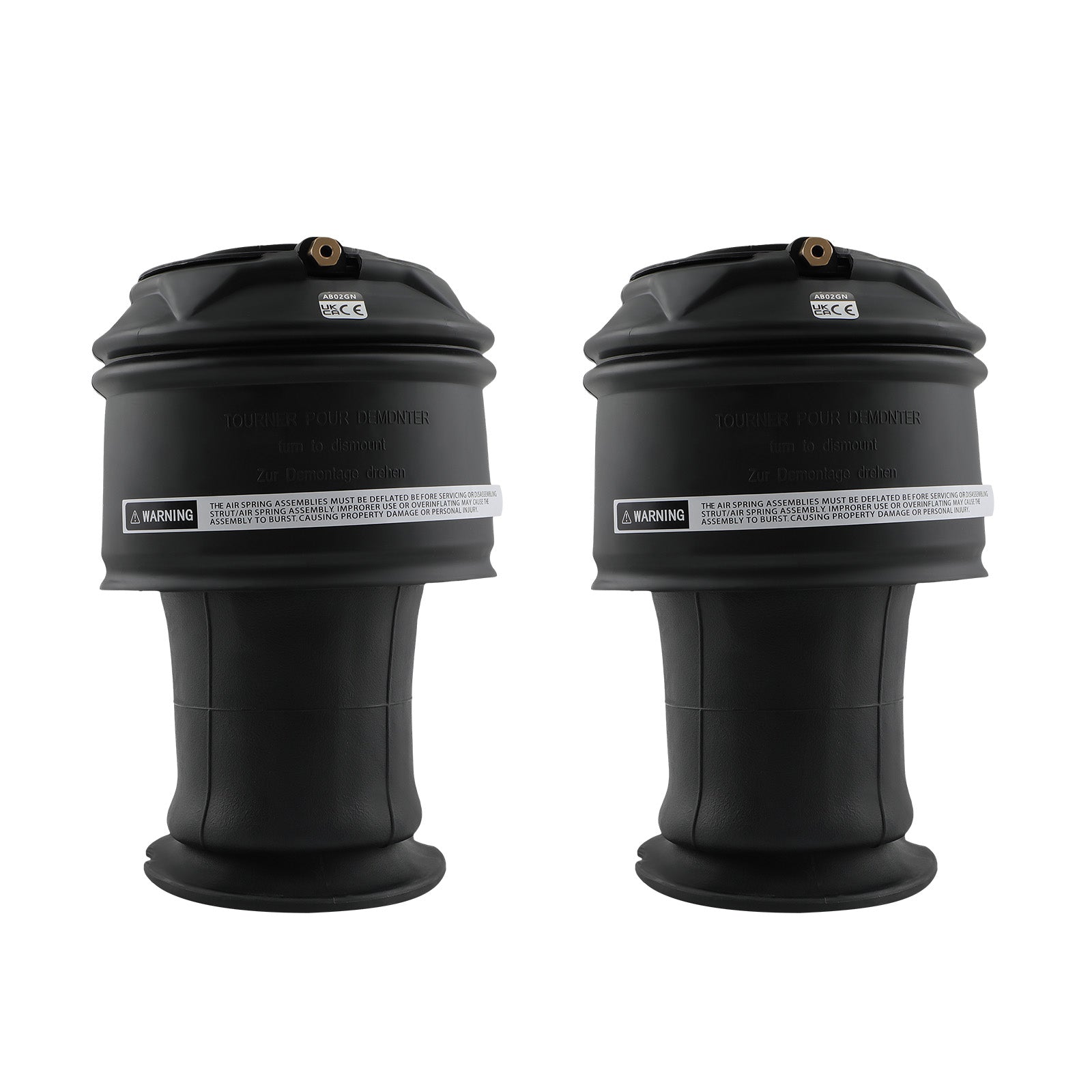

Set of 2 rear axle air spring bags (left and right) for the Citroen C4 Picasso / Grand Picasso, as an aftermarket replacement for the original air springs.
Fits:
- Citroen C4 Picasso, 2007-2013
- Citroen C4 Picasso I (UD_), 2007-2013
- Citroen C4 Grand Picasso, 2006-2016
- Citroen C4 Grand Picasso I (UA_), 2006-2013
- Citroen C4 Grand Picasso II, from 2013
Specifications
- OEM / part number: 5102.R8 (5102R8, 5102 R8), 5102.GN (5102GN, 5102 GN), 9681946080 (96 819 460 80), 9676670180 (96 766 701 80), 9676670180B-00, F307512401, F307512401/O/00, F307512401/L/QQ
- Fitting position: rear, left and right
- Design: sealed, adjustable, direct replacement
- Dimensions (l x w x h): 37 x 26.5 x 18.5 cm
- Stroke: 260 mm
- Max. extended: 410-420 mm
- Min. compressed: 150-160 mm
- Working pressure: ≤ 2.0 MPa
- Weight: 2.49 kg
- Temperature range: -40 °C to +70 °C
- Package contents: 2x rear air spring bag left and right
- Quantity: 2 pieces
- Condition: New
- Warranty: 1 year on manufacturing defects
Features
- 100% air tightness tested; 24-hour test ≤ 0.02 MPa
- Corrosion resistant, CNC machined components
- Full replacement without modification; restores ride height
- Tested over 5,000,000 times; good heat dissipation and noise insulation
- No instructions included; professional installation recommended
Check fitment
Before ordering, always check the original OEM part number, model year, engine code and version of your vehicle, as there may be differences between versions. Not sure whether this part fits your vehicle? Feel free to contact us before purchase.
