2x Rear Air Suspension + 12V Compressor Kit suitable for Fiat Ducato suitable for Peugeot Boxer 1994-
2x Rear Air Suspension + 12V Compressor Kit suitable for Fiat Ducato suitable for Peugeot Boxer 1994-
- * Concurrerende prijs
- * Sneller verzenden
- * Staat: 100% nieuw!
- * Garantie: 1 jaar garantie op eventuele fabricagefouten
- * Accessoires: je ontvangt precies zoals op de afbeelding hierboven!
Product Description
Set of 2 rear air springs with 12V compressor kit for the Fiat Ducato / Citroën Jumper / Citroën Relay / Peugeot Boxer.
Suitable for:
- Fiat Ducato, 1994-2024
- Citroën Jumper, 1994-2024
- Citroën Relay, 1994-2024
- Peugeot Boxer, 1994-2024
Note: suitable for single or dual rear wheels, and for FWD or RWD. Body type: van, tipper, camper, box van. Chassis type: all standard chassis, except Alco torsion bar chassis.
Specifications
- Condition: Brand new
- Installation position: Rear, left and right
- Maximum load: 4000 kg
- Wheelbase: 156 mm
- Cigarette lighter connection included: Yes
- Packaging dimensions (L x W x H): 42 x 37 x 27 cm
- Packaging weight: 12.4 kg
- Air spring bellows - installation height: 172 mm
- Air spring bellows - stroke: 140 mm
- Air spring bellows - max. extended: 230 mm
- Air spring bellows - min. compressed: 90 mm
- Compressor - power: 150 W
- Compressor - output voltage: 12V
- Compressor - maximum current: 10A
- Compressor - maximum operating pressure: 10 bar (1MPa)
- Compressor - hose diameter: 0.72 m
- Compressor - cable length: 2.6 m

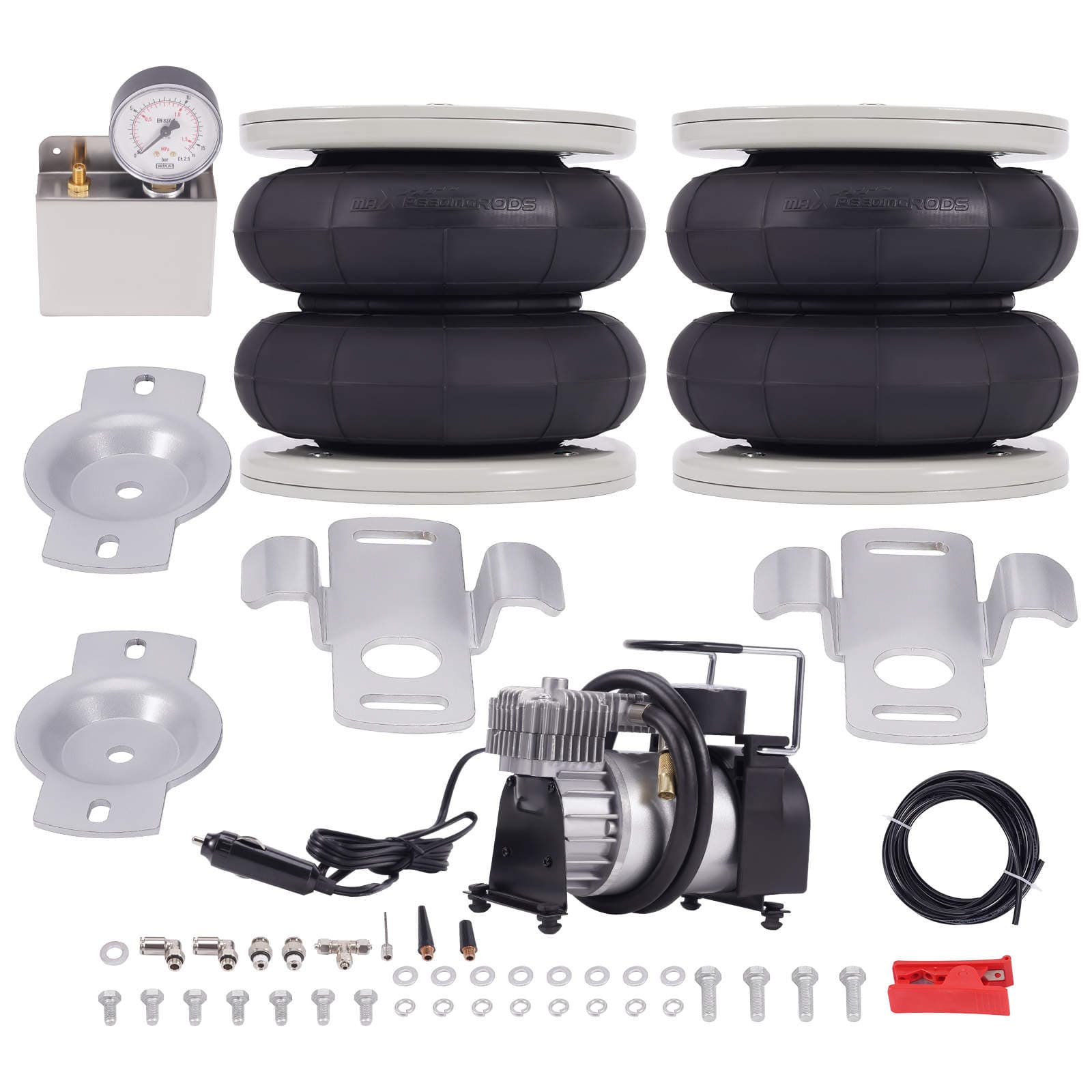

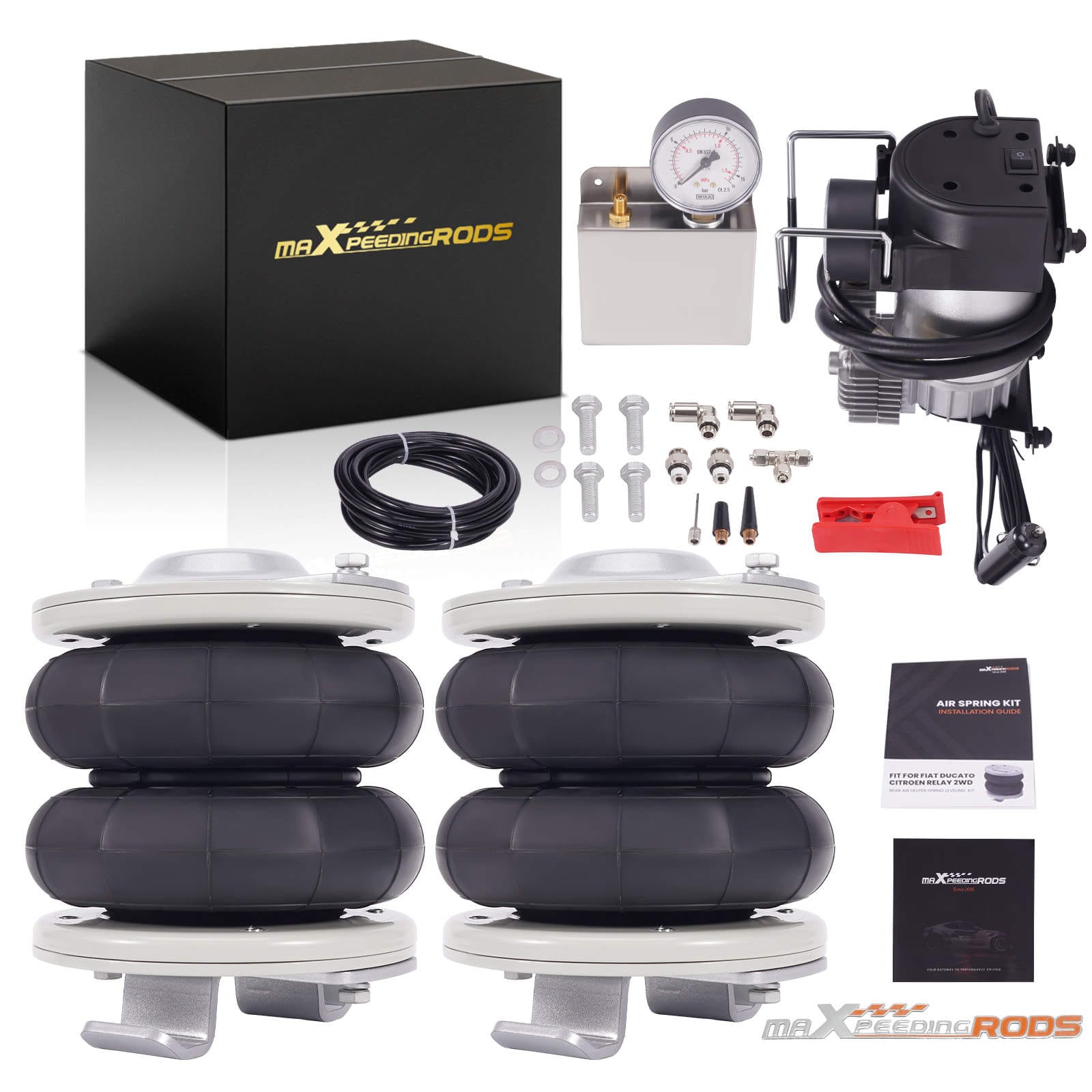

Scope of delivery

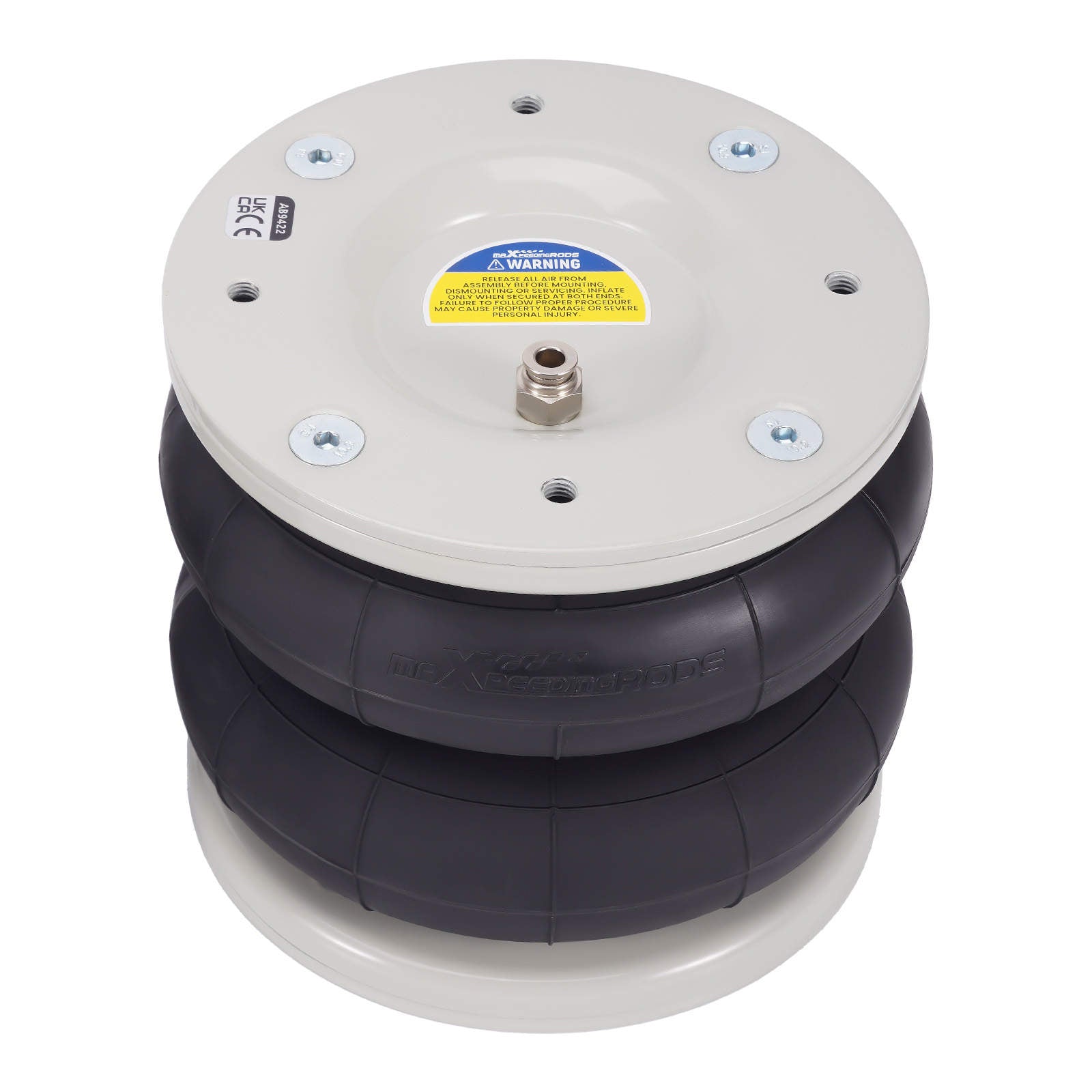

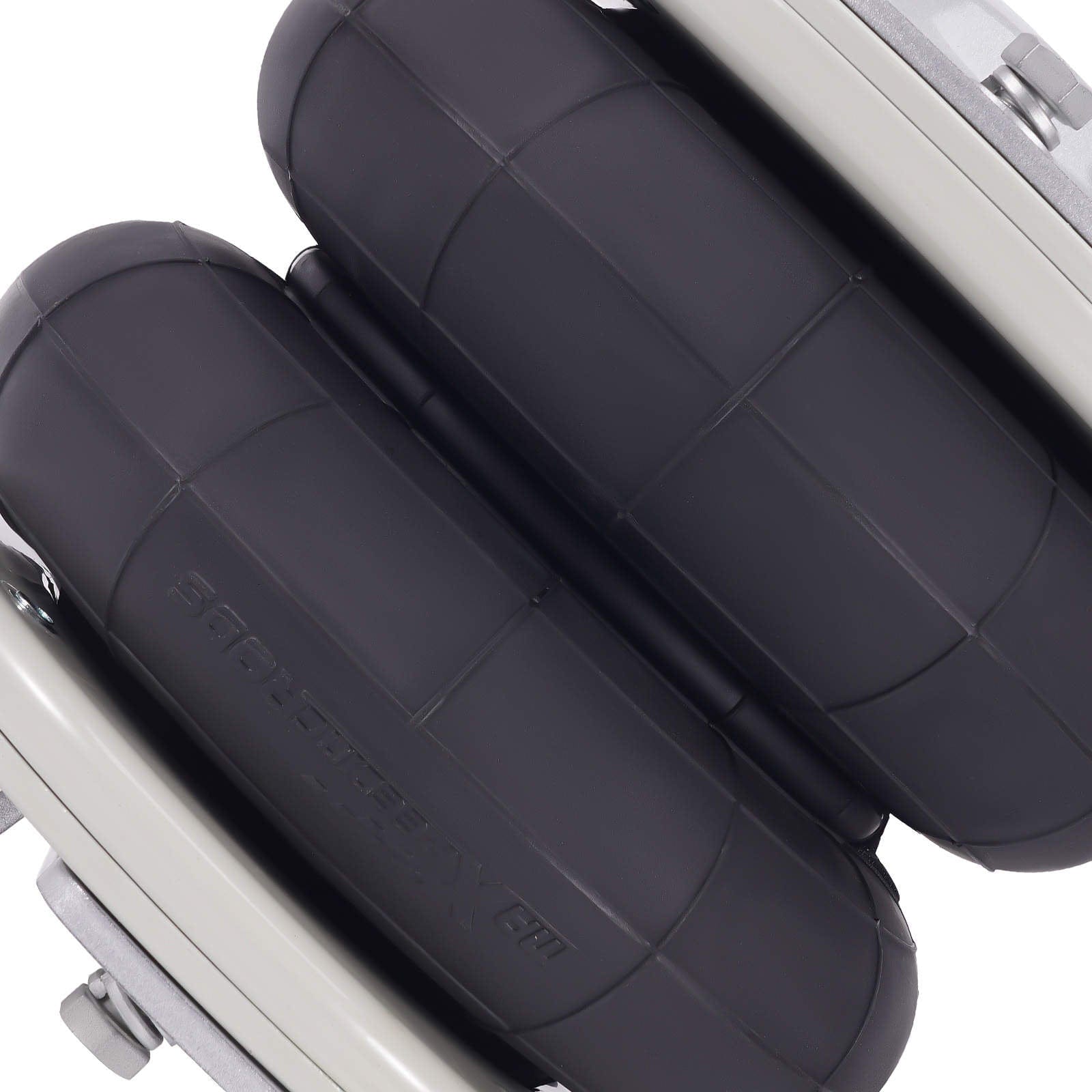

- 2x air spring bellows made of natural rubber and high-quality steel
- 4x galvanized heavy-duty mounting bracket
- 1x 12V air compressor
- 1x barometer
- 1x air line 5 m

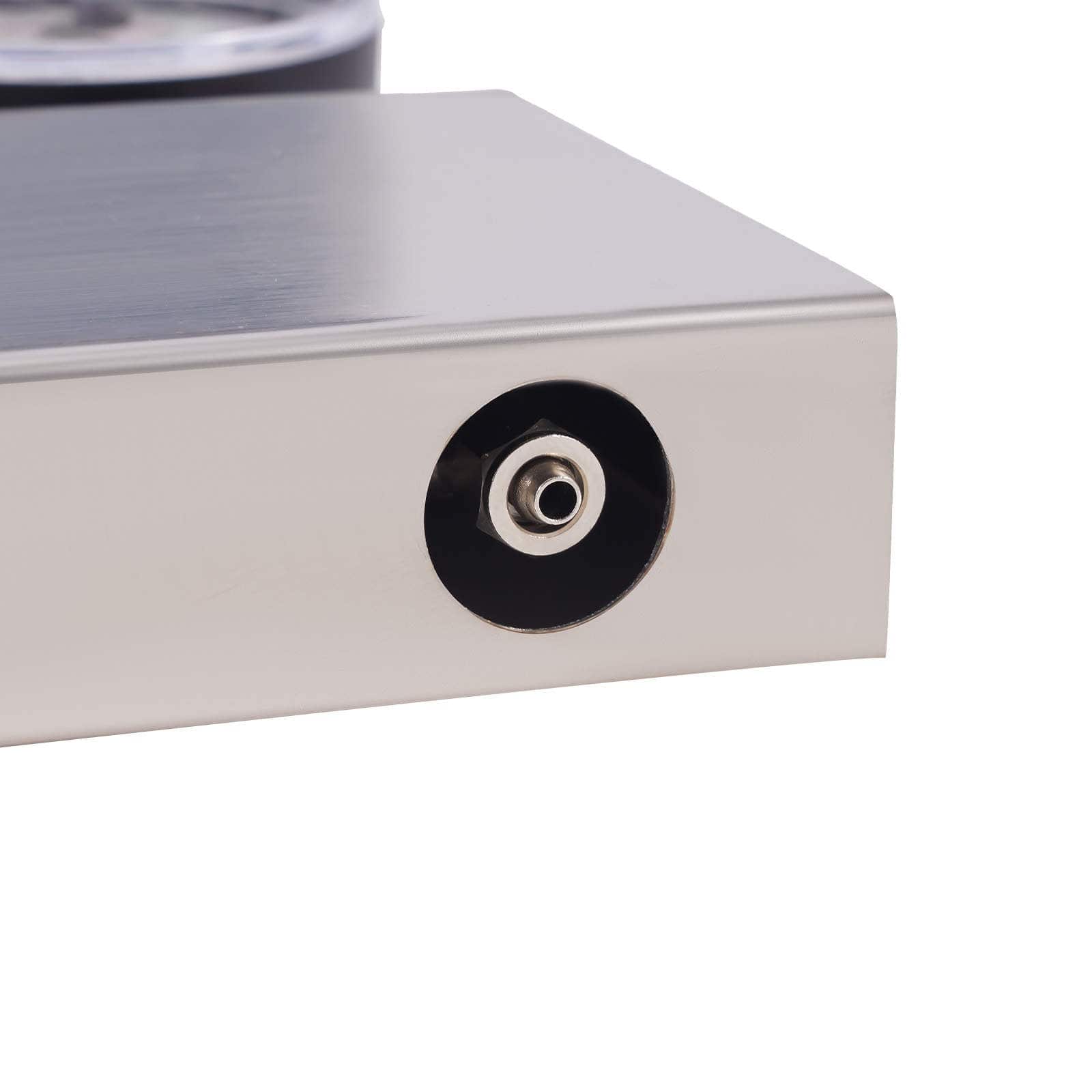

- 1x installation box
- Mounting bolts and air connections
Features
- Stress tested over 5,000,000 times: durable and safe
- Burst pressure ≥ 2.0 MPa: high pressure resistance and less noise
- Air tightness test ≤ 0.02 MPa: 100% airtightness guarantee
- Temperature range ≥ -40°C / ≤ 70°C: high-quality natural rubber
- High-quality steel with high load capacity and long service life
- Restores original ride height and improves driving comfort
- Reduces tire wear
Check fitment
Always check the original OEM part number, year of manufacture, engine code, and trim level of your vehicle before ordering, as there may be differences depending on the trim level. If you are unsure whether this part fits your vehicle, please feel free to contact us before purchasing.
.jpg?x-oss-process=image/auto-orient,1/quality,q_70/resize,m_mfit,w_1000,h_1000)
A:Hallo, Wenn Ihr Modell Petrol Estate /Petrol Saloon 1995cc 100KW/1995cc 105KW ist, kann es angepasst werden. Bitte überprüfen Sie es erneut. mfG.
Answer
*Please select a category!
Geben Sie Ihr Reiseziel ein, um eine Versandschätzung zu erhalten.
Product Description
Set of 2 rear air springs with 12V compressor kit for the Fiat Ducato / Citroën Jumper / Citroën Relay / Peugeot Boxer.
Suitable for:
- Fiat Ducato, 1994-2024
- Citroën Jumper, 1994-2024
- Citroën Relay, 1994-2024
- Peugeot Boxer, 1994-2024
Note: suitable for single or dual rear wheels, and for FWD or RWD. Body type: van, tipper, camper, box van. Chassis type: all standard chassis, except Alco torsion bar chassis.
Specifications
- Condition: Brand new
- Installation position: Rear, left and right
- Maximum load: 4000 kg
- Wheelbase: 156 mm
- Cigarette lighter connection included: Yes
- Packaging dimensions (L x W x H): 42 x 37 x 27 cm
- Packaging weight: 12.4 kg
- Air spring bellows - installation height: 172 mm
- Air spring bellows - stroke: 140 mm
- Air spring bellows - max. extended: 230 mm
- Air spring bellows - min. compressed: 90 mm
- Compressor - power: 150 W
- Compressor - output voltage: 12V
- Compressor - maximum current: 10A
- Compressor - maximum operating pressure: 10 bar (1MPa)
- Compressor - hose diameter: 0.72 m
- Compressor - cable length: 2.6 m
Scope of delivery
- 2x air spring bellows made of natural rubber and high-quality steel
- 4x galvanized heavy-duty mounting bracket
- 1x 12V air compressor
- 1x barometer
- 1x air line 5 m
- 1x installation box
- Mounting bolts and air connections
Features
- Stress tested over 5,000,000 times: durable and safe
- Burst pressure ≥ 2.0 MPa: high pressure resistance and less noise
- Air tightness test ≤ 0.02 MPa: 100% airtightness guarantee
- Temperature range ≥ -40°C / ≤ 70°C: high-quality natural rubber
- High-quality steel with high load capacity and long service life
- Restores original ride height and improves driving comfort
- Reduces tire wear
Check fitment
Always check the original OEM part number, year of manufacture, engine code, and trim level of your vehicle before ordering, as there may be differences depending on the trim level. If you are unsure whether this part fits your vehicle, please feel free to contact us before purchasing.
