Product Description

Air suspension kit with 2 air springs and 12V compressor for the rear axle, suitable for the specified Ford Transit with twin rear wheels (twin RWD).

Suitable for:

• Ford Transit TWIN RWD350 RWD 2001-2020, rear wheel
• Body types: van, tipper, camper, box van, horse trailer, minibus, Luton, crew van, recovery vehicle, dropside, flatbed
• Only for versions with twin rear wheels (RWD twin rear wheel)

Specifications

• Material: galvanized high-grade steel S355, rubber
• Max. load: 4000 kg
• Recommended air pressure: min. 10 PSI unloaded, 75 PSI loaded
• Drive: rear-wheel drive, twin rear wheels
• Packaging dimensions: 710 × 190 × 195 mm
• Packaging weight: 15 kg
• Air spring - stroke: 140 mm; max. extended 230 mm; min. compressed 90 mm
• Air spring - working pressure: ≤2.0 MPa; temperature range ≤ +70 °C / ≥ -40 °C
• Air pump: power 120 W, output voltage 12V, max. current 10 A, max. working pressure 10 bar (1 MPa)

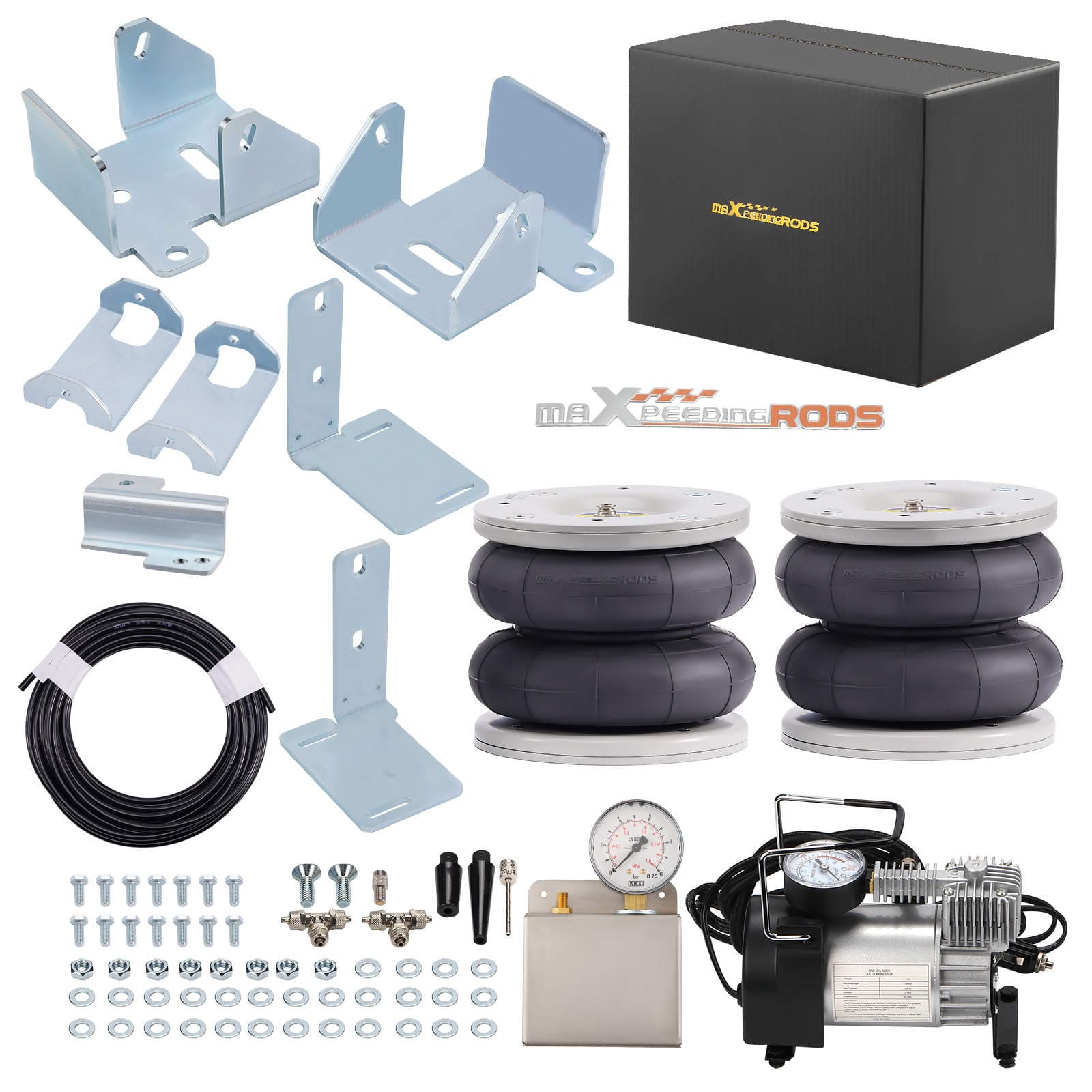

Scope of delivery

• 2x air spring bags (natural rubber + high-grade steel)
• 1x air suspension compressor
• 1x installation box

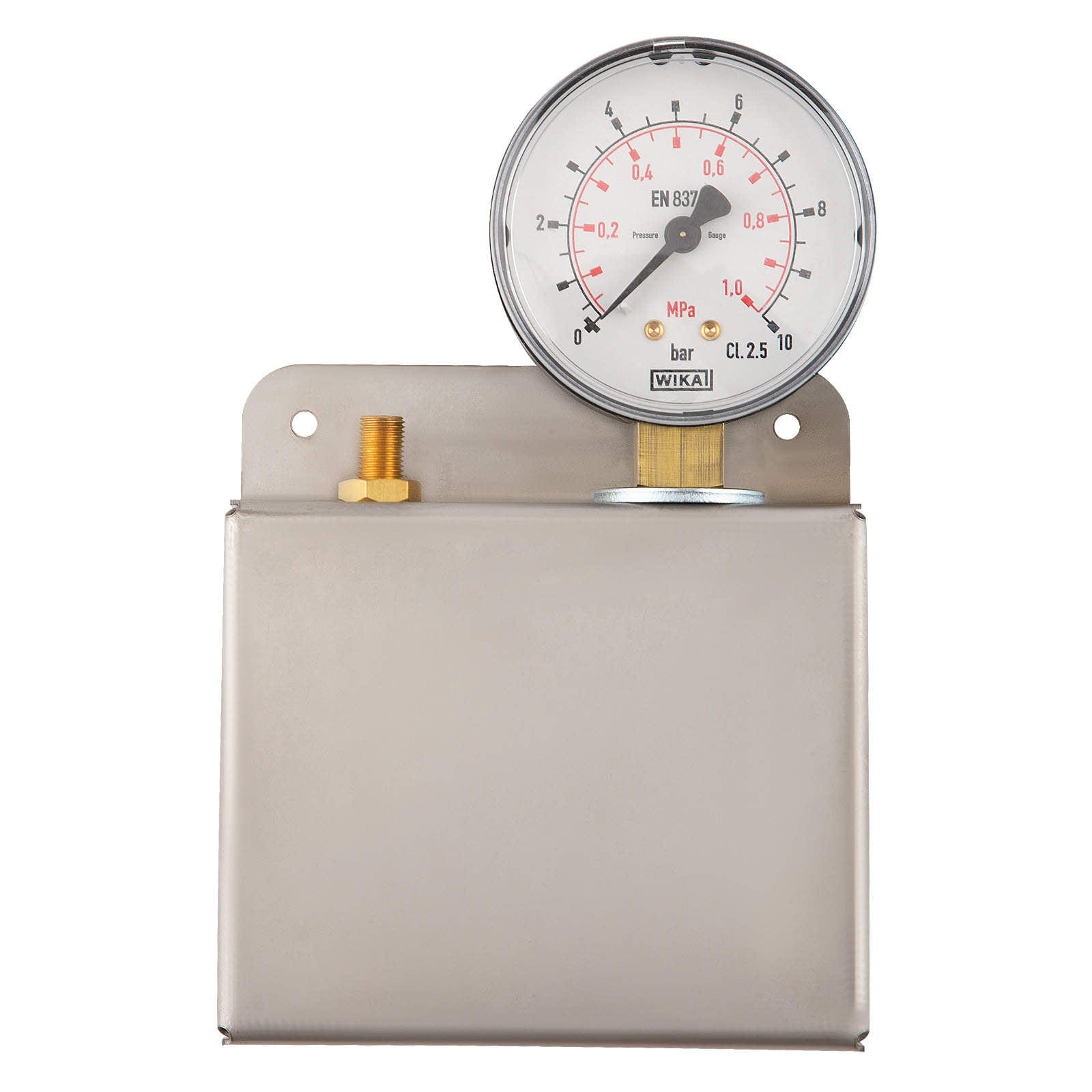

• 1x barometer

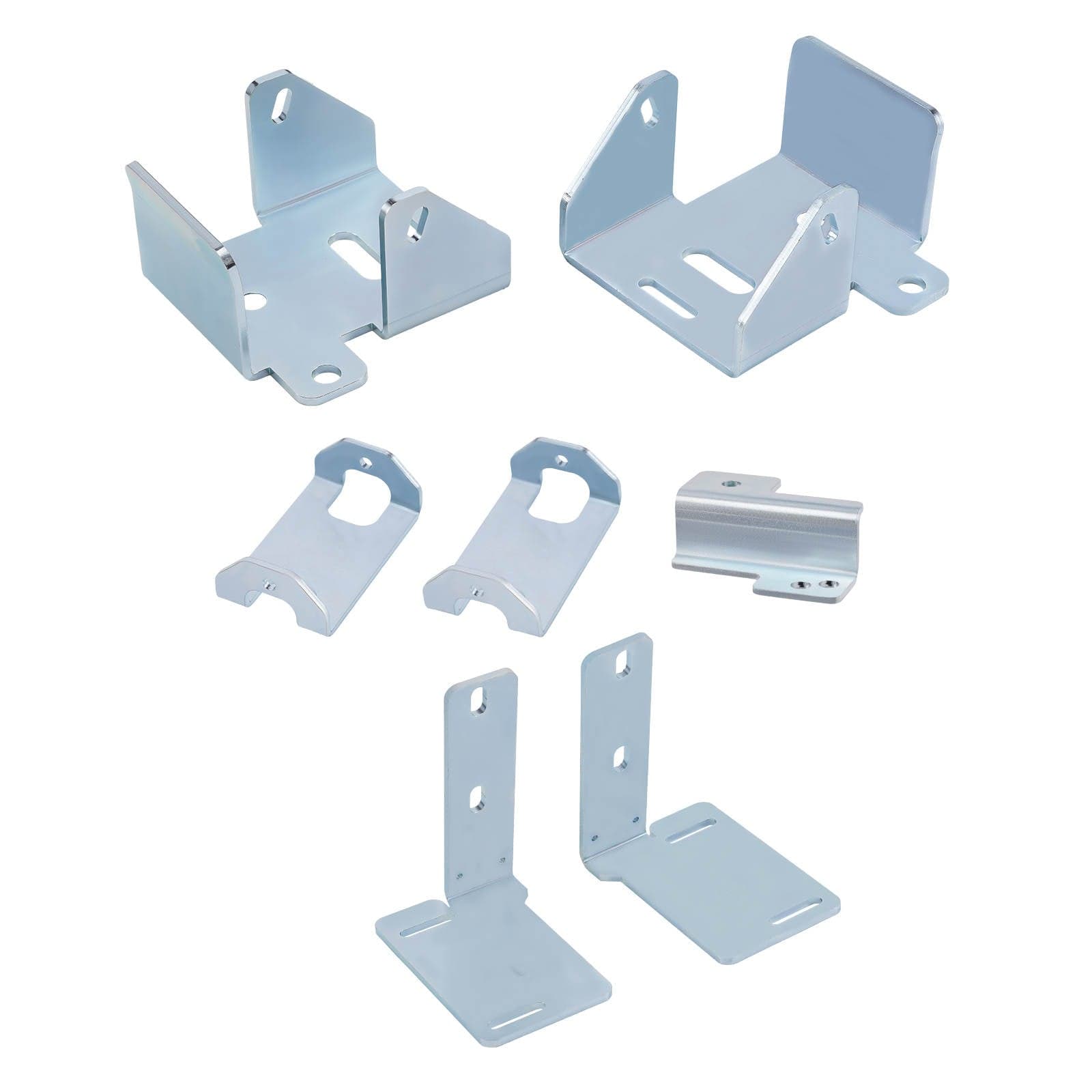

• 7x mounting brackets (galvanized, heavy-duty)
• 1x air line 11.5 m

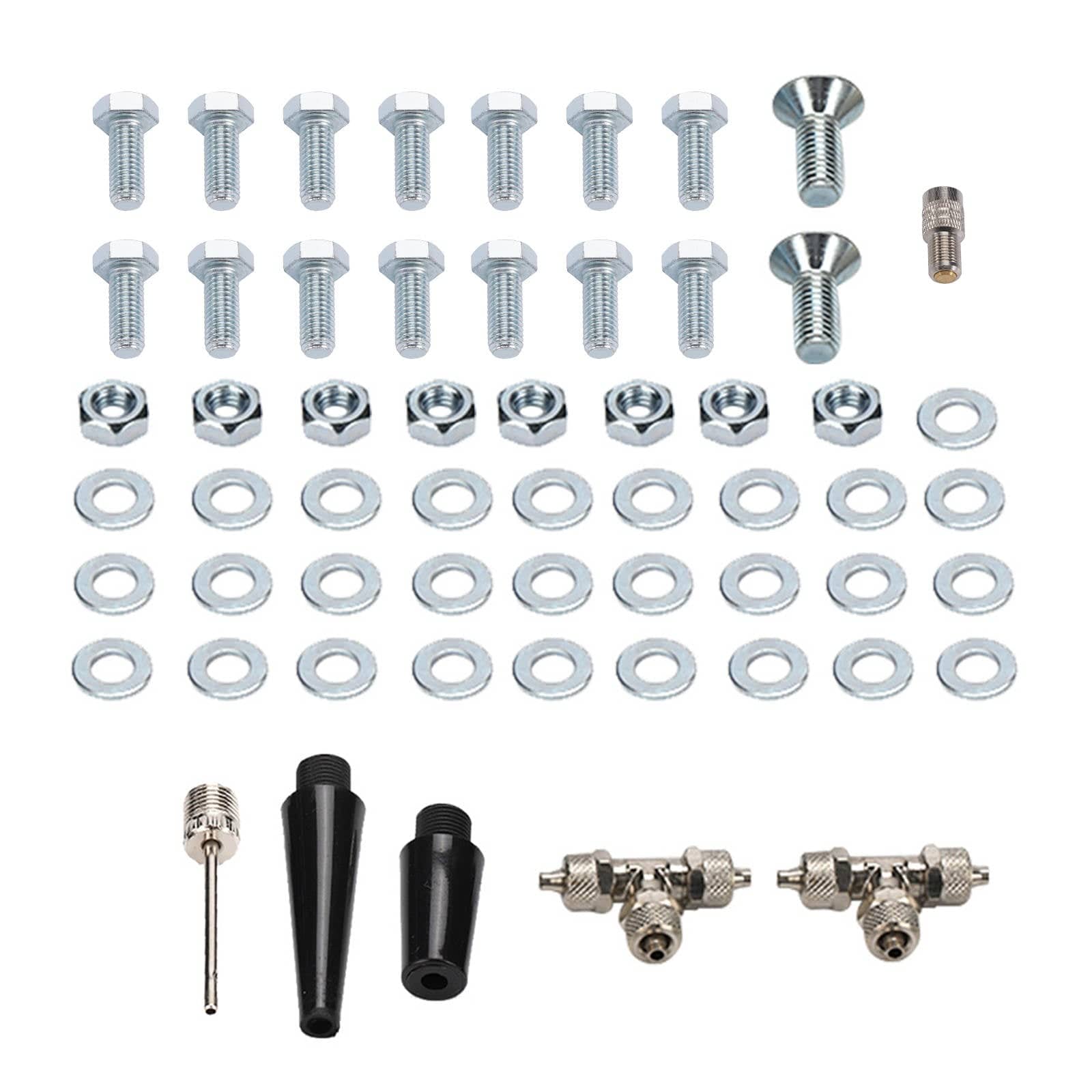

• Mounting bolts and air connections

Features

• No drilling required; easy installation typically 1 to 2 hours
• Suitable for most light commercial vehicles, motorhomes, and vans
• Supplied with portable air compressor
• Improves stability, reduces body roll, and enhances handling
• Assists with towing trailers

Please note

Before purchasing, please compare the images or the OE number to avoid incorrect purchases. No manual included; professional installation is recommended.

Check fitment

Before ordering, always check the original OEM part number, year of manufacture, engine code, and the version of your vehicle, as there may be differences per version. Are you unsure if this part fits your vehicle? Please feel free to contact us before purchasing.
