Rear air suspension bellows + 12V Compressor suitable for Ford Transit 01-24
Rear air suspension bellows + 12V Compressor suitable for Ford Transit 01-24
- * Concurrerende prijs
- * Sneller verzenden
- * Staat: 100% nieuw!
- * Garantie: 1 jaar garantie op eventuele fabricagefouten
- * Accessoires: je ontvangt precies zoals op de afbeelding hierboven!
Product Description
Air suspension kit for the rear axle with 12V compressor, suitable for the Ford Transit with dual rear wheels (RWD).
Suitable for:
- Ford Transit 2001- (dual rear wheel body types only, RWD): Van, Tipper, Motorhome, Box Van, Horsebox, Minibus, Luton, Crew Van, Recovery, Dropside, Flatbed
Specifications
- Condition: New
- Installation position: Rear left and right
- Maximum load: 4000 kg
- Packaging dimensions: 710 × 190 × 195 mm (15 kg)
- Air bellows: stroke 140 mm, max. extended 230 mm, min. compressed 90 mm, min. 10 PSI (unloaded) and 75 PSI (loaded)
- Compressor: power 150 W, output voltage 12V, max. current 10A, max. working pressure 10 bar (1 MPa)

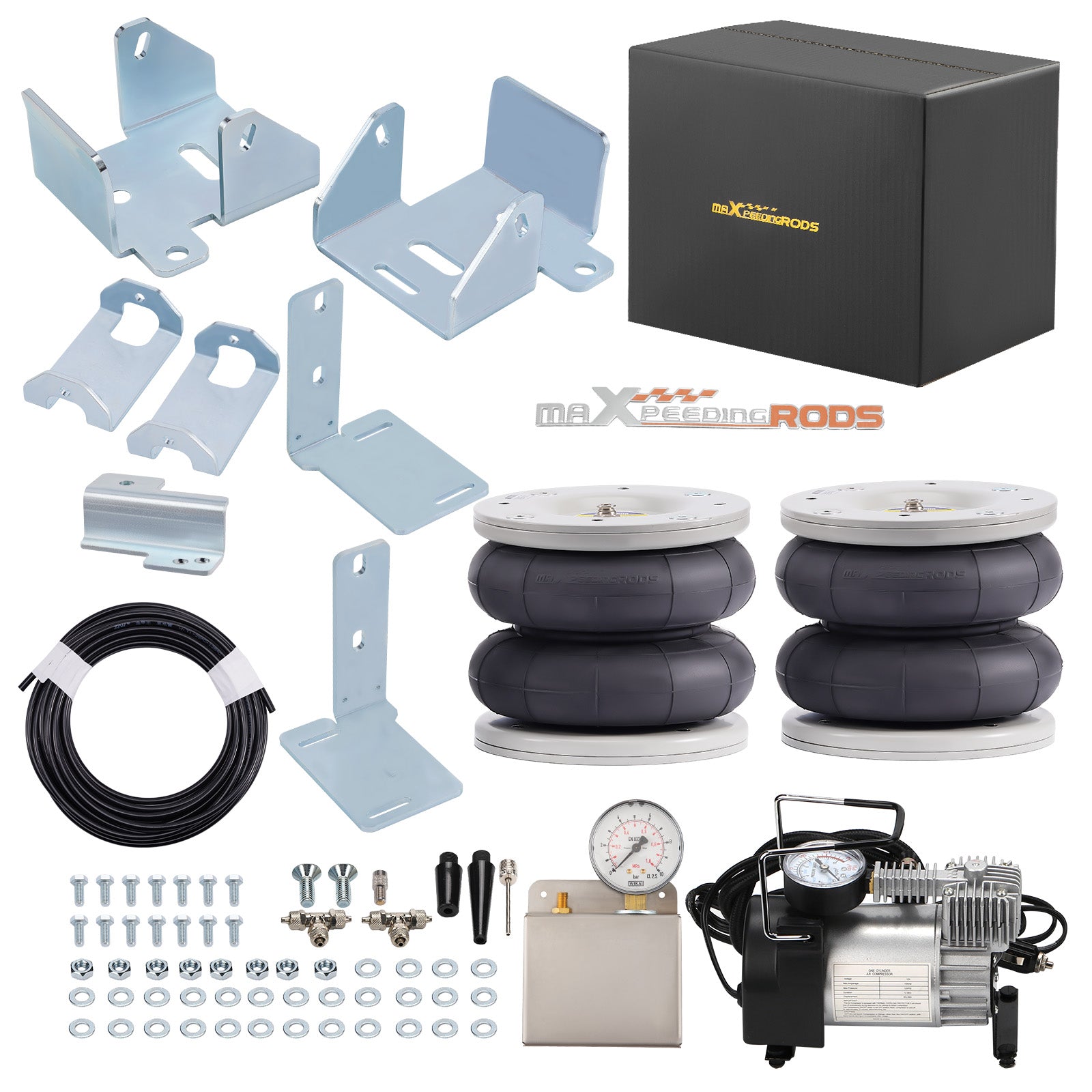

Scope of supply
- 2x natural rubber and high-quality steel air spring
- 7x galvanised heavy-duty mounting brackets
- 1x air suspension compressor
- 1x installation kit
- 1x barometer
- 1x air line 11.5 m
- mounting bolts and air connections
Features
- No drilling required; easy installation typically takes 1 to 2 hours
- Supplied with portable air compressor
- High-quality steel with high load capacity and long service life
- Improves stability, reduces body roll and improves handling
Please note
This air suspension kit is aftermarket and replaces the original. No manual included; professional installation is recommended.
Check fitment
Always check the original OEM part number, year of manufacture, engine code and the version of your vehicle before ordering, as there may be differences per version. If you are unsure whether this part fits your vehicle, please feel free to contact us before purchase.
