Product Description

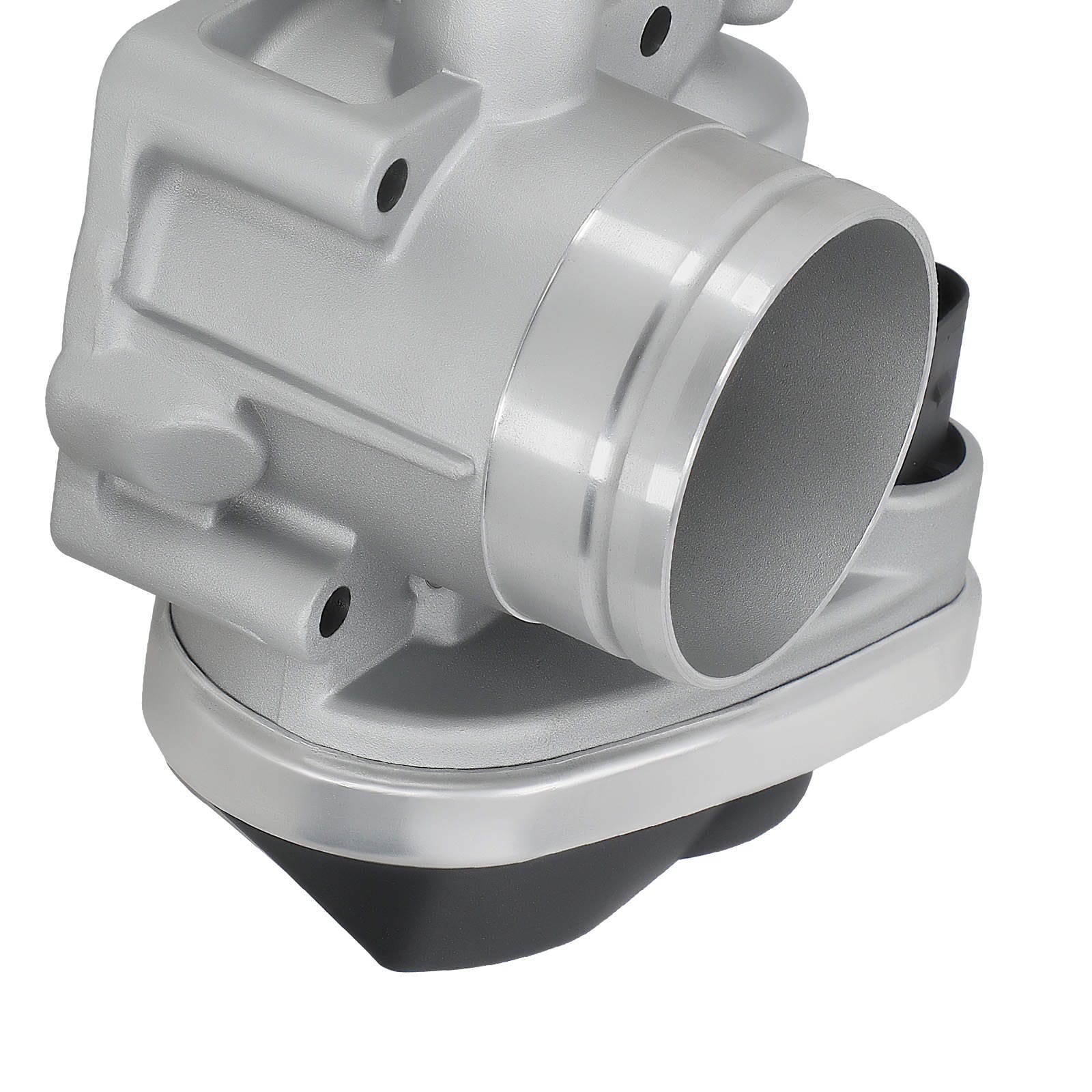

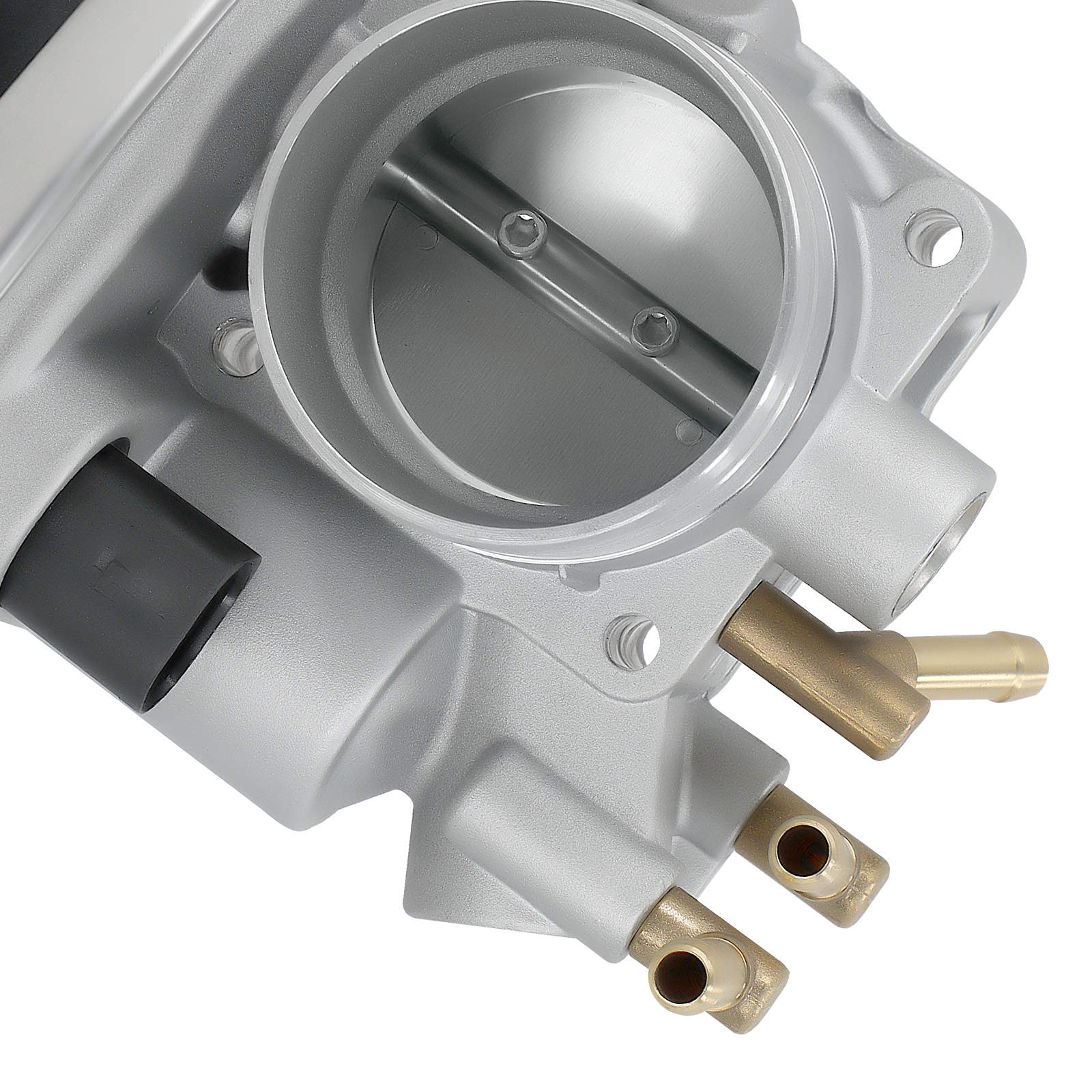

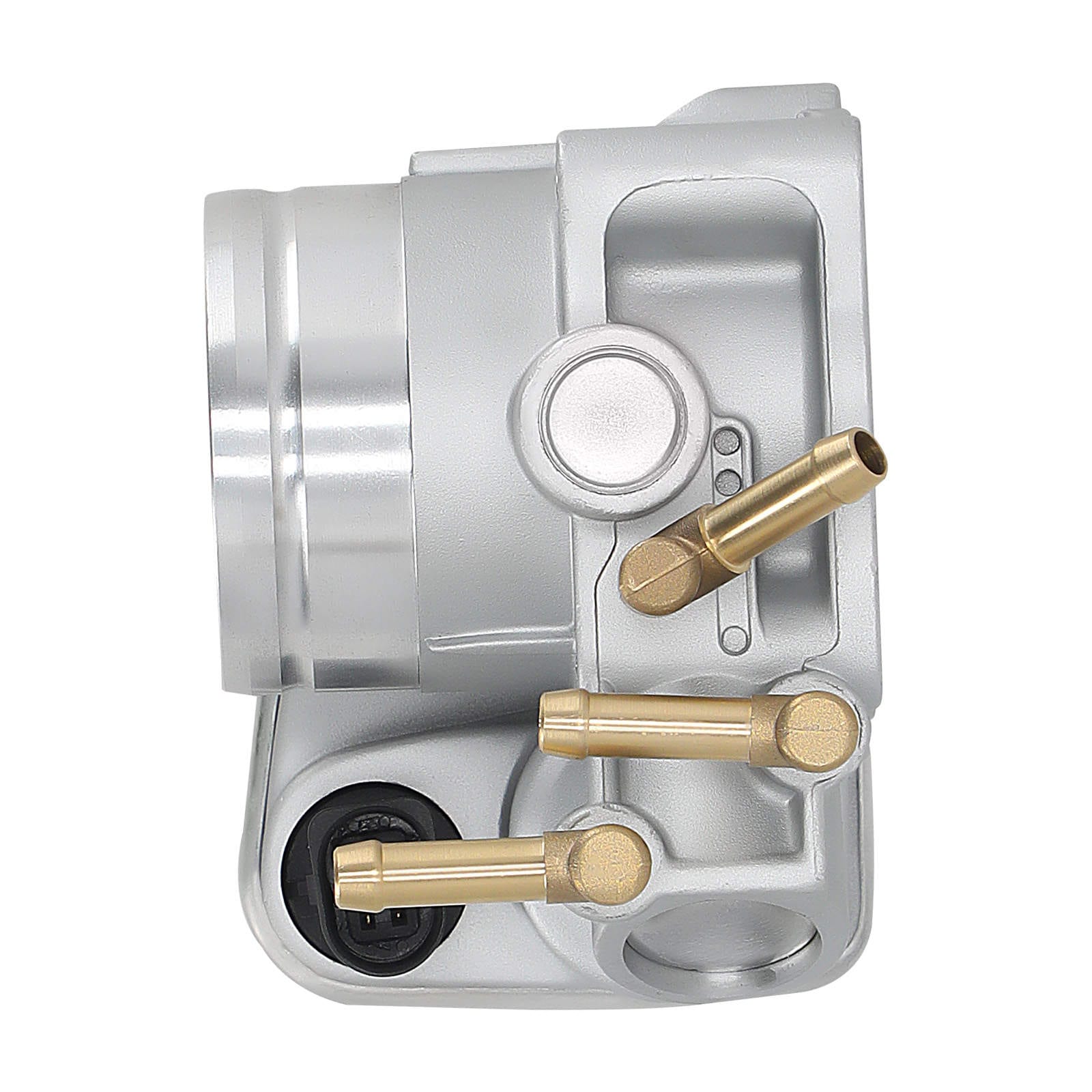

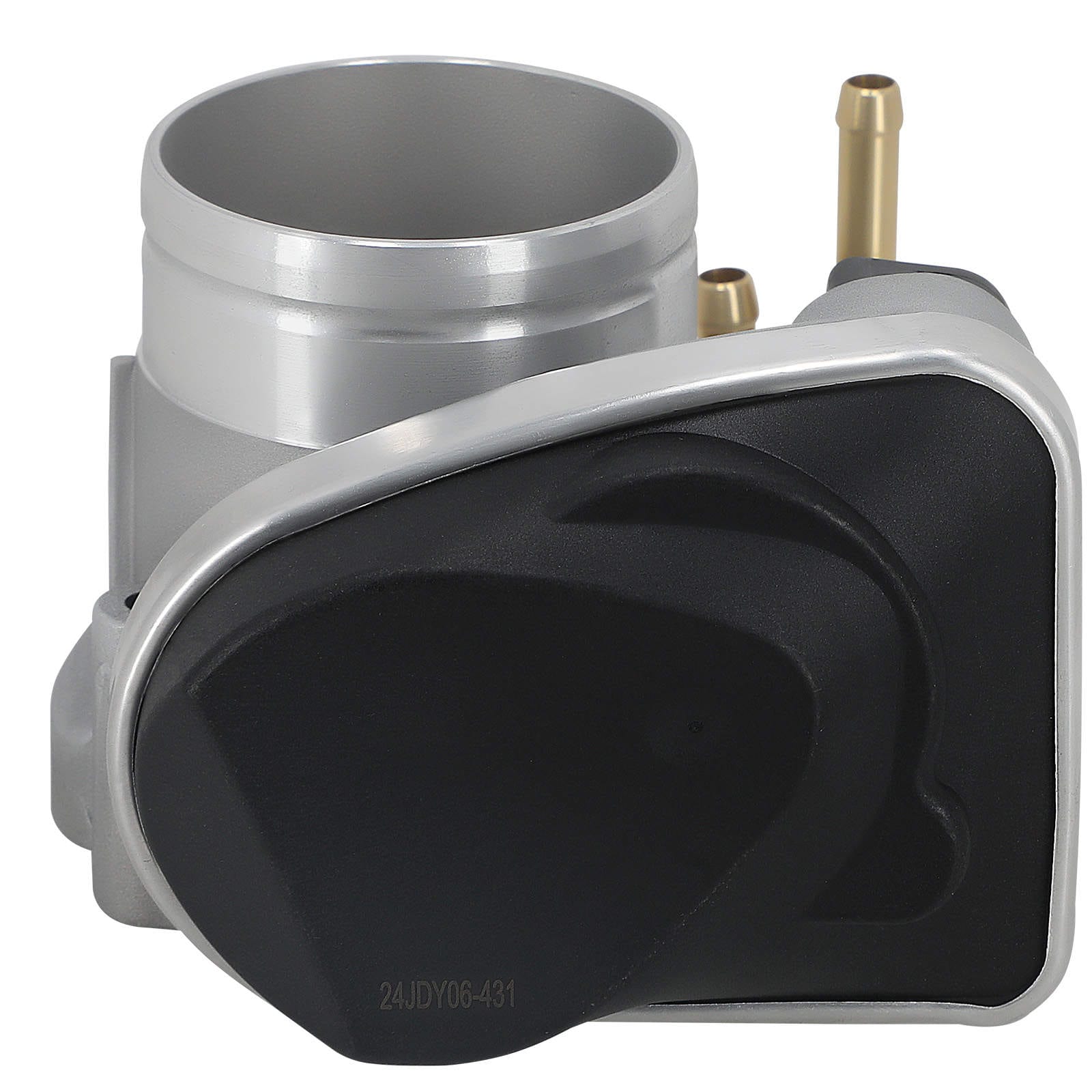

Electronically controlled throttle body (52mm) for various Audi, VW, Seat, and Skoda 1.6L models.

Suitable for:

• Audi A3 8P1 1.6, 2003/05-2012/08
• Audi A3 8P1 1.6 E-Power, 2011/01-2012/08
• Audi A3 Cabriolet 8P7 1.6, 2008/09-2010/05
• Audi A3 Sportback 8PA 1.6, 2004/09-2007/12
• Audi A3 Sportback 8PA 1.6, 2004/09-2012/12
• Audi A3 Sportback 8PA 1.6 E-Power, 2011/01-2012/12
• Seat Altea 5P1 1.6, 2004/03-2012/12
• Seat Altea 5P1 1.6, 2007/01-2012/12
• Seat Altea 5P1 1.6, 2011/01-2012/12
• Seat Altea 5P1 1.6 LPG, 2009/09-2012/12
• Seat Altea XL 5P5/5P8 1.6, 2006/10-2012/12
• Seat Altea XL 5P5/5P8 1.6, 2011/01-2012/12
• Seat Altea XL 5P5/5P8 1.6 LPG, 2009/09-2012/12
• Seat Altea XL 5P5/5P8 1.6 MultiFuel, 2007/01-2012/12
• Seat Leon 1P1 1.6, 2005/07-2012/12
• Seat Leon 1P1 1.6, 2011/01-2012/12
• Seat Leon 1P1 1.6 LPG, 2009/12-2012/12
• Seat Leon 1P1 1.6 MultiFuel, 2007/01-2012/12
• Seat Toledo III 5P2 1.6, 2004/10-2009/05
• Skoda Octavia II 1Z3 1.6, 2004/06-2012/12
• Skoda Octavia II 1Z3 1.6, 2009/01-2012/12
• Skoda Octavia II 1Z3 1.6 LPG, 2009/08-2012/11
• Skoda Octavia II 1Z3 1.6 MultiFuel, 2008/01-2012/11
• Skoda Octavia II 1Z3 1.6 MultiFuel, 2009/01-2012/11
• Skoda Octavia II Combi 1Z5 1.6, 2004/09-2012/11
• Skoda Octavia II Combi 1Z5 1.6, 2009/01-2012/11
• Skoda Octavia II Combi 1Z5 1.6 LPG, 2009/08-2012/11
• Skoda Octavia II Combi 1Z5 1.6 MultiFuel, 2008/01-2012/12
• Skoda Octavia II Combi 1Z5 1.6 MultiFuel, 2009/01-2012/12
• VW Caddy III MPV 2KB/2KJ/2CB/2CJ 1.6, 2004/04-2011/12
• VW Caddy III MPV 2KB/2KJ/2CB/2CJ 1.6, 2004/04-2012/12
• VW Caddy III MPV 2KB/2KJ/2CB/2CJ 1.6 Bi-Fuel, 2011/05-2015/05
• VW Caddy III Box/MPV 2KA/2KH/2CA/2CH 1.6, 2004/04-2011/12
• VW Caddy III Box/MPV 2KA/2KH/2CA/2CH 1.6, 2004/04-2012/12
• VW Caddy III Box/MPV 2KA/2KH/2CA/2CH 1.6 Bi-Fuel, 2011/05-2015/05
• VW Golf Plus 5M1/521 1.6, 2005/05-2012/12
• VW Golf Plus 5M1/521 1.6, 2008/01-2012/12
• VW Golf Plus 5M1/521 1.6, 2009/01-2012/12
• VW Golf Plus 5M1/521 1.6 Bi-Fuel, 2009/05-2012/12
• VW Golf Plus 5M1/521 1.6 MultiFuel, 2008/01-2011/12
• VW Golf Plus 5M1/521 1.6 MultiFuel, 2009/01-2012/12
• VW Golf V 1K1 1.6, 2006/01-2008/11
• VW Golf V Variant 1K5 1.6, 2007/06-2009/07
• VW Golf V Variant 1K5 1.6 MultiFuel, 2007/11-2009/07
• VW Golf VI 5K1 1.6, 2008/10-2012/11
• VW Golf VI 5K1 1.6, 2008/10-2011/12
• VW Golf VI 5K1 1.6, 2009/01-2012/11
• VW Golf VI 5K1 1.6 Bi-Fuel, 2009/03-2012/11
• VW Golf VI 5K1 1.6 MultiFuel, 2008/10-2011/12
• VW Golf VI 5K1 1.6 MultiFuel, 2009/01-2012/11
• VW Golf VI Variant AJ5 1.6, 2009/07-2012/12
• VW Jetta III 1K2 1.6, 2004/09-2010/10
• VW Jetta III 1K2 1.6 MultiFuel, 2008/01-2010/10
• VW Passat 3C2 1.6, 2005/05-2010/07
• VW Passat Variant 3C5 1.6, 2005/08-2010/11
• VW Touran 1T1/1T2 1.6, 2006/01-2010/05

Specifications

• OEM / Part number: 31185842, 06A133062AT, 408238323014Z, V10810021, V10-81-0021
• Bore Diameter: 52 mm (2.05")
• Main Port Inside Diameter: 2-1/8"
• Air Inlet Port Diameter: 2-3/8"
• Throttle Diameter: 2-1/16"
• Throttle Body Actuation: Electric
• Mounting Type: Direct Replacement
• Material: Aluminium
• Number of Mounting Holes: 4

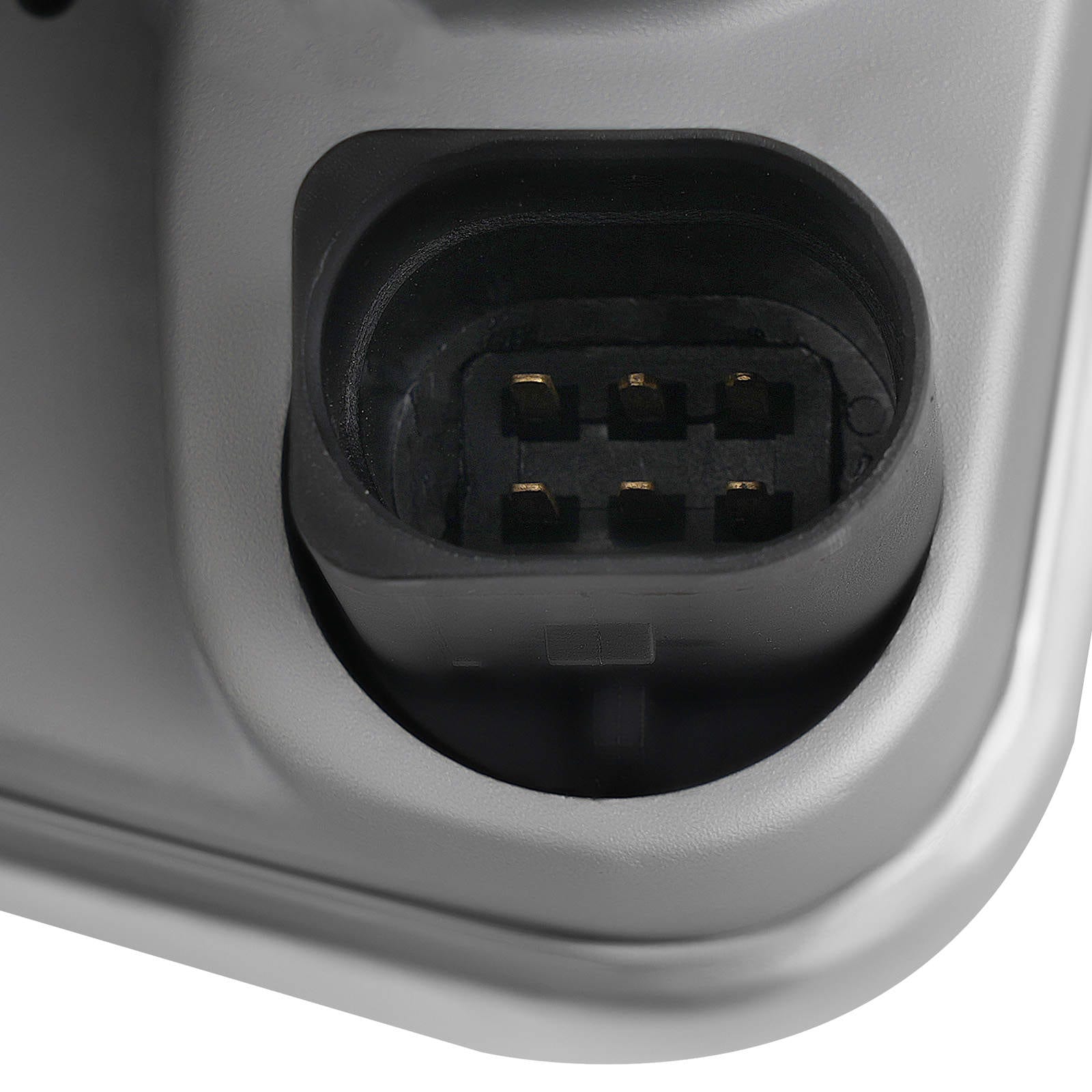

• Number of Connectors: 1
• Number of Connector Pins: 6
• Fuel System Type: FI (Injection)
• Connector Type: Blade Type

Features

• Optimized engine performance by adjusting airflow to driving conditions
• Improved fuel efficiency through more efficient combustion
• Direct, fast throttle response

Check Fitment

Before ordering, always check the original OEM part number, year of manufacture, engine code, and vehicle model, as differences may exist depending on the variant. If you are unsure whether this part fits your vehicle, please feel free to contact us before purchasing.
