Product Description

Set of 2 air suspension bellows with 12V compressor kit for the rear axle, suitable for the Mercedes-Benz Sprinter.

Suitable for:

• Mercedes-Benz Sprinter (2006-2022), single rear-wheel version RWD and FWD with round axle

Specifications

• Material: galvanized high-grade steel S355, rubber
• Maximum load: 4000 kg (8818 lbs)
• Recommended air pressure: minimum 10 PSI unloaded, 75 PSI loaded
• Drive: rear-wheel drive and front-wheel drive
• Rear axle: single rear wheel
• Packaging dimensions: 74 x 28 x 22 cm
• Air suspension bellow stroke: 140 mm
• Max. extended: 230 mm
• Min. compressed: 90 mm
• Working pressure: ≤ 2.0 MPa
• Temperature range: ≤ +70°C / ≥ -40°C
• Compressor power: 150 W
• Output voltage: 12 V
• Maximum current: 10 A
• Maximum compressor working pressure: 10 bar (1 MPa)

Scope of delivery

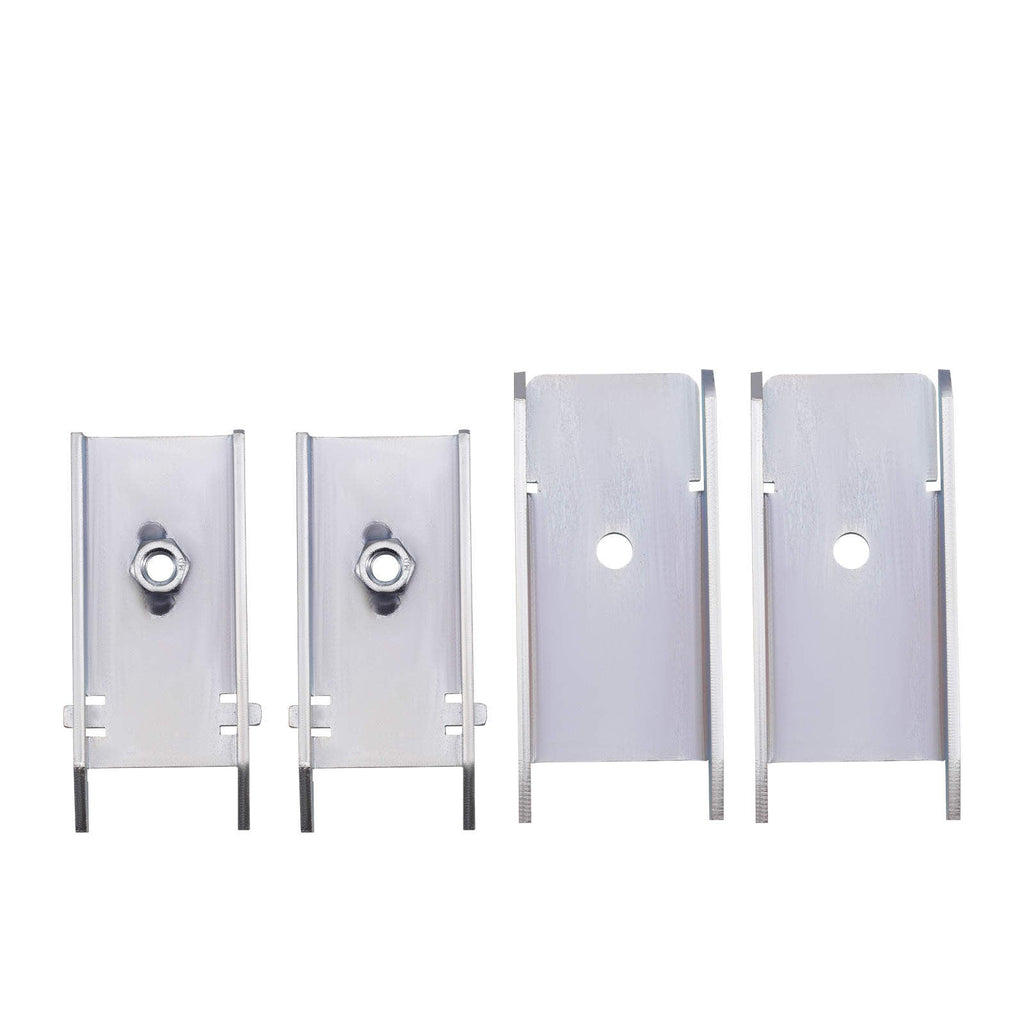

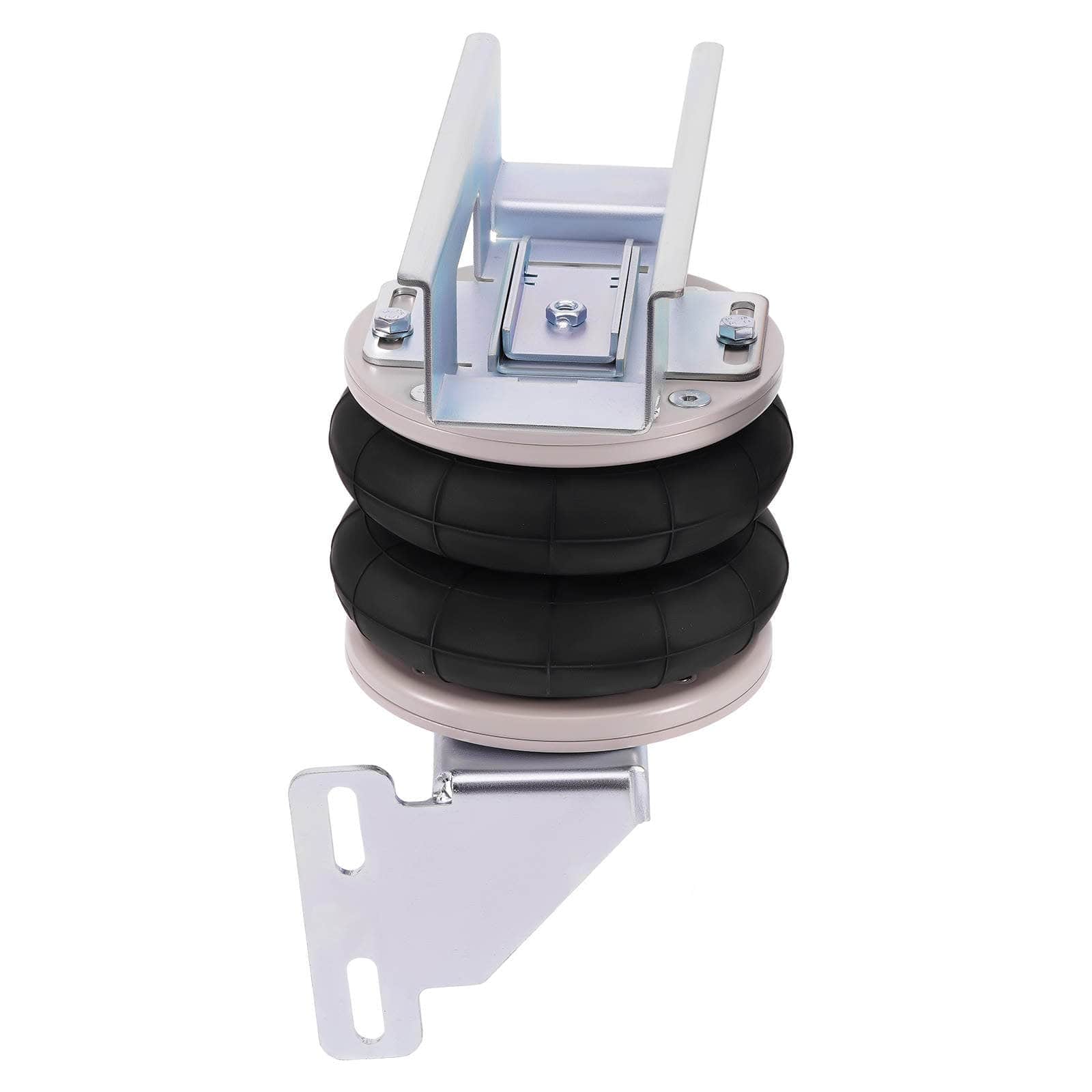

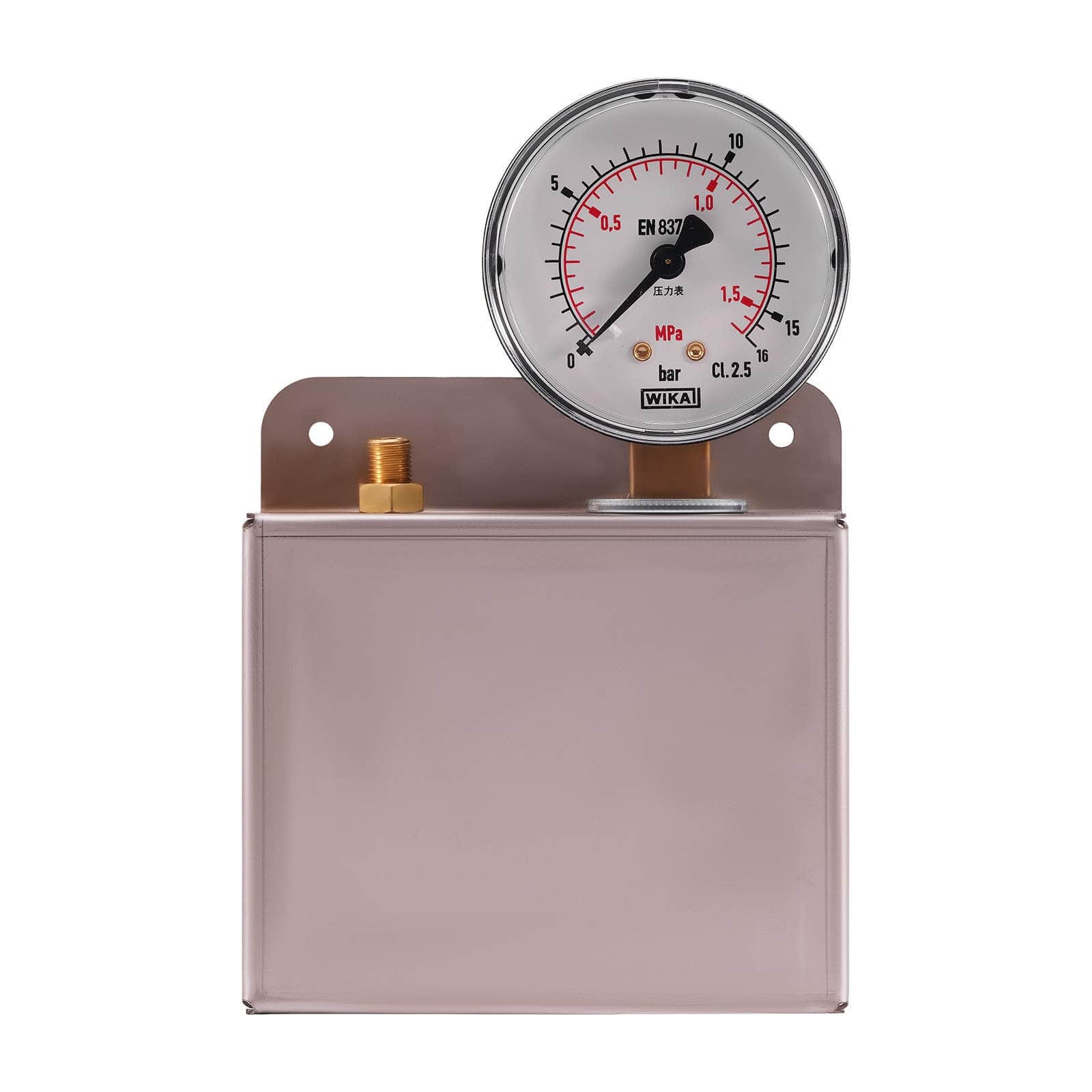

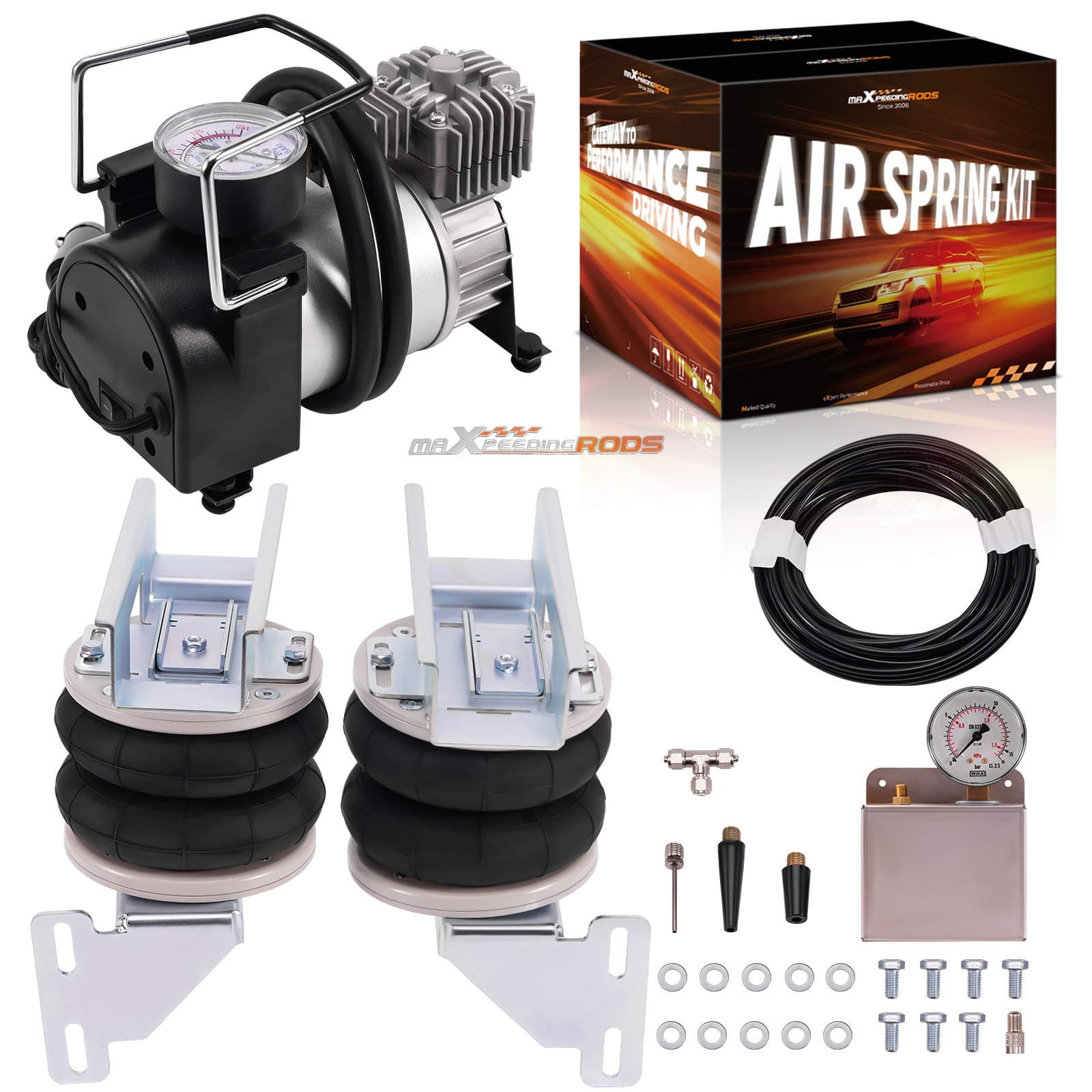

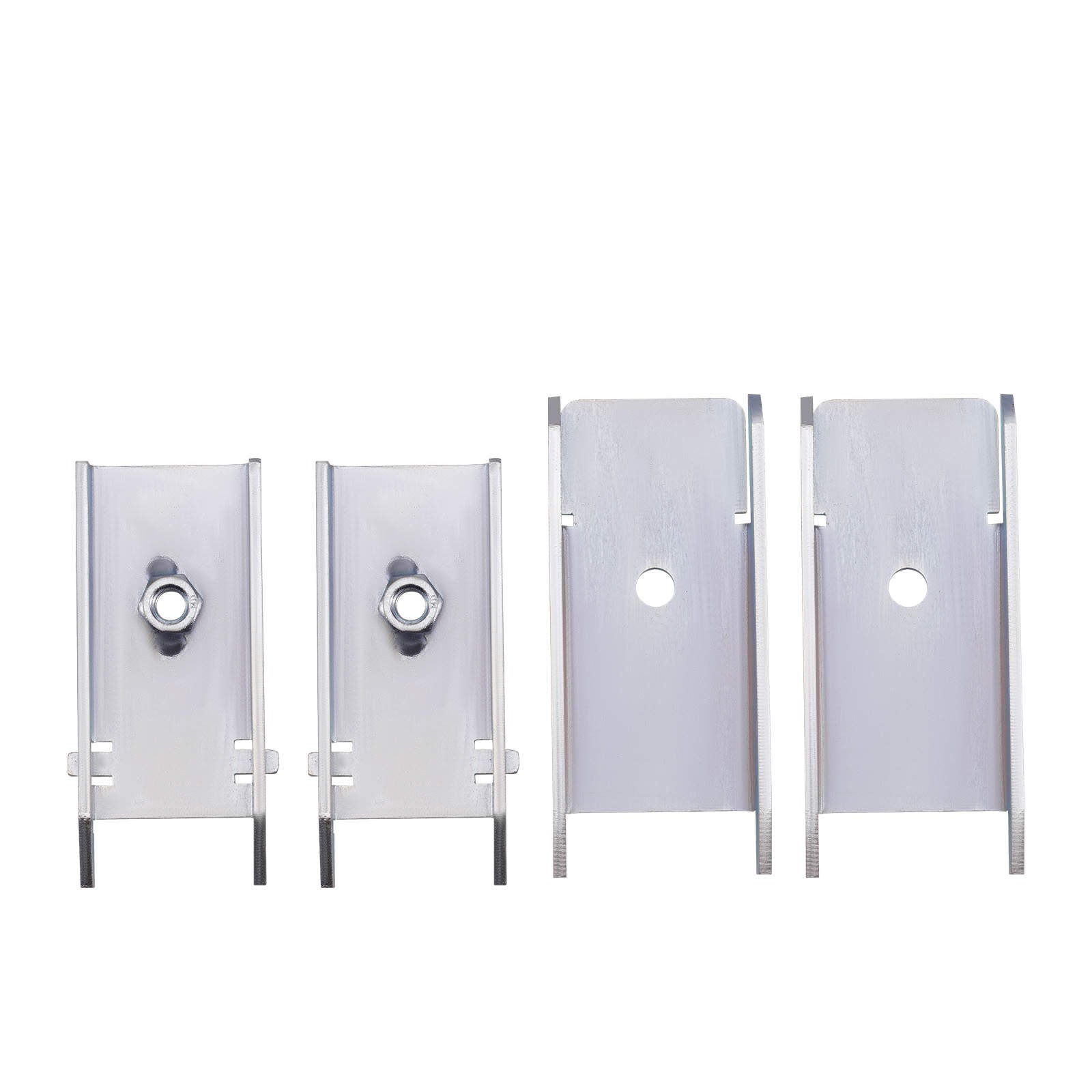

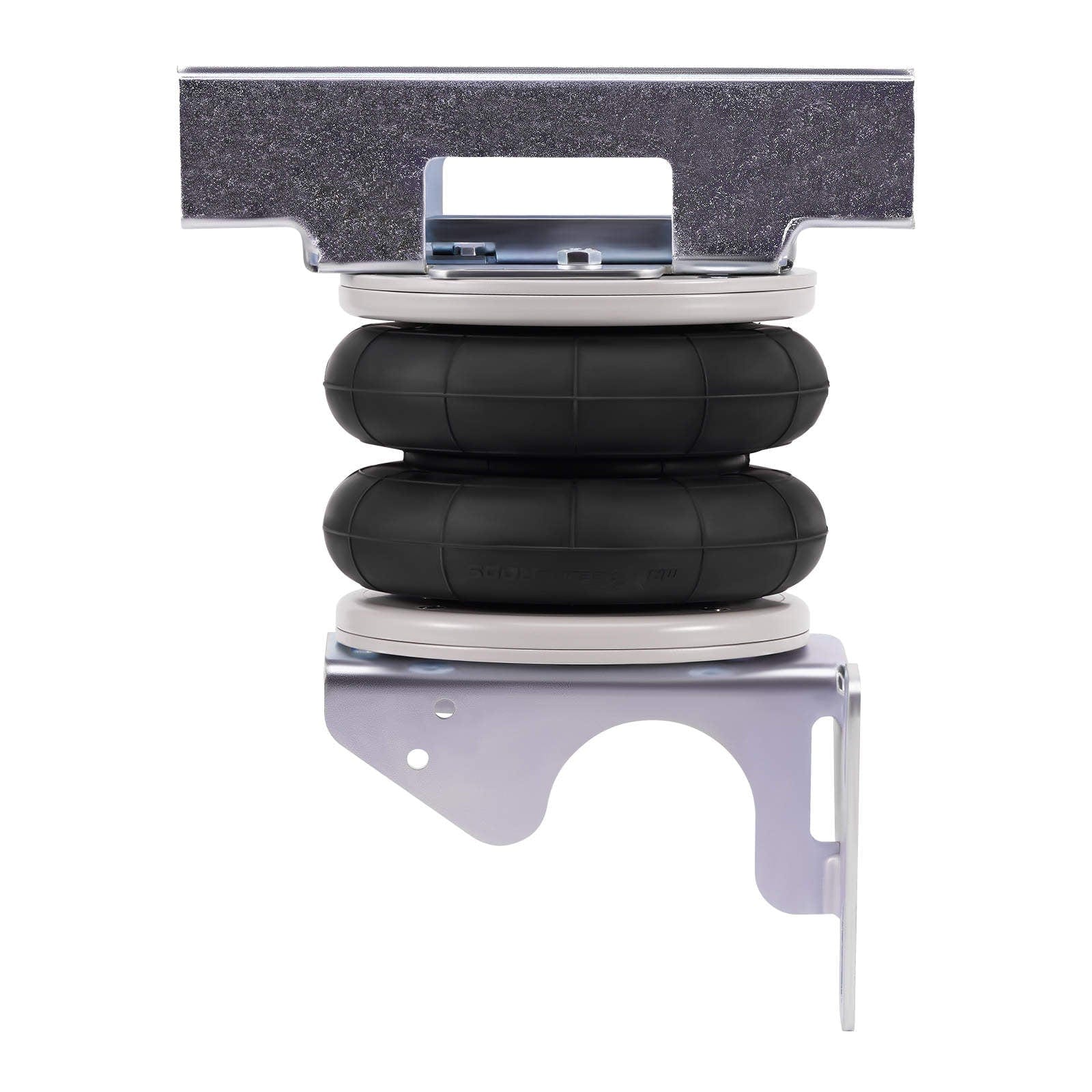

2x air suspension, 1x compressor, 2x upper mounting bracket, 2x fixed upper slider, 2x fixed upper slide, 2x bottom bracket, 1x installation box with barometer/air nozzle, 4x air fitting, 1x air line 12 m, mounting screws and gaskets.

Features

• No drilling required
• Easy installation, typically 1 to 2 hours
• Can be mounted on most light commercial vehicles, motorhomes, and vans
• High-quality steel with high load capacity and long lifespan
• Improves stability, reduces rolling, and enhances handling
• High-quality heavy-duty natural rubber and high-strength steel

Check fitment

Before ordering, always check the original OEM part number, year of manufacture, engine code, and the version of your vehicle, as differences may exist depending on the version. Unsure if this part fits your vehicle? Feel free to contact us before purchasing.
