2 Pieces Air Suspension with 2Pins Rear L+R suitable for Mercedes E Class S211 2113200925
2 Pieces Air Suspension with 2Pins Rear L+R suitable for Mercedes E Class S211 2113200925
- * Concurrerende prijs
- * Sneller verzenden
- * Staat: 100% nieuw!
- * Garantie: 1 jaar garantie op eventuele fabricagefouten
- * Accessoires: je ontvangt precies zoals op de afbeelding hierboven!
Product description

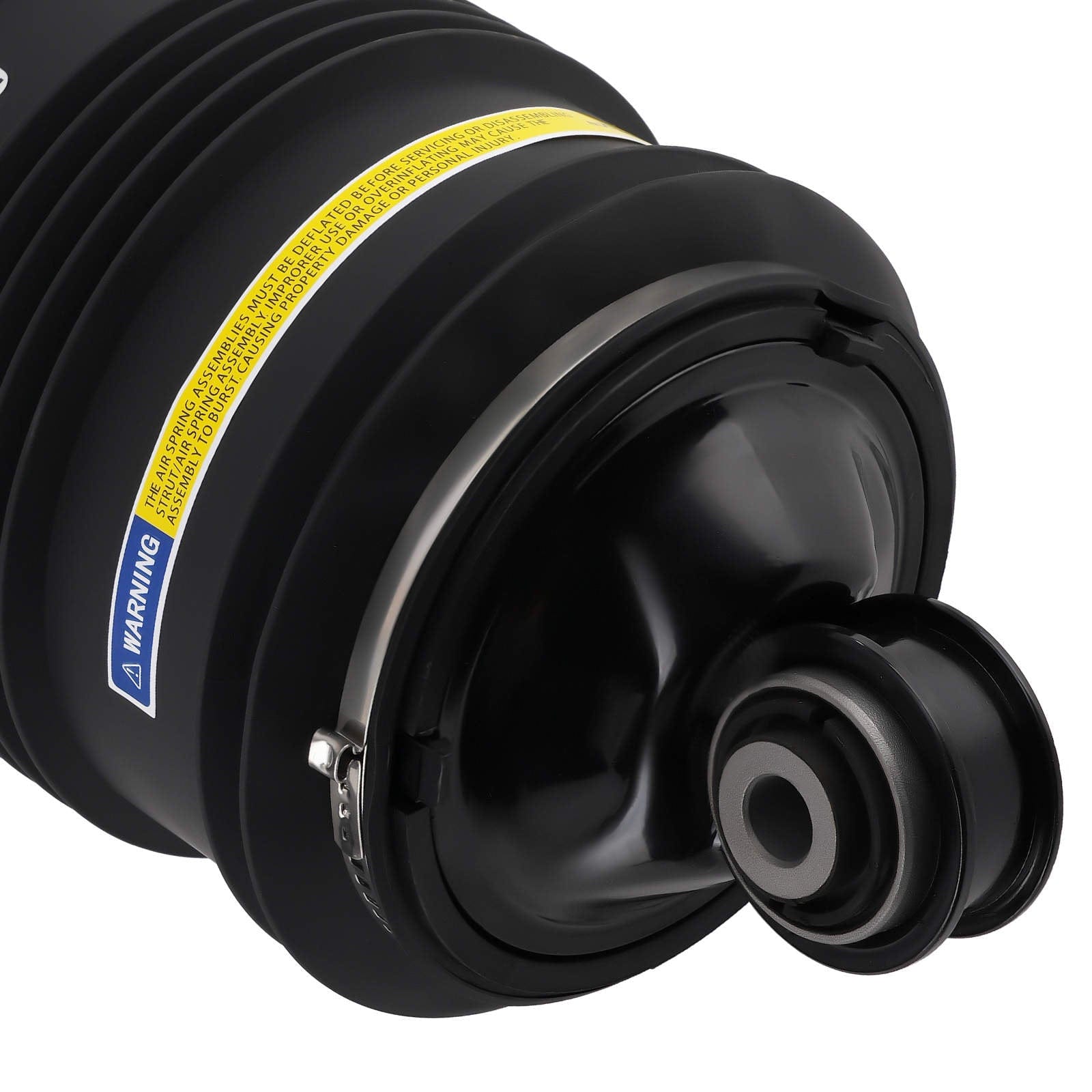

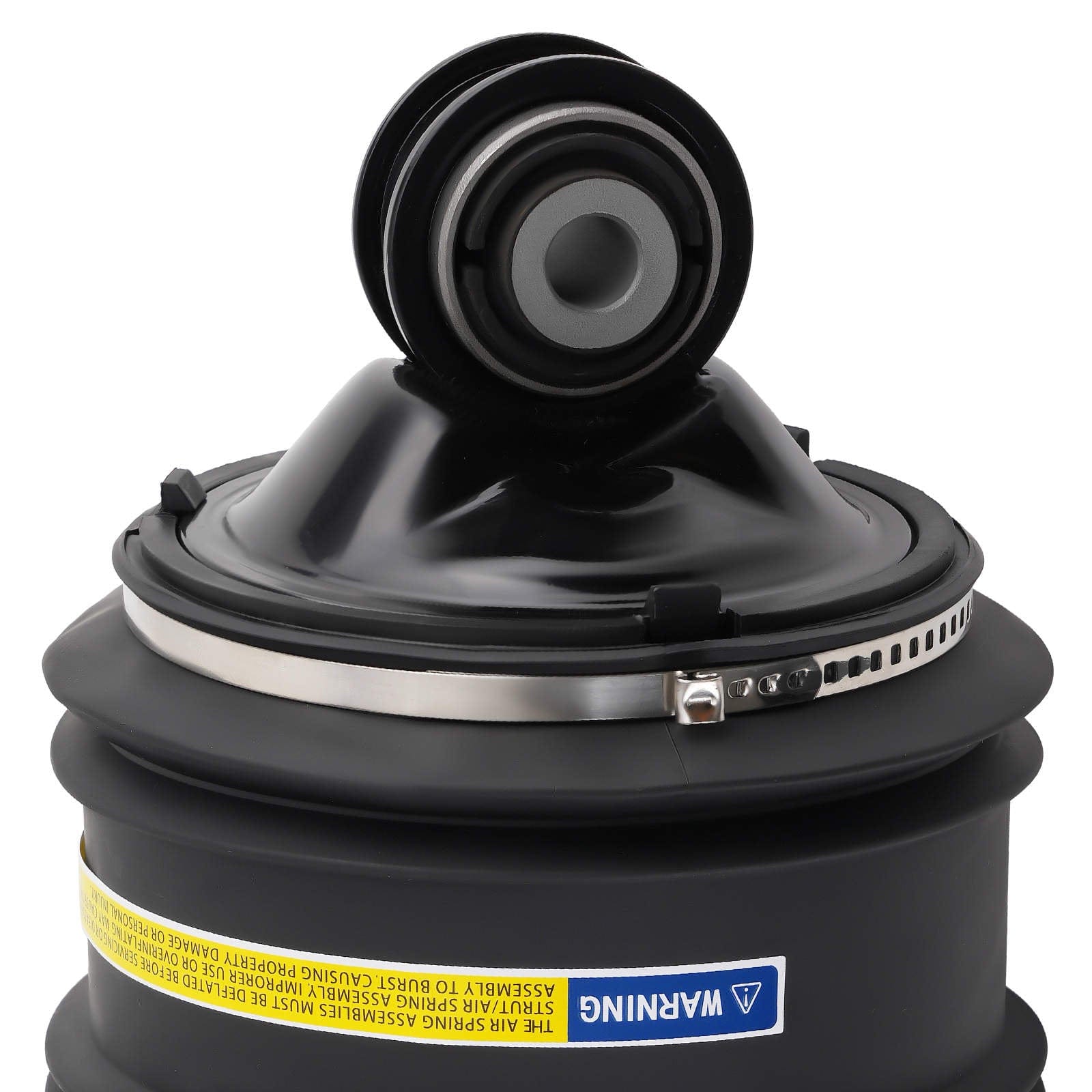

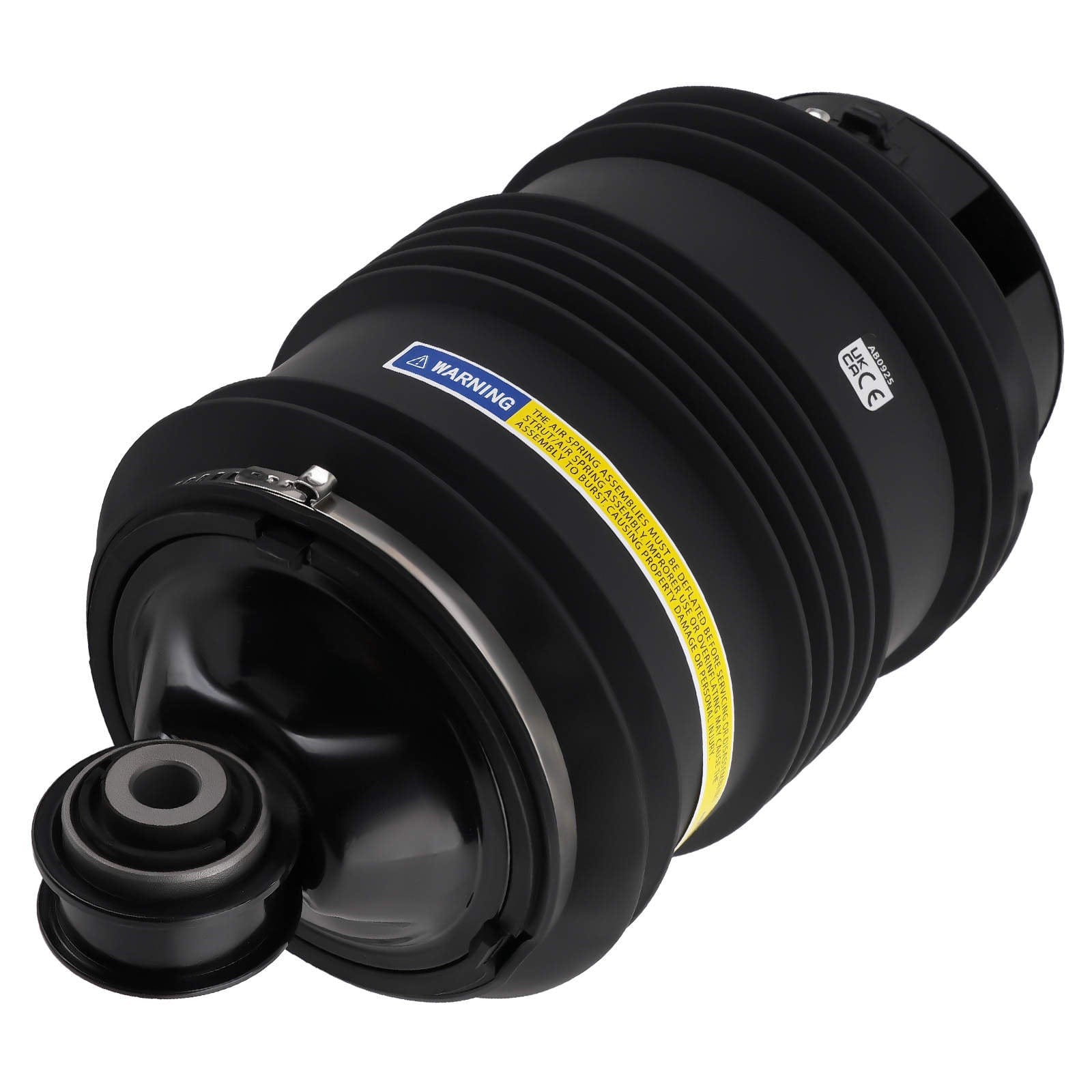

Air suspension (air spring bellows) for the rear axle, with 2-pin connection, to replace the original air suspension.
Suitable for:
- Mercedes-Benz E-Class T-Model (Wagon) S211, model year 2003-2009
- Mercedes-Benz E-Class T-Model S211 Estate E 55 T AMG Kompressor
- Mercedes-Benz E-Class T-Model S211 Estate E 63 T AMG Kompressor
- Various engine variants S211 (2003-2009), including E200 Kompressor 1796cc 135kW/184PS, E220 CDI 2148cc 100-125kW/136-170PS, E230 2496cc 150kW/204PS, E240 2597cc 130kW/177PS, E270 CDI 2685cc 120-130kW/163-177PS, E280 2996cc 170kW/231PS, E320/E320 CDI 2987-3222cc 150-165kW/204-224PS, E350 3498cc 200kW/272PS, E500 4MATIC 4966-5461cc 225-285kW/306-388PS
Specifications
- OEM / part number: 2113200925, A2113200925, 211 320 09 25, A 211 320 09 25, 211320092580, 211 320 09 25 80, A211320092580, A 211 320 09 25 80
- Connection(s): 2 pins
- Mounting position: left, right, rear
- Type: direct replacement
- Lubricable or sealed: sealed
- Adjustable: yes
- Stroke: 70 mm ± 25 mm
- Dimensions (L x W x H): 36 x 33 x 17 cm
- Warranty: 1 year on manufacturing defects
Scope of delivery

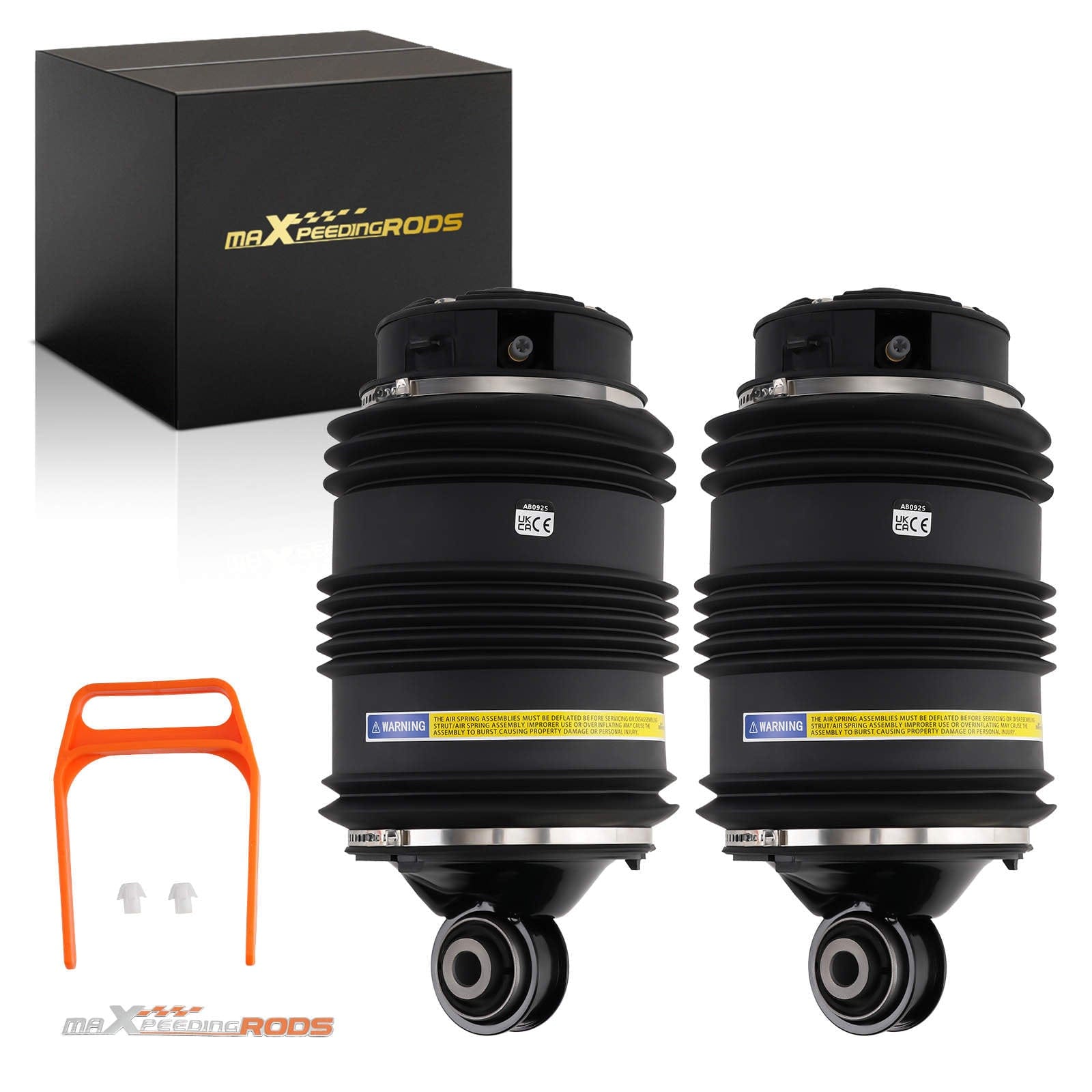

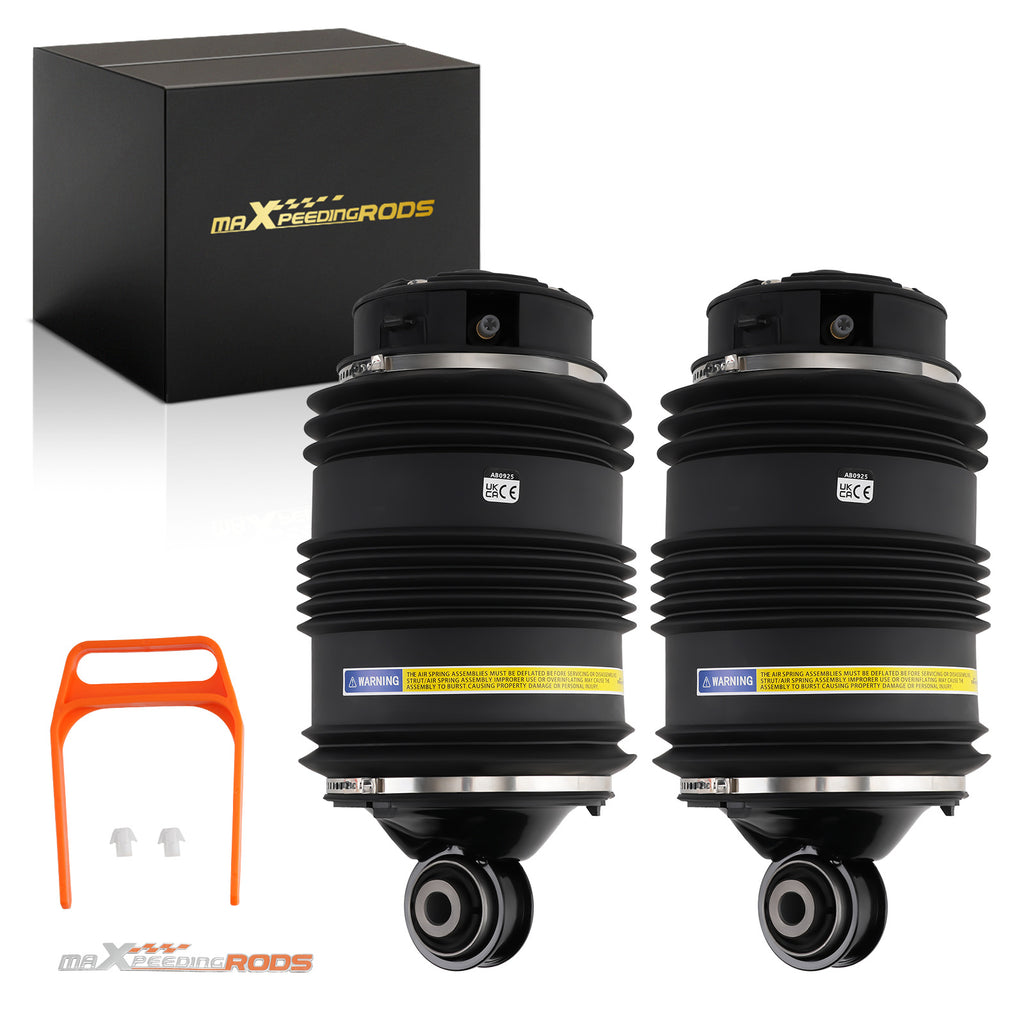

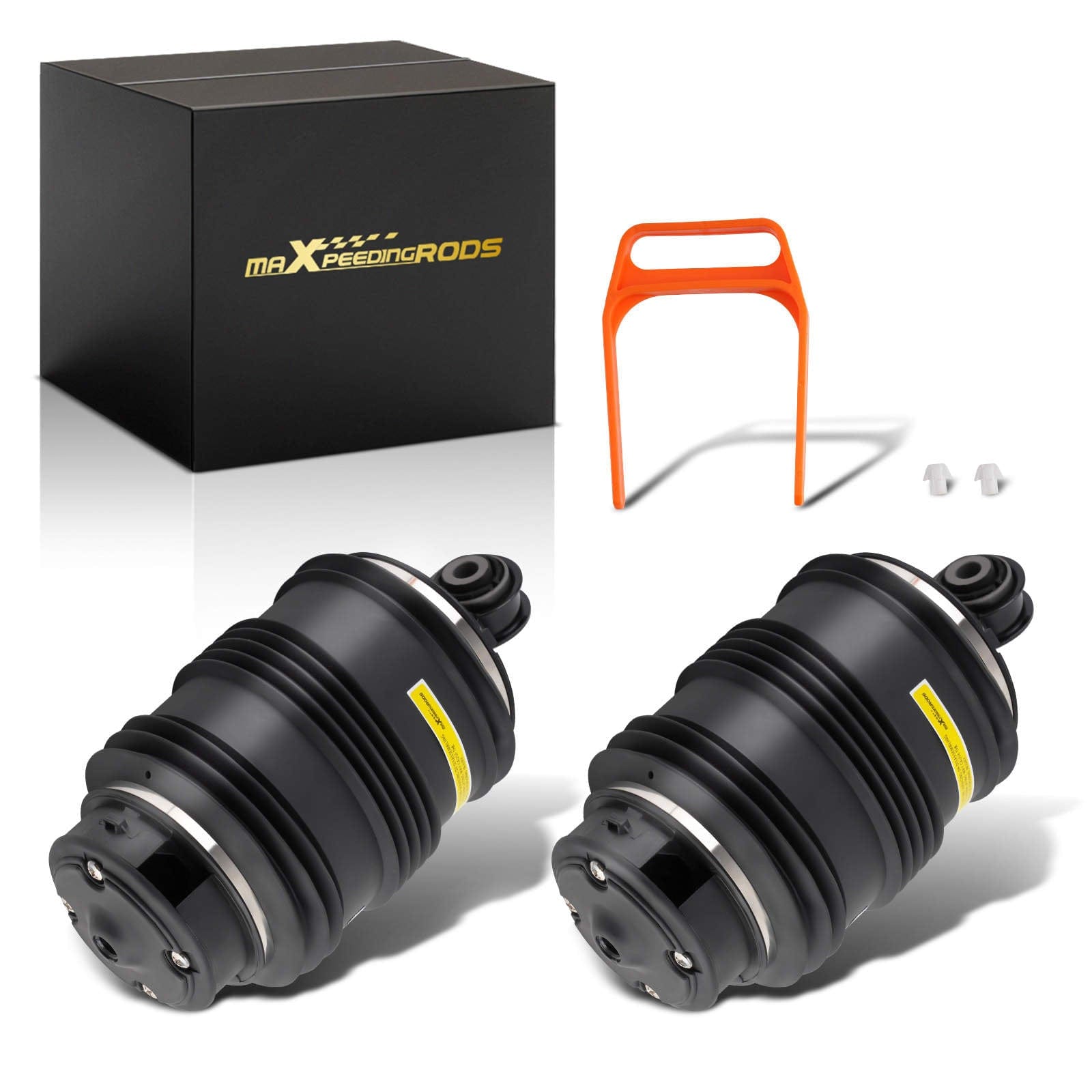

2x rear air spring bellows (left + right), air spring bellows clip to connect the air spring bellows and the upper mount, and an assembly aid to set the distance between the air spring bellows and the wishbone.
Features
- OEM product, easy to install
- Tested more than 5,000,000 times: durable and safe
- 24-hour airtightness test ≤ 0.02 MPa: guarantee of airtightness
- Temperature range ≥ -40°C / ≤ 70°C: premium natural rubber material
Please note: this is an aftermarket air spring, intended as a replacement for the original air spring. No installation manual is included; we recommend professional installation.
Check fitment
Before ordering, always check the original OEM part number, year of manufacture, engine code and the version of your vehicle, as there may be differences depending on the version. Are you unsure whether this part fits your vehicle? Feel free to contact us before purchase.
