Product Description

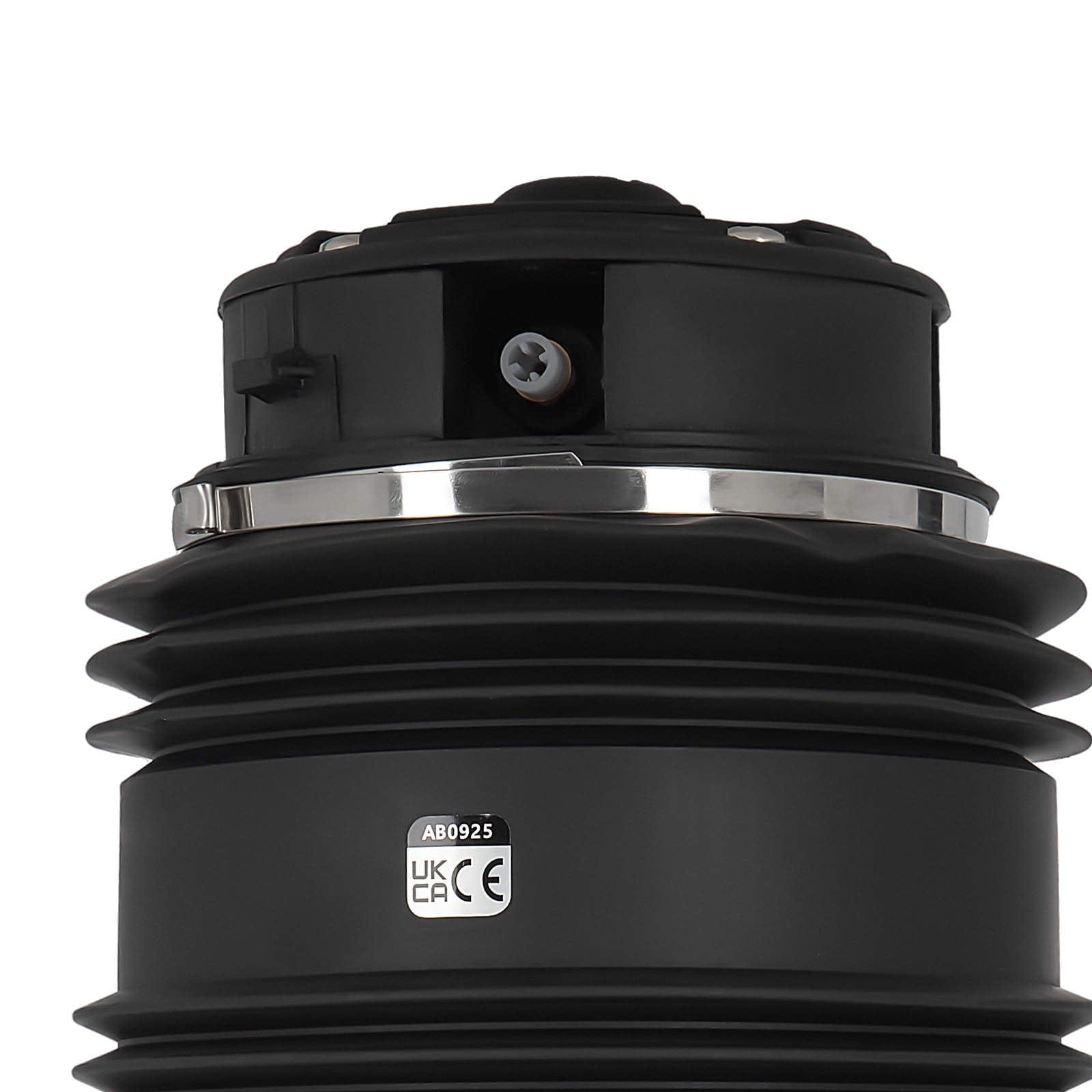

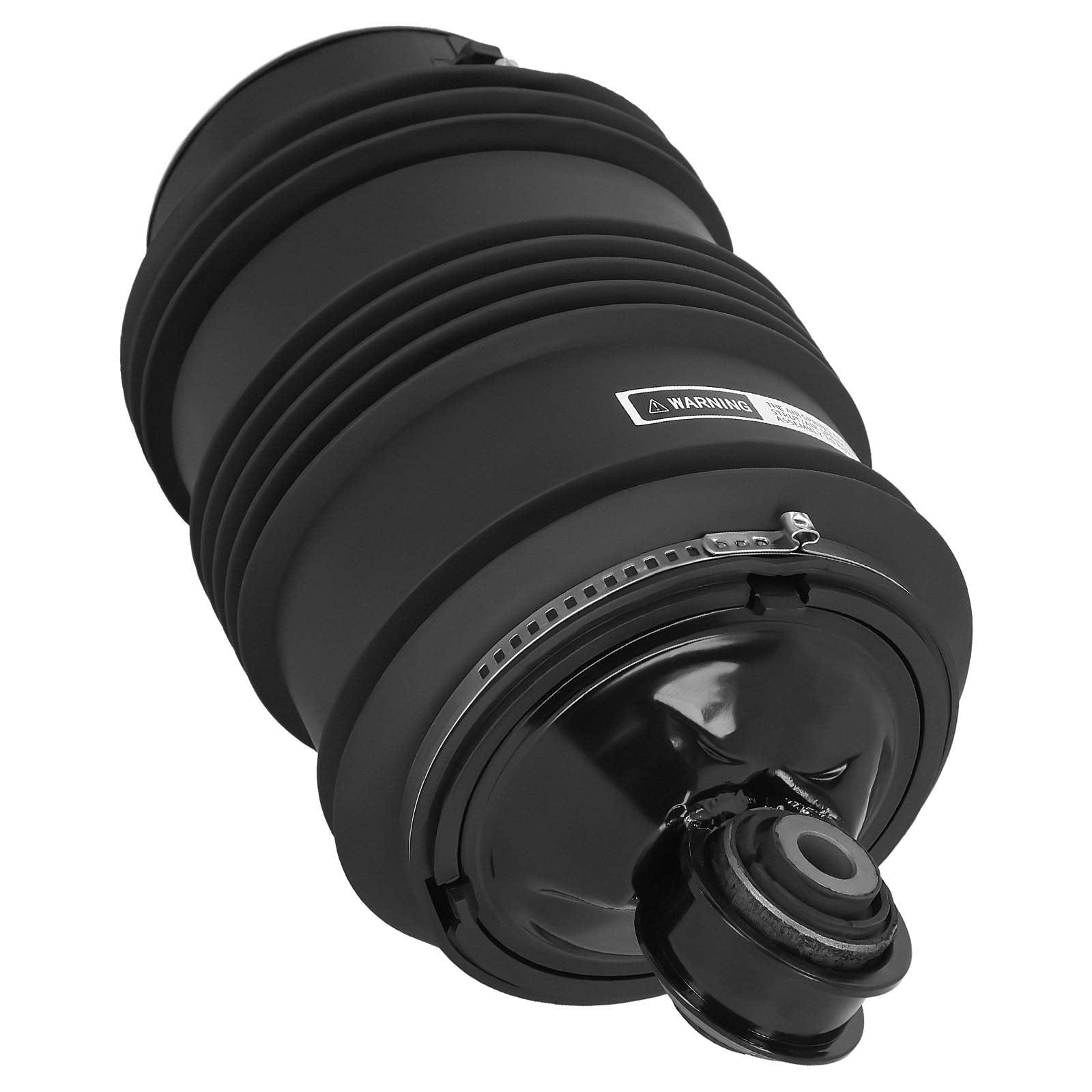

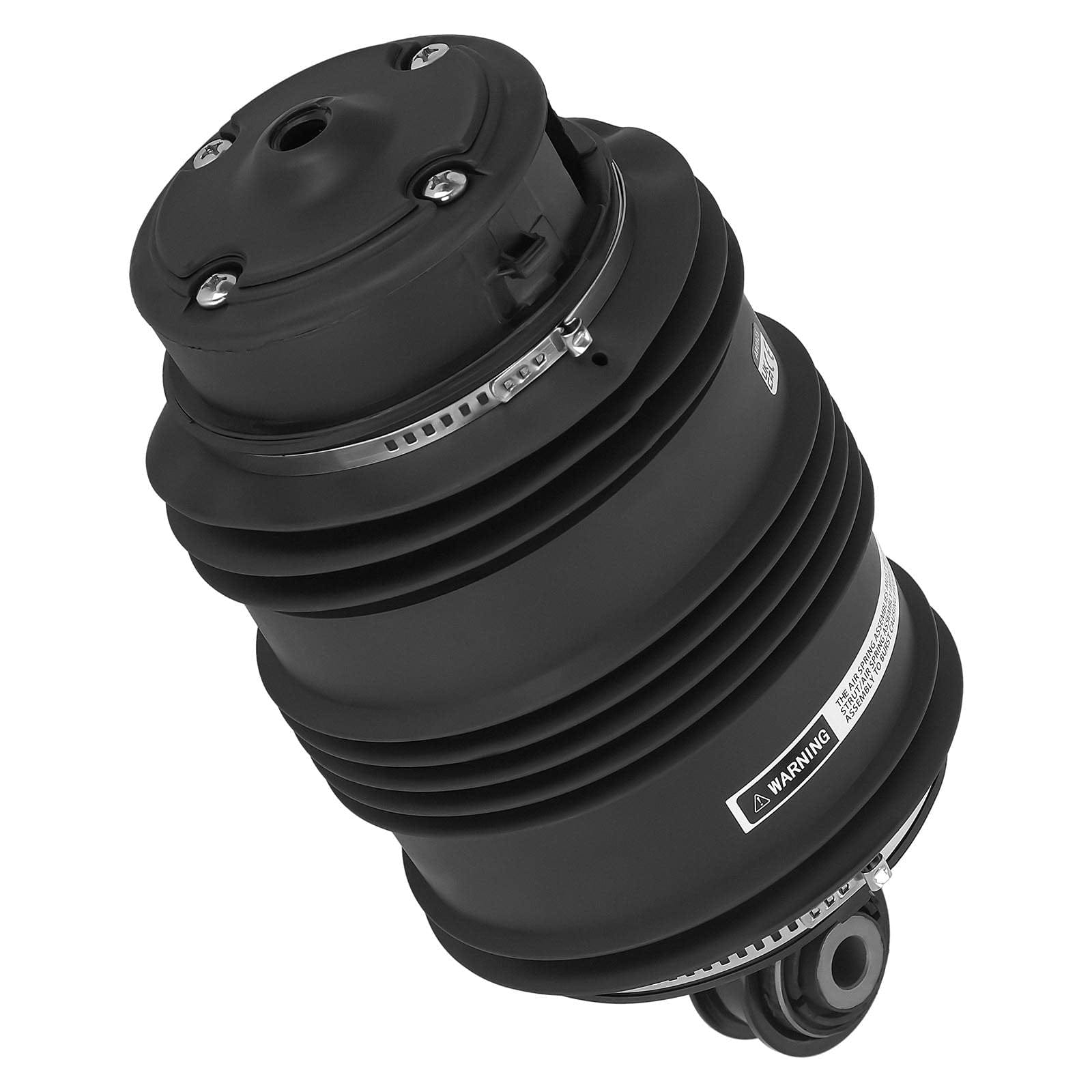

Set of 2 rear axle air springs (left and right), suitable as a direct replacement for the original parts. Please note: the connectors are 2-pin, not 3-pin.

Suitable for:

• Mercedes E-Class T-Model S211 350 CGI 2006/05-2009/07 3498 cc, 215 kW, 292 PS
• Mercedes E-Class T-Model S211 E 200 CDI 2006/04-2009/07 2148 cc, 100 kW, 136 PS
• Mercedes E-Class T-Model S211 E 200 Compressor 2006/04-2009/07 1796 cc, 135 kW, 184 PS
• Mercedes E-Class T-Model S211 E 200 T Compressor 2003/03-2009/07 1796 cc, 120 kW, 163 PS
• Mercedes E-Class T-Model S211 E 220 CDI 2003/03-2009/07 2148 cc, 100 kW, 136 PS
• Mercedes E-Class T-Model S211 E 220 T CDI 2003/03-2009/07 2148 cc, 110 kW, 150 PS
• Mercedes E-Class T-Model S211 E 220 T CDI 2006/04-2009/07 2148 cc, 125 kW, 170 PS
• Mercedes E-Class T-Model S211 E 230 T 2007/05-2009/07 2496 cc, 150 kW, 204 PS
• Mercedes E-Class T-Model S211 E 240 T 2003/03-2009/07 2597 cc, 130 kW, 177 PS
• Mercedes E-Class T-Model S211 E 240 T 4matic 2003/07-2009/07 2597 cc, 130 kW, 177 PS
• Mercedes E-Class T-Model S211 E 270 T CDI 2003/03-2009/07 2685 cc, 130 kW, 177 PS
• Mercedes E-Class T-Model S211 E 280 T 2005/03-2009/07 2996 cc, 170 kW, 231 PS
• Mercedes E-Class T-Model S211 E 280 T CDI 2005/03-2009/07 2987 cc, 140 kW, 190 PS
• Mercedes E-Class T-Model S211 E 320 T 2003/03-2009/07 3199 cc, 165 kW, 224 PS
• Mercedes E-Class T-Model S211 E 320 T CDI 2005/03-2009/07 2987 cc, 165 kW, 224 PS
• Mercedes E-Class T-Model S211 E 350 T 2005/03-2009/07 3498 cc, 200 kW, 272 PS
• Mercedes E-Class T-Model S211 E 500 T 2003/10-2009/07 4966 cc, 225 kW, 306 PS
• Mercedes E-Class T-Model S211 E 55 T AMG Compressor 2003/07-2009/07 5439 cc, 350 kW, 476 PS
• Mercedes E-Class T-Model S211 E 63 AMG 2006/03-2009/07 6208 cc, 378 kW, 514 PS

Specifications

• OEM / Part Number: 2113200925, A2113200925, A-211-320-09-25, 40076638, 211 320 09 25, 211320092580, A211320092580
• Number of connections: 2 pins
• Quantity: 2 pieces (for rear left and right)
• Condition: new
• Mounting type: direct replacement
• Installation position: left, right, rear
• Lubricated or sealed: sealed
• Adjustable: yes
• Stroke: 70 mm ± 25 mm
• Dimensions (l × w × h): 36 × 33 × 17 cm
• Weight: 4.85 kg
• Temperature range: ≥ -40 °C / ≤ 70 °C

Scope of delivery

• 2x air spring rear axle (left and right)
• Clips for the air bellows to connect bellows and top mount
• Installation aid for setting the distance between air bellows and wishbone

Features

• Easy to install
• Tested over 5 million times, durable and safe
• 24-hour airtightness test ≤ 0.02 MPa
• High-quality natural rubber, resistant to -40 °C to 70 °C

Please note

Please note: the connectors are 2-pin, not 3-pin. This is an aftermarket air suspension to replace the original air springs. Please confirm compatibility and your OEM number before purchasing. Professional installation is recommended.

Check fitment

Always check the original OEM part number, year of manufacture, engine code and the version of your vehicle before ordering, as there may be differences depending on the version. If you are unsure whether this part fits your vehicle, please feel free to contact us before purchasing.
