Air Suspension Z6 rear + Compressor Kit Two-Circuit System suitable for Fiat Ducato 1994-
Air Suspension Z6 rear + Compressor Kit Two-Circuit System suitable for Fiat Ducato 1994-
- * Concurrerende prijs
- * Sneller verzenden
- * Staat: 100% nieuw!
- * Garantie: 1 jaar garantie op eventuele fabricagefouten
- * Accessoires: je ontvangt precies zoals op de afbeelding hierboven!
Product Description
Rear air suspension kit with compressor.
Suitable for:
- Peugeot Boxer 230 / 244 / 250, from 1994
- Fiat Ducato Z6 ZFA230 / ZFA244 / ZFA250, from 1994
- Citroën Jumper 230 / 244 / 250, from 1994
Specifications
- Condition: completely new
- Installation position: rear left and right
- Maximum load: 7300 LBS
- Air spring - port size: G1/8
- Air spring - stroke: 130 mm
- Air spring - maximum extended: 260 mm
- Air spring - minimum compressed: 130 mm
- Air spring - operating pressure: ≤ 2.0 MPa
- Air spring - temperature range: ≥ -40°C, ≤ +70°C
- Compressor - power: 150 W
- Compressor - output voltage: 12 V
- Compressor - maximum operating pressure: 10 bar (1 MPa)
Scope of delivery

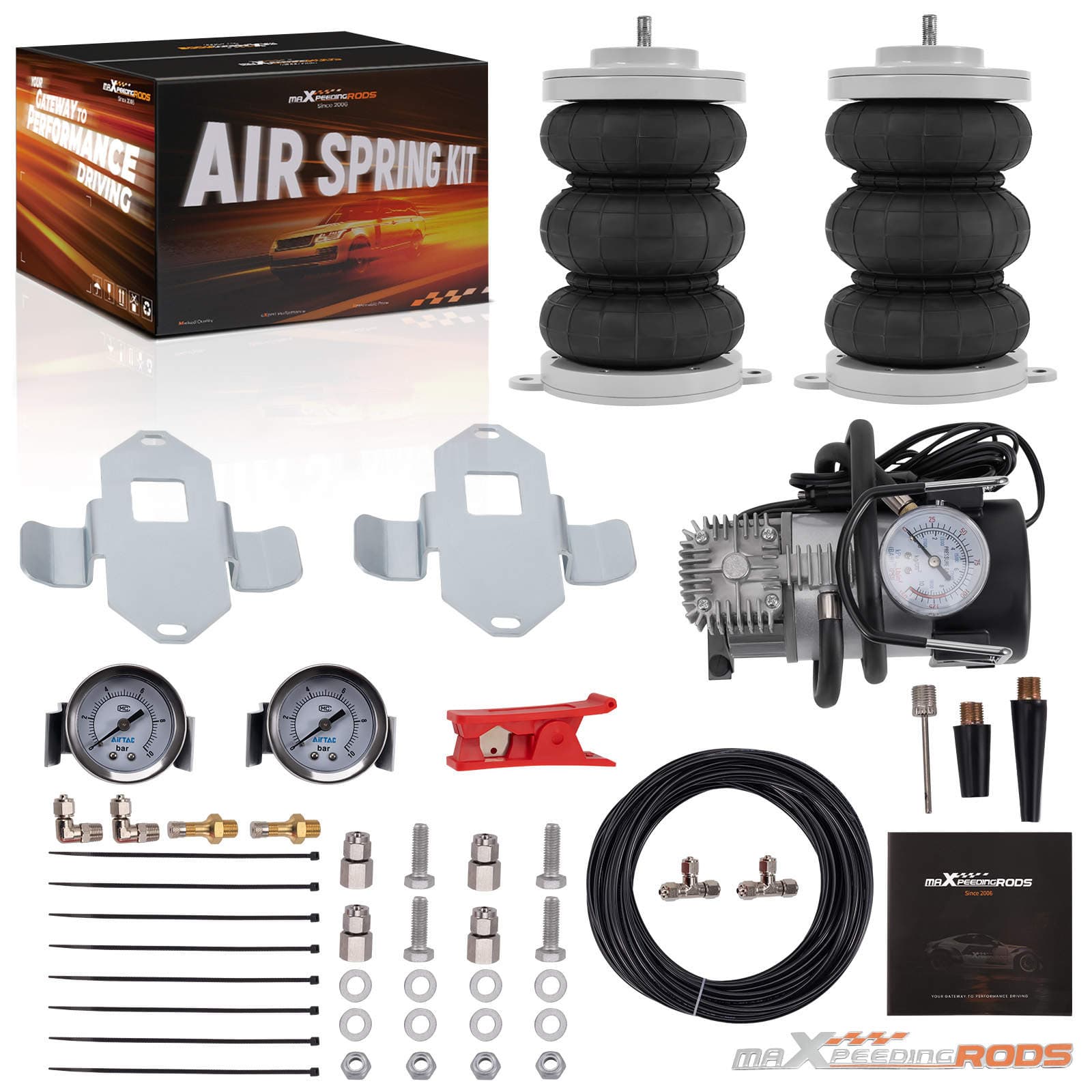

2x triple convoluted air spring bellows, 1x 12V air suspension compressor, 2x pressure gauge, 2x mounting bracket, 1x air hose, mounting bolts and air fittings
Features
- Load tested over 5,000,000 times: durable and safe
- Burst pressure ≥ 2.0 MPa: high pressure resistance and less noise
- 100% airtightness guarantee
- Temperature range ≥ -40°C / ≤ 70°C: high-quality natural rubber
- 4-layer reinforced construction for better load-bearing support
- High-quality steel with high load capacity and long service life
- Practical bolt-on mounting
- Restores original ride height and improves driving comfort
- Dacromet surface treatment for better corrosion resistance than traditional galvanizing
- CE certification
Please note
Not suitable for vehicles with the Italian national ABE approval "DGM 54739 OM". This is an aftermarket kit that replaces the original part.
Check fitment
Before ordering, always check the original OEM part number, year of manufacture, engine code and the version of your vehicle, as there may be differences depending on the version. Are you unsure whether this part fits your vehicle? Feel free to contact us before purchase.
.jpg?x-oss-process=image/auto-orient,1/quality,q_70/resize,m_mfit,w_1000,h_1000)
A:Hallo, Wenn Ihr Modell Petrol Estate /Petrol Saloon 1995cc 100KW/1995cc 105KW ist, kann es angepasst werden. Bitte überprüfen Sie es erneut. mfG.
