Electric Vacuum Pump 12V for brake booster, switches 18-22 inch Hg, with relay, vacuum switch and hardware kit
Electric Vacuum Pump 12V for brake booster, switches 18-22 inch Hg, with relay, vacuum switch and hardware kit
- ✓ Price includes VAT — no surprises later
- ✓ Fast shipping from our own stock
- ✓ 100% new, aftermarket in OE quality
- ✓ 2-year warranty against manufacturing defects
Product description

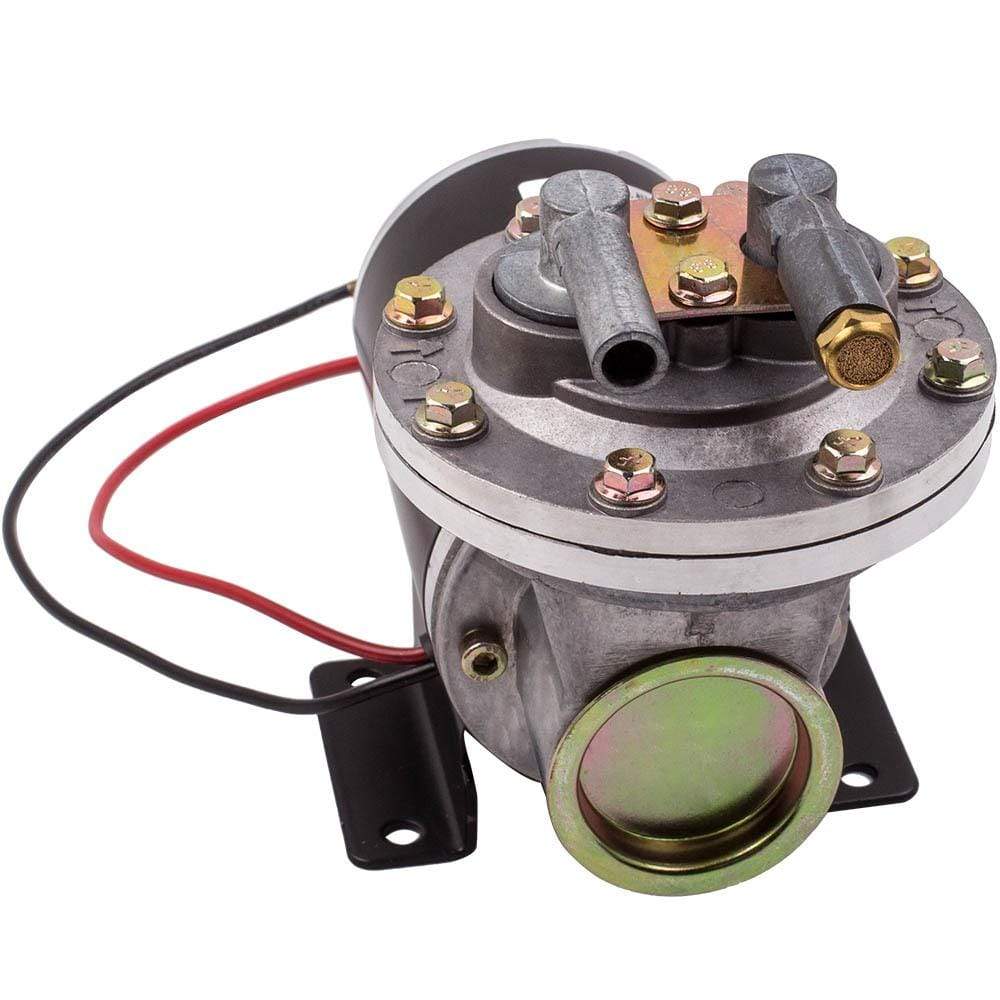

Electric 12V vacuum pump for the brake booster, for vehicles where the engine does not generate enough vacuum. The pump switches on automatically below 18 inches of vacuum and off above 22 inches.
Fits:
- Universal: vehicles with a vacuum brake booster and 15 inches of vacuum or less at idle
Specifications
- OEM / part number: no OEM number (item number VP-18-22)
- Rated voltage: DC 12V
- Operating voltage: DC 9-16V
- Switching range: on below 18 inHg, off above 22 inHg
- Exhaust flow: 2600 L/h
- Inlet diameter: Ø 12
- Outlet diameter: Ø 14
- Operating temperature: -30 °C to +85 °C
- Dimensions: 206.2 x 108 x 163.6 mm
- Mounting position: front, left, right

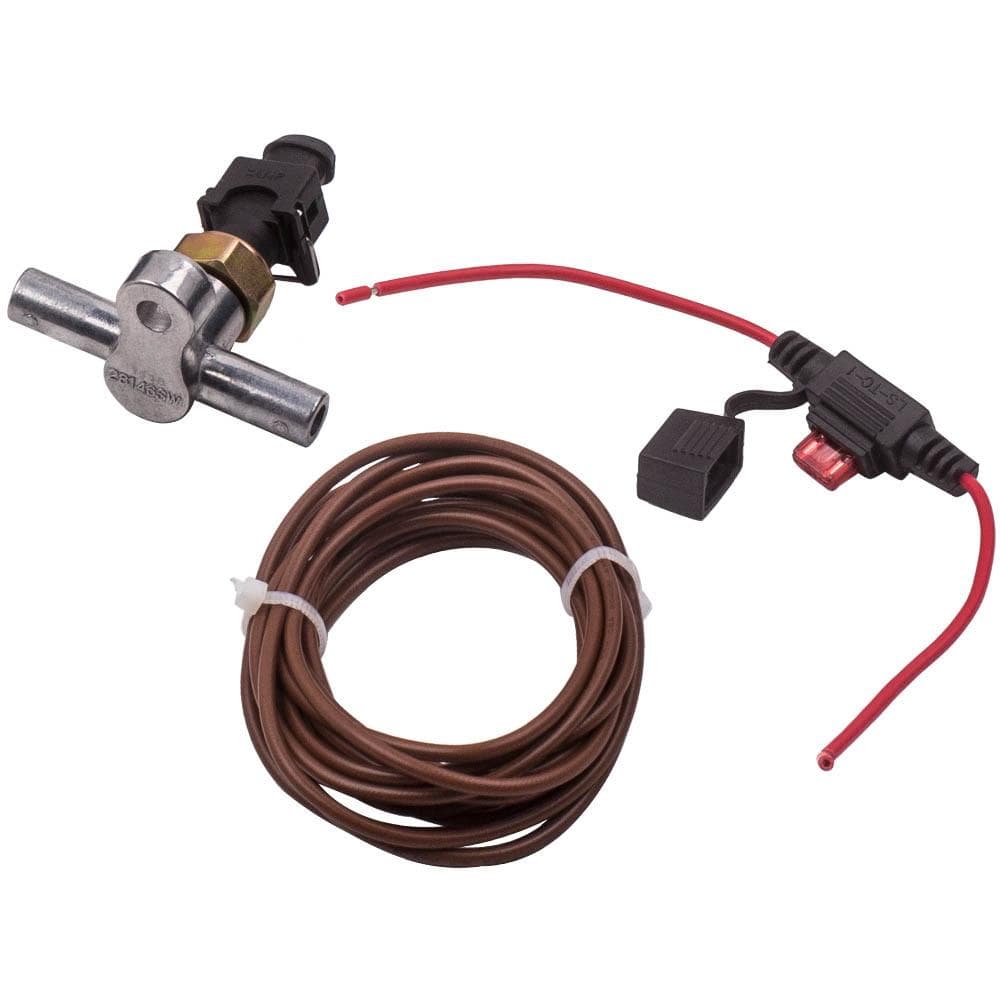

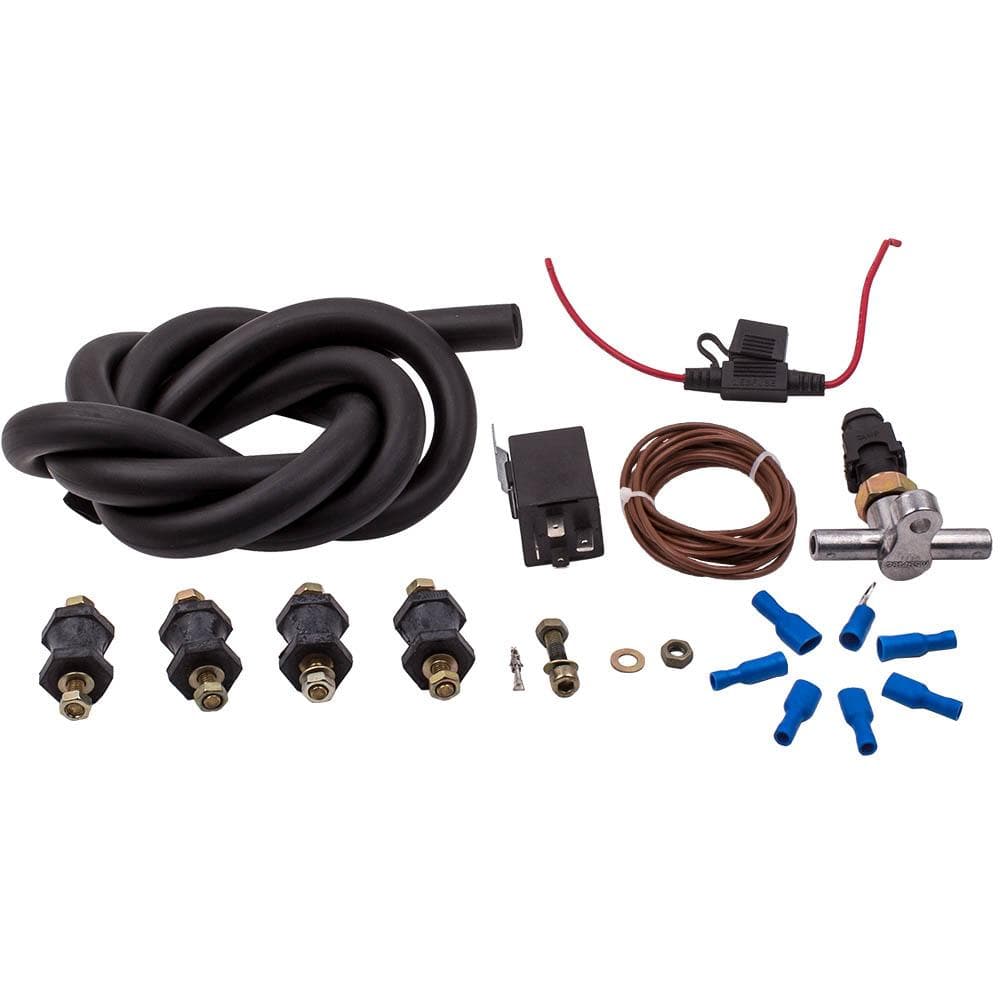

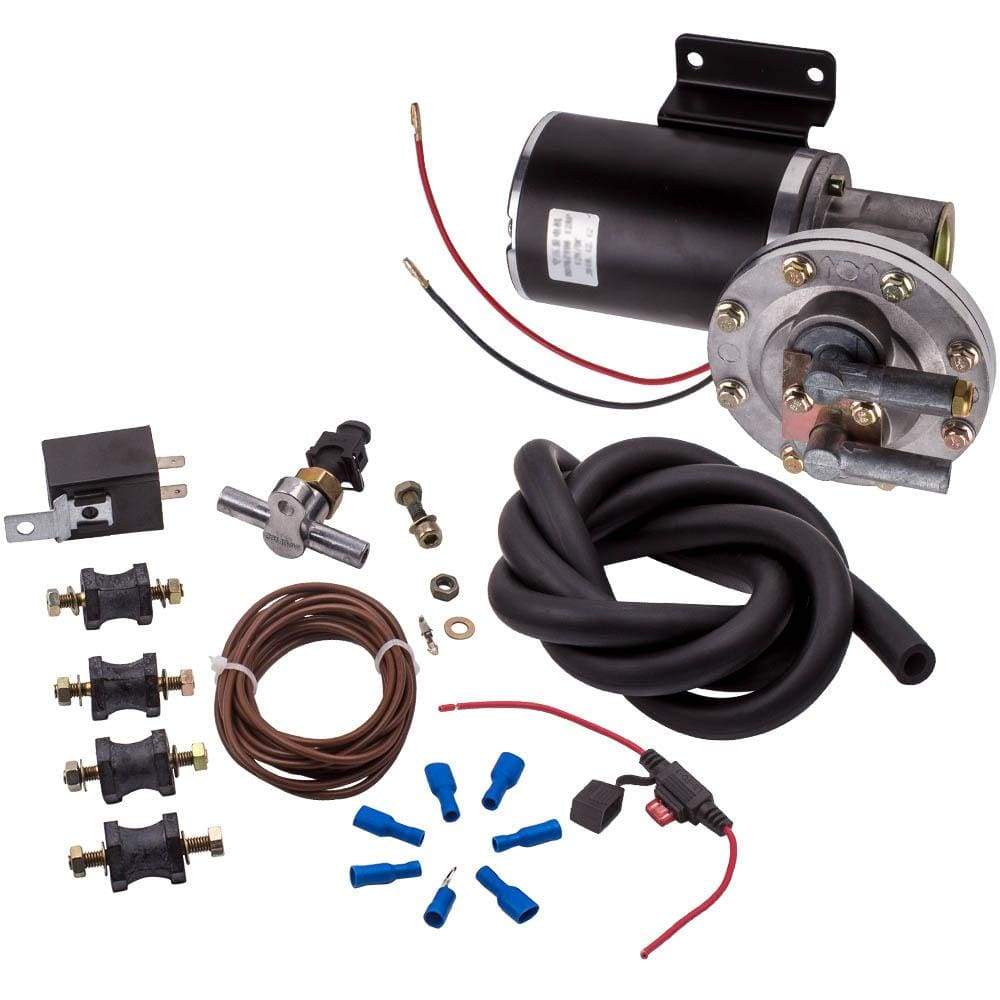

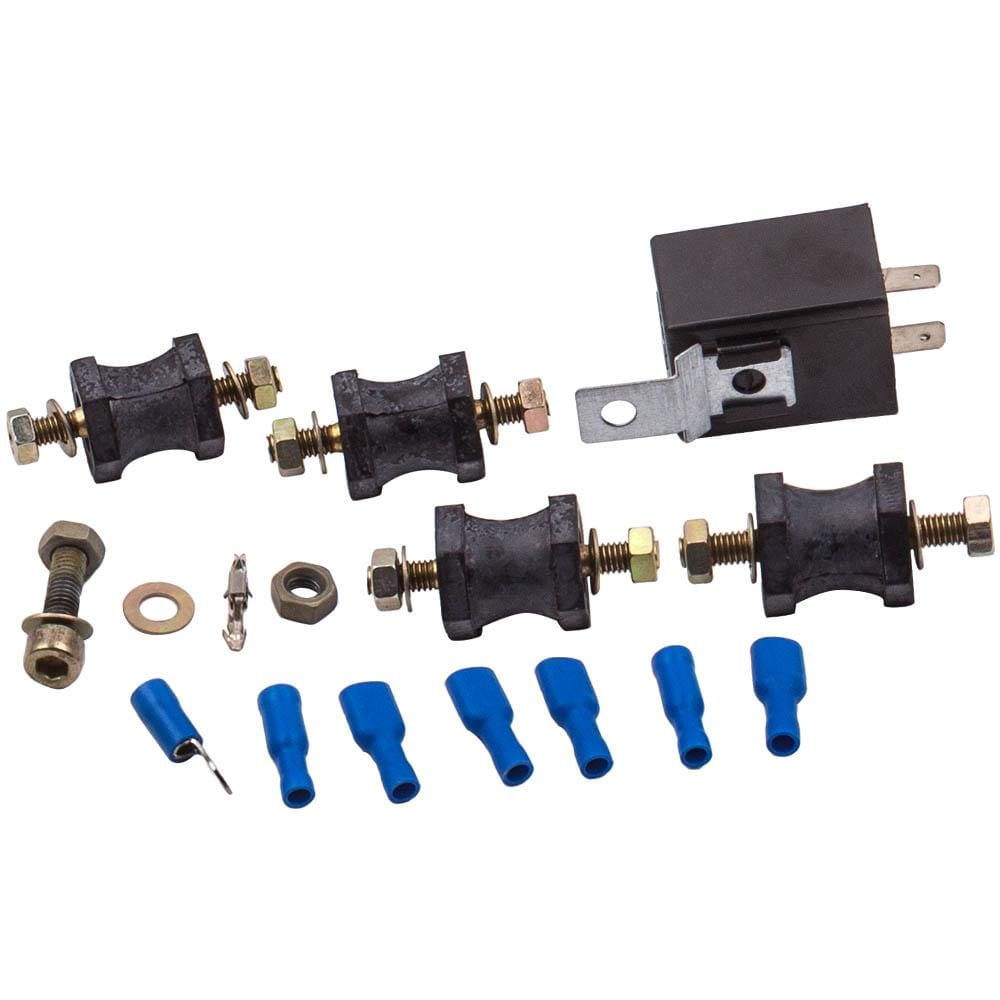

- Contents: 1x 12V pump, 1x relay, 1x vacuum pressure switch, 1x vacuum hose, 1x mounting hardware kit
- Quantity: 1 set
- Condition: New
- Warranty: 1 year on manufacturing defects
Features
- Connects directly to the brake booster
- Self-regulating inline vacuum switch turns the pump on and off automatically
- Complete wiring with connectors for easy installation
- Reduced vibration and fitted with an exhaust filter
- All required mounting hardware included
Check fitment
Before ordering, always check the original OEM part number, model year, engine code and the version of your vehicle, as there may be differences between versions. Not sure whether this part fits your vehicle? Feel free to contact us before purchasing.
