Product Description

This air suspension kit with 12V compressor is a replacement kit for your vehicle's original air suspension.

Suitable for:

• Nissan Interstar X70, front-wheel drive, 1998-2010
• Opel Movano X70, single wheels, front-wheel drive, 1998-2010
• Vauxhall Movano X70, single wheels, front-wheel drive, 1998-2010
• Renault Master X70, front-wheel drive, 1998-2010

Specifications

• Condition: New
• Installation position: Rear left and right
• Maximum load: 4000 kg
• Package dimensions: 42 x 34 x 26 cm
• Kit weight: 14.7 kg

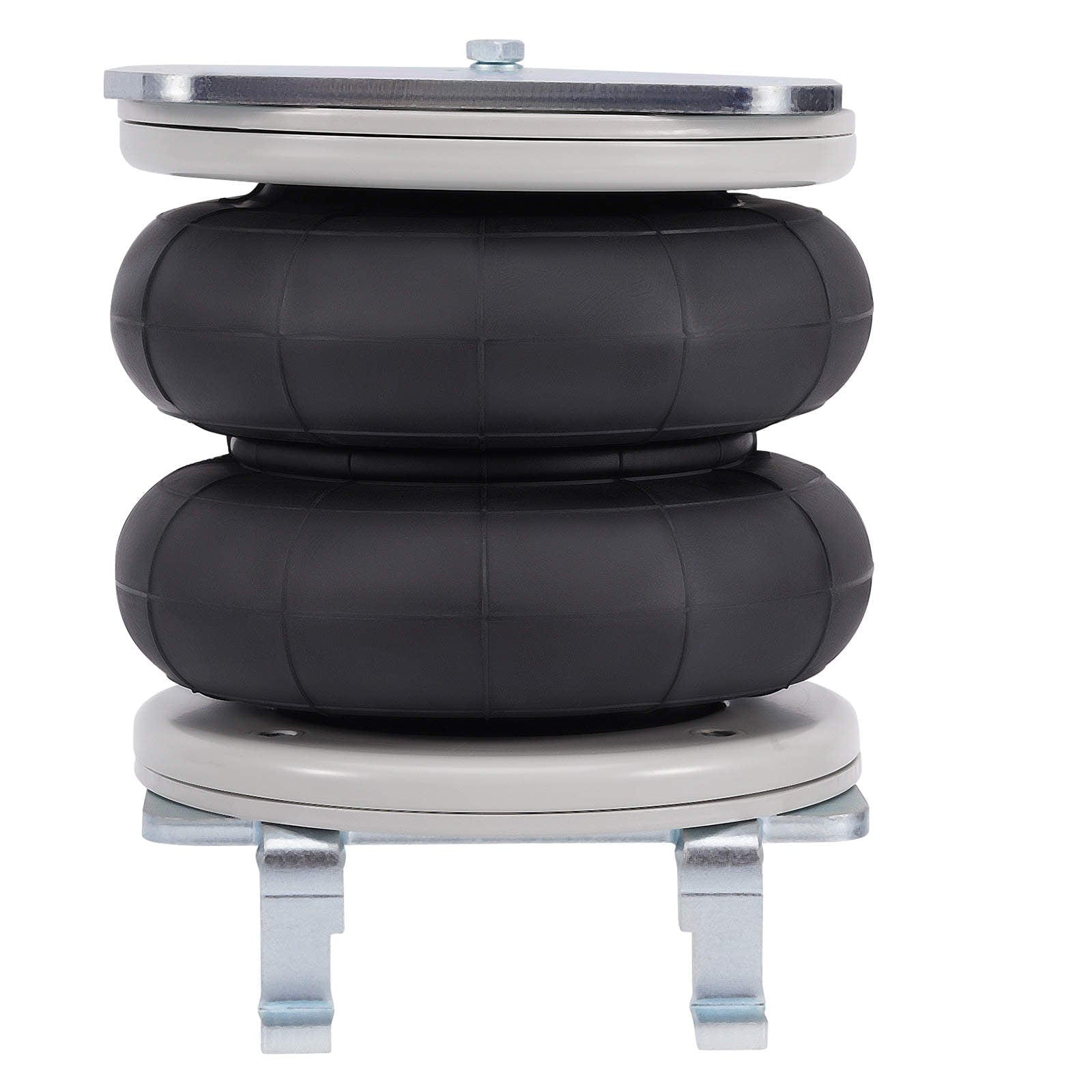

• Air spring, design height: 172 mm
• Air spring, stroke: 140 mm
• Air spring, max. extended length: 230 mm
• Air spring, min. compressed length: 90 mm

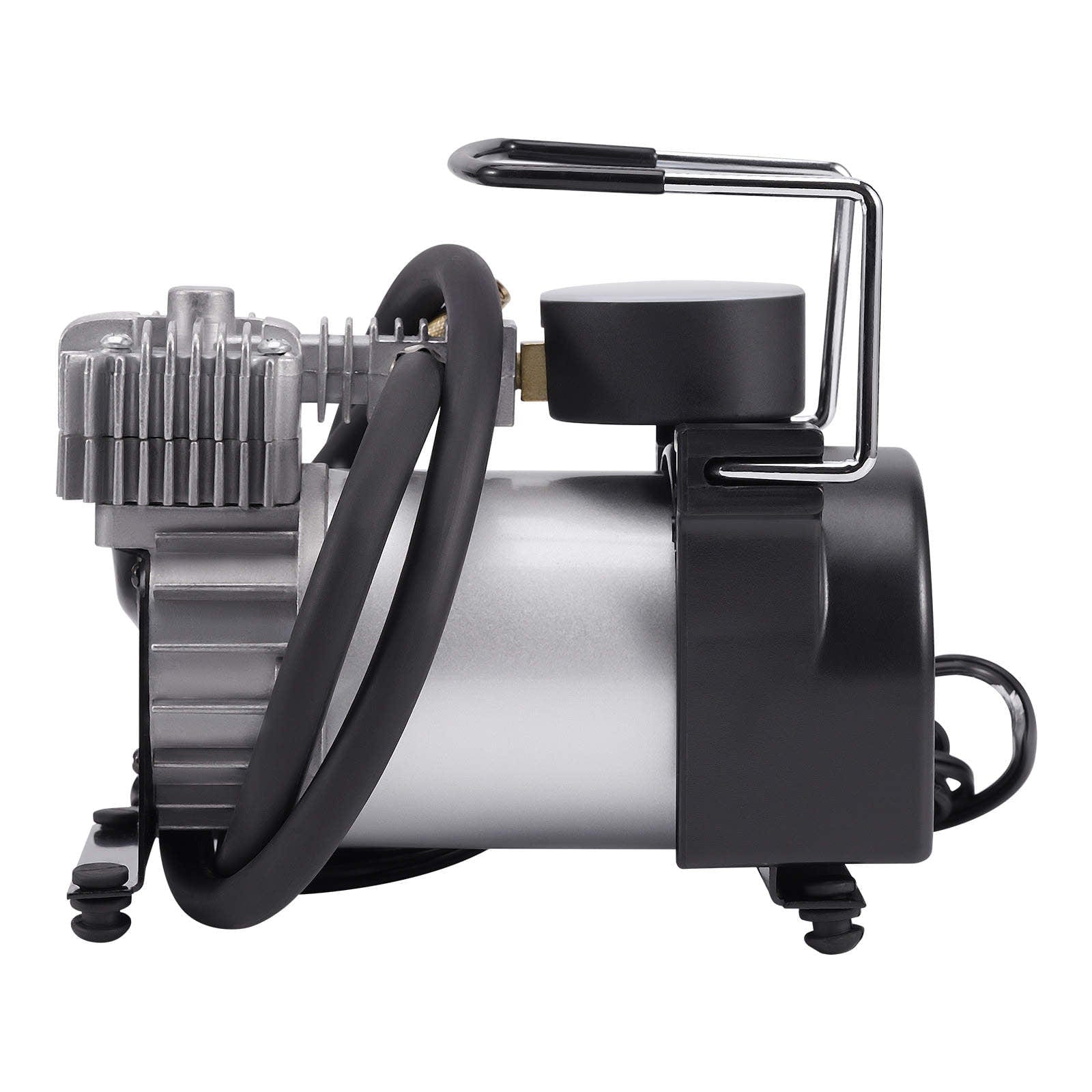

• Air pump, power: 150 W
• Air pump, output voltage: 12 V
• Air pump, maximum current: 10 A
• Air pump, maximum working pressure: 10 bar (1 MPa)

Scope of delivery

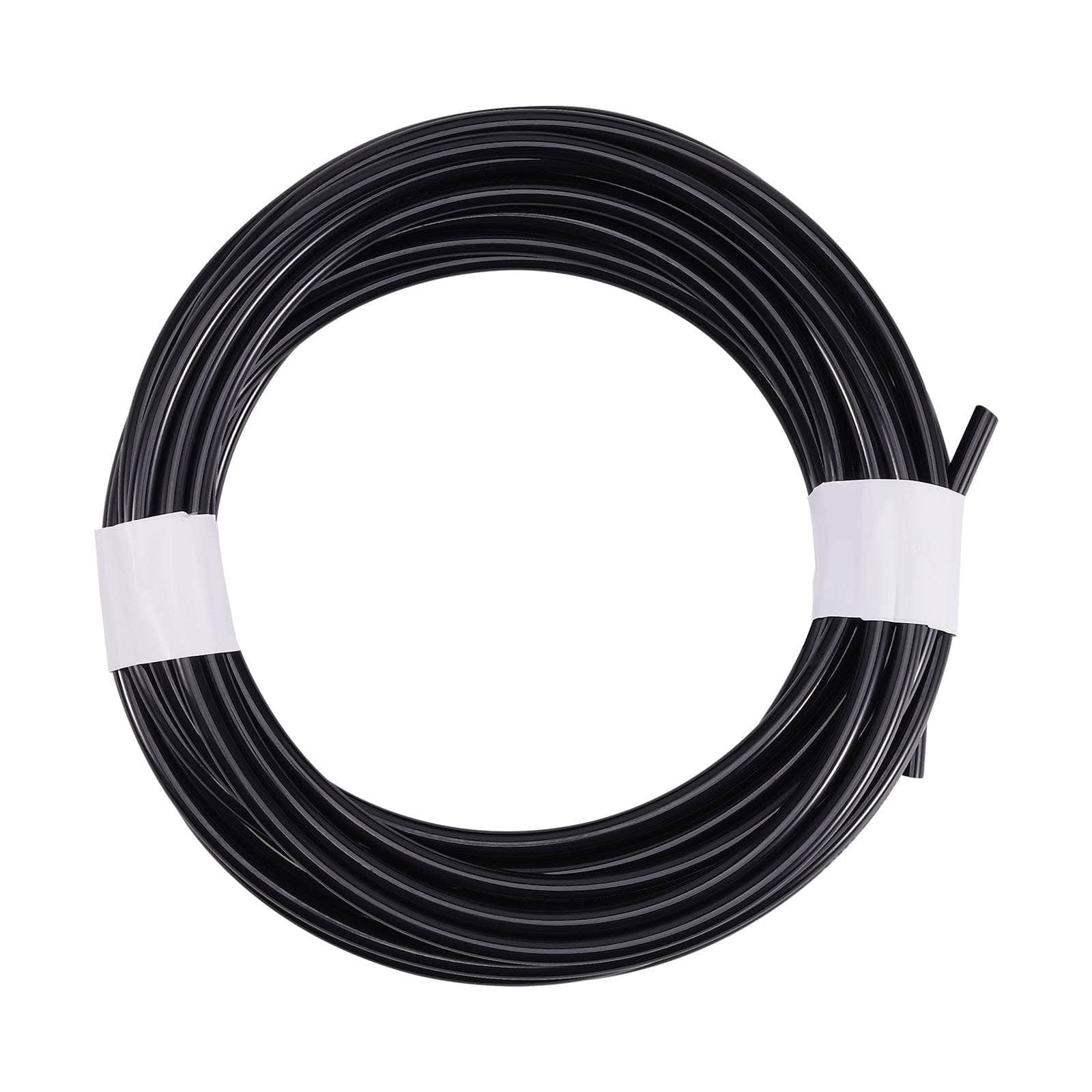

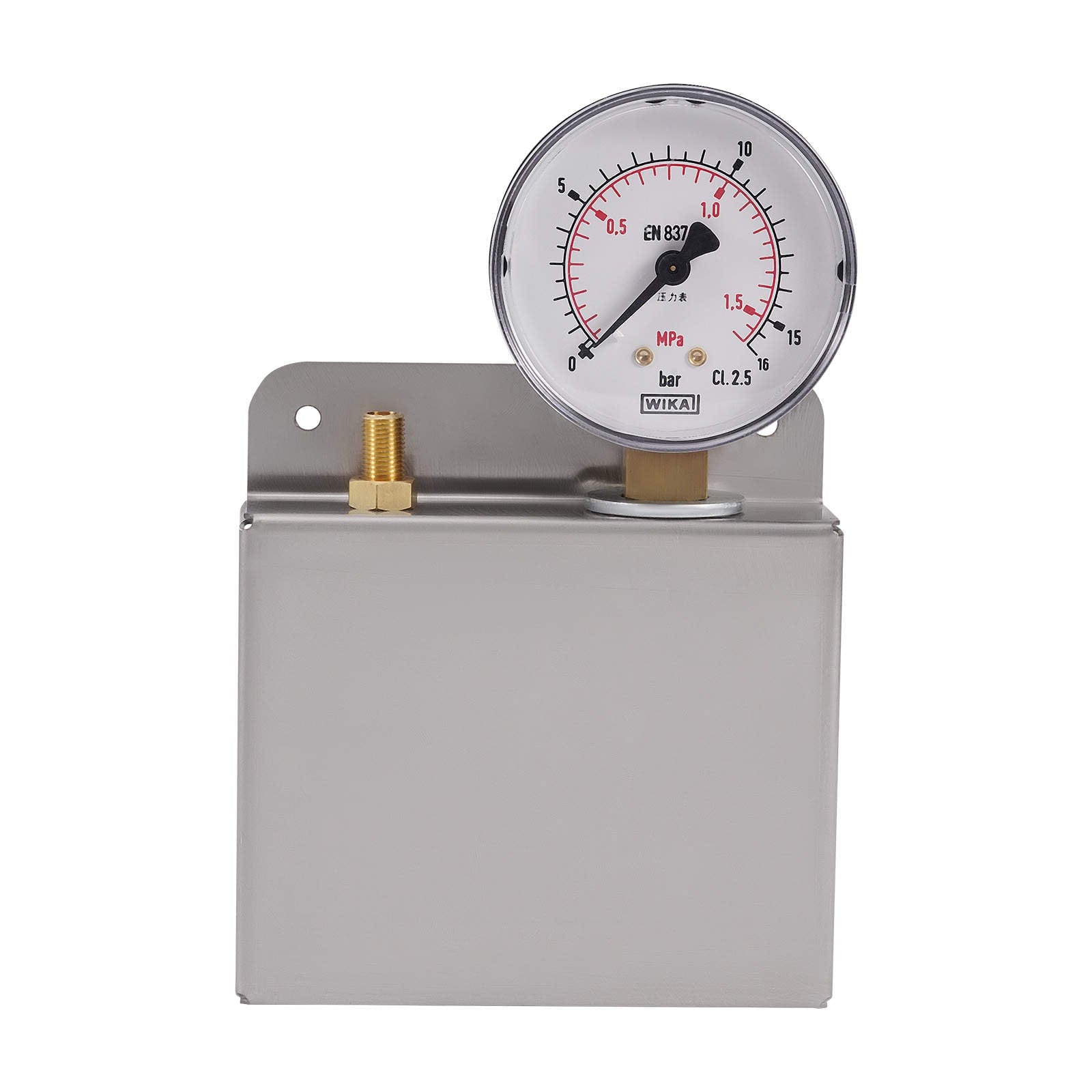

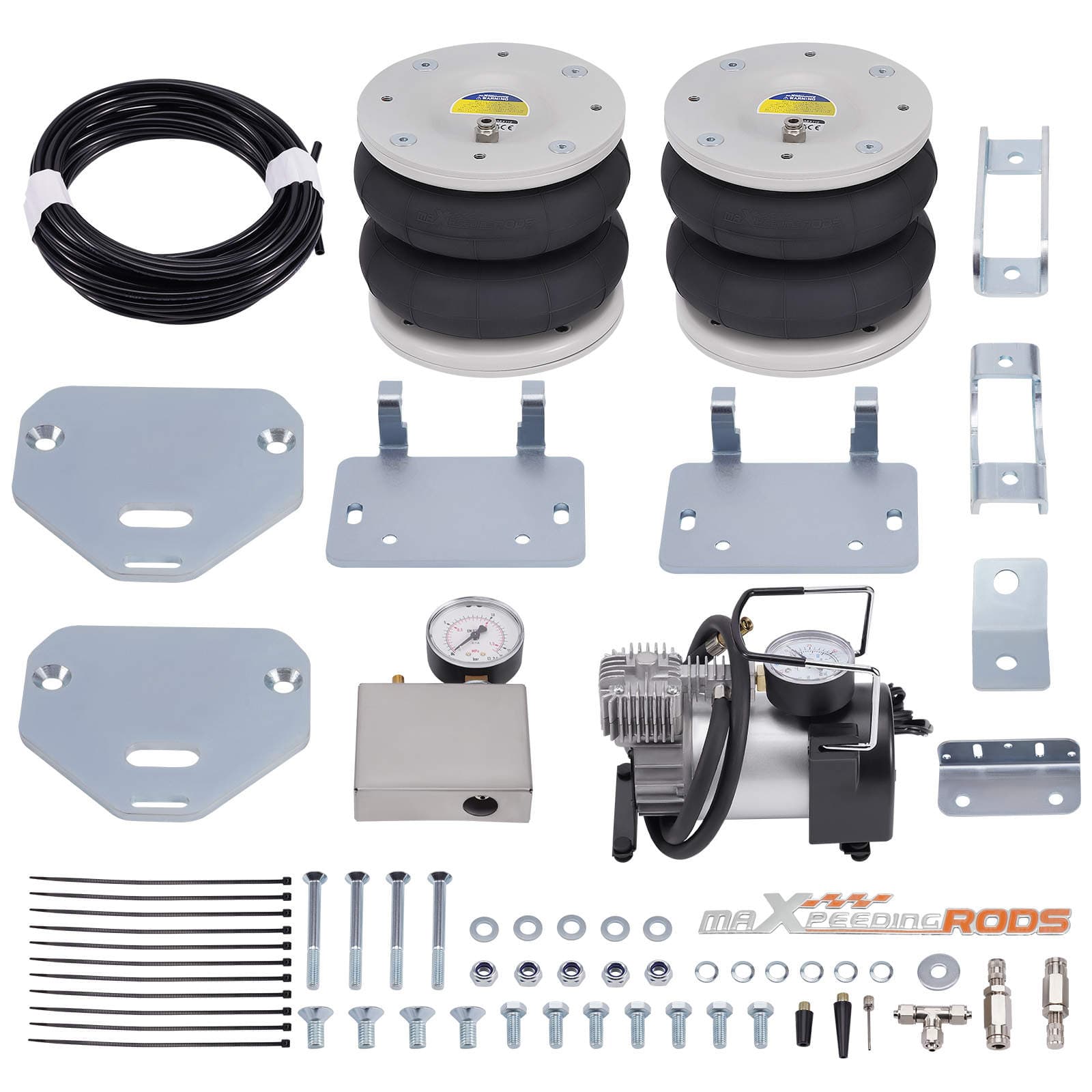

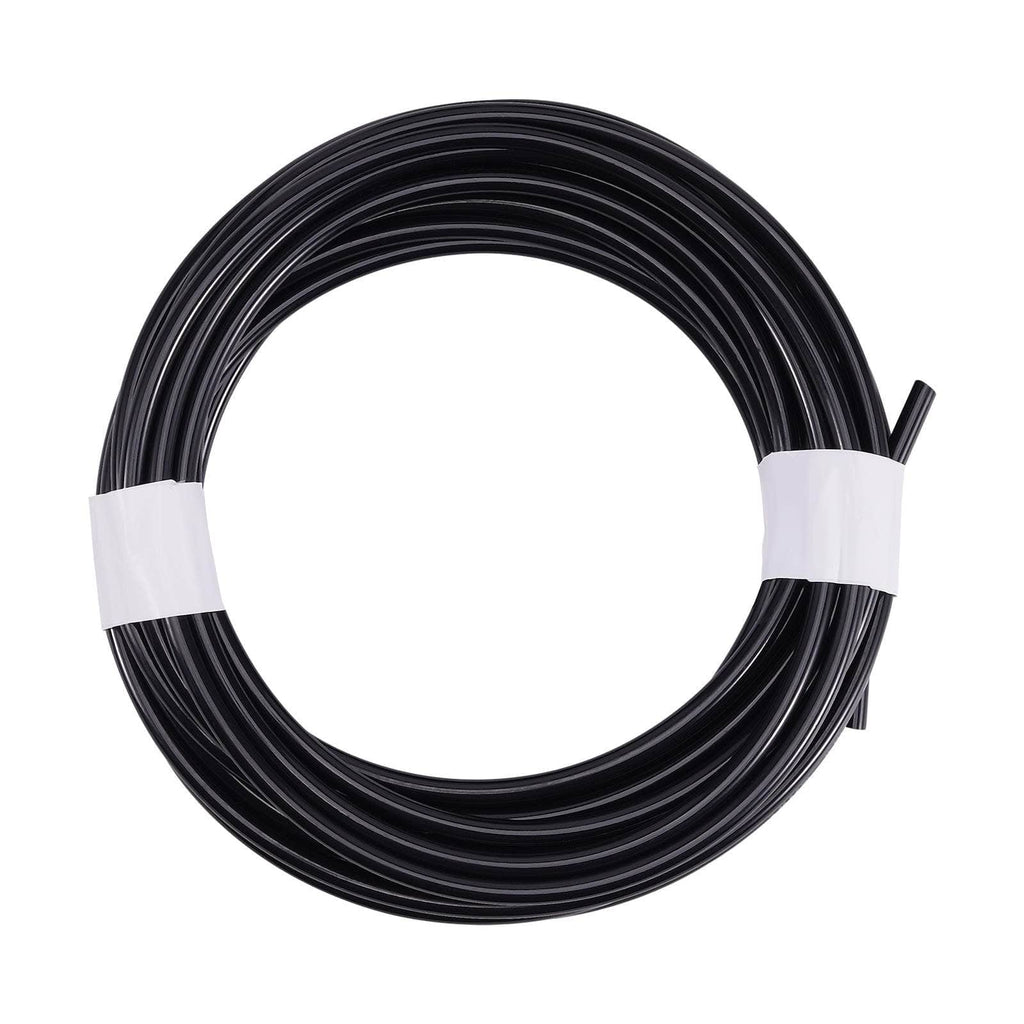

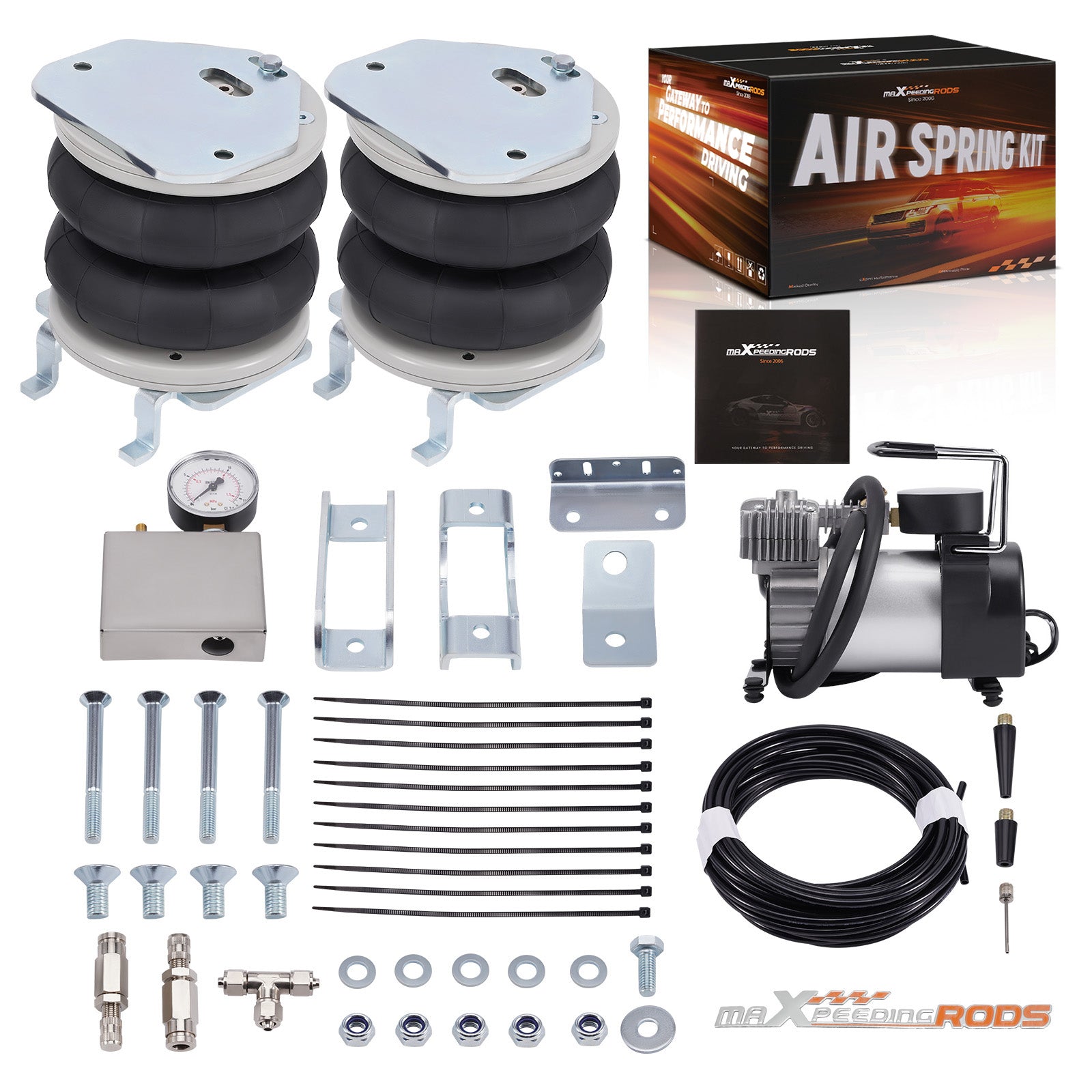

2x air suspension bags made of natural rubber and high-quality steel, 1x air suspension compressor, 1x installation box, 1x dashboard air pressure gauge, 4x galvanized heavy-duty mounting brackets, 1x 5m air line, mounting bolts and air fittings.

Features

• Durability test of over 5,000,000 cycles
• Burst pressure ≥ 2.0 MPa: high pressure resistance and reduced noise
• Airtightness test ≤ 0.02 MPa: 100% guaranteed airtightness
• Temperature range ≥ -40°C / ≤ 70°C thanks to high-quality natural rubber
• High-quality steel with high load capacity and long service life
• Simple bolt-on installation
• Restores original ride height, improves ride comfort, and reduces tire wear

Please note

This is an aftermarket air suspension kit, intended as a replacement for the original. No installation manual is included; professional installation is recommended.

Check fitment

Always check the original OEM part number, year of manufacture, engine code, and vehicle version before ordering, as there may be differences depending on the version. If you are unsure whether this part fits your vehicle, please contact us before purchasing.
